Cone Antennas

Bicone, discone, monocone, strip bicone, and strip discone

Biconical antennas are broadband omnidirectional antennas that are widely used in Electorate Support Measurement (ESM). Discone antenna is an omnidirectional, vertically polarized, exceptionally wideband antenna offering a frequency range ratio of 10:1.


Antenna DesignerDesign, visualize, and analyze antennas
Antenna Array DesignerDesign, visualize, and analyze arrays


biconeCreate bicone antenna

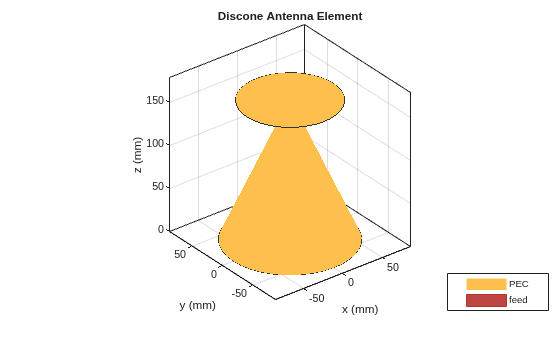

disconeCreate discone antenna
monoconeCreate monocone antenna on circular ground plane
biconeStripCreate strip bicone antenna
disconeStripCreate strip discone antenna


showDisplay antenna, array structures or shapes
infoDisplay information about antenna or array
coneangle2sizeCalculates equivalent cone height, broad radius, and narrow radius for cone
