Lane Detection Optimized with GPU Coder

This example shows how to generate CUDA® code from a deep learning network, represented by a `SeriesNetwork` object. In this example, the series network is a convolutional neural network that can detect and output lane marker boundaries from an image.

Prerequisites

• CUDA enabled NVIDIA® GPU.

• NVIDIA CUDA toolkit and driver.

• NVIDIA cuDNN library.

• OpenCV libraries for video read and image display operations.

• Environment variables for the compilers and libraries. For information on the supported versions of the compilers and libraries, see Third-Party Hardware. For setting up the environment variables, see Setting Up the Prerequisite Products.

Verify GPU Environment

Use the `coder.checkGpuInstall` function to verify that the compilers and libraries necessary for running this example are set up correctly.

```envCfg = coder.gpuEnvConfig('host'); envCfg.DeepLibTarget = 'cudnn'; envCfg.DeepCodegen = 1; envCfg.Quiet = 1; coder.checkGpuInstall(envCfg);```

Get Pretrained SeriesNetwork

`[laneNet, coeffMeans, coeffStds] = getLaneDetectionNetworkGPU();`

This network takes an image as an input and outputs two lane boundaries that correspond to the left and right lanes of the ego vehicle. Each lane boundary is represented by the parabolic equation: $y=a{x}^{2}+bx+c$, where y is the lateral offset and x is the longitudinal distance from the vehicle. The network outputs the three parameters a, b, and c per lane. The network architecture is similar to `AlexNet` except that the last few layers are replaced by a smaller fully connected layer and regression output layer. To view the network architecture, use the `analyzeNetwork` function.

`analyzeNetwork(laneNet)`

Examine Main Entry-Point Function

`type detect_lane.m`
```function [laneFound, ltPts, rtPts] = detect_lane(frame, laneCoeffMeans, laneCoeffStds) % From the networks output, compute left and right lane points in the image % coordinates. The camera coordinates are described by the caltech mono % camera model. %#codegen % A persistent object mynet is used to load the series network object. At % the first call to this function, the persistent object is constructed and % setup. When the function is called subsequent times, the same object is % reused to call predict on inputs, thus avoiding reconstructing and % reloading the network object. persistent lanenet; if isempty(lanenet) lanenet = coder.loadDeepLearningNetwork('laneNet.mat', 'lanenet'); end lanecoeffsNetworkOutput = lanenet.predict(permute(frame, [2 1 3])); % Recover original coeffs by reversing the normalization steps params = lanecoeffsNetworkOutput .* laneCoeffStds + laneCoeffMeans; isRightLaneFound = abs(params(6)) > 0.5; %c should be more than 0.5 for it to be a right lane isLeftLaneFound = abs(params(3)) > 0.5; vehicleXPoints = 3:30; %meters, ahead of the sensor ltPts = coder.nullcopy(zeros(28,2,'single')); rtPts = coder.nullcopy(zeros(28,2,'single')); if isRightLaneFound && isLeftLaneFound rtBoundary = params(4:6); rt_y = computeBoundaryModel(rtBoundary, vehicleXPoints); ltBoundary = params(1:3); lt_y = computeBoundaryModel(ltBoundary, vehicleXPoints); % Visualize lane boundaries of the ego vehicle tform = get_tformToImage; % map vehicle to image coordinates ltPts = tform.transformPointsInverse([vehicleXPoints', lt_y']); rtPts = tform.transformPointsInverse([vehicleXPoints', rt_y']); laneFound = true; else laneFound = false; end end function yWorld = computeBoundaryModel(model, xWorld) yWorld = polyval(model, xWorld); end function tform = get_tformToImage % Compute extrinsics based on camera setup yaw = 0; pitch = 14; % pitch of the camera in degrees roll = 0; translation = translationVector(yaw, pitch, roll); rotation = rotationMatrix(yaw, pitch, roll); % Construct a camera matrix focalLength = [309.4362, 344.2161]; principalPoint = [318.9034, 257.5352]; Skew = 0; camMatrix = [rotation; translation] * intrinsicMatrix(focalLength, ... Skew, principalPoint); % Turn camMatrix into 2-D homography tform2D = [camMatrix(1,:); camMatrix(2,:); camMatrix(4,:)]; % drop Z tform = projective2d(tform2D); tform = tform.invert(); end function translation = translationVector(yaw, pitch, roll) SensorLocation = [0 0]; Height = 2.1798; % mounting height in meters from the ground rotationMatrix = (... rotZ(yaw)*... % last rotation rotX(90-pitch)*... rotZ(roll)... % first rotation ); % Adjust for the SensorLocation by adding a translation sl = SensorLocation; translationInWorldUnits = [sl(2), sl(1), Height]; translation = translationInWorldUnits*rotationMatrix; end %------------------------------------------------------------------ % Rotation around X-axis function R = rotX(a) a = deg2rad(a); R = [... 1 0 0; 0 cos(a) -sin(a); 0 sin(a) cos(a)]; end %------------------------------------------------------------------ % Rotation around Y-axis function R = rotY(a) a = deg2rad(a); R = [... cos(a) 0 sin(a); 0 1 0; -sin(a) 0 cos(a)]; end %------------------------------------------------------------------ % Rotation around Z-axis function R = rotZ(a) a = deg2rad(a); R = [... cos(a) -sin(a) 0; sin(a) cos(a) 0; 0 0 1]; end %------------------------------------------------------------------ % Given the Yaw, Pitch, and Roll, determine the appropriate Euler angles % and the sequence in which they are applied to align the camera's % coordinate system with the vehicle coordinate system. The resulting % matrix is a Rotation matrix that together with the Translation vector % defines the extrinsic parameters of the camera. function rotation = rotationMatrix(yaw, pitch, roll) rotation = (... rotY(180)*... % last rotation: point Z up rotZ(-90)*... % X-Y swap rotZ(yaw)*... % point the camera forward rotX(90-pitch)*... % "un-pitch" rotZ(roll)... % 1st rotation: "un-roll" ); end function intrinsicMat = intrinsicMatrix(FocalLength, Skew, PrincipalPoint) intrinsicMat = ... [FocalLength(1) , 0 , 0; ... Skew , FocalLength(2) , 0; ... PrincipalPoint(1), PrincipalPoint(2), 1]; end ```

Generate Code for Network and Post-Processing Code

The network computes parameters a, b, and c that describe the parabolic equation for the left and right lane boundaries.

From these parameters, compute the x and y coordinates corresponding to the lane positions. The coordinates must be mapped to image coordinates. The function `detect_lane.m` performs all these computations. Generate CUDA code for this function by creating a GPU code configuration object for a `'lib'` target and set the target language to C++. Use the `coder.DeepLearningConfig` function to create a `CuDNN` deep learning configuration object and assign it to the `DeepLearningConfig` property of the GPU code configuration object. Run the `codegen` command.

```cfg = coder.gpuConfig('lib'); cfg.DeepLearningConfig = coder.DeepLearningConfig('cudnn'); cfg.GenerateReport = true; cfg.TargetLang = 'C++'; inputs = {ones(227,227,3,'single'),ones(1,6,'double'),ones(1,6,'double')}; codegen -args inputs -config cfg detect_lane```
```Code generation successful: View report ```

Generated Code Description

The series network is generated as a C++ class containing an array of 23 layer classes.

```class c_lanenet { public: int32_T batchSize; int32_T numLayers; real32_T *inputData; real32_T *outputData; MWCNNLayer *layers[23]; public: c_lanenet(void); void setup(void); void predict(void); void cleanup(void); ~c_lanenet(void); }; ```

The `setup()` method of the class sets up handles and allocates memory for each layer object. The `predict()` method invokes prediction for each of the 23 layers in the network.

The cnn_lanenet_conv*_w and cnn_lanenet_conv*_b files are the binary weights and bias file for convolution layer in the network. The cnn_lanenet_fc*_w and cnn_lanenet_fc*_b files are the binary weights and bias file for fully connected layer in the network.

```codegendir = fullfile('codegen', 'lib', 'detect_lane'); dir(codegendir)```
```. MWMaxPoolingLayer.o .. MWNormLayer.cpp .gitignore MWNormLayer.hpp DeepLearningNetwork.cu MWNormLayer.o DeepLearningNetwork.h MWOutputLayer.cpp DeepLearningNetwork.o MWOutputLayer.hpp MWActivationFunctionType.hpp MWOutputLayer.o MWCNNLayer.cpp MWRNNParameterTypes.hpp MWCNNLayer.hpp MWReLULayer.cpp MWCNNLayer.o MWReLULayer.hpp MWCNNLayerImplBase.hpp MWReLULayer.o MWCUSOLVERUtils.cpp MWTargetNetworkImplBase.hpp MWCUSOLVERUtils.hpp MWTargetTypes.hpp MWCUSOLVERUtils.o MWTensor.hpp MWCudaDimUtility.hpp MWTensorBase.cpp MWCudaMemoryFunctions.hpp MWTensorBase.hpp MWCudnnCNNLayerImpl.cu MWTensorBase.o MWCudnnCNNLayerImpl.hpp _clang-format MWCudnnCNNLayerImpl.o buildInfo.mat MWCudnnCommonHeaders.hpp cnn_lanenet0_0_conv1_b.bin MWCudnnCustomLayerBase.cu cnn_lanenet0_0_conv1_w.bin MWCudnnCustomLayerBase.hpp cnn_lanenet0_0_conv2_b.bin MWCudnnCustomLayerBase.o cnn_lanenet0_0_conv2_w.bin MWCudnnElementwiseAffineLayerImpl.cu cnn_lanenet0_0_conv3_b.bin MWCudnnElementwiseAffineLayerImpl.hpp cnn_lanenet0_0_conv3_w.bin MWCudnnElementwiseAffineLayerImpl.o cnn_lanenet0_0_conv4_b.bin MWCudnnFCLayerImpl.cu cnn_lanenet0_0_conv4_w.bin MWCudnnFCLayerImpl.hpp cnn_lanenet0_0_conv5_b.bin MWCudnnFCLayerImpl.o cnn_lanenet0_0_conv5_w.bin MWCudnnFusedConvActivationLayerImpl.cu cnn_lanenet0_0_data_offset.bin MWCudnnFusedConvActivationLayerImpl.hpp cnn_lanenet0_0_data_scale.bin MWCudnnFusedConvActivationLayerImpl.o cnn_lanenet0_0_fc6_b.bin MWCudnnInputLayerImpl.hpp cnn_lanenet0_0_fc6_w.bin MWCudnnLayerImplFactory.cu cnn_lanenet0_0_fcLane1_b.bin MWCudnnLayerImplFactory.hpp cnn_lanenet0_0_fcLane1_w.bin MWCudnnLayerImplFactory.o cnn_lanenet0_0_fcLane2_b.bin MWCudnnMaxPoolingLayerImpl.cu cnn_lanenet0_0_fcLane2_w.bin MWCudnnMaxPoolingLayerImpl.hpp cnn_lanenet0_0_responseNames.txt MWCudnnMaxPoolingLayerImpl.o codeInfo.mat MWCudnnNormLayerImpl.cu codedescriptor.dmr MWCudnnNormLayerImpl.hpp compileInfo.mat MWCudnnNormLayerImpl.o detect_lane.a MWCudnnOutputLayerImpl.cu detect_lane.cu MWCudnnOutputLayerImpl.hpp detect_lane.h MWCudnnOutputLayerImpl.o detect_lane.o MWCudnnReLULayerImpl.cu detect_lane_data.cu MWCudnnReLULayerImpl.hpp detect_lane_data.h MWCudnnReLULayerImpl.o detect_lane_data.o MWCudnnTargetNetworkImpl.cu detect_lane_initialize.cu MWCudnnTargetNetworkImpl.hpp detect_lane_initialize.h MWCudnnTargetNetworkImpl.o detect_lane_initialize.o MWElementwiseAffineLayer.cpp detect_lane_internal_types.h MWElementwiseAffineLayer.hpp detect_lane_rtw.mk MWElementwiseAffineLayer.o detect_lane_terminate.cu MWElementwiseAffineLayerImplKernel.cu detect_lane_terminate.h MWElementwiseAffineLayerImplKernel.o detect_lane_terminate.o MWFCLayer.cpp detect_lane_types.h MWFCLayer.hpp examples MWFCLayer.o gpu_codegen_info.mat MWFusedConvActivationLayer.cpp html MWFusedConvActivationLayer.hpp interface MWFusedConvActivationLayer.o networkParamsInfo_lanenet0_0.bin MWInputLayer.cpp predict.cu MWInputLayer.hpp predict.h MWInputLayer.o predict.o MWKernelHeaders.hpp rtw_proj.tmw MWLayerImplFactory.hpp rtwtypes.h MWMaxPoolingLayer.cpp shared_layers_export_macros.hpp MWMaxPoolingLayer.hpp ```

Generate Additional Files for Post-Processing the Output

Export mean and std values from the trained network for use during execution.

```codegendir = fullfile(pwd, 'codegen', 'lib','detect_lane'); fid = fopen(fullfile(codegendir,'mean.bin'), 'w'); A = [coeffMeans coeffStds]; fwrite(fid, A, 'double'); fclose(fid);```

Main File

Compile the network code by using a main file. The main file uses the OpenCV `VideoCapture` method to read frames from the input video. Each frame is processed and classified until no more frames are read. Before displaying the output for each frame, the outputs are post-processed by using the `detect_lane` function generated in `detect_lane.cu`.

`type main_lanenet.cu`
```/* Copyright 2016 The MathWorks, Inc. */ #include <stdio.h> #include <stdlib.h> #include <cuda.h> #include <opencv2/opencv.hpp> #include <opencv2/imgproc.hpp> #include <opencv2/core/core.hpp> #include <opencv2/core/types.hpp> #include <opencv2/highgui.hpp> #include <list> #include <cmath> #include "detect_lane.h" using namespace cv; void readData(float *input, Mat& orig, Mat & im) { Size size(227,227); resize(orig,im,size,0,0,INTER_LINEAR); for(int j=0;j<227*227;j++) { //BGR to RGB input[2*227*227+j]=(float)(im.data[j*3+0]); input[1*227*227+j]=(float)(im.data[j*3+1]); input[0*227*227+j]=(float)(im.data[j*3+2]); } } void addLane(float pts[28][2], Mat & im, int numPts) { std::vector<Point2f> iArray; for(int k=0; k<numPts; k++) { iArray.push_back(Point2f(pts[k][0],pts[k][1])); } Mat curve(iArray, true); curve.convertTo(curve, CV_32S); //adapt type for polylines polylines(im, curve, false, CV_RGB(255,255,0), 2, LINE_AA); } void writeData(float *outputBuffer, Mat & im, int N, double means[6], double stds[6]) { // get lane coordinates boolean_T laneFound = 0; float ltPts[56]; float rtPts[56]; detect_lane(outputBuffer, means, stds, &laneFound, ltPts, rtPts); if (!laneFound) { return; } float ltPtsM[28][2]; float rtPtsM[28][2]; for(int k=0; k<28; k++) { ltPtsM[k][0] = ltPts[k]; ltPtsM[k][1] = ltPts[k+28]; rtPtsM[k][0] = rtPts[k]; rtPtsM[k][1] = rtPts[k+28]; } addLane(ltPtsM, im, 28); addLane(rtPtsM, im, 28); } void readMeanAndStds(const char* filename, double means[6], double stds[6]) { FILE* pFile = fopen(filename, "rb"); if (pFile==NULL) { fputs ("File error",stderr); return; } // obtain file size fseek (pFile , 0 , SEEK_END); long lSize = ftell(pFile); rewind(pFile); double* buffer = (double*)malloc(lSize); size_t result = fread(buffer,sizeof(double),lSize,pFile); if (result*sizeof(double) != lSize) { fputs ("Reading error",stderr); return; } for (int k = 0 ; k < 6; k++) { means[k] = buffer[k]; stds[k] = buffer[k+6]; } free(buffer); } // Main function int main(int argc, char* argv[]) { float *inputBuffer = (float*)calloc(sizeof(float),227*227*3); float *outputBuffer = (float*)calloc(sizeof(float),6); if ((inputBuffer == NULL) || (outputBuffer == NULL)) { printf("ERROR: Input/Output buffers could not be allocated!\n"); exit(-1); } // get ground truth mean and std double means[6]; double stds[6]; readMeanAndStds("mean.bin", means, stds); if (argc < 2) { printf("Pass in input video file name as argument\n"); return -1; } VideoCapture cap(argv[1]); if (!cap.isOpened()) { printf("Could not open the video capture device.\n"); return -1; } cudaEvent_t start, stop; float fps = 0; cudaEventCreate(&start); cudaEventCreate(&stop); Mat orig, im; namedWindow("Lane detection demo",WINDOW_NORMAL); while(true) { cudaEventRecord(start); cap >> orig; if (orig.empty()) break; readData(inputBuffer, orig, im); writeData(inputBuffer, orig, 6, means, stds); cudaEventRecord(stop); cudaEventSynchronize(stop); char strbuf[50]; float milliseconds = -1.0; cudaEventElapsedTime(&milliseconds, start, stop); fps = fps*.9+1000.0/milliseconds*.1; sprintf (strbuf, "%.2f FPS", fps); putText(orig, strbuf, Point(200,30), FONT_HERSHEY_DUPLEX, 1, CV_RGB(0,0,0), 2); imshow("Lane detection demo", orig); if( waitKey(50)%256 == 27 ) break; // stop capturing by pressing ESC */ } destroyWindow("Lane detection demo"); free(inputBuffer); free(outputBuffer); return 0; } ```

```if ~exist('./caltech_cordova1.avi', 'file') url = 'https://www.mathworks.com/supportfiles/gpucoder/media/caltech_cordova1.avi'; websave('caltech_cordova1.avi', url); end```

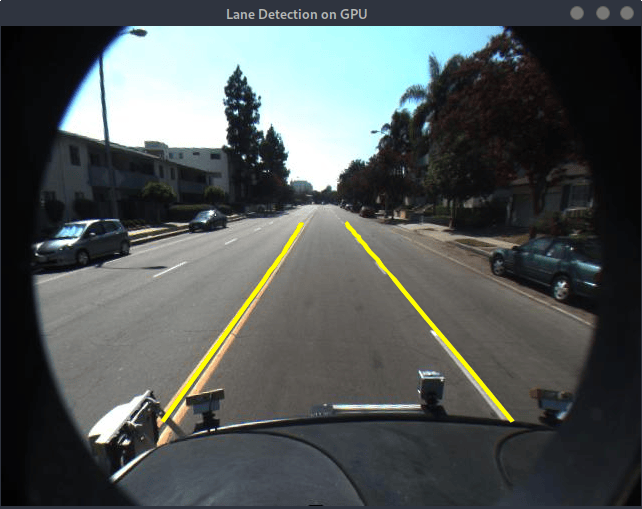

Build Executable

```if ispc setenv('MATLAB_ROOT', matlabroot); vcvarsall = mex.getCompilerConfigurations('C++').Details.CommandLineShell; setenv('VCVARSALL', vcvarsall); system('make_win_lane_detection.bat'); cd(codegendir); system('lanenet.exe ..\..\..\caltech_cordova1.avi'); else setenv('MATLAB_ROOT', matlabroot); system('make -f Makefile_lane_detection.mk'); cd(codegendir); system('./lanenet ../../../caltech_cordova1.avi'); end ```
