Test and Measurement

Describes waveform generation, visualization, and transmitter performance analysis

LTE Toolbox™ provides functions that let you measure transmitter performance characteristics. The examples featured here demonstrate transmitter modeling and performance analysis. Communications Toolbox™ and DSP System Toolbox™ System objects provide additional quantitative tools for measuring system performance, and graphical utilities for visualizing waveforms.


LTE Waveform GeneratorCreate, impair, visualize, and export LTE waveforms
LTE Throughput AnalyzerGenerate throughput curves for physical downlink shared channel (PDSCH) conformance test analysis


Waveform From Wireless Waveform Generator AppWireless waveform source exported to Simulink


expand all

lteRMCDLDownlink reference measurement channel configuration
lteRMCULUplink reference measurement channel or FRC configuration
lteTestModelDownlink test model configuration structure
lteRMCDLToolGenerate downlink RMC waveform
lteRMCULToolUplink RMC or FRC waveform generation
lteTestModelToolGenerate downlink test model waveform

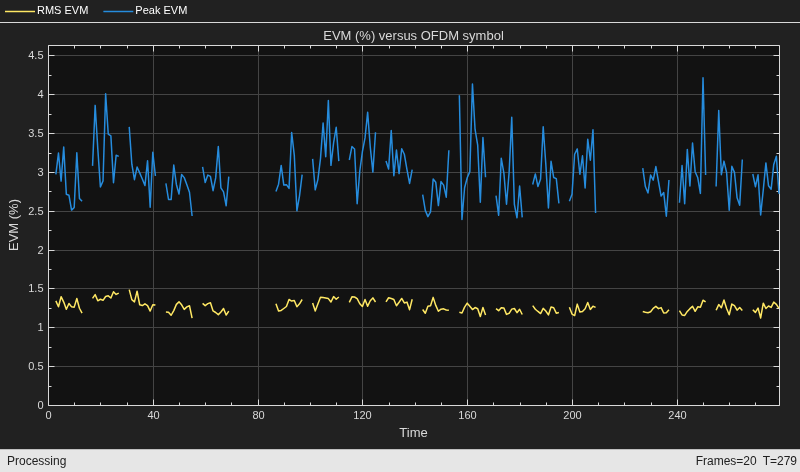

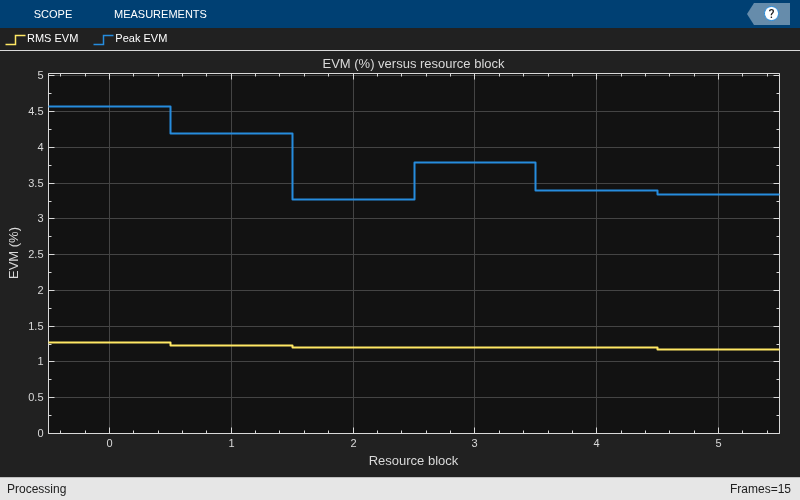

lteEVMError vector magnitude calculation


expand all

comm.ConstellationDiagramDisplay constellation diagram for input signals
dsp.SpectrumAnalyzerDisplay frequency spectrum of time-domain signals
timescopeDisplay time-domain signals
dsp.ArrayPlotDisplay vectors or arrays
comm.ErrorRateCompute bit or symbol error rate of input data
comm.EVMMeasure error vector magnitude


Generate a Test Model

The LTE specifications define conformance test models for transmitter tests.

Generate Wireless Waveform in Simulink Using App-Generated Block

This example shows how to configure and use the block that is generated using the Export to Simulink capability that is available in the Wireless Waveform Generator app.

Featured Examples
