Lidar Object Detection In ROS Using PointPillars Deep Learning

In this example, you will create a ROS node to deploy a pre-trained PointPillars Deep Learning Model to detect 3D objects in point cloud images.

Feed the point cloud image into the ROS node equipped with the pre-trained PointPillars Deep Learning Model. This model employs the PointPillars network to convert sparse point clouds into 'pillars' and extract dense, robust features. It then applies a modified SSD-based 2D deep learning network to simultaneously determine 3D bounding box coordinates, object orientations, and class predictions. Upon processing, the ROS node outputs the coordinates of the 3D bounding boxes and the associated object labels, such as 'car' or 'bus'.

To understand how to train a PointPillars network for object detection in point cloud, refer to the Lidar 3-D Object Detection Using PointPillars Deep Learning (Lidar Toolbox) example.



Configure MATLAB® Coder™ software to generate and build CUDA® ROS nodes from a MATLAB function by following the steps outlined in the Generate CUDA ROS and CUDA ROS 2 Nodes Using MATLAB Coder and GPU Coder example.

Configure MATLAB Coder for CUDA ROS Node Generation

Initialize ROS Core and Global Node.


Create MATLAB Function to run Pre-trained PointPillars Model

Write a MATLAB function to subscribe to the point cloud image and apply PointPillars algorithm to detect 3D objects in it.


Generate Local Host Node

Configure MATLAB Code Generation config object settings and generate local host node.

cfg = coder.config("exe");

Select the ROS version.

cfg.Hardware = coder.hardware("Robot Operating System (ROS)");

Select Localhost to deploy the object detection algorithm on a local host computer with a CUDA-enabled NVIDIA GPU.

cfg.Hardware.DeployTo = "Localhost";
cfg.Hardware.BuildAction = "Build and run";
cfg.HardwareImplementation.ProdHWDeviceType = "Intel->x86-64 (Windows64)";
cfg.HardwareImplementation.ProdLongLongMode = true; % Use 'long long' for Int64 or Uint64 data types

Create the GpuCodeConfig object and enable it.

cfg.GpuConfig = coder.GpuCodeConfig;
cfg.GpuConfig.Enabled = true;

Create a DeepLearningConfig object and select the appropriate DNN library.

cfg.DeepLearningConfig = coder.DeepLearningConfig('cudnn');
codegen deployedPointPillarModel -config cfg

Check the list of all nodes registered on the ROS network.

rosnode list

Create Publisher and Subscriber to Communicate with Deployed ROS Node Containing Pre-trained PointPillars Model

The list below contains all topics used in this network:

  1. "/pointCloudData" topic transmits point cloud data.

  2. "/nodeboxData" topic transfers the coordinates of the bounding boxes where objects are detected.

  3. "/nodeLabelsData" topic transfers the labels corresponding to each bounding box detected in the point cloud.

pcpub = rospublisher("/pointCloudData","sensor_msgs/PointCloud2",DataFormat="struct");
nodeboxSub = rossubscriber("/nodeboxData","std_msgs/Float64MultiArray",DataFormat="struct");
nodeLabelsSub = rossubscriber("/nodeLabelsData","std_msgs/String",DataFormat="struct");

Send Point Cloud Data to PointPillars Model Deployed on ROS Node

The "images.mat" file stores 2 point clouds selected from the dataset used in the Lidar 3-D Object Detection Using PointPillars Deep Learning (Lidar Toolbox) example.

% Load the point cloud from "images.mat" file

PtCloud  = im1_ptCloud; % or im2_ptCloud

ax = pcshow(PtCloud);
title("PointCloud Image");

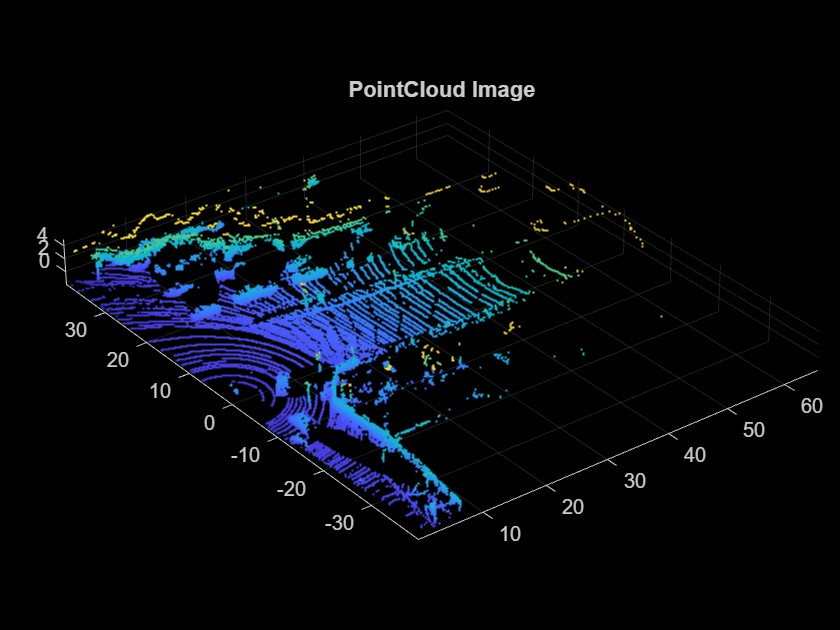

Point cloud image data

% Create a new ROS message for publishing point cloud data
pcdata = rosmessage(pcpub);

% Write data points in x, y and z coordinates to a ROS PointCloud2 message structure
pcdata = rosWriteXYZ(pcdata,PtCloud.Location);

% Write intensity data points to a ROS PointCloud2 message structure
pcdata = rosWriteIntensity(pcdata,PtCloud.Intensity);

% Publish a point cloud message to a ROS topic


Receive Bounding Box Details from ROS Node

% Use the subscribers to read the response from deployed PointPillars model
box = nodeboxSub.LatestMessage.Data;
appStr = nodeLabelsSub.LatestMessage.Data;

% Process the data received on the two rostopics.
strArr = split(appStr,'_');
labels = categorical(strArr);
labels = labels';

box = reshape(box,length(labels),length(box)/length(labels));
boxlabelsCar = box(labels'=='Car',:);
boxlabelsTruck = box(labels'=='Truck',:);

Display Predicted Bounding Boxes

helperDisplay3DBoxesOverlaidPointCloud(PtCloud.Location,boxlabelsCar,'green',boxlabelsTruck,'magenta','Predicted Bounding Boxes');

Point cloud image after 3D object detection

Shut down ROS Network


Helper Function

function helperDisplay3DBoxesOverlaidPointCloud(ptCld,labelsCar,carColor,labelsTruck,truckColor,titleForFigure)
    % Display the point cloud with different colored bounding boxes for different classes.
    ax = pcshow(ptCld);
    hold on;
