Building Ventilation

This example models a ventilation circuit in a building. The air volume inside the building is divided into four zones. The ventilation unit blows cool air into Zone 1 and extracts air from Zone 3. The extracted air can be optionally recycled back into Zone 1. A door in Zone 4 can be opened to vent air out to the atmosphere.

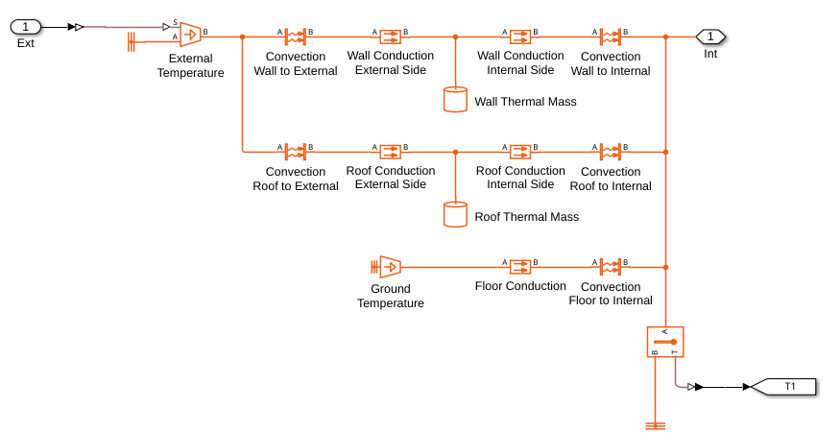

Thermal Resistance 1 Subsystem

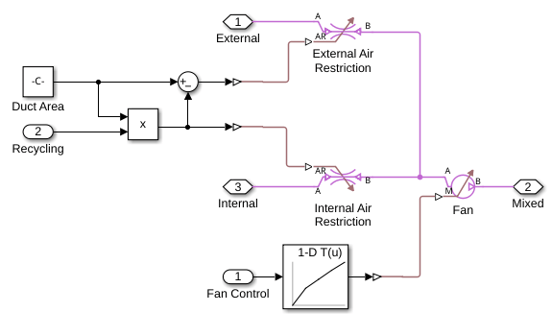

Ventilation Unit Subsystem

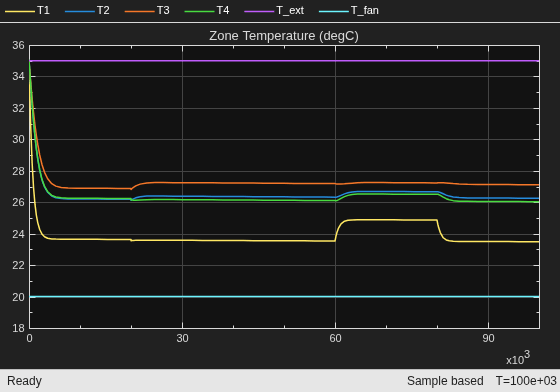

Simulation Results from Scopes

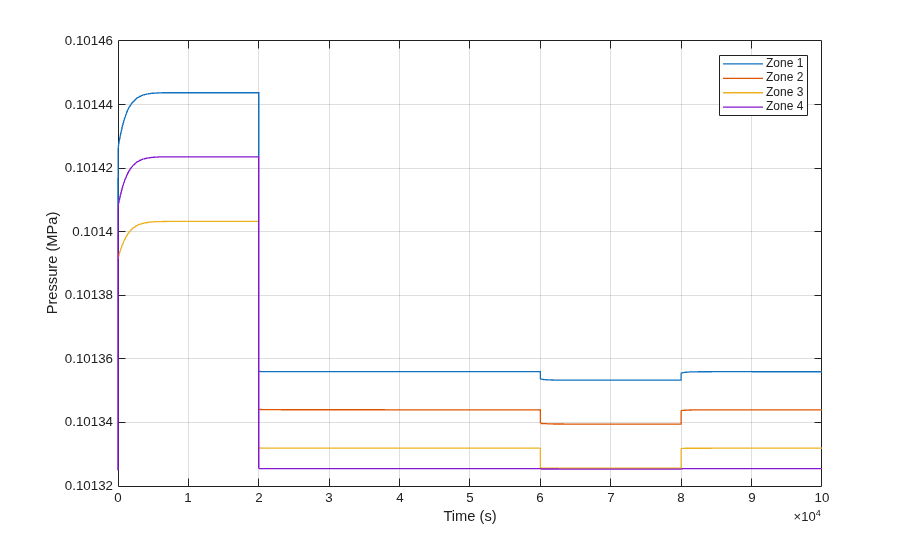

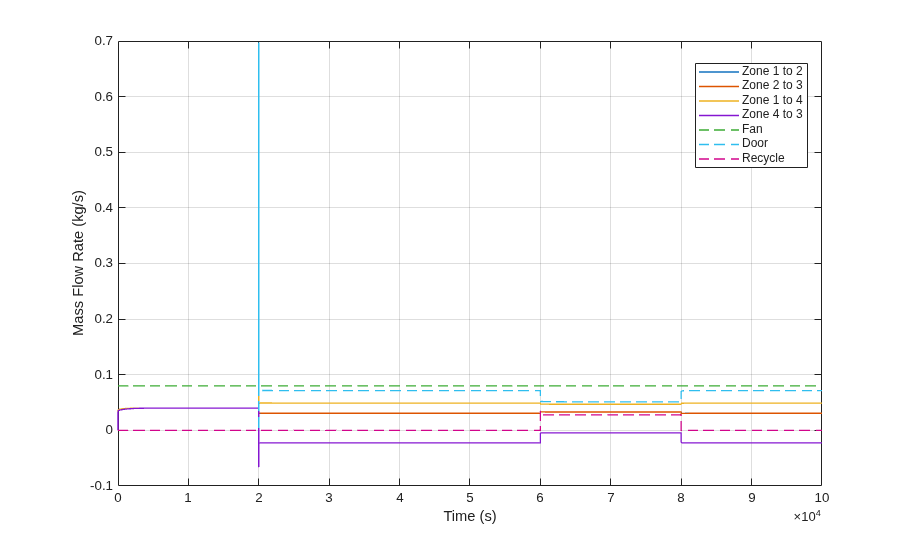

Simulation Results from Simscape Logging
