Calibrate ECMS Block

This example shows how to calibrate the ECMS block in the HEV P2 reference application.

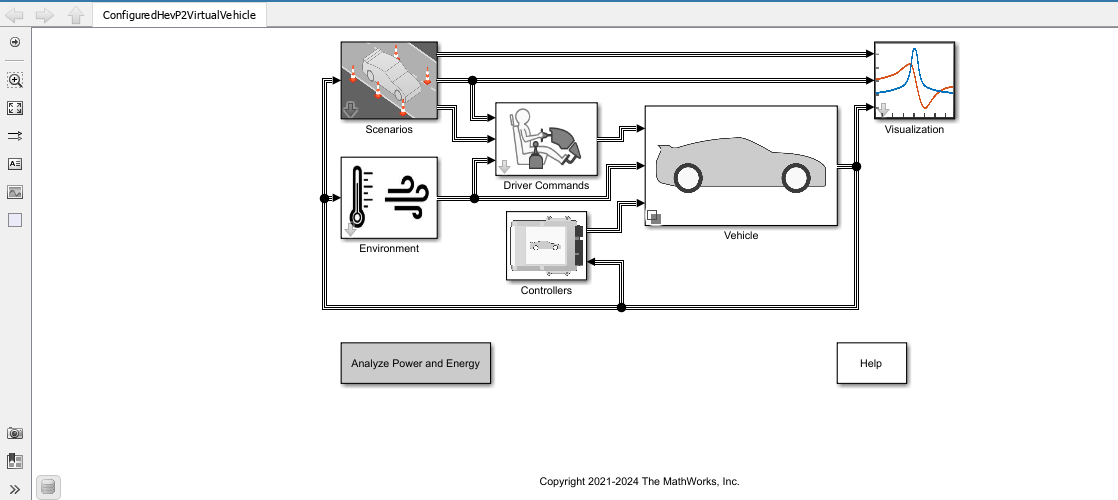

HEV P2 Reference Application

Open the P2 reference application.

autoblkHevP2Start

Set Path

Sets path to the calibration script.

path = fullfile(matlabroot,'examples','autoblks','main','internal');
addpath(path);

Execute Calibration Script

% calibration_ecms_script
close all;
pxName="P2"; % PT configuration type, P0,P1,P2,P3,P4
battMdl = "BattHev"+pxName; % battery model - for SOC sweep
mdlName="Hev"+pxName+"ReferenceApplication"; % Hev model
ctrlMdl="Hev"+pxName+"OptimalController"; % Controller model
maxIterat=4;% maximum iterations
SOCinit = 0.85; % initial SOC, unit is in [0, 1]
SOCEndTrg = SOCinit*100;

% Plot window size and position
x0=600;
y0=1040;
width=600;
height=280;

tic
load_system(mdlName);
load_system(ctrlMdl);
load_system(battMdl);

blk = mdlName + "/" + "Drive Cycle Source";
m = get_param(blk, 'MaskObject');
ECMS_CurrentCycle = m.Parameters(1,1).Value; % Current cycle setting.

mdlWks = get_param(ctrlMdl,'ModelWorkspace');  % find model workspace
ECMS_CurrentValue = getVariable(mdlWks,'ECMS_s'); % get current ECMS_s value

% extract initial value/name of ECMS tuning parameter

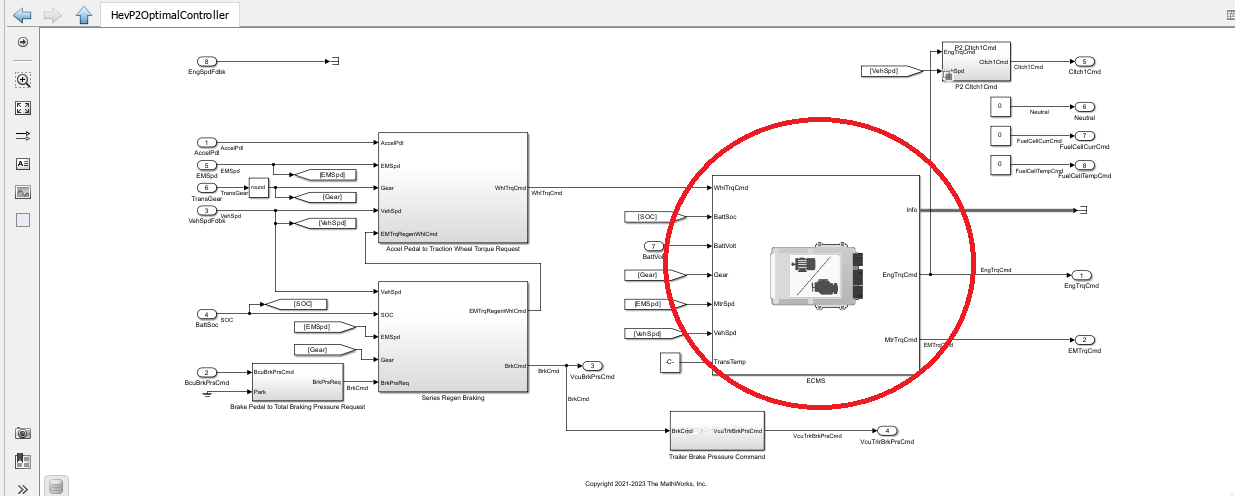

p = Simulink.Mask.get(ctrlMdl+"/ECMS");
baseParamName=p.getParameter("ECMS_s").Value;
battChrgMaxValue = getVariable(get_param(battMdl,'modelworkspace'),'BattChargeMax');

% set to a temp name
set_param(ctrlMdl+"/ECMS",'ECMS_s',"ECMS_s_tune")
save_system(mdlName,[],'SaveDirtyReferencedModels','on');
save_system(ctrlMdl,[],'SaveDirtyReferencedModels','on');

% Enable SOC recording
x1_handles = get_param(mdlName+"/Visualization/Rate Transition1",'PortHandles');
x1 = x1_handles.Outport(1);
Simulink.sdi.markSignalForStreaming(x1,'on');

% arrays used to store ECMS_s and SOC_end values
xc = zeros (3,1);
yc = zeros (3,1);

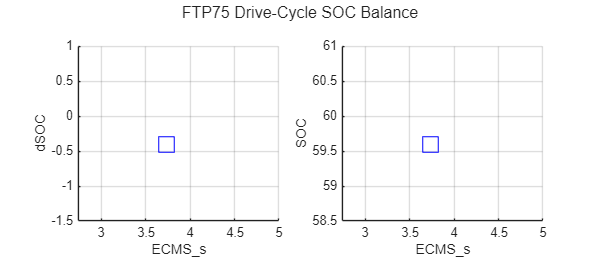

% plot showing the ECMS_s and SOC_end
subplot (1,2,1);
set(gcf,'position',[x0,y0,width,height])
xlabel({'ECMS\_s',' '})
ylabel('dSOC')
hold on;
subplot (1,2,2);
xlabel('ECMS\_s')
ylabel('SOC')
sgtitle(ECMS_CurrentCycle);
% set model workspace variables
in = ModelSetVariable (mdlName, battChrgMaxValue, SOCinit,battMdl, SOCEndTrg, ctrlMdl);
% get initial 3 ECMS_s points and SOC_end values
[x, y, ECMS_s, SOC_end, solution_found] = dSOC_generate_starting_points (in, ECMS_CurrentValue, SOCEndTrg);
### Starting serial model reference simulation build
### Successfully updated the model reference simulation target for: BattHevP2
### Successfully updated the model reference simulation target for: DrivetrainHevP2
### Successfully updated the model reference simulation target for: HevP2OptimalController
### Successfully updated the model reference simulation target for: HevP2TransmissionController
### Successfully updated the model reference simulation target for: MotMappedP2
### Successfully updated the model reference simulation target for: SiEngineController
### Successfully updated the model reference simulation target for: SiMappedEngine
### Successfully updated the model reference simulation target for: StarterSystemP2

Build Summary

Simulation targets built:

Model                        Action                       Rebuild Reason
==================================================================================================================
BattHevP2                    Code generated and compiled  BattHevP2_msf.mexw64 does not exist.
DrivetrainHevP2              Code generated and compiled  DrivetrainHevP2_msf.mexw64 does not exist.
HevP2OptimalController       Code generated and compiled  HevP2OptimalController_msf.mexw64 does not exist.
HevP2TransmissionController  Code generated and compiled  HevP2TransmissionController_msf.mexw64 does not exist.
MotMappedP2                  Code generated and compiled  MotMappedP2_msf.mexw64 does not exist.
SiEngineController           Code generated and compiled  SiEngineController_msf.mexw64 does not exist.
SiMappedEngine               Code generated and compiled  SiMappedEngine_msf.mexw64 does not exist.
StarterSystemP2              Code generated and compiled  StarterSystemP2_msf.mexw64 does not exist.

8 of 8 models built (0 models already up to date)
Build duration: 0h 7m 16.091s
x1 = 3.430000, y1 = 78.964430
### Starting serial model reference simulation build
### Model reference simulation target for DrivetrainHevP2 is up to date.
### Model reference simulation target for HevP2TransmissionController is up to date.
### Model reference simulation target for MotMappedP2 is up to date.
### Model reference simulation target for SiEngineController is up to date.
### Model reference simulation target for SiMappedEngine is up to date.
### Model reference simulation target for StarterSystemP2 is up to date.

Build Summary

0 of 8 models built (8 models already up to date)
Build duration: 0h 0m 14.237s
x2 = 3.676594, y2 = 79.652346
### Starting serial model reference simulation build
### Model reference simulation target for DrivetrainHevP2 is up to date.
### Model reference simulation target for HevP2TransmissionController is up to date.
### Model reference simulation target for MotMappedP2 is up to date.
### Model reference simulation target for SiEngineController is up to date.
### Model reference simulation target for SiMappedEngine is up to date.
### Model reference simulation target for StarterSystemP2 is up to date.

Build Summary

0 of 8 models built (8 models already up to date)
Build duration: 0h 0m 13.479s
x3 = 4.145992, y3 = 86.898529
if (solution_found == 0)

    for i = 1 : maxIterat

        [yy, II] = sort(y,'ascend'); % sort the x, y array for plotting
        xx = x(II);
        subplot (1,2,2)
        if (i == 1); plot(xx,yy,'b--o','LineWidth',2); end
        if (i == 2); plot(xx,yy,'g--o','LineWidth',2); end
        if (i == 3); plot(xx,yy,'r--o','LineWidth',2); end
        if (i == 4); plot(xx,yy,'y--o','LineWidth',2); end
        xlabel('ECMS\_s')
        ylabel('SOC')
        hold off
        % solve second order equation to get z = ECMS_s corresponds to y = SOCEndTrg


SOCEndTrg=SOCinit=ax2+bx+c,wherea,b,csatisfiesyi=axi2+bxi+c,1i3.withx1=ECMSs(1),y1=SOCend(ECMSs(1)),x2=ECMSs(2),y2=SOCend(ECMSs(2)),x3=ECMSs(3),y3=SOCend(ECMSs(3)).

        [z] = Second_order_roots (x, y, SOCEndTrg);
        in = in.setVariable("ECMS_s_tune", z);
        [SOC_end, dSOC] =dSOCsim_v1(in);
        subplot (1,2,1);
        plot(z,dSOC,'bs','MarkerSize',15)
        hold on
        fprintf ('i= %u, ECMS_s = %f, SOC_end = %f \n',i, z, SOC_end);
        fprintf ('i= %u, x1 = %f, x2 = %f, x3 = %f, \n',i, x(1), x(2), x(3));
        fprintf ('i= %u, y1 = %f, y2 = %f, y3 = %f, \n',i, y(1), y(2), y(3));

        if (abs(SOC_end - SOCEndTrg) <= 1) % check if a solution is found
            ECMS_s = z;
            x(1) = ECMS_s;
            y(1) = SOC_end;
            solution_found = 1;
            break;
        end

        xc(1:3) = x (1:3); yc(1:3) = y (1:3);
        x(1) = z; y(1) = SOC_end; % since z and SOC_end are new points, we use them and put into x(1), y(1)
        [yb, II] = sort(yc,'ascend'); % sort the array for processing
        xb = xc(II);

        % begin the process to pick other two points from the original 3 point
        % xb(1:3), yb(1:3)

        if (y(1) > SOCEndTrg) % y(1)> SOCEndTrg, we need to pick other points < SOCEndTrg
            if ((yb(2) < SOCEndTrg) && (SOCEndTrg < yb(3)))  % yb(2) < SOCEndTrg, pick yb(2)
                x(2) = xb(2); y(2) = yb(2);
                if (abs(yb(1)-SOCEndTrg) < abs(yb(3)-SOCEndTrg)) % pick last point from xb(1), and xb(3), according to shortest distance to SOCEndTrg
                    x(3) = xb(1); y(3) = yb(1);
                else
                    x(3) = xb(3); y(3) = yb(3);
                end
            end
            if ((yb(1) < SOCEndTrg) && (SOCEndTrg < yb(2))) % yb(1) < SOCEndTrg, pick yb(1)
                x(2) = xb(1); y(2) = yb(1);
                if (abs(yb(2)-SOCEndTrg) < abs(yb(3)-SOCEndTrg)) % pick last point from xb(2) and xb(3), according to shortest distance to SOCEndTrg
                    x(3) = xb(2); y(3) = yb(2);
                else
                    x(3) = xb(3); y(3) = yb(3);
                end
            end
        end
        if (y(1) < SOCEndTrg) % y(1)< SOCEndTrg, we need to pick other points > SOCEndTrg
            if ((yb(2) < SOCEndTrg) && (SOCEndTrg < yb(3))) % yb(3) > SOCEndTrg, pick yb(3)
                x(2) = xb(3); y(2) = yb(3);
                if (abs(yb(1)-SOCEndTrg) < abs(yb(2)-SOCEndTrg)) % pick last point from xb(1) and xb(2), according to shortest distance to SOCEndTrg
                    x(3) = xb(1); y(3) = yb(1);
                else
                    x(3) = xb(2); y(3) = yb(2);
                end
            end
            if ((yb(1) < SOCEndTrg) && (SOCEndTrg < yb(2))) % yb(2) > SOCEndTrg, pick this point
                x(2) = xb(2); y(2) = yb(2);
                if (abs(yb(1)-SOCEndTrg) < abs(yb(3)-SOCEndTrg)) % pick last point from xb(1) and xb(3), according to shortest distance to SOCEndTrg
                    x(3) = xb(1); y(3) = yb(1);
                else
                    x(3) = xb(3); y(3) = yb(3);
                end
            end
        end
    end

    y_abs = abs(y-SOCEndTrg);
    [yb, II] = sort(y_abs,'ascend');
    xb = x(II);
    ECMS_s = xb (1);

end
### Starting serial model reference simulation build
### Model reference simulation target for DrivetrainHevP2 is up to date.
### Model reference simulation target for HevP2TransmissionController is up to date.
### Model reference simulation target for MotMappedP2 is up to date.
### Model reference simulation target for SiEngineController is up to date.
### Model reference simulation target for SiMappedEngine is up to date.
### Model reference simulation target for StarterSystemP2 is up to date.

Build Summary

0 of 8 models built (8 models already up to date)
Build duration: 0h 0m 13.228s
i= 1, ECMS_s = 4.060548, SOC_end = 86.007364
i= 1, x1 = 3.430000, x2 = 3.676594, x3 = 4.145992,
i= 1, y1 = 78.964430, y2 = 79.652346, y3 = 86.898529,
### Starting serial model reference simulation build
### Model reference simulation target for DrivetrainHevP2 is up to date.
### Model reference simulation target for HevP2TransmissionController is up to date.
### Model reference simulation target for MotMappedP2 is up to date.
### Model reference simulation target for SiEngineController is up to date.
### Model reference simulation target for SiMappedEngine is up to date.
### Model reference simulation target for StarterSystemP2 is up to date.

Build Summary

0 of 8 models built (8 models already up to date)
Build duration: 0h 0m 13.42s
i= 2, ECMS_s = 3.980521, SOC_end = 85.445176
i= 2, x1 = 4.060548, x2 = 3.676594, x3 = 4.145992,
i= 2, y1 = 86.007364, y2 = 79.652346, y3 = 86.898529,
hold off;

toc;
Elapsed time is 957.897390 seconds.
if (solution_found == 1)
    fprintf ('Search converged. ECMS_s parameter updated in model. \n');
end
Search converged. ECMS_s parameter updated in model.
if (solution_found == 0)
    fprintf ('Search failed to converge. An approximate ECMS_s is updated in the model. \n');
    fprintf ('Refer to the Troubleshooting section of the example page for recommendations. \n');
end

ECMS_s_tune = ECMS_s;
% reset model
Simulink.sdi.markSignalForStreaming(x1,'off');
load_system(ctrlMdl)
set_param(ctrlMdl+"/ECMS",'ECMS_s',baseParamName)
save_system(mdlName,[],'SaveDirtyReferencedModels','on');

% update model and sim
hws = get_param(ctrlMdl, 'modelworkspace');% get the workspace
hws.assignin('ECMS_s',ECMS_s);
save_system(ctrlMdl,[],'SaveDirtyReferencedModels','on');
open_system(mdlName);
load_system(battMdl);
battChrgMaxValue = getVariable(get_param(battMdl, 'modelworkspace'), 'BattChargeMax');
in = in.setVariable('BattCapInit', battChrgMaxValue*SOCinit,'Workspace',battMdl);
in = in.setVariable('SOCTrgt', SOCEndTrg,'Workspace',ctrlMdl);
in = in.setVariable('SOCmin', max(SOCEndTrg-20,20.5),'Workspace',ctrlMdl);
in = in.setVariable('SOCmax', min(SOCEndTrg+20,100),'Workspace',ctrlMdl);
set_param(ctrlMdl+"/ECMS",'ECMS_s',"ECMS_s");
save_system(battMdl);
save_system(ctrlMdl);
% sim(in);
% open_system(mdlName+"/Visualization/Performance and FE Scope");
function in = ModelSetVariable (mdlName, battChrgMaxValue, SOCinit, battMdl, SOCEndTrg, ctrlMdl)
in = Simulink.SimulationInput(mdlName);
in = in.setVariable('BattCapInit', battChrgMaxValue*SOCinit,'Workspace',battMdl);
in = in.setVariable('SOCTrgt', SOCEndTrg,'Workspace',ctrlMdl);
in = in.setVariable('SOCmin', max(SOCEndTrg-20,20.5),'Workspace',ctrlMdl);
in = in.setVariable('SOCmax', min(SOCEndTrg+20,100),'Workspace',ctrlMdl);
end

function [x_out, y_out, ECMS_s, SOC_end, solution_found] = dSOC_generate_starting_points (in, ECMS_CurrentValue, SOCEndTrg)

x_out = zeros (3,1);
y_out = zeros (3,1);
x = zeros (4,1);
y = zeros (4,1);

solution_found = 0;
ECMS_s = ECMS_CurrentValue;
alpha = 0.8;

tol = 1;

x1 = ECMS_CurrentValue;  % use current ECMS_s value as the starting point
in = in.setVariable("ECMS_s_tune", x1);
[SOC_end,  dSOC] =dSOCsim_v1(in);  %evaluate x1 results
y1 = SOC_end;
subplot (1,2,1);
plot(x1,dSOC,'bs','MarkerSize',15)
hold on
fprintf ('x1 = %f, y1 = %f \n',x1, y1);
if (abs(y1 - SOCEndTrg) <= tol)  % check if a solution found
    ECMS_s  = x1;
    SOC_end = y1;
    solution_found = 1;
end

if ((y1 > SOCEndTrg) && (solution_found == 0))
    x2 = x1 - ECMS_S_dis_up (x1, y1, SOCEndTrg); % use a decreased ECMS_s value as x2
    in = in.setVariable("ECMS_s_tune", x2);
    [SOC_end, dSOC] =dSOCsim_v1(in);
    y2 = SOC_end;
    subplot (1,2,1);
    plot(x2,dSOC,'bs','MarkerSize',15)
    hold on
    fprintf ('x2 = %f, y2 = %f \n',x2, y2);
    if (abs(y2 - SOCEndTrg) <= tol)  % check if a solution found
        ECMS_s  = x2;
        SOC_end = y2;
        solution_found = 1;
    end
    if ((y2 > SOCEndTrg) && (solution_found == 0)) % y2 is still too high
        y3_try = SOCEndTrg - 2; % set a lower SOC end trial to it will be easier to get y2 < SOC_EndTrg
        x3 = x1 + alpha*(y3_try - y1)*(x2-x1)/(y2-y1); % use x1, y1, x2, y2 to fit a linear function

x=x1+αy-y1y2-y1×(x2-x1) such that x=x1aty=y1,andx=αx2+(1-α)x1aty=y2

        dx = ECMS_S_dis_up (x2, y2, SOCEndTrg); % get a pre-defined decrease value
        x3 = min (x3, x2 -   dx);  % upper limit for x3
        x3 = max (x3, x2 - 2*dx);  % lower limit for x3
        in = in.setVariable("ECMS_s_tune", x3); % set the x3 value as ECMS_s
        [SOC_end,  dSOC] =dSOCsim_v1(in);       % evaluate
        y3 = SOC_end;
        subplot (1,2,1);
        plot(x3,dSOC,'bs','MarkerSize',15)
        hold on
        fprintf ('x3 = %f, y3 = %f \n',x3, y3);
        if (abs(y3 - SOCEndTrg) <= tol) % check if a solution is found
        ECMS_s  = x3;
        SOC_end = y3;
        solution_found = 1;
        end
    end
    if (solution_found == 0)
        if ((y2 > SOCEndTrg) && (y3 >= SOCEndTrg)) % if y3 is still greater than SOCEndTrg, lower it again
            [x(4)] = Second_order_roots (x_out, y_out, SOCEndTrg - 2); % solve the second order equation with a lower value
            dx = ECMS_S_dis_up (x3, y3, SOCEndTrg);
            x(4) = min (x(4), x3 -   dx); % upper limit for x(4)
            x(4) = max (x(4), x3 - 2*dx); % lower limit for x(4)
            in = in.setVariable("ECMS_s_tune", x(4));
            [SOC_end, dSOC] =dSOCsim_v1(in);
            ECMS_s = x(4);
            y(4) = SOC_end;
            subplot (1,2,1);
            plot(x(4),dSOC,'bs','MarkerSize',15)
            hold on
            fprintf ('x(4) = %f, y(4) = %f \n',x(4), y(4));
            x_out (1) = x(4); y_out (1) = y(4);
            x_out (2) = x3;   y_out (2) = y3;
            x_out (3) = x2;   y_out (3) = y2;
            if (abs(y(4) - SOCEndTrg) <= tol)
                ECMS_s  = x(4);
                SOC_end = y(4);
                solution_found = 1;
            end
        end
    end

    if ((y2 < SOCEndTrg) && (solution_found == 0)) % y2 is lower than SOCEndTrg while y1 is greater than SOCEndTrg
        x_min = min (x1, x2); x_max = max (x1, x2); y_min = min(y1, y2); y_max = max (y1, y2); % sort the min and max
        w_min = abs (y_min - SOCEndTrg) / (abs(y_min - SOCEndTrg) + abs(y_max - SOCEndTrg)); % weighting factor
        x3 = (1-w_min) * x_min + w_min * x_max; % x3 is a weighted interpolation between x1 and x2
        in = in.setVariable("ECMS_s_tune", x3);
        [SOC_end,  dSOC] =dSOCsim_v1(in);
        y3 = SOC_end;
        subplot (1,2,1);
        plot(x3,dSOC,'bs','MarkerSize',15)
        hold on
        fprintf ('x3 = %f, y3 = %f \n',x3, y3);
        if (abs(y3 - SOCEndTrg) <= tol)
        ECMS_s  = x3;
        SOC_end = y3;
        solution_found = 1;
        end
    end
    if (solution_found == 0)
        x_out(1) = x1; x_out(2) = x2; x_out(3) = x3; y_out(1) = y1; y_out(2) = y2; y_out(3) = y3; % output 3 points
    end
end

if ((y1 < SOCEndTrg) && (solution_found == 0)) % y1 < SOCEndTrg
    x2 = x1 + ECMS_S_dis_up (x1, y1, SOCEndTrg); % use a higher ECMS_s value as x2
    in = in.setVariable("ECMS_s_tune", x2);
    [SOC_end, dSOC] =dSOCsim_v1(in);
    y2 = SOC_end;
    subplot (1,2,1);
    plot(x2,dSOC,'bs','MarkerSize',15)
    fprintf ('x2 = %f, y2 = %f \n',x2, y2);
    if (abs(y2 - SOCEndTrg) <= tol)
        ECMS_s  = x2;
        SOC_end = y2;
        solution_found = 1;
    end
    if ((y2 < SOCEndTrg) && (solution_found == 0)) % x2 is not high enough
        y3_try = SOCEndTrg + 2;                    % set a higher SOC target


x=x1+αy-y1y2-y1(x2-x1),x=x1,aty=y1,x=αx2+(1-α)x1aty=y2,

        x3 = x1 + alpha*(y3_try - y1)*(x2-x1)/(y2-y1); % use x1, y1, x2, y2 as a linear prdeiction
        dx = ECMS_S_dis_up (x2, y2, SOCEndTrg);    % standard increase
        x3 = max (x3, x2 +   dx);                  % lower limit for x3
        x3 = min (x3, x2 + 2*dx);                  % upper limit for x3
        in = in.setVariable("ECMS_s_tune", x3);
        [SOC_end, dSOC] =dSOCsim_v1(in);
        y3 = SOC_end;
        subplot (1,2,1);
        plot(x3,dSOC,'bs','MarkerSize',15)
        fprintf ('x3 = %f, y3 = %f \n',x3, y3);
        if (abs(y3 - SOCEndTrg) <= tol)
            ECMS_s  = x3;
            SOC_end = y3;
            solution_found = 1;
        end
    end
    if (solution_found == 0)
        if ((y2 < SOCEndTrg) && (y3 <= SOCEndTrg))  % y3 is still not high enough
            [x(4)] = Second_order_roots (x_out, y_out, SOCEndTrg + 2);  % increase again
            dx = ECMS_S_dis_up (x3, y3, SOCEndTrg);   % standard increase
            x(4) = max (x(4), x3 +   dx);             % make it higher than the standard increase
            x(4) = min (x(4), x3 + 2*dx);             % limit the increase to 2 times the standard
            in = in.setVariable("ECMS_s_tune", x(4));
            [SOC_end, dSOC] =dSOCsim_v1(in);
            ECMS_s = x(4);
            y(4) = SOC_end;
            subplot (1,2,1);
            plot(x(4),dSOC,'bs','MarkerSize',15)
            x_out (1) = x(4); y_out (1) = y(4);   % output 3 points
            x_out (2) = x3;   y_out (2) = y3;
            x_out (3) = x2;   y_out (3) = y2;
            fprintf ('x(4) = %f, y(4) = %f \n',x(4), y(4));
            if (abs(y(4) - SOCEndTrg) <= tol)
                ECMS_s  = x(4);
                SOC_end = y(4);
                solution_found = 1;
            end
        end
    end
    if ((y2 > SOCEndTrg) && (solution_found == 0))  % y2 is good
        x_min = min (x1, x2); x_max = max (x1, x2); y_min = min(y1, y2); y_max = max (y1, y2); % get min and max for x1, x2, y1, y2
        w_min = abs (y_min - SOCEndTrg) / (abs(y_min - SOCEndTrg) + abs(y_max - SOCEndTrg));   % weighted factor
        x3= (1-w_min) * x_min + w_min * x_max;  % get weighted interpolation between x1, and x2
        in = in.setVariable("ECMS_s_tune", x3);
        [SOC_end, dSOC] =dSOCsim_v1(in);
        y3 = SOC_end;
        subplot (1,2,1);
        plot(x3,dSOC,'bs','MarkerSize',15)
        fprintf ('x3 = %f, y3 = %f \n',x3, y3);
        if (abs(y3 - SOCEndTrg) <= tol)
            ECMS_s  = x3;
            SOC_end = y3;
            solution_found = 1;
        end
    end
    if (solution_found == 0)
        x_out(1) = x1; x_out(2) = x2; x_out(3) = x3; y_out(1) = y1; y_out(2) = y2; y_out(3) = y3; % output three points
    end
end

end

function [SOC_end, dSOC]=dSOCsim_v1(in)

out=sim(in);
% for ii=1:length(out)
    if isempty(out.ErrorMessage)
        SOC=out.logsout.getElement('Battery SOC').Values.Data;
        dSOC=SOC(end)-SOC(1);
        SOC_end = SOC(end);
    else
        dSOC=NaN;
    end

end

function dx = ECMS_S_dis_up (ECMS_s, y, SOC_target)

% function computs standard dx = increase/decrease in ECMS_s
% the dx is propertional to the distance between SOC_end (y) and SOC_Target
% also, dx is propoertional to ECMS_s, a, c, ff can be adjusted

ff = 0.04;
a  = 0.01;
c = 3.5;
b = ECMS_s / c;   % ECMS_s effect
if (ECMS_s < c-0.1); b = 1; end
dx = a + b * abs(y-SOC_target) * ff;

end

function [z1] = Second_order_roots (x, y, y_tar)

solve the equationytar=az2+bz+c,withyi=axi2+bxi+c,for1i3.

d1 = y(1) / (x(1) - x(2)) / (x(1) - x(3));
d2 = y(2) / (x(2) - x(1)) / (x(2) - x(3));
d3 = y(3) / (x(3) - x(1)) / (x(3) - x(2));

AA = (d1 + d2 + d3);
BB = - (d1 * (x(2) + x(3)) + d2 * (x(1) + x(3)) + d3 * (x(1) + x(2)));
CC = d1 * x(2) * x(3) + d2 * x(1) * x(3) + d3 * x(1) * x(2) - y_tar;

z1 = (-BB + sqrt (BB*BB - 4 * AA * CC)) / 2 / AA;

end

See Also
