Test and Measurement

Bluetooth transmitter and receiver testing, support for software-defined radio (SDR)

Bluetooth® Toolbox provides features and reference examples to perform verification, performance analysis, radio frequency (RF) testing of the Bluetooth basic rate/enhanced data rate (BR/EDR), and RF physical layer (RF-PHY) testing of low energy (LE) communication systems. The examples featured here also show you how to connect a software-defined radio (SDR) with Bluetooth Toolbox.

Use the test and measurement and SDR capabilities of the toolbox to:

  • Generate and configure Bluetooth LE RF-PHY test parameters.

  • Generate Bluetooth BR/EDR and LE test waveforms.

  • Perform Bluetooth BR/EDR RF and Bluetooth LE RF-PHY transmitter and receiver testing.

  • Generate, transmit, and receive Bluetooth BR/EDR and LE waveforms by using the ADALM-PLUTO radio.

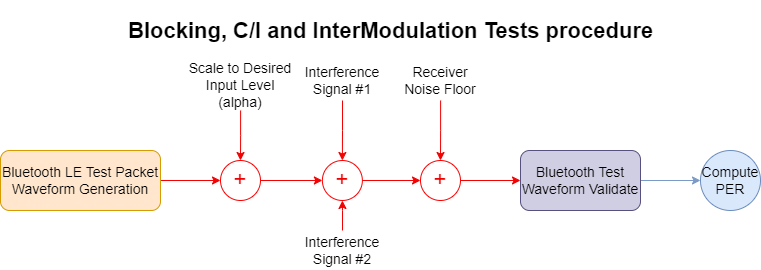

Block diagram showing how to perform radio frequency (RF) physical layer (PHY) receiver tests specific to blocking, intermodulation and carrier-to-interference (C/I)

Functions

bluetoothTestWaveformGenerate Bluetooth BR/EDR or LE test waveform

Objects

bluetoothTestWaveformConfigBluetooth BR/EDR or LE test waveform configuration parameters
bluetoothRFPHYTestConfigBluetooth LE RF-PHY test configuration parameters
