Filter input signal through multipath Rician fading channel
The comm.RicianChannel
System object™ filters an input signal through a multipath Rician fading channel. For more
information on fading model processing, see the Methodology for Simulating
Multipath Fading Channels section.
To filter an input signal through a multipath Rician fading channel:
Create the comm.RicianChannel
object and set its properties.
Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
creates a
frequencyselective or frequencyflat multipath Rician fading channel System object. This
object filters a real or complex input signal through the multipath channel to obtain a
channelimpaired signal.ricianchan
= comm.RicianChannel
sets properties using one or more namevalue arguments. For example,
ricianchan
= comm.RicianChannel(Name,Value)'SampleRate',2
sets the input signal sample rate to 2.
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
SampleRate
— Input signal sample rate1
(default)  positive scalarInput signal sample rate in hertz, specified as a positive scalar.
Data Types: double
PathDelays
— Discrete path delay0
(default)  scalar  row vectorDiscrete path delay in seconds, specified as a scalar or row vector.
When you set PathDelays
to a scalar, the
channel is frequency flat.
When you set PathDelays
to a vector, the
channel is frequency selective.
The PathDelays
and AveragePathGains
properties must be the same length.
Data Types: double
AveragePathGains
— Average gains of discrete paths0
(default)  scalar  row vectorAverage gains of the discrete paths in decibels, specified as a scalar or row
vector. The AveragePathGains
and PathDelays
properties must be
the same length.
Data Types: double
NormalizePathGains
— Normalize average path gainstrue
or 1
(default)  false
or 0
Normalize average path gains, specified as one of these logical values:
1
(true
) — The fading processes are
normalized so that the total power of the path gains, averaged over time, is 0
dB.
0
(false
) — The total power of the path
gains is not normalized.
The AveragePathGains
property
specifies the average powers of the path gains.
Data Types: logical
KFactor
— Kfactor of Rician fading channel3
(default)  positive scalar  1byN_{P} vector of nonnegative
valuesKfactor of Rician fading channel, specified as a positive scalar or a
1byN_{P} vector of nonnegative values.
N_{P} is the number of discrete path delays
specified by the PathDelays
property.
When you set KFactor
to a scalar, the first
discrete path is a Rician fading process with a Rician Kfactor of KFactor
. Any remaining discrete paths are independent
Rayleigh fading processes.
When you set KFactor
to a vector, the discrete path
corresponding to a positive element of the KFactor
vector is a
Rician fading process with a Rician Kfactor specified by that element. The discrete
path corresponding to any zerovalued elements of the KFactor
vector are Rayleigh fading processes. At least one element must be nonzero.
Data Types: double
DirectPathDopplerShift
— Doppler shifts for lineofsight components0
(default)  scalar  row vectorDoppler shifts for the lineofsight components of the multipath Rician fading
channel, specified as a scalar or row vector. Units are in hertz. This property must be
the same size as the KFactor
property.
When you set DirectPathDopplerShift
to a scalar, the
value represents the lineofsight component Doppler shift of the first discrete
path. This path exhibits a Rician fading process.
When you set DirectPathDopplerShift
to a row vector, the
discrete path corresponding to a positive element of the KFactor
vector is a Rician
fading process. The corresponding element of
DirectPathDopplerShift
specifies the lineofsight
component for the Doppler shift of that discrete path.
Data Types: double
DirectPathInitialPhase
— Initial phases for lineofsight components0
(default)  scalar  row vectorInitial phase for the lineofsight components of a multipath Rician fading channel,
specified as a scalar or row vector. Units are in radians. This property must be the
same size as the KFactor
property.
When you set DirectPathInitialPhase
to a scalar, the
value represents the lineofsight component initial phase of the first discrete
path. This path exhibits a Rician fading process.
When you set DirectPathInitialPhase
to a row vector, the
discrete path corresponding to a positive element of the KFactor
vector is a Rician
fading process. The corresponding element of
DirectPathInitialPhase
specifies the lineofsight
component initial phase of that discrete path.
Data Types: double
MaximumDopplerShift
— Maximum Doppler shift for all channel paths0.001
(default)  nonnegative scalarMaximum Doppler shift for all channel paths, specified as a nonnegative scalar. Units are in hertz.
The maximum Doppler shift limit applies to each channel path. When you set this
property to 0
, the channel remains static for the entire input. You
can use the reset
object function to generate a new
channel realization. The MaximumDopplerShift
property value must be smaller than SampleRate
/10/f_{c} for each path.
f_{c} is the cutoff frequency factor of the
path. For most Doppler spectrum types, the value of
f_{c} is 1. For Gaussian and biGaussian
Doppler spectrum types, the value of f_{c} is
dependent on the Doppler spectrum structure fields. For more details about how
f_{c} is defined, see the Cutoff Frequency Factor
section.
Data Types: double
DopplerSpectrum
— Doppler spectrum shape for all channel pathsdoppler('Jakes')
(default)  Doppler spectrum structure  1byN_{P} cell array of Doppler spectrum
structuresDoppler spectrum shape for all channel paths, specified as a Doppler spectrum
structure or a 1byN_{P} cell array of Doppler
spectrum structures. These Doppler spectrum structures must be outputs of the form
returned from the doppler
function.
N_{P} is the number of discrete delay paths
specified by the PathDelays
property. The
MaximumDopplerShift
property defines the maximum Doppler shift value that the
DopplerSpectrum
property permits when you specify the Doppler spectrum.
When you set DopplerSpectrum
to a single Doppler spectrum
structure, all paths have the same specified Doppler spectrum.
When you set DopplerSpectrum
to a cell array of Doppler
spectrum structures, each path has the Doppler spectrum specified by the
corresponding structure in the cell array.
Specify options for the spectrum type by using the specType
input to the doppler
function. If you set the FadingTechnique
property to
'Sum of sinusoids'
, you must set
DopplerSpectrum
to doppler('Jakes')
.
To enable this property, set the MaximumDopplerShift
property to a positive scalar.
Data Types: struct
 cell
ChannelFiltering
— Channel filteringtrue
or 1
(default)  false
or 0
Channel filtering, specified as one of these logical values:
1
(true
) — The channel accepts an input
signal and produces a filtered output signal.
0
(false
) — The object does not accept
an input signal, produces no filtered output signal, and outputs only channel path
gains. You must specify the duration of the fading process by using the NumSamples
property.
Data Types: logical
PathGainsOutputPort
— Output channel path gainsfalse
or 0
(default)  true
or 1
Output channel path gains, specified as a logical 0
(false
) or 1
(true
). Set this
property to true
to output the channel path gains of the underlying
fading process.
To enable this property, set the ChannelFiltering
property to true
.
Data Types: logical
NumSamples
— Number of samples100
(default)  nonnegative integerNumber of samples used for the duration of the fading process, specified as a nonnegative integer.
Tunable: Yes
To enable this property, set the ChannelFiltering
property to false
.
Data Types: double
OutputDataType
— Path gain output data type'double'
(default)  'single'
Path gain output data type, specified as 'double'
or
'single'
.
To enable this property, set the ChannelFiltering
property to false
.
Data Types: char
 string
FadingTechnique
— Channel model fading technique'Filtered Gaussian noise'
(default)  'Sum of sinusoids'
Channel model fading technique, specified as 'Filtered Gaussian
noise'
or 'Sum of sinusoids'
.
Data Types: char
 string
NumSinusoids
— Number of sinusoids48
(default)  positive integerNumber of sinusoids used to model the fading process, specified as a positive integer.
To enable this property, set the FadingTechnique
property
to 'Sum of sinusoids'
.
Data Types: double
InitialTimeSource
— Source to control start time of fading process'Property'
(default)  'Input port'
Source to control the start time of the fading process, specified as
'Property'
or 'Input port'
.
When you set InitialTimeSource
to
'Property'
, set the initial time offset by using the
InitialTime
property.
When you set InitialTimeSource
to 'Input
port'
, specify the start time of the fading process by using the
inittime
input argument. The input value can change in consecutive
calls to the object.
To enable this property, set the FadingTechnique
property
to 'Sum of sinusoids'
.
Data Types: char
 string
InitialTime
— Initial time offset0
(default)  nonnegative scalarInitial time offset for the fading model in seconds, specified as a nonnegative scalar.
When mod
(InitialTime
/SampleRate
) is nonzero, the initial time offset is rounded up to the nearest
sample position.
To enable this property, set the FadingTechnique
property
to 'Sum of sinusoids'
and the InitialTimeSource
property to 'Property'
.
Data Types: double
RandomStream
— Source of random number stream'Global stream'
(default)  'mt19937ar with seed'
Source of the random number stream, specified as 'Global stream'
or 'mt19937ar with seed'
.
When you specify 'Global stream'
, the object uses the
current global random number stream for normally distributed random number
generation. In this case, the reset
object
function resets only the filters.
When you specify 'mt19937ar with seed'
, the object uses the
mt19937ar algorithm for normally distributed random number generation. In this
case, the reset
object function resets the
filters and reinitializes the random number stream to the value of the Seed
property.
Data Types: char
 string
Seed
— Initial seed of mt19937ar random number stream73
(default)  nonnegative integerInitial seed of the mt19937ar random number stream generator algorithm, specified as
a nonnegative integer. When you call the reset
object function, it
reinitializes the mt19937ar random number stream to the Seed
value.
To enable this property, set the RandomStream
property to
'mt19937ar with seed'
.
Data Types: double

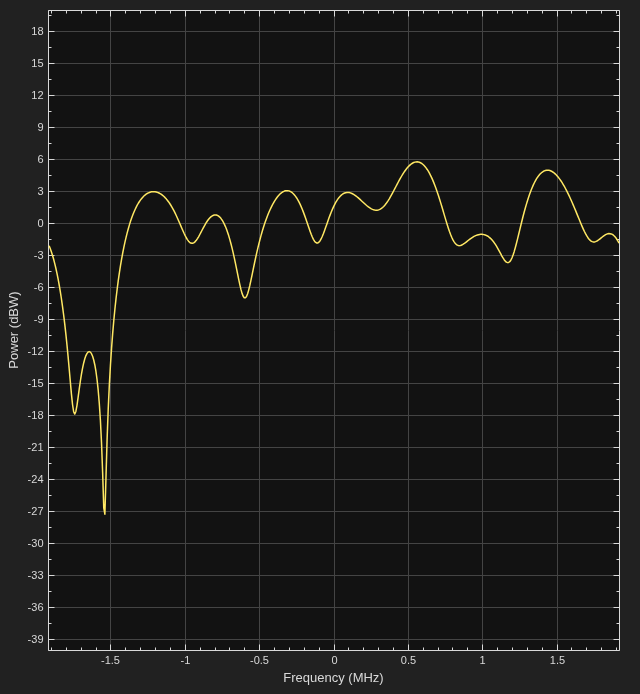

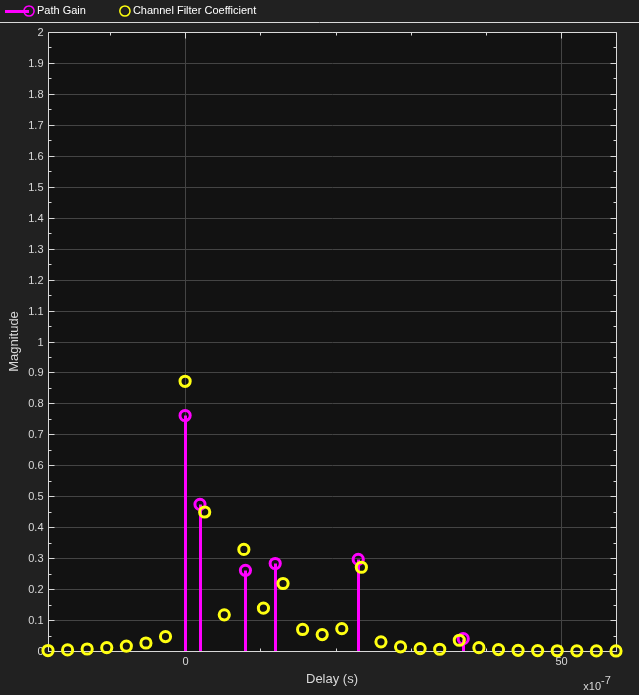

Visualization
— Channel visualization'Off'
(default)  'Impulse response'
 'Frequency response'
 'Impulse and frequency responses'
 'Doppler spectrum'
Channel visualization, specified as 'Off'
, 'Impulse
response'
, 'Frequency response'
, 'Impulse and
frequency responses'
, or 'Doppler spectrum'
. For more
information, see the Channel Visualization
section.
To enable this property, set the FadingTechnique
property
to 'Filtered Gaussian noise'
.
Data Types: char
 string
PathsForDopplerDisplay
— Path used for displaying Doppler spectrum1
(default)  positive integerPath used for displaying the Doppler spectrum, specified as a positive integer in
the range [1, N_{P}].
N_{P} is the number of discrete delay paths
specified by the PathDelays
property. Use this
property to select the discrete path used in constructing a Doppler spectrum plot.
To enable this property, set the Visualization
property to
'Doppler spectrum'
.
Data Types: double
SamplesToDisplay
— Percentage of samples to display'25%'
(default)  '10%'
 '50%'
 '100%'
Percentage of samples to display, specified as '25%'
,
'10%'
, '50%'
, or '100%'
.
Increasing the percentage improves display accuracy at the expense of simulation
speed.
To enable this property, set the Visualization
property to
'Impulse response'
, 'Frequency response'
, or
'Impulse and frequency responses'
.
Data Types: char
 string
filters input signal y
= ricianchan(x
)x
through a multipath Rician fading channel
and returns the result in y
.
To enable this syntax, set the ChannelFiltering
property
to true
.
specifies a start time for the fading process.y
= ricianchan(x
,inittime
)
To enable this syntax, set the FadingTechnique
property to
'Sum of sinusoids'
and the InitialTimeSource
property to 'Input port'
.
[
also returns the channel path gains of the underlying multipath Rician fading process in
y
,pathgains
] = ricianchan(___)pathgains
using any of the input argument combinations in the
previous syntaxes.
To enable this syntax, set the PathGainsOutputPort
property to true
.
returns the
channel path gains of the underlying fading process. In this case, the channel requires
no input signal and acts as a source of path gains.pathgains
= ricianchan()
To enable this syntax, set the ChannelFiltering
property
to false
.
returns the channel path gains of the underlying fading process beginning at the
specified initial time. In this case, the channel requires no input signal and acts as a
source of path gains.pathgains
= ricianchan(inittime
)
To enable this syntax, set the FadingTechnique
property to
'Sum of sinusoids'
, the InitialTimeSource
property to 'Input port'
, and the ChannelFiltering
property
to false
.
x
— Input signalInput signal, specified as an N_{S}by1 vector, where N_{S} is the number of samples.
Data Types: single
 double
Complex Number Support: Yes
inittime
— Initial time offset0
 nonnegative scalarInitial time offset in seconds, specified as a nonnegative scalar.
When mod
(inittime
/SampleRate
) is nonzero, the initial time offset is rounded up to the nearest
sample position.
Data Types: single
 double
y
— Output signalOutput signal, returned as an N_{S}by1
vector of complex values with the same data precision as input signal x
.
N_{S} is the number of samples.
pathgains
— Output path gainsOutput path gains, returned as an
N_{S}byN_{P}
matrix. N_{S} is the number of samples.
N_{P} is the number of discrete delay paths
specified by the PathDelays
property.
pathgains
contains complex values.
When you set the ChannelFiltering
property to false
, the data type of this output has the same
precision as the input signal x
. When you
set the ChannelFiltering
property to true
, the data type of this output is specified by the
OutputDataType
property.
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Produce the same multipath Rician fading channel response by using two different methods for random number generation. The multipath Rician fading channel System object includes two methods for random number generation. You can use the current global stream or the mt19937ar algorithm with a specified seed. By interacting with the global stream, the System object can produce the same outputs from the two methods.
Create a PSK modulator System object to modulate randomly generated data.
pskModulator = comm.PSKModulator; insig = randi([0,pskModulator.ModulationOrder1],1024,1); channelInput = pskModulator(insig);
Create a multipath Rician fading channel System object, specifying the random number generation method as the my19937ar algorithm and the random number seed as 73.
ricianchan = comm.RicianChannel( ... 'SampleRate',1e6, ... 'PathDelays',[0.0 0.5 1.2]*1e6, ... 'AveragePathGains',[0.1 0.5 0.2], ... 'KFactor',2.8, ... 'DirectPathDopplerShift',5.0, ... 'DirectPathInitialPhase',0.5, ... 'MaximumDopplerShift',50, ... 'DopplerSpectrum',doppler('Bell', 8), ... 'RandomStream','mt19937ar with seed', ... 'Seed',73, ... 'PathGainsOutputPort',true);
Filter the modulated data by using the multipath Rician fading channel System object.
[RicianChanOut1,RicianPathGains1] = ricianchan(channelInput);
Set the System object to use the global stream for random number generation.
release(ricianchan);
ricianchan.RandomStream = 'Global stream';
Set the global stream to have the same seed that you specified when creating the multipath Rician fading channel System object.
rng(73)
Filter the modulated data by using the multipath Rician fading channel System object again.
[RicianChanOut2,RicianPathGains2] = ricianchan(channelInput);
Verify that the channel and path gain outputs are the same for each of the two methods.
isequal(RicianChanOut1,RicianChanOut2)
ans = logical
1
isequal(RicianPathGains1,RicianPathGains2)
ans = logical
1
Display the impulse and frequency responses of a frequencyselective multipath Rician fading channel that is configured to disable channel filtering.
Define simulation variables. Specify path delays and gains by using the ITU pedestrian B channel configuration.
fs = 3.84e6; % Sample rate in Hz pathDelays = [0 200 800 1200 2300 3700]*1e9; % in seconds avgPathGains = [0 0.9 4.9 8 7.8 23.9]; % dB kfact = 10; % Rician Kfactor fD = 50; % Max Doppler shift in Hz
Create a multipath Rician fading channel System object to visualize the impulse response and frequency response plots.
ricianChan = comm.RicianChannel('SampleRate',fs, ... 'PathDelays',pathDelays, ... 'AveragePathGains',avgPathGains, ... 'KFactor',kfact, ... 'MaximumDopplerShift',fD, ... 'ChannelFiltering',false, ... 'Visualization','Impulse and frequency responses');
Visualize the channel response by running the multipath Rician fading channel System object with no input signal. The impulse response plot enables you to identify the individual paths and their corresponding filter coefficients. The frequency response plot shows the frequencyselective nature of the ITU pedestrian B channel.
ricianChan();
Show that the channel state is maintained for discontinuous transmissions by using multipath Rician fading channel System objects configured to use the sumofsinusoids fading technique. Observe discontinuous channel response segments overlaid on a continuous channel response.
Set the channel properties.
fs = 1000; % Sample rate in Hz pathDelays = [0 2.5e3]; % In seconds pathPower = [0 6]; % In dB fD = 5; % Maximum Doppler shift in Hz ns = 1000; % Number of samples nsdel = 100; % Number of samples for delayed paths
Define a continuous time span and three discontinuous time segments over which to plot and view the channel response. View a 1000sample continuous channel response that start at time 0 and three 100sample channel responses that start at times 0.1, 0.4, and 0.7 seconds, respectively.
to0 = 0.0; to1 = 0.1; to2 = 0.5; to3 = 0.8; t0 = (to0:ns1)/fs; % Transmission 0 t1 = to1+(0:nsdel1)/fs; % Transmission 1 t2 = to2+(0:nsdel1)/fs; % Transmission 2 t3 = to3+(0:nsdel1)/fs; % Transmission 3
Create a frequencyflat multipath Rician fading System object, specifying a 1000 Hz sampling rate, the sumofsinusoids fading technique, disabled channel filtering, and the number of samples to view. Specify a seed value so that results can be repeated. Use the default InitialTime
property setting so that the fading channel is simulated from time 0.
ricianchan1 = comm.RicianChannel('SampleRate',fs, ... 'MaximumDopplerShift',fD, ... 'RandomStream','mt19937ar with seed', ... 'Seed',17, ... 'FadingTechnique','Sum of sinusoids', ... 'ChannelFiltering',false, ... 'NumSamples',ns);
Create a clone of the multipath Rician fading channel System object. Set the number of samples for the delayed paths. Set the source for the initial time so that you can specify the fading channel offset time as an input argument when using the System object.
ricianchan2 = clone(ricianchan1);
ricianchan2.InitialTimeSource = 'Input port';
ricianchan2.NumSamples = nsdel;
Save the path gain output for the continuous channel response by using the ricianchan1
object and for the discontinuous delayed channel responses by using the ricianchan2
object with the initial time offsets provided as input arguments.
pg0 = ricianchan1(); pg1 = ricianchan2(to1); pg2 = ricianchan2(to2); pg3 = ricianchan2(to3);
Compare the number of samples processed by the two channels by using the info
object function. The ricianchan1
object processed 1000 samples, while the ricianhan2
object processed only 300 samples.
G = info(ricianchan1); H = info(ricianchan2); [G.NumSamplesProcessed H.NumSamplesProcessed]
ans = 1×2
1000 300
Convert the path gains into decibels.
pathGain0 = 20*log10(abs(pg0)); pathGain1 = 20*log10(abs(pg1)); pathGain2 = 20*log10(abs(pg2)); pathGain3 = 20*log10(abs(pg3));

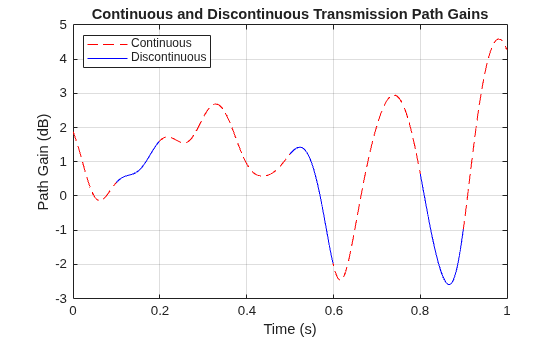

Plot the path gains for the continuous and discontinuous cases. The gains for the three segments match the gain for the continuous case. Because the channel characteristics are maintained even when data is not transmitted, the alignment of the two plots shows that the sumofsinusoids technique is suited to the simulation of packetized data.
plot(t0,pathGain0,'r') hold on plot(t1,pathGain1,'b') plot(t2,pathGain2,'b') plot(t3,pathGain3,'b') grid xlabel('Time (s)') ylabel('Path Gain (dB)') legend('Continuous','Discontinuous','location','nw') title('Continuous and Discontinuous Transmission Path Gains')
Reproduce the multipath Rician fading channel output by using the ChannelFilterCoefficients
property returned by the info
object function of the comm.RicianChannel
System object.
Create a multipath Rician fading channel System object, defining two paths. Generate data to pass through the channel.
ricianchan = comm.RicianChannel( ... 'SampleRate',1000, ... 'PathDelays',[0 1e3], ... 'AveragePathGains',[0 2], ... 'PathGainsOutputPort',true)
ricianchan = comm.RicianChannel with properties: SampleRate: 1000 PathDelays: [0 1.0000e03] AveragePathGains: [0 2] NormalizePathGains: true KFactor: 3 DirectPathDopplerShift: 0 DirectPathInitialPhase: 0 MaximumDopplerShift: 1.0000e03 DopplerSpectrum: [1x1 struct] ChannelFiltering: true PathGainsOutputPort: true Show all properties
data = randi([0 1],600,1);
Pass data through the channel. Assign the ChannelFilterCoefficients
property value to the variable coeff
.
[chanout1,pg] = ricianchan(data); chaninfo = info(ricianchan)
chaninfo = struct with fields:
ChannelFilterDelay: 0
ChannelFilterCoefficients: [2x2 double]
NumSamplesProcessed: 600
coeff = chaninfo.ChannelFilterCoefficients;
Calculate the fractional delayed input signal at the path delay locations stored in coeff
.
Np = length(ricianchan.PathDelays); fracdelaydata = zeros(size(data,1),Np); for ii = 1:Np fracdelaydata(:,ii) = filter(coeff(ii,:),1,data); end
Apply the path gains and sum the results for all paths.
chanout2 = sum(pg .* fracdelaydata,2);
Compare the output of the multipath Rician fading channel System object to the output reproduced using the path gains and the ChannelFilterCoefficients
property of the multipath Rician fading channel System object.
isequal(chanout1,chanout2)
ans = logical
1

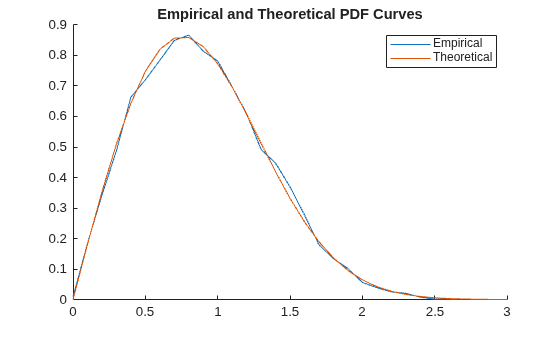

Compute and plot the empirical and theoretical probability density function (PDF) for a Rician channel with one path.
Initialize parameters and create a Rician channel System object that does not apply channel filtering.
Ns = 1.92e6; Rs = 1.92e6; dopplerShift = 2000; KFactor = 3; % In dB KFactorLin = 10.^(KFactor/10); % Linear units chan = comm.RicianChannel( ... 'SampleRate',Rs, ... 'PathDelays',0, ... 'KFactor',KFactorLin, ... 'AveragePathGains',0, ... 'MaximumDopplerShift',dopplerShift, ... 'ChannelFiltering',false, ... 'NumSamples',Ns, ... 'FadingTechnique','Sum of sinusoids');
Compute and plot the empirical and theoretical PDF for the Rician channel.
figure; hold on; % Empirical PDF plot gain = chan(); pd = fitdist(abs(gain),'Kernel','BandWidth',.01); r = 0:.1:3; y = pdf(pd,r); plot(r,y) % Theoretical PDF plot s = sqrt(KFactorLin)/sqrt(KFactorLin+1); sigma = sqrt(1/2)/sqrt(KFactorLin+1); exp_pdf_amplitude = pdf('Rician',r,s,sigma); plot(r,exp_pdf_amplitude') legend('Empirical','Theoretical') title('Empirical and Theoretical PDF Curves')

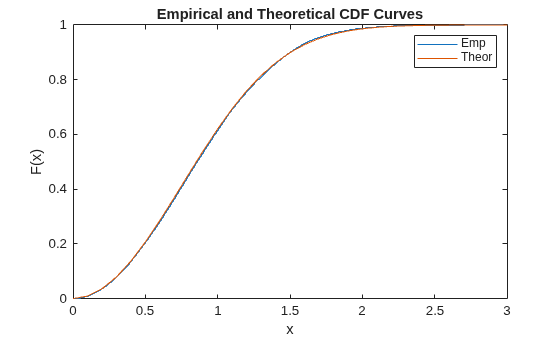

Compute and plot the empirical and theoretical cumulative distribution function (CDF) for a Rician channel with one path.
Initialize parameters and create a Rician channel System object that does not perform channel filtering.
Ns = 1.92e6; Rs = 1.92e6; dopplerShift = 2000; KFactor = 3; % In dB KFactorLin = 10.^(KFactor/10); % Linear units chan = comm.RicianChannel( ... 'SampleRate',Rs, ... 'PathDelays',0, ... 'KFactor',KFactorLin, ... 'AveragePathGains',0, ... 'MaximumDopplerShift',dopplerShift, ... 'ChannelFiltering',false, ... 'NumSamples',Ns, ... 'FadingTechnique','Sum of sinusoids');
Compute and plot the empirical and theoretical CDF for the Rician channel. Compute the empirical CDF by using the path gains.
% Empirical CDF plot g = chan(); ecdf(abs(g)); hold on; % Theoretical CDF plot r = 0:.1:3; s = sqrt(KFactorLin)/sqrt(KFactorLin+1); sigma = sqrt(1/2)/sqrt(KFactorLin+1); exp_cdf_amplitude = cdf('Rician',r,s,sigma); plot(r,exp_cdf_amplitude') legend('Emp','Theor') title('Empirical and Theoretical CDF Curves')
The cutoff frequency factor, f_{c}, is dependent on the type of Doppler spectrum.
For any Doppler spectrum type other than Gaussian and biGaussian, f_{c} equals 1.
For a doppler
('Gaussian')
spectrum type,
f_{c} equals NormalizedStandardDeviation
$$\text{\hspace{0.17em}}\times \text{\hspace{0.17em}}\sqrt{2\mathrm{log}2}$$.
For a doppler
('BiGaussian')
spectrum type:
If the PowerGains
(1)
and
NormalizedCenterFrequencies
(2)
field values are both 0
, then
f_{c} equals NormalizedStandardDeviation
(1)
$$\text{\hspace{0.17em}}\times \text{\hspace{0.17em}}\sqrt{2\mathrm{log}2}$$.
If the PowerGains
(2)
and
NormalizedCenterFrequencies
(1)
field values are both 0
, then
f_{c} equals NormalizedStandardDeviation
(2)
$$\text{\hspace{0.17em}}\times \text{\hspace{0.17em}}\sqrt{2\mathrm{log}2}$$.
If the NormalizedCenterFrequencies
field value is
[0,0]
and the
NormalizedStandardDeviation
field has two identical
elements, then f_{c} equals NormalizedStandardDeviation
(1)
$$\text{\hspace{0.17em}}\times \text{\hspace{0.17em}}\sqrt{2\mathrm{log}2}$$.
In all other cases, f_{c} equals 1.
The comm.RicianChannel
System object enables visualization of the channel impulse response, frequency response,
and Doppler spectrum.
Note
The displayed and specified path gain locations can differ by as much as 5% of the input sample time.
The visualization display speed is controlled by the combination of
the SamplesToDisplay
property and the
Reduce Updates to Improve Performance
scope menu item found in Playback . Reducing the
percentage of samples to display and enabling reduced updates can speed
up the rendering of the visualization scope.
If you close the visualization scopes, calls to the System object execute at normal speed.
Code generation is available only when you set the
Visualization
property to
'Off'
.
Impulse Response
The impulse response scope displays the path gains, channel filter coefficients, and
interpolated path gains. The path gains occur at time instances that correspond to the
specified PathDelays
property and might not be aligned with the
input sampling time. The scope uses channel filter coefficients to model the channel.
The coefficients are interpolated from the actual path gains and are aligned with the
input sampling time. The path gains overlap the filter coefficients for cases where the
path gains are aligned with the sampling time. Sinc interpolation is used to connect the
channel filter coefficients and is shown as the interpolated path gains. These points
are used solely for display purposes and not used in subsequent channel filtering. For a
flat fading channel (one path), the sinc interpolation curve is not displayed. For all
impulse response plots, the frame and sample numbers are shown in the upperleft corner
of the scope.
The impulse response plot shares the same toolbar and menus as the dsp.ArrayPlot
System object.
When the specified path gains align with the sample rate, the path gains and the channel filter coefficients overlap. In this figure, the impulse response shows that the path gains overlap the filter coefficients.
If the specified path gains are not aligned with the sample rate, the path gains and the channel filter coefficients do not overlap. In this figure, the filter coefficients are equally distributed. Because the path gains are not aligned with the sample rate, the path gains do not overlap with the channel filter coefficients.
This figure shows the impulse response for a frequencyflat channel without displaying the interpolated path gains.
Frequency response
The frequency response scope displays the multipath Rayleigh fading channel spectrum
by taking a discrete Fourier transform of the channel filter coefficients. The frequency
response plot shares the same toolbar and menus as the dsp.SpectrumAnalyzer
System object.
The yaxis limits of the plot are computed based on the
NormalizePathGains
and AveragePathGains
properties of the comm.RicianChannel
System object.
This table shows other selected default spectrum settings. You can change these settings from their default values by using the Spectrum Settings in View .
Spectrum Settings  Value

Type in Main options

Window length in Main options  Channel filter length
NFFT in Main options

Window in Window options

Units in Trace options

This figure shows the frequency response plot for a frequencyselective channel.
Doppler Spectrum
The Doppler spectrum plot displays the theoretical Doppler spectrum and the
empirically determined data points. The theoretical data is displayed as a line for the
case of nonstatic channels and as a point for static channels. The empirical data is
shown as * symbols. Before the empirical plot is updated, the internal buffer must be
completely filled with filtered Gaussian samples. The empirical plot is the running mean
of the spectrum that is calculated from each full buffer. For nonstatic channels, the
number of input samples that is needed before the next update is displayed in the
upperleft corner of the plot. The number of samples that is needed is a function of the
sample rate and the maximum Doppler shift. For static channels, the text "Reset
fading channel for next update
" is displayed.
[1] Oestges, Claude, and Bruno Clerckx. MIMO Wireless Communications: From RealWorld Propagation to SpaceTime Code Design. 1st ed. Boston, MA: Elsevier, 2007.
[2] Correia, Luis M., and European Cooperation in the Field of Scientific and Technical Research (Organization), eds. Mobile Broadband Multimedia Networks: Techniques, Models and Tools for 4G. 1st ed. Amsterdam ; Boston: Elsevier/Academic Press, 2006.
[3] Kermoal, J.P., L. Schumacher, K.I. Pedersen, P.E. Mogensen, and F. Frederiksen. “A Stochastic MIMO Radio Channel Model with Experimental Validation.” IEEE Journal on Selected Areas in Communications 20, no. 6 (August 2002): 1211–26. https://doi.org/10.1109/JSAC.2002.801223.
[4] Jeruchim, Michel C., Philip Balaban, and K. Sam Shanmugan. Simulation of Communication Systems. Second edition. Boston, MA: Springer US, 2000.
[5] Patzold, M., ChengXiang Wang, and B. Hogstad. “Two New SumofSinusoidsBased Methods for the Efficient Generation of Multiple Uncorrelated Rayleigh Fading Waveforms.” IEEE Transactions on Wireless Communications 8, no. 6 (June 2009): 3122–31. https://doi.org/10.1109/TWC.2009.080769.
Usage notes and limitations:
To generate C code, set the DopplerSpectrum
property to
a single Doppler spectrum structure.
Code generation is available only when you set the Visualization
property to
'Off'
.
See System Objects in MATLAB Code Generation (MATLAB Coder).
comm.AWGNChannel
 comm.MIMOChannel
 comm.RayleighChannel
 comm.RayTracingChannel
 comm.ChannelFilter
 comm.WINNER2Channel
You have a modified version of this example. Do you want to open this example with your edits?
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
Select web siteYou can also select a web site from the following list:
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
