FM Broadcast Modulator Baseband
Modulate using broadcast FM method
Modulation > Analog Baseband Modulation
The FM Broadcast Modulator Baseband block pre-emphasizes an audio signal and modulates it onto a baseband FM signal. If you select the Stereo audio check box, the block modulates the stereo audio (L–R) at the 38 kHz band, in addition to the baseband (L+R). If you select the RBDS modulation check box, the block also modulates a baseband RBDS signal at 57 kHz. For more details, see Algorithms.
- Sample rate (Hz)
Specify the output signal sample rate as a positive real scalar.
- Frequency deviation (Hz)
Specify the frequency deviation of the modulator in Hz as a positive real scalar. The system bandwidth is equal to twice the sum of the frequency deviation and the message bandwidth. FM broadcast standards specify a value of 75 kHz in the United States and 50 kHz in Europe.
- Pre-emphasis filter time constant (s)
Specify the pre-emphasis highpass filter time constant as a positive real scalar. FM broadcast standards specify a value of 75 μs in the United States and 50 μs in Europe.
- Sample rate of audio input signal (Hz)
Specify the input audio sample rate as a positive real scalar.
- Stereo audio
Select this check box if the input signal is a stereophonic audio signal.
- RBDS modulation
Select this check box to modulate a baseband RBDS signal at 57 kHz. By default, this check box is not selected.
- Oversampling factor of RBDS input
Specify the number of samples per RBDS symbol as a positive integer. The RBDS sample rate is given by Oversampling factor of RBDS input ×
1187.5Hz. According to the RBDS standard, the sample rate of each bit is 1187.5 Hz.
This parameter appears when you select the RBDS modulation check box.
The default is 10.
- Simulate using
Select the type of simulation to run.
Code generation. Simulate model using generate C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time but provides faster simulation speed than
Interpreted execution. Simulate model using the MATLAB interpreter. This option shortens startup time but has slower simulation speed than
If you select the RBDS modulation check box, both the audio and RBDS inputs must satisfy the following equation:
The input length of the audio signal must be an integer multiple of the audio decimation factor. The input length of the RBDS signal must be an integer multiple of the RBDS decimation factor.

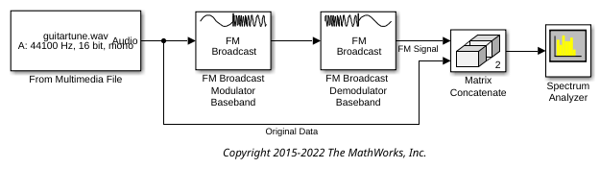

Modulate and Demodulate an Audio Signal
Load an audio input file, modulate and demodulate using the FM broadcast blocks. Compare the input signal spectrum with the demodulated signal spectrum.

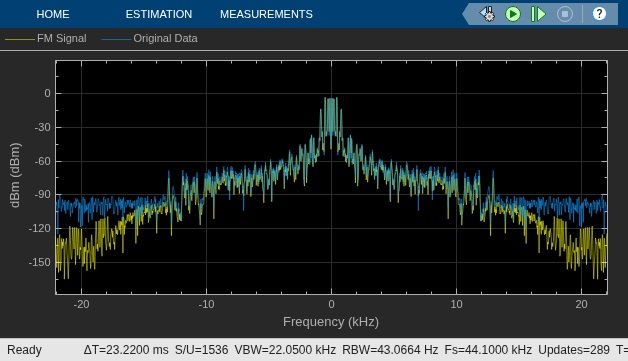

Run the model. The spectrum of the baseband FM signal is attenuated at the higher frequencies relative to the original waveform.
Experiment with the model by changing the Frequency deviation (Hz) and the Pre-emphasis filter time constant (s) parameters on the modulator and demodulator and observe the impact on the FM signal spectrum.
Supported Data Types
|Port||Supported Data Types|
The FM Broadcast modulator includes the functionality of the baseband FM modulator,
pre-emphasis filtering, and the ability to transmit stereophonic signals. For more
information about the algorithms used for basic FM modulation and demodulation, see the
FM amplifies high-frequency noise and degrades the overall signal-to-noise ratio. To compensate, FM broadcasters insert a pre-emphasis filter prior to FM modulation to amplify the high-frequency content. The FM receiver has a reciprocal de-emphasis filter after the FM demodulator to attenuate high-frequency noise and restore a flat signal spectrum. This figure shows the order of processing operations.
The pre-emphasis filter has a highpass characteristic transfer function given by
where τs is the filter time constant. The time constant is 75 μs in the United States and 50 μs in Europe. Similarly, the transfer function for the lowpass de-emphasis filter is given by
Irrespective of the audio sampling rate, the modulator converts the signal to a 152 kHz output sampling rate. For an audio sample rate of 44.1 kHz, the pre-emphasis filter has the response shown in this figure.
Multiplexed Stereo and RDS (or RBDS) FM Signal
The FM broadcast modulator supports stereophonic and monophonic operations. To support stereo transmission,
The Left+Right channel information is assigned to the mono portion of the spectrum (0 to 15 kHz).
The Left-Right channel information is amplitude modulated onto the 23 to 53 kHz region of the baseband spectrum using a 38 kHz subcarrier signal.
A pilot tone at 19 kHz in the multiplexed signal enables the FM receiver to coherently demodulate the stereo and RDS (or RBDS) signals.
This figure shows the spectrum of the multiplex baseband signal.
The multiplex message signal, m(t), is given by
where C0, C1, and C2 are gains. To generate the appropriate modulation level, these gains scale the amplitudes of the L(t)±R(t) signals, the 19 kHz pilot tone, and the RDS (or RBDS) subcarrier, respectively.
This figure shows the Multiplexing (MPX) encoder block diagram of the FM broadcast modulator, which is used to generate the multiplex baseband signal. L(t) and R(t) are the left and right audio signal components of the time-domain waveforms. RBDS(t) is the time-domain waveform of the RDS (or RBDS) signal.
 Hatai, I., and I. Chakrabarti. “A New High-Performance Digital FM Modulator and Demodulator for Software-Defined Radio and Its FPGA Implementation.” International Journal of Reconfigurable Computing (December 25, 2011): 1-10. https://doi.org/10.1155/2011/342532.
 Taub, H., and D. Schilling. Principles of Communication Systems. McGraw-Hill Series in Electrical Engineering. New York: McGraw-Hill, 1971, pp. 142–155.
 Der, Lawrence. "Frequency Modulation (FM) Tutorial". Silicon Laboratories Inc., pp. 4–8.
