competlayer

Competitive layer

Syntax

competlayer(numClasses,kohonenLR,conscienceLR)

Description

Competitive layers learn to classify input vectors into a given number of classes, according to similarity between vectors, with a preference for equal numbers of vectors per class.

competlayer(numClasses,kohonenLR,conscienceLR) takes these arguments,

numClasses

Number of classes to classify inputs (default = 5)

kohonenLR

Learning rate for Kohonen weights (default = 0.01)

conscienceLR

Learning rate for conscience bias (default = 0.001)

and returns a competitive layer with numClasses neurons.

Examples

collapse all

This example shows how to train a competitive layer to classify 150 iris flowers into 6 classes.

inputs = iris_dataset;
net = competlayer(6);
net = train(net,inputs);

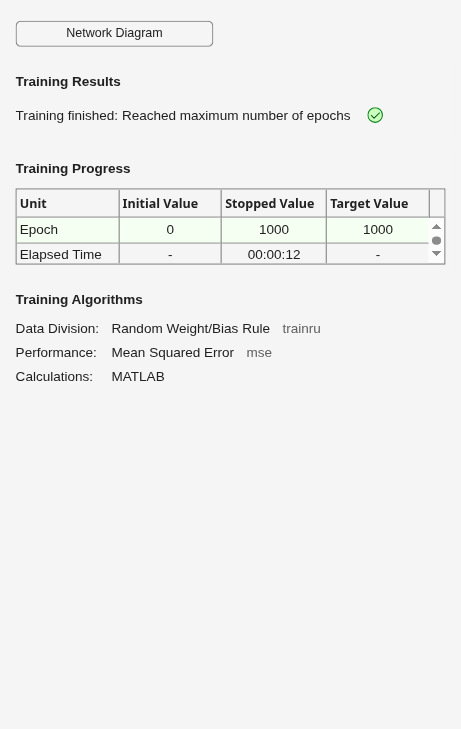

{"String":"Figure Neural Network Training (31-Aug-2022 01:42:01) contains an object of type uigridlayout.","Tex":[],"LaTex":[]}

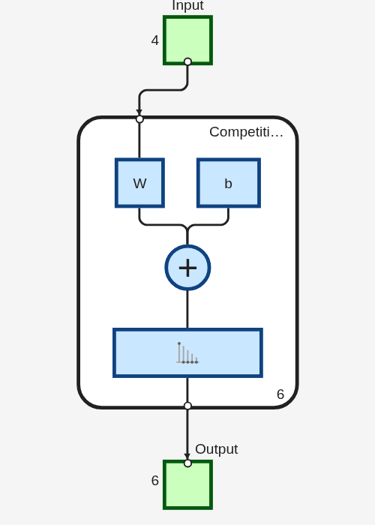

view(net)

outputs = net(inputs);
classes = vec2ind(outputs);

Version History

Introduced in R2010b
