Differentiator filter specification object


D = fdesign.differentiator
D = fdesign.differentiator(SPEC)
D = fdesign.differentiator(SPEC,specvalue1,specvalue2, ...)
D = fdesign.differentiator(specvalue1)
D = fdesign.differentiator(...,Fs)
D = fdesign.differentiator(...,MAGUNITS)


D = fdesign.differentiator constructs a default differentiator filter designer D with the filter order set to 31.

D = fdesign.differentiator(SPEC) initializes the filter designer Specification property to SPEC. You provide one of the following filter entries as input to replace SPEC. These entries are not case sensitive.


Specifications marked with an asterisk require the DSP System Toolbox™ software.

  • 'N' — Full band differentiator (default)

  • 'N,Fp,Fst' — Partial band differentiator

  • 'N,Fp,Fst,Ap' — Partial band differentiator *

  • 'N,Fp,Fst,Ast' — Partial band differentiator *

  • 'Ap' — Minimum order full band differentiator *

  • 'Fp,Fst,Ap,Ast' — Minimum order partial band differentiator *

The filter specifications are defined as follows:

  • Ap — amount of ripple allowed in the pass band in decibels (the default units). Also called Apass.

  • Ast — attenuation in the stop band in decibels (the default units). Also called Astop.

  • Fp — frequency at the start of the pass band. Specified in normalized frequency units. Also called Fpass.

  • Fst — frequency at the end of the stop band. Specified in normalized frequency units. Also called Fstop.

  • N — filter order.

By default, fdesign.differentiator assumes that all frequency specifications are provided in normalized frequency units. Also, decibels is the default for all magnitude specifications.

Use designopts to determine the design options for a given design method. Enter help(D,METHOD) at the MATLAB® command line to obtain detailed help on the design options for a given design method, METHOD.

D = fdesign.differentiator(SPEC,specvalue1,specvalue2, ...) initializes the filter designer specifications in SPEC with specvalue1, specvalue2, and so on. To get a description of the specifications specvalue1, specvalue2, and more, enter


at the Command prompt.

D = fdesign.differentiator(specvalue1) assumes the default specification N, setting the filter order to the value you provide.

D = fdesign.differentiator(...,Fs) adds the argument Fs, specified in Hz to define the sampling frequency to use. In this case, all frequencies in the specifications are in Hz as well.

D = fdesign.differentiator(...,MAGUNITS) specifies the units for any magnitude specification you provide in the input arguments. MAGUNITS can be one of

  • 'linear' — specify the magnitude in linear units

  • 'dB' — specify the magnitude in dB (decibels)

  • 'squared' — specify the magnitude in power units

When you omit the MAGUNITS argument, fdesign assumes that all magnitudes are in decibels. Note that fdesign stores all magnitude specifications in decibels (converting to decibels when necessary) regardless of how you specify the magnitudes.


collapse all

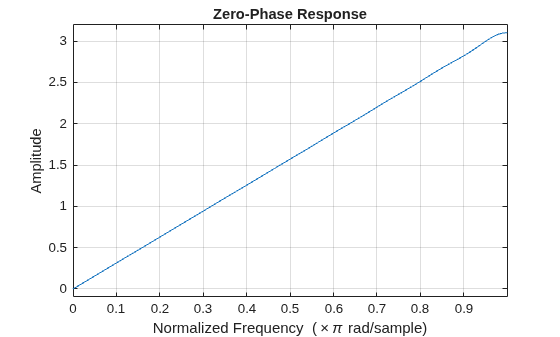

Design a 33rd-order FIR differentiator using least squares. Plot the zero-phase response of the filter.

d = fdesign.differentiator(33);
hd = design(d,'firls','SystemObject',true);


Design a 54th-order narrowband equiripple differentiator. Differentiate the lowest 25% of the frequencies in the Nyquist range and filter the higher frequencies. Specify a sample rate of 20 kHz, a passband frequency of 2.5 kHz, and a stopband frequency of 3 kHz.

Fs = 20000;

d = fdesign.differentiator('N,Fp,Fst',54,2500,3000,Fs);
Hd = design(d,'equiripple','SystemObject',true);

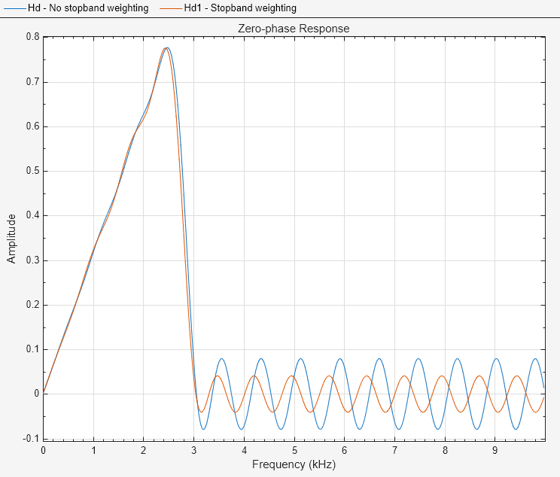

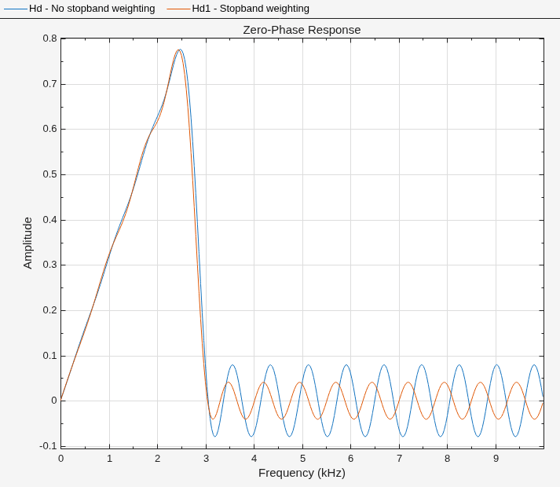

Redesign the filter, but this time weight the stopband to increase the attenuation.

Hd1 = design(d,'equiripple','Wstop',4,'SystemObject',true);

hfvt = fvtool(Hd,Hd1,'MagnitudeDisplay','zero-phase', ...
    'FrequencyRange','[0, Fs/2)');
legend(hfvt,'No stopband weighting','Stopband weighting');

Version History

Introduced in R2009a
