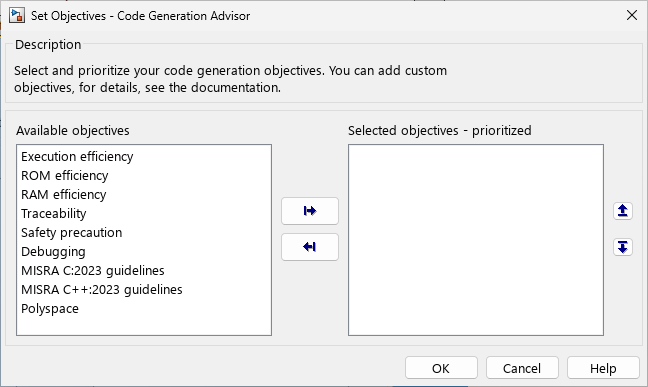

Set Objectives — Code Generation Advisor Dialog Box
Select and prioritize code generation objectives to use with the Code Generation Advisor.
Category: Code Generation
From the Available objectives list, select objectives.
Click the select button (arrow pointing right) to move the objectives that you selected into the Selected objectives - prioritized list.
Click the higher priority (up arrow) and lower priority (down arrow) buttons to prioritize the objectives.
List of available objectives.
If you select the MISRA C:2012 guidelines code generation objective, the Code Generation Advisor checks:
The model configuration settings for compliance with the MISRA C:2012 configuration setting recommendations.
For blocks that are not supported or recommended for MISRA C:2012 compliant code generation.
After you select objectives from the Available objectives parameter, organize the objectives in the Selected objectives - prioritized parameter with the highest priority objective at the top.
This dialog box appears only for ERT-based targets.
|Type: cell array of character vectors or string array; combination of the available values|
