equityCurve

Plot equity curves of strategies

Since R2021a

Syntax

``equityCurve(backtester)``
``h = equityCurve(ax,backtester)``

Description

example

````equityCurve(backtester)` plots the equity curves of each strategy that you create using `backtestStrategy`. After creating the backtesting engine using `backtestEngine` and running the backtest with `runBacktest`, use `equityCurve` to plot the strategies and compare their performance.```

example

````h = equityCurve(ax,backtester)` additionally returns the figure handle `h` for the equity curve plot.```

Examples

collapse all

The MATLAB® backtesting engine runs backtests of portfolio investment strategies over time series of asset price data. After creating a set of backtest strategies using `backtestStrategy` and the backtesting engine using `backtestEngine`, the `runBacktest` function executes the backtest. After using the `runBacktest` function to test investment strategies, you can run the `equityCurve` function to plot the equity curves of strategies.

Load one year of stock price data. For readability, this example uses only a subset of the DJIA stocks.

```% Read a table of daily adjusted close prices for 2006 DJIA stocks T = readtable('dowPortfolio.xlsx'); % Prune the table to hold only the dates and selected stocks timeColumn = "Dates"; assetSymbols = ["BA", "CAT", "DIS", "GE", "IBM", "MCD", "MSFT"]; T = T(:,[timeColumn assetSymbols]); % Convert to timetable pricesTT = table2timetable(T,'RowTimes','Dates'); % View the final asset price timetable head(pricesTT)```
``` Dates BA CAT DIS GE IBM MCD MSFT ___________ _____ _____ _____ _____ _____ _____ _____ 03-Jan-2006 68.63 55.86 24.18 33.6 80.13 32.72 26.19 04-Jan-2006 69.34 57.29 23.77 33.56 80.03 33.01 26.32 05-Jan-2006 68.53 57.29 24.19 33.47 80.56 33.05 26.34 06-Jan-2006 67.57 58.43 24.52 33.7 82.96 33.25 26.26 09-Jan-2006 67.01 59.49 24.78 33.61 81.76 33.88 26.21 10-Jan-2006 67.33 59.25 25.09 33.43 82.1 33.91 26.35 11-Jan-2006 68.3 59.28 25.33 33.66 82.19 34.5 26.63 12-Jan-2006 67.9 60.13 25.41 33.25 81.61 33.96 26.48 ```

Create Strategy

Test an equal-weighted investment strategy. This strategy invests an equal portion of the available capital into each asset. This example does not describe how to create backtesting strategies. For more information on creating backtesting strategies, see `backtestStrategy`.

Set the RebalanceFrequency name-value argument to rebalance the portfolio every 60 days. This example does not use a lookback window to rebalance.

```% Create the strategy numAssets = size(pricesTT,2); equalWeightsVector = ones(1,numAssets) / numAssets; equalWeightsRebalanceFcn = @(~,~) equalWeightsVector; ewStrategy = backtestStrategy("EqualWeighted",equalWeightsRebalanceFcn, ... 'RebalanceFrequency',60, ... 'LookbackWindow',0, ... 'TransactionCosts',0.005, ... 'InitialWeights',equalWeightsVector)```
```ewStrategy = backtestStrategy with properties: Name: "EqualWeighted" RebalanceFcn: @(~,~)equalWeightsVector RebalanceFrequency: 60 TransactionCosts: 0.0050 LookbackWindow: 0 InitialWeights: [0.1429 0.1429 0.1429 0.1429 0.1429 0.1429 0.1429] ManagementFee: 0 ManagementFeeSchedule: 1y PerformanceFee: 0 PerformanceFeeSchedule: 1y PerformanceHurdle: 0 UserData: [0x0 struct] EngineDataList: [0x0 string] ```

Run Backtest

Create a backtesting engine and run a backtest over a year of stock data. For more information on creating backtest engines, see `backtestEngine`.

```% Create the backtesting engine. The backtesting engine properties that hold the % results are initialized to empty. backtester = backtestEngine(ewStrategy)```
```backtester = backtestEngine with properties: Strategies: [1x1 backtestStrategy] RiskFreeRate: 0 CashBorrowRate: 0 RatesConvention: "Annualized" Basis: 0 InitialPortfolioValue: 10000 DateAdjustment: "Previous" PayExpensesFromCash: 0 NumAssets: [] Returns: [] Positions: [] Turnover: [] BuyCost: [] SellCost: [] TransactionCosts: [] Fees: [] ```
```% Run the backtest. The empty properties are now populated with % timetables of detailed backtest results. backtester = runBacktest(backtester,pricesTT)```
```backtester = backtestEngine with properties: Strategies: [1x1 backtestStrategy] RiskFreeRate: 0 CashBorrowRate: 0 RatesConvention: "Annualized" Basis: 0 InitialPortfolioValue: 10000 DateAdjustment: "Previous" PayExpensesFromCash: 0 NumAssets: 7 Returns: [250x1 timetable] Positions: [1x1 struct] Turnover: [250x1 timetable] BuyCost: [250x1 timetable] SellCost: [250x1 timetable] TransactionCosts: [1x1 struct] Fees: [1x1 struct] ```

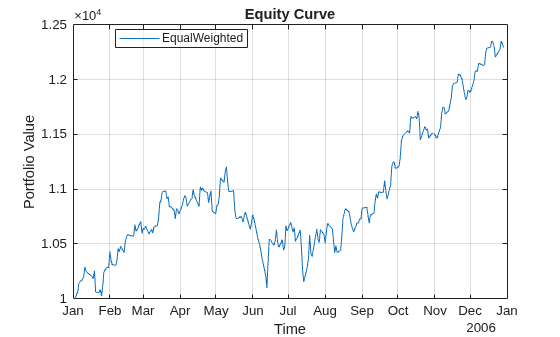

Generate Equity Curve

Use the `equityCurve` to plot the equity curve for the equal-weight strategy.

`equityCurve(backtester)`

Input Arguments

collapse all

Backtesting engine, specified as a `backtestEngine` object. Use `backtestEngine` to create the `backtester` object.

Note

The `backtester` argument must use a `backtestEngine` object that has been run using `runBacktest`.

Data Types: `object`

(Optional) Valid axes object in which to display equity curve plot, specified as an `ax` object that you create using `axes`. The equity curve plot is created on the axes specified by the optional `ax` argument instead of on the current axes (gca). The optional argument `ax` can precede any of the input argument combinations.

Data Types: `object`

Output Arguments

collapse all

Figure handle for the equity curve plot, returned as a handle object.

Version History

Introduced in R2021a
