Case Study for Life Tables Analysis

This example shows how to use the basic workflow for life tables.

Load the life table data file.

load us_lifetable_2009

Calibrate life table from survival data with the default heligman-pollard parametric model.

a = lifetablefit(x, lx);

Generate life table series from the calibrated mortality model.

qx = lifetablegen((0:100), a);
display(qx(1:40,:))

    0.0063    0.0069    0.0057
    0.0005    0.0006    0.0004
    0.0002    0.0003    0.0002
    0.0002    0.0002    0.0002
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0001    0.0001    0.0001
    0.0002    0.0002    0.0001
    0.0002    0.0002    0.0002
    0.0002    0.0003    0.0002
    0.0003    0.0004    0.0002
    0.0004    0.0005    0.0002
    0.0005    0.0006    0.0003
    0.0006    0.0008    0.0003
    0.0007    0.0009    0.0003
    0.0008    0.0011    0.0003
    0.0008    0.0012    0.0004
    0.0009    0.0013    0.0004
    0.0009    0.0014    0.0005
    0.0010    0.0014    0.0005
    0.0010    0.0015    0.0005
    0.0010    0.0015    0.0006
    0.0010    0.0015    0.0006
    0.0010    0.0015    0.0007
    0.0010    0.0014    0.0007
    0.0011    0.0014    0.0007
    0.0011    0.0014    0.0008
    0.0011    0.0014    0.0008
    0.0011    0.0014    0.0009
    0.0011    0.0014    0.0009
    0.0012    0.0015    0.0010
    0.0012    0.0015    0.0011
    0.0013    0.0016    0.0011
    0.0014    0.0017    0.0012
    0.0015    0.0018    0.0013

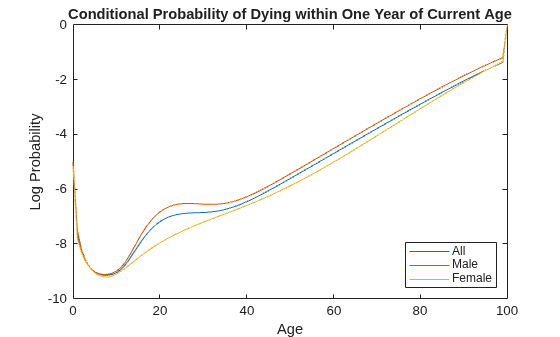

Plot the qx series and display the legend. The series qx is the conditional probability that a person at age $$x$$ will die between age $$x$$ and the next age in the series

plot((0:100), log(qx));
legend(series, 'location', 'southeast');
title('Conditional Probability of Dying within One Year of Current Age');
xlabel('Age');
ylabel('Log Probability');
