# Explore `patternsearch`

Algorithms in Optimize Live Editor Task

Beginning in R2022b, `patternsearch`

has four algorithm options:

`"classic"`

`"nups"`

`(Nonuniform Pattern Search)`

`"nups-gps"`

`"nups-mads"`

This example shows how you can try the different `patternsearch`

algorithms when solving a problem using the **Optimize** Live Editor task.

### Specify Problem

Set up an optimization problem that has a quadratic plus linear objective function, bounds, and two linear constraints. Typically, `quadprog`

is the best solver to use for this type of problem. However, this example uses `patternsearch`

so you can try its different algorithms.

Set the number of variables for this problem to `N = 10`

. Create a pseudorandom symmetric matrix `Q`

of size `N`

-by-`N`

and a pseudorandom vector `z`

of length `N`

for the objective function `fun(x) = x*Q*x' `

–` N*x*z`

.

```
N = 10;
rng default
x0 = rand(1,N);
x0 = x0/(2*sum(x0));
Q = 6*eye(N) + randn(N);
Q = (Q + Q');
z = rand(N,1);
fun = @(x)x*Q*x' - N*x*z;
```

Set linear constraints on the problem: `sum(x) <= 1`

and `sum(i*x) <= N/3`

, where `i`

is the index of the vector `x`

.

```
A = [ones(1,N);1:N]; % sum(x) <= 1, sum(i*x) <= N/3
b = [1;N/3];
```

Confirm that `Q`

is positive definite, so that the problem is convex.

eig(Q)

`ans = `*10×1*
1.5071
4.0347
7.3749
9.0561
11.6929
11.9473
13.0976
15.2099
16.1175
18.8949

### Create Problem in Optimize Live Editor Task

Open a new or existing live script. In the **Code** section of the **Live Editor** tab, click **Task** to open the gallery of Live Editor tasks. Under **Optimization**, click **Optimize**.

#### Select Approach

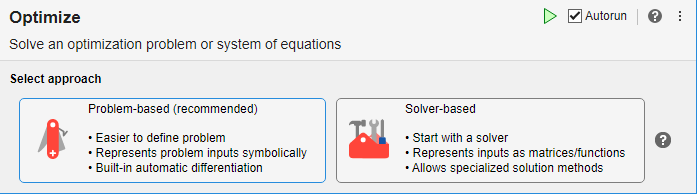

In the **Optimize** Live Editor task, select the solver-based approach.

#### Specify Problem Type

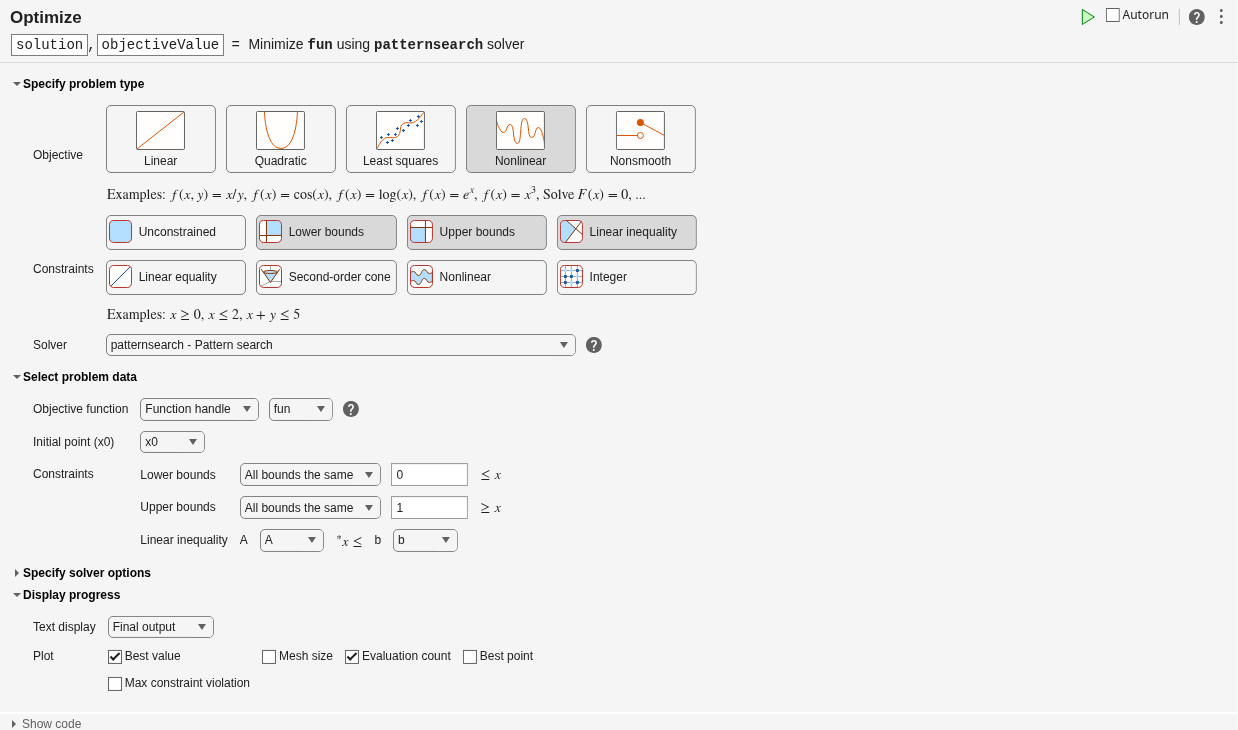

Select these options to specify the type of problem:

Objective — Nonlinear

Constraints — Lower bounds, upper bounds, and linear inequality

Solver — patternsearch

#### Select Problem Data

Select these options for the problem data:

Objective function — Click the

**From file**arrow and select**Function handle**. Click the**select**arrow and select**fun**.Initial point — x0

Constraints — Lower bounds 0

Constraints — Upper bounds 1

Constraints — Linear inequality constraint arrays

**A**and**b**

**Specify Solver Options**

Click the arrow to expand the **Specify solver options** section of the task. Then, click the **Add** button. The task specifies the **classic** algorithm for the algorithm settings.

#### Display Progress

Select two plots to display: **Best value** and **Evaluation count**.

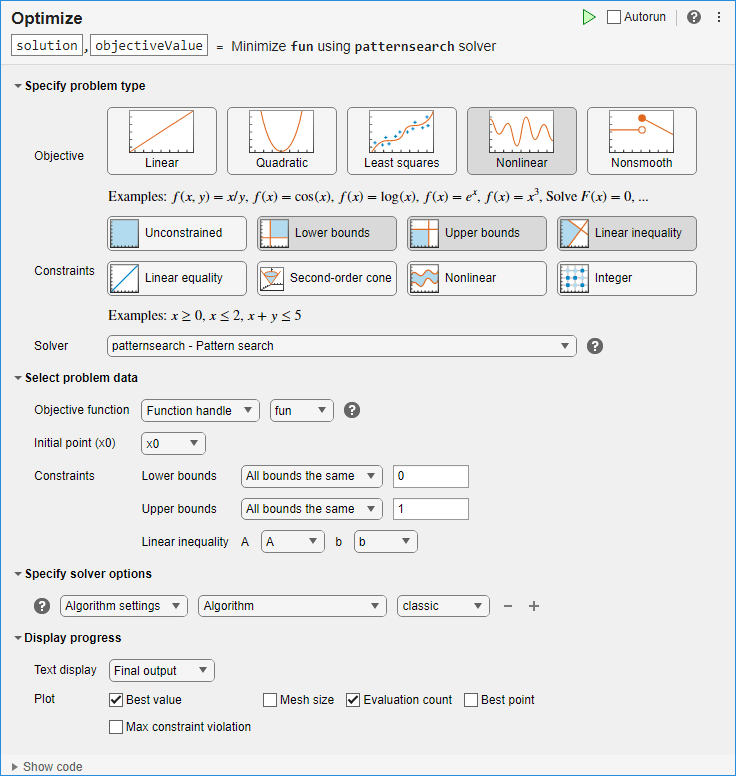

Your **Optimize** Live Editor task should match the one in the figure below.

### Find Solution Using Different Algorithms

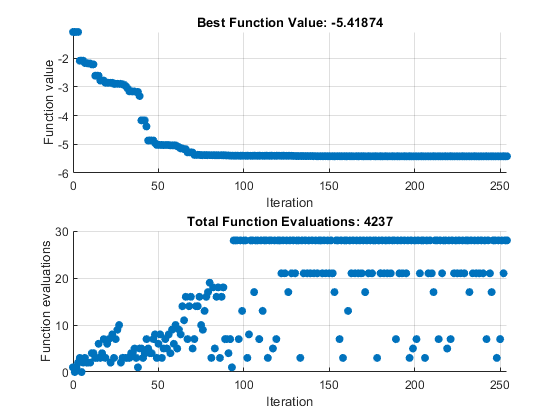

After selecting the options for your problem, run the solver by clicking **Run** in the **Run** section of the Live Editor tab. The solver runs the `"classic"`

`patternsearch`

algorithm and displays the two specified plots.

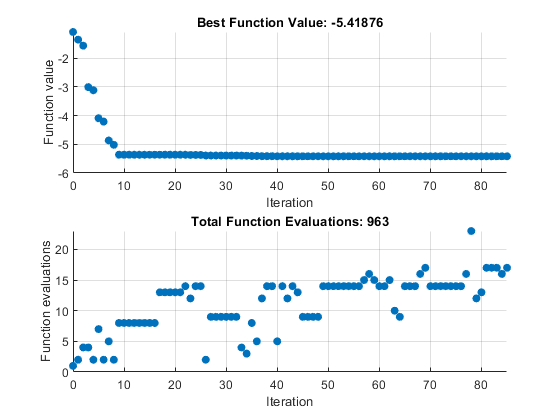

Change the algorithm to **nups**. The solver runs the new algorithm and displays the two specified plots.

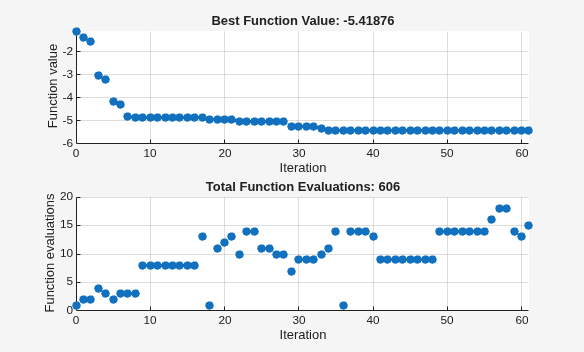

The solver finishes running the `"nups"`

algorithm in about a quarter of the number of function evaluations as the `"classic"`

algorithm, and reaches a slightly better (lower) objective function value.

Working in the **Optimize** Live Editor task, you can continue to explore the other `pattersearch`

algorithms and plot functions, or other options and solvers.

patternsearch stopped because the mesh size was less than options.MeshTolerance.
