Use Complete Poll in Pattern Search

Open Live Script

The patternsearch solver attempts to find a minimum by evaluating the objective function at a pattern of points. The solver can evaluate all the points in the pattern, called a complete poll. Or, to try to save time, patternsearch can stop the evaluations as soon as it locates a point with a better objective function value. This example shows some of the effects of using a complete poll.

Consider the following objective function.

$f (x_{1}, x_{2}) = {\begin{array}{llllllllllllllllllll} x_{1}^{2} + x_{2}^{2} - 25 & f o r x_{1}^{2} + x_{2}^{2} \leq 25 \\ x_{1}^{2} + {(x_{2} - 9)}^{2} - 16 & f o r x_{1}^{2} + {(x_{2} - 9)}^{2} \leq 16 \\ 0 & o t h e r w i s e . \end{array}$

The global minimum of the function occurs at (0, 0), where its value is –25. However, the function also has a local minimum at (0, 9), where its value is –16.

This code creates the function.

function z = poll_example(x)
if x(1)^2 + x(2)^2 <= 25
    z = x(1)^2 + x(2)^2 - 25;
elseif x(1)^2 + (x(2) - 9)^2 <= 16
    z = x(1)^2 + (x(2) - 9)^2 - 16;
else z = 0;
end
end

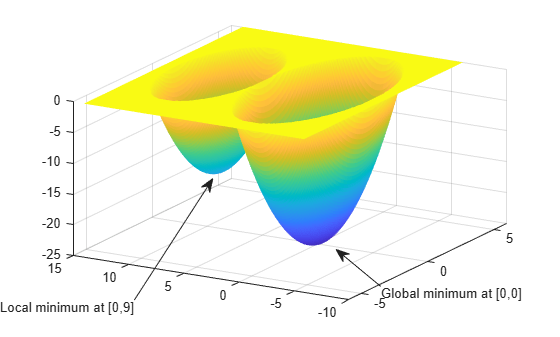

Plot the function.

[X,Y] = meshgrid(-6:.1:6,-6:.1:14);
Z = zeros(size(X));
for i = 1:size(X,1)
    for j=1:size(X,2)
        Z(i,j) = poll_example([X(i,j),Y(i,j)]);
    end
end
surf(X,Y,Z,LineStyle="none");
view([-60,30])
annotation("textarrow",[0.24 0.38],...
    [0.11 0.47],String="Local minimum at [0,9]");
annotation("textarrow",[0.68 0.6],...
    [0.15 0.26],String="Global minimum at [0,0]");

Figure contains an axes object. The axes object contains an object of type surface.

To search for the minimum, run a pattern search on the function. To have patternsearch use he standard mesh, set the ScaleMesh option to false.

options = optimoptions("patternsearch",Display="iter",...
    ScaleMesh=false);
[x,fval] = patternsearch(@poll_example,[0,5],...
    [],[],[],[],[],[],[],options)

Iter     Func-count       f(x)      MeshSize     Method
    0           1              0             1
    1           3             -7             2     Successful Poll
    2           5            -15             4     Successful Poll
    3           9            -15             2     Refine Mesh
    4          13            -15             1     Refine Mesh
    5          15            -16             2     Successful Poll
    6          19            -16             1     Refine Mesh
    7          23            -16           0.5     Refine Mesh
    8          27            -16          0.25     Refine Mesh
    9          31            -16         0.125     Refine Mesh
   10          35            -16        0.0625     Refine Mesh
   11          39            -16       0.03125     Refine Mesh
   12          43            -16       0.01562     Refine Mesh
   13          47            -16      0.007812     Refine Mesh
   14          51            -16      0.003906     Refine Mesh
   15          55            -16      0.001953     Refine Mesh
   16          59            -16     0.0009766     Refine Mesh
   17          63            -16     0.0004883     Refine Mesh
   18          67            -16     0.0002441     Refine Mesh
   19          71            -16     0.0001221     Refine Mesh
   20          75            -16     6.104e-05     Refine Mesh
   21          79            -16     3.052e-05     Refine Mesh
   22          83            -16     1.526e-05     Refine Mesh
   23          87            -16     7.629e-06     Refine Mesh
   24          91            -16     3.815e-06     Refine Mesh
   25          95            -16     1.907e-06     Refine Mesh
   26          99            -16     9.537e-07     Refine Mesh
patternsearch stopped because the mesh size was less than options.MeshTolerance.

x = 1×2

     0     9

fval =
-16

To understand what patternsearch does in its poll, evaluate the algorithmic steps. The algorithm begins by evaluating the function at the initial point, $f (0, 5) = 0$ . The poll evaluates the following during its first iterations.

$f ([0, 5] + [1, 0]) = f ([1, 5]) = 0$

$f ([0, 5] + [0, 1]) = f ([0, 6]) = - 7$

As soon as the search polls the mesh point (0, 6), at which the objective function value is less than at the initial point, it stops polling the current mesh and sets the current point at the next iteration to (0, 6). Consequently, the search moves toward the local minimum at (0, 9) at the first iteration. You see this by looking at the first two lines of the command line display.

Iter Func-count f(x) MeshSize Method

0 1 0 1

1 3 -7 2 Successful Poll

Note that the pattern search performs only two evaluations of the objective function at the first iteration, increasing the total function count from 1 to 3.

Next, set the UseCompletePoll option to true and rerun the optimization.

options.UseCompletePoll = true;
[x,fval] = patternsearch(@poll_example,[0,5],...
    [],[],[],[],[],[],[],options)

Iter     Func-count       f(x)      MeshSize     Method
    0           1              0             1
    1           5             -9             2     Successful Poll
    2           9            -21             4     Successful Poll
    3          13            -21             2     Refine Mesh
    4          17            -25             4     Successful Poll
    5          21            -25             2     Refine Mesh
    6          25            -25             1     Refine Mesh
    7          29            -25           0.5     Refine Mesh
    8          33            -25          0.25     Refine Mesh
    9          37            -25         0.125     Refine Mesh
   10          41            -25        0.0625     Refine Mesh
   11          45            -25       0.03125     Refine Mesh
   12          49            -25       0.01562     Refine Mesh
   13          53            -25      0.007812     Refine Mesh
   14          57            -25      0.003906     Refine Mesh
   15          61            -25      0.001953     Refine Mesh
   16          65            -25     0.0009766     Refine Mesh
   17          69            -25     0.0004883     Refine Mesh
   18          73            -25     0.0002441     Refine Mesh
   19          77            -25     0.0001221     Refine Mesh
   20          81            -25     6.104e-05     Refine Mesh
   21          85            -25     3.052e-05     Refine Mesh
   22          89            -25     1.526e-05     Refine Mesh
   23          93            -25     7.629e-06     Refine Mesh
   24          97            -25     3.815e-06     Refine Mesh
   25         101            -25     1.907e-06     Refine Mesh
   26         105            -25     9.537e-07     Refine Mesh
patternsearch stopped because the mesh size was less than options.MeshTolerance.

x = 1×2

     0     0

fval =
-25

This time, the pattern search finds the global minimum at (0, 0). The difference between this run and the previous one is that with UseCompletePoll set to true, at the first iteration the pattern search polls all four mesh points.

$f ([0, 5] + [1, 0]) = f ([1, 5]) = 0$

$f ([0, 5] + [0, 1]) = f ([0, 6]) = - 7$

$f ([0, 5] + [- 1, 0]) = f ([- 1, 5]) = 0$

$f ([0, 5] + [0, - 1]) = f ([0, 4]) = - 9$

Because the last mesh point has the lowest objective function value, the pattern search selects it as the current point at the next iteration. The first two lines of the command-line display show this.

Iter Func-count f(x) MeshSize Method

0 1 0 1

1 5 -9 2 Successful Poll

In this case, the objective function is evaluated four times at the first iteration. As a result, the pattern search moves toward the global minimum at (0, 0).

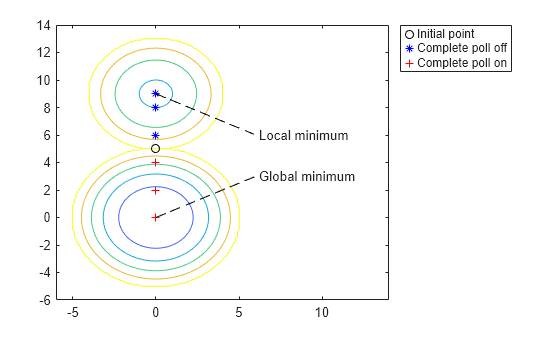

The following figure compares the sequence of points returned when Complete poll is set to Off with the sequence when Complete poll is On. The code for the function appears after the figure.

graph_poll_example

Figure contains an axes object. The axes object contains 58 objects of type contour, line, text. One or more of the lines displays its values using only markers These objects represent Initial point, Complete poll off, Complete poll on.

function graph_poll_example
ff = [];
tt = [];
[X,Y] = meshgrid(-6:.1:14,-6:.1:14);
Z = zeros(size(X));
for i = 1:size(X,1)
    for j=1:size(X,2)
        Z(i,j) = poll_example([X(i,j),Y(i,j)]);
    end
end
contour(X,Y,Z);
hold on

h = plot(0,5,"ko");

opts = optimoptions("patternsearch", ...
    OutputFcn=@plotpnt, ...
    UseCompletePoll=false, ...
    Display="off",...
    ScaleMesh=false);
[thex,thefv] = patternsearch(@poll_example,[0,5],...
    [],[],[],[],[],[],[],opts);

opts.UseCompletePoll=true;
[thex,thefv] = patternsearch(@poll_example,[0,5],...
    [],[],[],[],[],[],[],opts);
hold off

line([0,6],[9,6],Color="k",LineStyle="--")
line([0,6],[0,3],Color="k",LineStyle="--")

text(6.2,6,"Local minimum")
text(6.2,3,"Global minimum")

legend([h,ff,tt],"Initial point","Complete poll off","Complete poll on")

    function [stop,opts,optchanged] = plotpnt(optimvalues,opts,flag)
        if strcmp(flag,"iter")
            if opts.UseCompletePoll == true
                tt = plot(optimvalues.x(1),optimvalues.x(2),"r+");
            else
                ff = plot(optimvalues.x(1),optimvalues.x(2),"b*");
            end
        end
        stop = false;
        optchanged = false;
    end

end
