ordfilt2

2-D order-statistic filtering

Description

example

B = ordfilt2(A,order,domain) replaces each element in A by the orderth element in the sorted set of neighbors specified by the nonzero elements in domain.

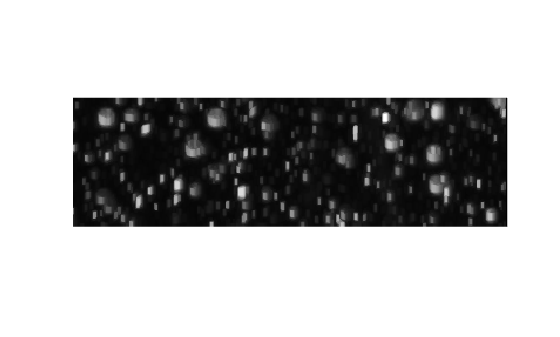

B = ordfilt2(A,order,domain,S) filters A, where ordfilt2 uses the values of S corresponding to the nonzero values of domain as additive offsets. You can use this syntax to implement grayscale morphological operations, including grayscale dilation and erosion.

Examples

collapse all

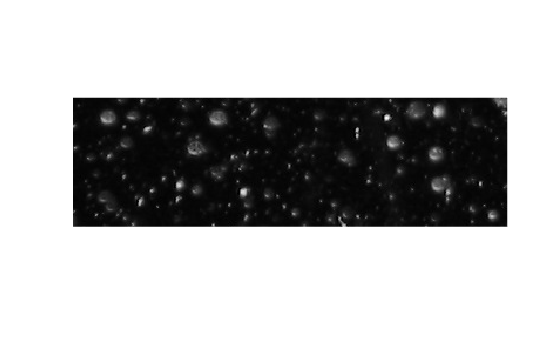

Read image into workspace and display it.

figure
imshow(A)

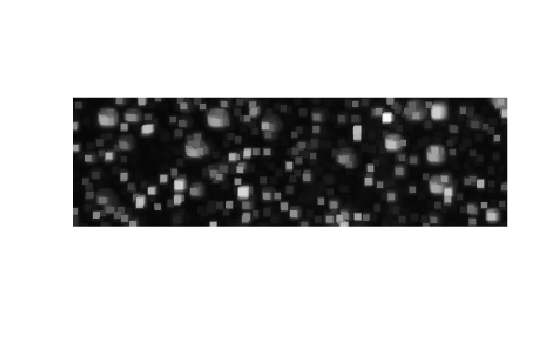

Filter the image and display the result.

B = ordfilt2(A,25,true(5));
figure
imshow(B)

Input Arguments

collapse all

Data to filter, specified as a 2-D numeric matrix or 2-D logical matrix.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | logical

Element to replace the target pixel, specified as a real scalar integer.

Data Types: double

Neighborhood, specified as a numeric or logical matrix containing 1s and 0s. domain is equivalent to the structuring element used for binary image operations. The 1-valued elements define the neighborhood for the filtering operation. The table gives examples of some common filters.

Type of Filtering OperationMATLAB codeNeighborhoodSample Image Data, Indicating Selected Element
Median filterB = ordfilt2(A,5,ones(3,3))
Minimum filterB = ordfilt2(A,1,ones(3,3))
Maximum filterB = ordfilt2(A,9,ones(3,3))
Minimum of north, east, south, and west neighborsB = ordfilt2(A,1,[0 1 0; 1 0 1; 0 1 0])

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Additive offsets, specified as a numeric matrix of the same size as domain.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Padding option, specified as one of the following values.

OptionDescription
'symmetric'

Pad array with mirror reflections of itself.

Data Types: char | string

Output Arguments

collapse all

Filtered data, returned as a 2-D numeric matrix or 2-D logical matrix of the same class as the input data A.

Tips

• When working with large domain matrices that do not contain any zero-valued elements, ordfilt2 can achieve higher performance if A is in an integer data format (uint8, int8, uint16, int16). The gain in speed is larger for uint8 and int8 than for the 16-bit data types. For 8-bit data formats, the domain matrix must contain seven or more rows. For 16-bit data formats, the domain matrix must contain three or more rows and 520 or more elements.

References

[1] Haralick, Robert M., and Linda G. Shapiro, Computer and Robot Vision, Volume I, Addison-Wesley, 1992.

[2] Huang, T.S., G.J.Yang, and G.Y.Tang. "A fast two-dimensional median filtering algorithm.", IEEE transactions on Acoustics, Speech and Signal Processing, Vol ASSP 27, No. 1, February 1979

Version History

Introduced before R2006a
