Change Fill Colors for Contour Plot
This example shows how to change the colors used in a filled contour plot.

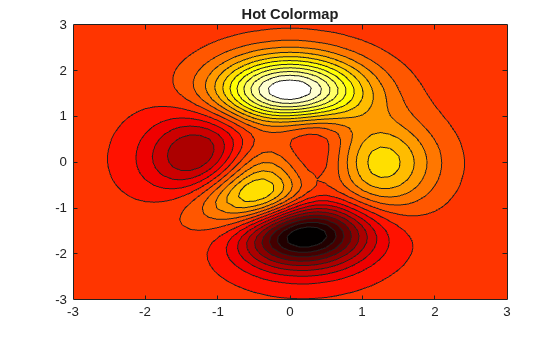

Set the colors for the filled contour plot by changing the colormap. Pass the predefined colormap name,
hot, to the
[X,Y,Z] = peaks; figure contourf(X,Y,Z,20) colormap(hot) title('Hot Colormap')
Control Mapping of Data Values to Colormap

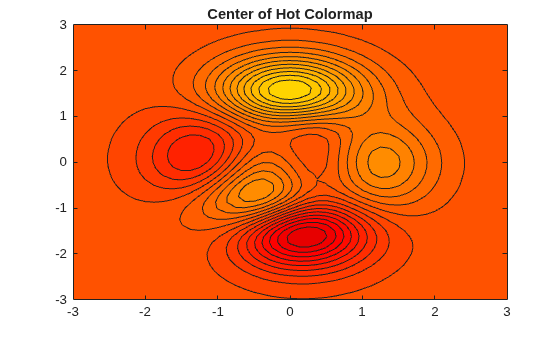

Use only the colors in the center of the
hot colormap by setting the colormap limits to a range much larger than the range of values in matrix
clim function controls the mapping of data values into the colormap. Use this function to set the colormap limits.
clim([-20,20]) title('Center of Hot Colormap')
Before R2022a, change the colormap limits using
