Live scripts are program files that contain your code, output, and formatted text together in a single interactive environment called the Live Editor. In live scripts, you can write your code and view the generated output and graphics along with the code that produced it. Add formatted text, images, hyperlinks, and equations to create an interactive narrative that you can share with others.
To create a live script in the Live Editor, go to the Home
tab and click New Live Script
. You also can use the
function in the Command Window. For example, type
to open or create the file
penny.mlx. To ensure that a live
script is created, specify a
.mlx extension. If an extension is
not specified, MATLAB® defaults to a file with
.m extension, which only
supports plain code.
If you have an existing script, you can open it as a live script in the Live Editor. Opening a script as a live script creates a copy of the file and leaves the original file untouched. MATLAB converts publishing markup from the original script to formatted content in the new live script.
To open an existing script (
.m) as a live script
.mlx) from the Editor, right-click the document tab, and
scriptName as Live
Script from the context menu. Alternatively, go to the
Editor tab, click
Save, and select Save As.
Then, set the Save as type: to
Code Files (*.mlx) and click
You must use one of the described conversion methods to convert your
script to a live script. Simply renaming the script with a
.mlx extension does not work and can corrupt the
After you create a live script, you can add code and run it. For example, add this code that plots a vector of random data and draws a horizontal line on the plot at the mean.
n = 50; r = rand(n,1); plot(r) m = mean(r); hold on plot([0,n],[m,m]) hold off title('Mean of Random Uniform Data')
By default, MATLAB autocompletes block endings, parentheses, and quotes when entering
code in the Live Editor. For example, type
if and then press
Enter. MATLAB automatically adds the
MATLAB also autocompletes comments, character vectors, strings, and parentheses when split across two lines. To escape out of an autocompletion, press Ctrl+Z or the Undo button. Autocompletions are enabled by default. To disable them, see Editor/Debugger Autocoding Preferences.
When adding or editing code, you can select and edit a rectangular area of code (also known as column selection or block edit). This is useful if you want to copy or delete several columns of data (as opposed to rows), or if you want to edit multiple lines at one time. To select a rectangular area, press the Alt key while making a selection.
For example, select the second column of data in
0 to set all the selected values to 0.
To run the code, click the vertical striped bar to the left of the code. Alternatively, go to the Live Editor tab and click Run. While your program is running, a status indicator appears at the top left of the Editor window. A gray blinking bar to the left of a line of code indicates the line that MATLAB is evaluating. To navigate to the line MATLAB is evaluating, click the status indicator.
If an error occurs while MATLAB is running your program or if MATLAB detects a significant issue in your code, the status indicator becomes an error icon . To navigate to the error, click the icon. An error icon to the right of the line of code indicates the error. The corresponding error message is displayed as an output.
You do not need to save your live script to run it. When you do save your live
script, MATLAB automatically saves it with a
.mlx extension. For
example, go the Live Editor tab, click
Save, and enter the name
MATLAB saves the live script as

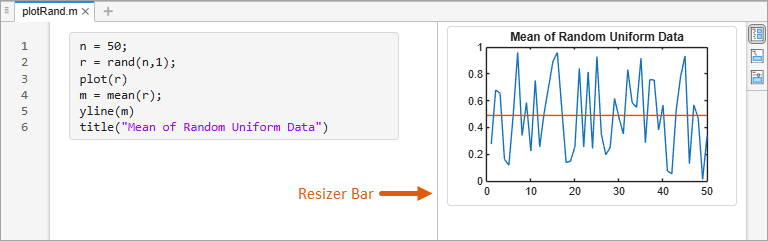

By default, MATLAB displays output to the right of the code. Each output is displayed with the line that creates it.
When scrolling, MATLAB aligns the output to the code that generates it. To disable the alignment of output to code, right-click the output section and select Disable Synchronous Scrolling. To change the size of the output display panel, drag the resizer bar between the code and output to the left or to the right.
To clear an output, right-click the output or the code line that created it, and select Clear Output. To clear all output, right-click anywhere in the script and select Clear All Output. Alternatively, go to the View tab and in the Output section, click the Clear all Output button.
To open individual outputs, such as variables and figures, in a separate window, click the button in the upper right corner of the output. Variables open in the Variables editor, and figures open in a new figure window. Changes made to variables or figures outside of a live script do not apply to the output displayed in the live script.
To modify figures in the output, use the tools in the upper-right corner of the figure axes or in the Figure toolstrip. You can use the tools to explore the data in a figure and add formatting and annotations. For more information, see Modify Figures in Live Scripts.
To optimize your live script for your current flow, you can change where to display output and whether to display code in the live script.
By default, output displays to the right of the code. Each output displays with the line that creates it. This option is ideal when writing code.
To display output in line with the code, select the output inline button to the right of the live script. You also can go to the View tab and in the View section, select the Output inline button. MATLAB displays each output underneath the line that creates it. This view is ideal for sharing.
To display only output, controls, and formatted text, and hide the code, select the hide code button to the right of the live script or in the View tab. This view is ideal for sharing when you want others to only change the value of the controls in your live script, or when you do not want others to see your code.
To change the default location of the output when creating a new live script, on the Home tab, in the Environment section, click Preferences. Select MATLAB > Editor / Debugger > Display, and then select a different option for the Live Editor default view.
You can add formatted text, hyperlinks, images, and equations to your live scripts
to create a presentable document to share with others. For example, add a title and
some introductory text to
Place your cursor at the top of the live script and, in the Live Editor tab, select Text. A new text line appears above the code.
Click and select
Add the text
Plot Random Data.
With your cursor still in the line, click the button to center the text.
Press Enter to move to the next line.
Type the text
This script plots a vector of
random data and draws a horizontal line on the plot at the
For more information including a list of all available formatting options, see Format Files in the Live Editor.
To adjust the displayed font size in the Live Editor, use the Ctrl + Plus (+) and Ctrl + Minus (-) keyboard shortcuts or the Ctrl + Mouse Scroll keyboard shortcut. On macOS systems, use the Command key instead of the Ctrl key.
The change in the displayed font size is not honored when exporting the live script to PDF, Microsoft® Word, HTML, or LaTeX.
To save a live script as a plain code file (
On the Live Editor tab, in the File section, select Save > Save As....
In the dialog box that appears, select
MATLAB Code files
(UTF-8) (*.m) as the Save as
When saving, MATLAB converts all formatted content to publish markup.
