ellipj

Jacobi elliptic functions

Description

example

[SN,CN,DN] = ellipj(U,M) returns the Jacobi elliptic functions SN, CN, and DN evaluated for corresponding elements of argument U and parameter M. Inputs U and M must be the same size, or either U or M must be scalar.

example

[SN,CN,DN] = ellipj(U,M,tol) computes the Jacobi elliptic functions to accuracy tol. The default value of tol is eps. Increase tol for a less accurate but more quickly computed answer.

Examples

collapse all

Find the Jacobi elliptic functions for U = 0.5 and M = 0.25.

[s,c,d] = ellipj(0.5,0.25)
s = 0.4751
c = 0.8799
d = 0.9714

Plot the Jacobi elliptic functions for -5≤U≤5 and M = 0.7.

M = 0.7;
U = -5:0.01:5;
[S,C,D] = ellipj(U,M);
plot(U,S,U,C,U,D);
legend('SN','CN','DN','Location','best')
grid on
title('Jacobi Elliptic Functions sn,cn,dn')

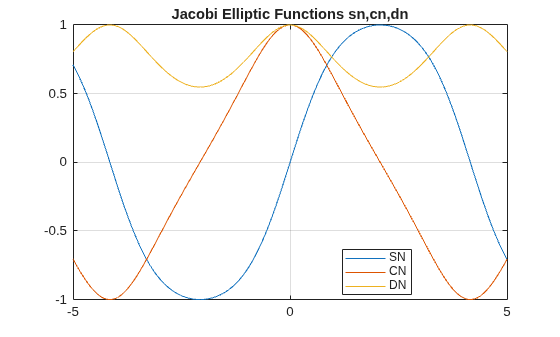

Figure contains an axes object. The axes object with title Jacobi Elliptic Functions sn,cn,dn contains 3 objects of type line. These objects represent SN, CN, DN.

Generate a surface plot of the Jacobi elliptic sn function for the allowed range of M and -5≤U≤5.

[M,U] = meshgrid(0:0.1:1,-5:0.1:5);
S = ellipj(U,M);
surf(U,M,S)
xlabel('U')
ylabel('M')
zlabel('sn')
title('Surface Plot of Jacobi Elliptic Function sn')

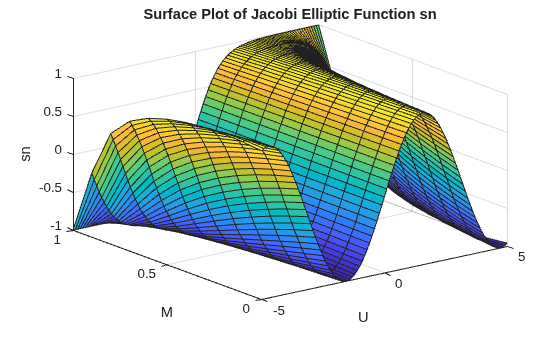

Figure contains an axes object. The axes object with title Surface Plot of Jacobi Elliptic Function sn, xlabel U, ylabel M contains an object of type surface.

The default value of tol is eps. Find the run time with the default value for arbitrary M using tic and toc. Increase tol by a factor of 1000 and find the run time. Compare the run times.

tic
ellipj(0.253,0.937)
ans = 0.2479
toc
Elapsed time is 0.043598 seconds.
tic
ellipj(0.253,0.937,eps*1000)
ans = 0.2479
toc
Elapsed time is 0.007314 seconds.

ellipj runs significantly faster when tolerance is significantly increased.

Input Arguments

collapse all

Input array, specified as a scalar, vector, matrix, or multidimensional array. U is limited to real values. If U is nonscalar, M must be a scalar or a nonscalar of the same size as U.

Data Types: single | double

Input array, specified as a scalar, vector, matrix, or multidimensional array. M can take values 0≤ m ≤1. If M is a nonscalar, U must be a scalar or a nonscalar of the same size as M. Map other values of M into this range using the transformations described in [1], equations 16.10 and 16.11.

Data Types: single | double

Accuracy of result, specified as a nonnegative real number. The default value is eps.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

collapse all

Jacobi elliptic function sn, returned as a scalar, vector, matrix, or multidimensional array.

Jacobi elliptic function cn, returned as a scalar, vector, matrix, or multidimensional array.

Jacobi elliptic function dn, returned as a scalar, vector, matrix, or multidimensional array.

More About

collapse all

Jacobi Elliptic Functions

The Jacobi elliptic functions are defined in terms of the integral

u=0ϕdθ1msin2θ.

Then

sn(u)=sinϕ, cn(u)=cosϕ, dn(u)=1msin2ϕ.

Some definitions of the elliptic functions use the elliptical modulus k or modular angle α instead of the parameter m. They are related by

k2=m=sin2a.

The Jacobi elliptic functions obey many mathematical identities. For a good sample, see [1].

Algorithms

ellipj computes the Jacobi elliptic functions using the method of the arithmetic-geometric mean of [1]. It starts with the triplet of numbers

a0=1, b0=1m, c0=m.

ellipj computes successive iterations using

ai=12(ai1+bi1)bi=(ai1bi1)12ci=12(ai1bi1).

Next, it calculates the amplitudes in radians using

sin(2ϕn1ϕn)=cnansin(ϕn),

being careful to unwrap the phases correctly. The Jacobian elliptic functions are then simply

sn(u)=sinϕ0cn(u)=cosϕ0dn(u)=1msn(u)2.

References

[1] Abramowitz, M. and I. A. Stegun, Handbook of Mathematical Functions, Dover Publications, 1965, 17.6.
