inpolygon
Points located inside or on edge of polygonal region
Description
Examples
Points Inside Convex Polygon
Define a pentagon and a set of points. Then, determine which points lie inside (or on the edge) of the pentagon.
Define the x and y coordinates of polygon vertices to create a pentagon.
L = linspace(0,2*pi,6); xv = cos(L)'; yv = sin(L)';
Define x and y coordinates of 250 random query points. Initialize the random-number generator to make the output of randn
repeatable.
rng default
xq = randn(250,1);
yq = randn(250,1);
Determine whether each point lies inside or on the edge of the polygon area. Also determine whether any of the points lie on the edge of the polygon area.
[in,on] = inpolygon(xq,yq,xv,yv);
Determine the number of points lying inside or on the edge of the polygon area.
numel(xq(in))
ans = 80
Determine the number of points lying on the edge of the polygon area.
numel(xq(on))
ans = 0
Since there are no points lying on the edge of the polygon area, all 80 points identified by xq(in)
, yq(in)
are strictly inside the polygon area.
Determine the number of points lying outside the polygon area (not inside or on the edge).
numel(xq(~in))
ans = 170

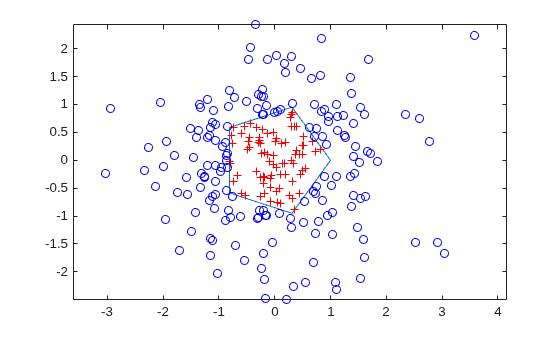

Plot the polygon and the query points. Display the points inside the polygon with a red plus. Display the points outside the polygon with a blue circle.
figure plot(xv,yv) % polygon axis equal hold on plot(xq(in),yq(in),'r+') % points inside plot(xq(~in),yq(~in),'bo') % points outside hold off
Points Inside Multiply Connected Polygon
Find the points inside a square with a square hole.
Define a square region with a square hole. Specify the vertices of the outer loop in a counterclockwise direction, and specify the vertices for the inner loop in a clockwise direction. Use NaN
to separate the coordinates for the outer and inner loops.
xv = [1 4 4 1 1 NaN 2 2 3 3 2]; yv = [1 1 4 4 1 NaN 2 3 3 2 2];
Define x and y coordinates of 500 random points. Initialize the random-number generator to make the output of randn
repeatable.
rng default
xq = rand(500,1)*5;
yq = rand(500,1)*5;
Determine whether each point lies inside or on the edge of the polygon area.
in = inpolygon(xq,yq,xv,yv);

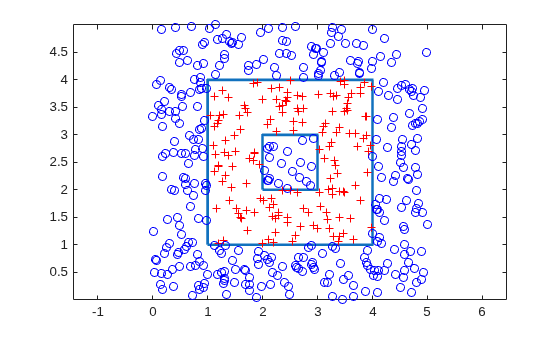

Plot the polygon and the query points. Display the points inside the polygon with a red plus. Display the points outside the polygon with a blue circle.
figure plot(xv,yv,'LineWidth',2) % polygon axis equal hold on plot(xq(in),yq(in),'r+') % points inside plot(xq(~in),yq(~in),'bo') % points outside hold off
Query points in the square hole are outside the polygon.
Points Inside Self-Intersecting Polygon
Define the x and y coordinates for a pentagram.
xv = [0.5;0.2;1.0;0;0.8;0.5]; yv = [1.0;0.1;0.7;0.7;0.1;1];
Define the x and y coordinates of 12 query points.
xq = [0.1;0.5;0.9;0.2;0.4;0.5;0.5;0.9;0.6;0.8;0.7;0.2]; yq = [0.4;0.6;0.9;0.7;0.3;0.8;0.2;0.4;0.4;0.6;0.2;0.6];
Determine whether each point lies inside or on the edge of the polygon area. Also determine whether any of the points lie on the edge of the polygon area.
[in,on] = inpolygon(xq,yq,xv,yv);
Determine the number of points lying inside or on the edge of the polygon area.
numel(xq(in))
ans = 8
Determine the number of points lying on the edge of the polygon area.
numel(xq(on))
ans = 2
Determine the number of points lying outside the polygon area (not inside or on the edge).
numel(xq(~in))
ans = 4

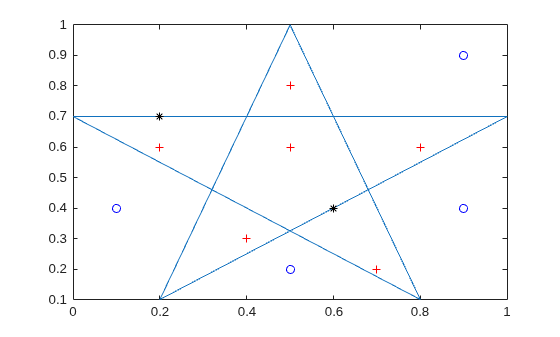

Plot the polygon and the points. Display the points strictly inside the polygon with a red plus. Display the points on the edge with a black asterisk. Display the points outside the polygon with a blue circle.
figure plot(xv,yv) % polygon hold on plot(xq(in&~on),yq(in&~on),'r+') % points strictly inside plot(xq(on),yq(on),'k*') % points on edge plot(xq(~in),yq(~in),'bo') % points outside hold off
Six points lie inside the polygon. Two points lie on the edge of the polygon. Four points lie outside the polygon.
Input Arguments
xq
— x-coordinates of query points
scalar | vector | matrix | multidimensional array
x-coordinates of query points, specified as a scalar, vector, matrix, or multidimensional array.
The size of xq
must match the size of yq
.
Data Types: double
| single
yq
— y-coordinates of query points
scalar | vector | matrix | multidimensional array
y-coordinates of query points, specified as a scalar, vector, matrix, or multidimensional array.
The size of yq
must match the size of xq
.
Data Types: double
| single
xv
— x-coordinates of polygon vertices
vector
x-coordinates of polygon vertices, specified as a vector.
The size of xv
must match the size of yv
.
To specify vertices of multiply connected or disjoint polygons,
separate the coordinates for distinct loops with NaN
.
Additionally for multiply connected polygons, you must orient the
vertices for external and internal loops in opposite directions.
The polygon cannot be self-intersecting and multiply connected due to the ambiguity associated with self-intersections and loop orientations.
Data Types: double
| single
yv
— y-coordinates of polygon vertices
vector
y-coordinates of polygon vertices, specified as a vector.
The size of yv
must match the size of xv
.
To specify vertices of multiply connected or disjoint polygons,
separate the coordinates for distinct loops with NaN
.
Additionally for multiply connected polygons, you must orient the
vertices for external and internal loops in opposite directions.
The polygon cannot be self-intersecting and multiply connected due to the ambiguity associated with self-intersections and loop orientations.
Data Types: double
| single
Output Arguments
in
— Indicator for points inside or on edge of polygon area
logical array
Indicator for the points inside or on the edge of the polygon
area, returned as a logical array. in
is the same
size as xq
and yq
.
A logical
1
(true
) indicates that the corresponding query point is inside the polygonal region or on the edge of the polygon boundary.A logical
0
(false
) indicates that the corresponding query point is outside the polygonal region.
Therefore, you can use in
to index into xq
and yq
to
identify query points of interest.
xq(in) , yq(in) | Query points inside or on the edge of the polygon area |
xq(~in) , yq(~in) | Query points outside the polygonal region |
on
— Indicator for points on edge of polygon area
logical array
Indicator for the points on the edge of the polygon area, returned
as a logical array. on
is the same size as xq
and yq
.
A logical
1
(true
) indicates that the corresponding query point is on the polygon boundary.A logical
0
(false
) indicates that the corresponding query point is inside or outside the polygon boundary.
Therefore, you can use on
and in
to
index into xq
and yq
identify
query points of interest.
xq(on) , yq(on) | Query points on the polygon boundary |
xq(~on) , yq(~on) | Query points inside or outside the polygon boundary |
xq(in&~on) , yq(in&~on) | Query points strictly inside the polygonal region |
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Supports single-precision and double-precision inputs, but uses double-precision arithmetic even if all inputs are single-precision.
Thread-Based Environment
Run code in the background using MATLAB® backgroundPool
or accelerate code with Parallel Computing Toolbox™ ThreadPool
.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The inpolygon
function
fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray
(Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
Distributed Arrays
Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006a
