# ztickangle

Rotate z-axis tick labels

## Description

example

ztickangle(angle) rotates the z-axis tick labels for the current axes to the specified angle in degrees, where 0 is horizontal. Specify a positive value for counterclockwise rotation or a negative value for clockwise rotation.

example

ztickangle(ax,angle) rotates the tick labels for the axes specified by ax instead of the current axes.

example

ang = ztickangle returns the rotation angle for the z-axis tick labels of the current axes as a scalar value in degrees. Positive values indicate counterclockwise rotation. Negative values indicate clockwise rotation.

ang = ztickangle(ax) uses the axes specified by ax instead of the current axes.

## Examples

collapse all

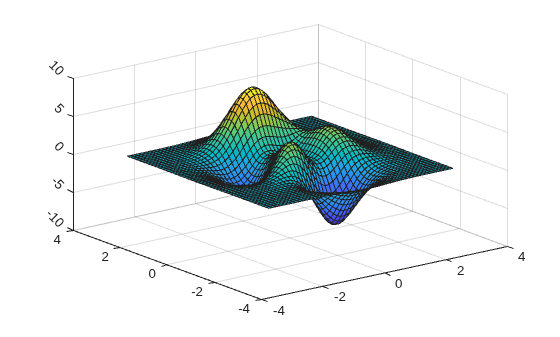

Create a surface chart and rotate the z-axis tick labels 45 degrees clockwise.

[x,y,z] = peaks;
surf(x,y,z)
ztickangle(-45)

Starting in R2019b, you can display a tiling of plots using the tiledlayout and nexttile functions. Call the tiledlayout function to create a 2-by-1 tiled chart layout. Call the nexttile function to create the axes objects ax1 and ax2. Plot into each of the axes. Then rotate the z-axis tick labels for the lower plot by specifying ax2 as the first input argument to ztickangle.

tiledlayout(2,1)
ax1 = nexttile;
stem3(ax1,2*rand(5))

ax2 = nexttile;
stem3(ax2,2*rand(5))
ztickangle(ax2,-45)

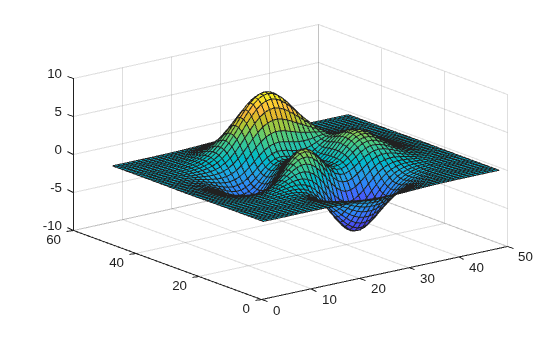

Create a surface chart. Then, query the rotation angle for the z-axis tick labels. By default, the labels are not rotated.

[x,y,z] = peaks;
surf(peaks)

ang = ztickangle
ang = 0

## Input Arguments

collapse all

Rotation of tick labels, specified as a scalar value in degrees, where 0 is horizontal.

Example: ztickangle(90)

Target axes, specified as an Axes object or an array of Axes objects.

If you do not specify this argument, then ztickangle modifies the current axes.

## Algorithms

The ztickangle function sets and queries the ZTickLabelRotation property of the Axes object.

## Version History

Introduced in R2016b
