Output Functions for Optimization Toolbox

What Is an Output Function?

For some problems, you might want output from an optimization algorithm at each iteration. For example, you might want to find the sequence of points that the algorithm computes and plot those points. To do so, create an output function that the optimization function calls at each iteration. See Output Function and Plot Function Syntax for details and syntax.

This example uses the solver-based approach for output functions. For the problem-based approach, see Output Function for Problem-Based Optimization.

Generally, the solvers that employ an output function can take nonlinear functions as inputs. You can determine which solvers can use an output function by looking in the Options section of function reference pages.

Use an Output Function

This example shows how to use an output function to monitor the fmincon solution process for solving a constrained nonlinear optimization problem. At the end of each fmincon iteration, the output function does the following:

Plot the current point.
Store the current point and its corresponding objective function value in a variable named history, and store the current search direction in a variable named searchdir. The search direction is a vector that points in the direction from the current point to the next one.

Additionally, to make the history available outside of the fmincon function, perform the optimization inside a nested function that calls fmincon and returns the output function variables. For more information about this method of passing information, see Passing Extra Parameters. The runfmincon helper function at the end of this example contains the nested function call.

Objective and Constraint Functions

The problem is to minimize the function

$f (x) = \exp (x_{1}) (4 x_{1}^{2} + 2 x_{2}^{2} + 4 x_{1} x_{2} + 2 x_{2} + 1)$

subject to the nonlinear inequality constraints

$\begin{array}{l} x_{1} + x_{2} - x_{1} x_{2} \geq 3 / 2 \\ x_{1} x_{2} \geq - 10 . \end{array}$

The objfun function nested in runfmincon implements the objective function. The confun function nested in runfmincon implements the constraint function.

Call Solver

To obtain the solution to the problem and see the history of the fmincon iterations, call the runfmincon function.

[xsol,fval,history,searchdir] = runfmincon;

                                Max     Line search  Directional  First-order
 Iter F-count        f(x)   constraint   steplength   derivative   optimality Procedure
    0      3       1.8394          0.5                                         Infeasible start point
    1      6      1.85127     -0.09197            1        0.109        0.778
    2      9     0.300167         9.33            1       -0.117        0.313  Hessian modified twice
    3     12     0.529835       0.9209            1         0.12        0.232
    4     16     0.186965       -1.517          0.5       -0.224         0.13
    5     19    0.0729085       0.3313            1       -0.121        0.054
    6     22    0.0353323     -0.03303            1      -0.0542       0.0271
    7     25    0.0235566     0.003184            1      -0.0271      0.00587
    8     28    0.0235504    9.035e-08            1      -0.0146     8.51e-07
Active inequalities (to within options.ConstraintTolerance = 1e-06):
  lower      upper     ineqlin   ineqnonlin
                                     1
                                     2

Local minimum found that satisfies the constraints.

Optimization completed because the objective function is non-decreasing in
feasible directions, to within the value of the optimality tolerance,
and constraints are satisfied to within the  value of the constraint tolerance.

<stopping criteria details>

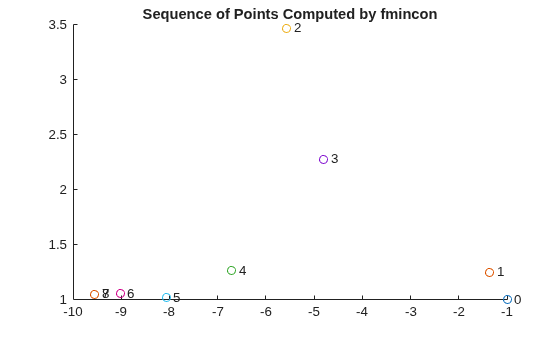

Figure contains an axes object. The axes object with title Sequence of Points Computed by fmincon contains 18 objects of type line, text. One or more of the lines displays its values using only markers

The output function creates a plot of the points evaluated by fmincon. Each point is labeled by its iteration number. The optimal point occurs at the eighth iteration. The last two points in the sequence are so close that they overlap.

The output history is a structure that contains two fields.

disp(history)

       x: [9×2 double]
    fval: [9×1 double]

The fval field in history contains the objective function values corresponding to the sequence of points fmincon computes.

disp(history.fval)

These same values are displayed in the iterative output in the column with the header f(x).

The x field of history contains the sequence of points that fmincon computes.

disp(history.x)

   -1.0000    1.0000
   -1.3679    1.2500
   -5.5708    3.4699
   -4.8000    2.2752
   -6.7054    1.2618
   -8.0679    1.0186
   -9.0230    1.0532
   -9.5471    1.0471
   -9.5474    1.0474

The searchdir output contains the search directions for fmincon at each iteration. The search direction is a vector pointing from the point computed at the current iteration to the point computed at the next iteration.

disp(searchdir)

   -0.3679    0.2500
   -4.2029    2.2199
    0.7708   -1.1947
   -3.8108   -2.0268
   -1.3625   -0.2432
   -0.9552    0.0346
   -0.5241   -0.0061
   -0.0003    0.0003

Helper Functions

The following code creates the runfmincon function, which contains the outfun output function, objfun objective function, and confun nonlinear constraint function as nested functions.

function [xsol,fval,history,searchdir] = runfmincon

% Set up shared variables with outfun
history.x = [];
history.fval = [];
searchdir = [];

% Call optimization
x0 = [-1 1];
options = optimoptions(@fmincon,'OutputFcn',@outfun,...
    'Display','iter','Algorithm','active-set');
[xsol,fval] = fmincon(@objfun,x0,[],[],[],[],[],[],@confun,options);

 function stop = outfun(x,optimValues,state)
     stop = false;

     switch state
         case 'init'
             hold on
         case 'iter'
         % Concatenate current point and objective function
         % value with history. x must be a row vector.
           history.fval = [history.fval; optimValues.fval];
           history.x = [history.x; x];
         % Concatenate current search direction with
         % searchdir.
           searchdir = [searchdir;...
                        optimValues.searchdirection'];
           plot(x(1),x(2),'o');
         % Label points with iteration number and add title.
         % Add .15 to x(1) to separate label from plotted 'o'.
           text(x(1)+.15,x(2),...
                num2str(optimValues.iteration));
           title('Sequence of Points Computed by fmincon');
         case 'done'
             hold off
         otherwise
     end
 end

 function f = objfun(x)
     f = exp(x(1))*(4*x(1)^2 + 2*x(2)^2 + 4*x(1)*x(2) +...
                    2*x(2) + 1);
 end

 function [c, ceq] = confun(x)
     % Nonlinear inequality constraints
     c = [1.5 + x(1)*x(2) - x(1) - x(2);
         -x(1)*x(2) - 10];
     % Nonlinear equality constraints
     ceq = [];
 end
end
