## 2-D Geometry Creation at Command Line

### Three Elements of Geometry

To describe your geometry through Constructive Solid Geometry (CSG) modeling, use three data structures.

A matrix whose columns describe the basic shapes. When you export geometry from the PDE Modeler app, this matrix has the default name

`gd`

(geometry description).A matrix whose columns contain names for the basic shapes. Pad the columns with zeros or 32 (blanks) so that every column has the same length.

A set of characters describing the unions, intersections, and set differences of the basic shapes that make the geometry.

### Basic Shapes

To create basic shapes at the command line, create a matrix whose columns each describe a basic shape. If necessary, add extra zeros to some columns so that all columns have the same length. Write each column using the following encoding.

**Circle**

Row | Value |
---|---|

`1` | `1` (indicates a circle) |

`2` | x-coordinate of circle center |

`3` | y-coordinate of circle center |

`4` | Radius (strictly positive) |

**Polygon**

Row | Value |
---|---|

`1` | `2` (indicates a polygon) |

`2` | Number of line segments `n` |

`3` through `3+n-1` | x-coordinate of edge starting points |

`3+n` through `2*n+2` | y-coordinate of edge starting points |

**Note**

Your polygon must not contain any self-intersections.

**Rectangle**

Row | Value |
---|---|

`1` | `3` (indicates a rectangle) |

`2` | `4` (number of line segments) |

`3` through `6` | x-coordinate of edge starting points |

`7` through `10` | y-coordinate of edge starting points |

The encoding of a rectangle is the same as that of a polygon, except that the first
row is `3`

instead of `2`

.

**Ellipse**

Row | Value |
---|---|

`1` | `4` (indicates an ellipse) |

`2` | x-coordinate of ellipse center |

`3` | y-coordinate of ellipse center |

`4` | First semiaxis length (strictly positive) |

`5` | Second semiaxis length (strictly positive) |

`6` | Angle in radians from x axis to first
semiaxis |

### Rectangle with Circular End Cap and Another Circular Excision

Specify a matrix that has a rectangle with a circular end cap and another circular excision.

**Create Basic Shapes**

First, create a rectangle and two adjoining circles.

rect1 = [3 4 -1 1 1 -1 0 0 -0.5 -0.5]; C1 = [1 1 -0.25 0.25]; C2 = [1 -1 -0.25 0.25];

Append extra zeros to the circles so they have the same number of rows as the rectangle.

C1 = [C1;zeros(length(rect1) - length(C1),1)]; C2 = [C2;zeros(length(rect1) - length(C2),1)];

Combine the shapes into one matrix.

gd = [rect1,C1,C2];

**Create Names for the Basic Shapes**

In order to create a formula describing the unions and intersections of basic shapes, you need a name for each basic shape. Give the names as a matrix whose columns contain the names of the corresponding columns in the basic shape matrix. Pad the columns with 0 or 32 if necessary so that each has the same length.

One easy way to create the names is by specifying a character array whose rows contain the names, and then taking the transpose. Use the `char`

function to create the array. This function pads the rows as needed so all have the same length. Continuing the example, give names for the three shapes.

ns = char('rect1','C1','C2'); ns = ns';

**Set Formula**

Obtain the final geometry by writing a set of characters that describes the unions and intersections of basic shapes. Use `+`

for union, `*`

for intersection, `-`

for set difference, and parentheses for grouping. `+`

and `*`

have the same grouping precedence. `-`

has higher grouping precedence.

Continuing the example, specify the union of the rectangle and `C1`

, and subtract `C2`

.

`sf = '(rect1+C1)-C2';`

**Create Geometry and Remove Face Boundaries**

After you have created the basic shapes, given them names, and specified a set formula, create the geometry using `decsg`

. Often, you also remove some or all of the resulting face boundaries. Completing the example, combine the basic shapes using the set formula.

[dl,bt] = decsg(gd,sf,ns);

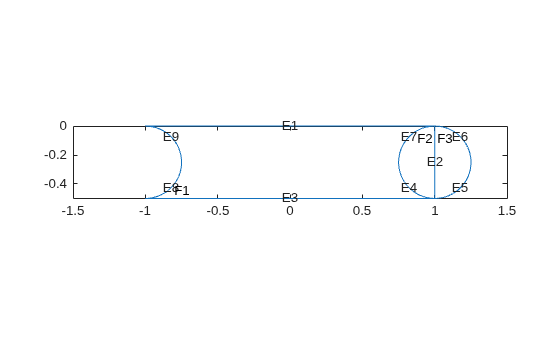

View the geometry with and without boundary removal.

pdegplot(dl,"EdgeLabels","on","FaceLabels","on") xlim([-1.5,1.5]) axis equal

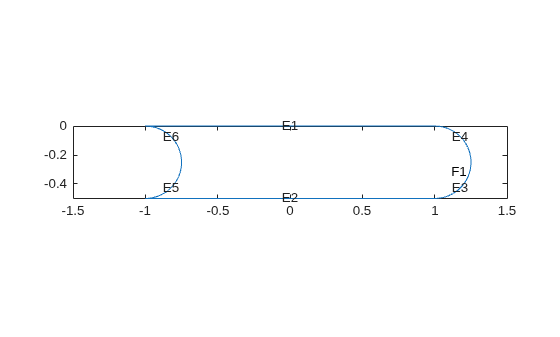

Remove the face boundaries.

[dl2,bt2] = csgdel(dl,bt); figure pdegplot(dl2,"EdgeLabels","on","FaceLabels","on") xlim([-1.5,1.5]) axis equal

### Decomposed Geometry Data Structure

A decomposed geometry matrix has the following encoding. Each column of the matrix corresponds to one boundary segment. Any 0 entry means no encoding is necessary for this row. So, for example, if only line segments appear in the matrix, then the matrix has 7 rows. But if there is also a circular segment, then the matrix has 10 rows. The extra three rows of the line columns are filled with 0.

Row | Circle | Line | Ellipse |
---|---|---|---|

`1` | `1` | `2` | `4` |

`2` | Starting x coordinate | Starting x coordinate | Starting x coordinate |

`3` | Ending x coordinate | Ending x coordinate | Ending x coordinate |

`4` | Starting y coordinate | Starting y coordinate | Starting y coordinate |

`5` | Ending y coordinate | Ending y coordinate | Ending y coordinate |

`6` | Region label to left of segment, with direction induced by start and
end points (`0` is exterior label) | Region label to left of segment, with direction induced by start and
end points (`0` is exterior label) | Region label to left of segment, with direction induced by start and
end points (`0` is exterior label) |

`7` | Region label to right of segment, with direction induced by start and
end points (`0` is exterior label) | Region label to right of segment, with direction induced by start and
end points (`0` is exterior label) | Region label to right of segment, with direction induced by start and
end points (`0` is exterior label) |

`8` | x coordinate of circle center | 0 | x coordinate of ellipse center |

`9` | y coordinate of circle center | 0 | y coordinate of ellipse center |

`10` | Radius | 0 | Length of first semiaxis |

`11` | 0 | 0 | Length of second semiaxis |

`12` | 0 | 0 | Angle in radians between x axis and first
semiaxis |
