A PDE model stores coefficients in its
EquationCoefficients property. Suppose
model is the name of your model. Obtain the coefficients:
coeffs = model.EquationCoefficients;
To see the active coefficient assignment for a region, call the

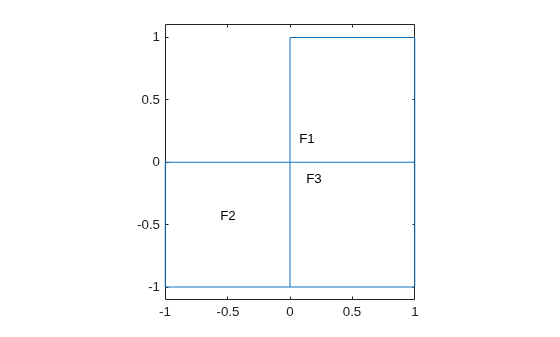

findCoefficients function. For example, create a model and view the geometry.
model = createpde(); geometryFromEdges(model,@lshapeg); pdegplot(model,'FaceLabels','on') ylim([-1.1,1.1]) axis equal
Specify constant coefficients over all the regions in the model.
Specify a different
f coefficient on each subregion.
Change the specification to have nonzero
a on region 2.
View the coefficient assignment for region 2.
coeffs = model.EquationCoefficients; findCoefficients(coeffs,'Face',2)
ans = CoefficientAssignment with properties: RegionType: 'face' RegionID: 2 m: 0 d: 0 c: 1 a: 1 f: 3
This shows the "last assignment wins" characteristic.
View the coefficient assignment for region 1.
ans = CoefficientAssignment with properties: RegionType: 'face' RegionID: [1 2 3] m: 0 d: 0 c: 1 a: 0 f: 2
The active coefficient assignment for region 1 includes all three regions, though this assignment is no longer active for regions 2 and 3.
To delete all the coefficients in your PDE model, use
model is the name of your model. Remove
all coefficients from
To delete specific coefficient assignments, delete them from
coefv = model.EquationCoefficients.CoefficientAssignments; delete(coefv(2))
You do not need to delete coefficients; you can override them
specifyCoefficients again. However,
deleting unused assignments can make your model smaller.
To change a coefficient assignment, you need the coefficient handle. To get the coefficient handle:
Retain the handle when using
coefh1 = specifyCoefficients(model,'m',m,'d',d,'c',c,'a',a,'f',f);
Obtain the handle using
coeffs = model.EquationCoefficients; coefh1 = findCoefficients(coeffs,'face',2);
You can change any property of the coefficient handle. For example,
coefh1.RegionID = [1,3]; coefh1.a = 2; coefh1.c = @ccoeffun;
Editing an existing assignment in this way does not change its
priority. For example, if the active coefficient in region 3 was assigned
coefh1, then editing
include region 3 does not make
coefh1 the active
coefficient in region 3.
