inductance

Calculate inductance

Since R2021b

collapse all in page

Syntax

inductance(object,frequency)

l = inductance(object,frequency)

Description

inductance(object,frequency) calculates and plots the inductance of an inductor over the specified frequency.

example

l = inductance(object,frequency) calculates the inductance of an inductor over the specified frequency.

Examples

collapse all

Calculate Inductance of Spiral Inductor

Open Live Script

Create a hexagonal spiral inductor with default properties.

inductor = spiralInductor(SpiralShape='Hexagon');
show(inductor)

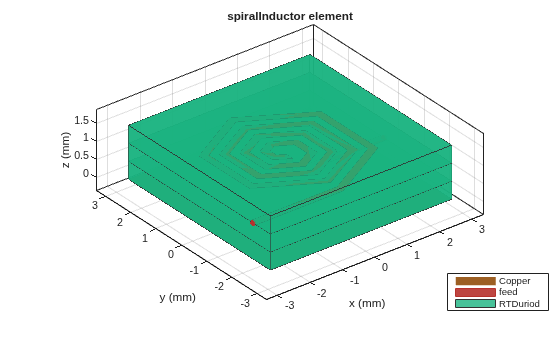

Figure contains an axes object. The axes object with title spiralInductor element, xlabel x (mm), ylabel y (mm) contains 10 objects of type patch, surface. These objects represent Copper, feed, RTDuriod.

Calculate the inductance of the inductor at 600 MHz.

inductance(inductor,600e6)

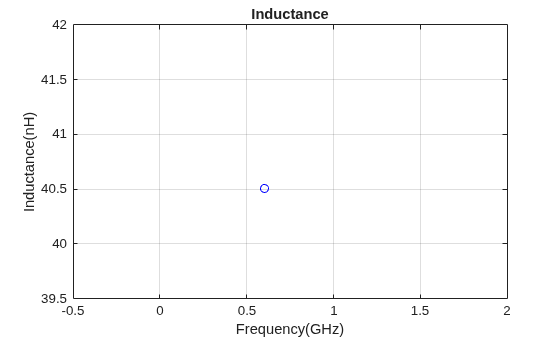

Figure contains an axes object. The axes object with title Inductance, xlabel Frequency(GHz), ylabel Inductance(nH) contains a line object which displays its values using only markers.
