Path Following for a Differential Drive Robot

This example demonstrates how to control a robot to follow a desired path using a Robot Simulator. The example uses the Pure Pursuit path following controller to drive a simulated robot along a predetermined path. A desired path is a set of waypoints defined explicitly or computed using a path planner (refer to Path Planning in Environments of Different Complexity). The Pure Pursuit path following controller for a simulated differential drive robot is created and computes the control commands to follow a given path. The computed control commands are used to drive the simulated robot along the desired trajectory to follow the desired path based on the Pure Pursuit controller.

Note: Starting in R2016b, instead of using the step method to perform the operation defined by the System object™, you can call the object with arguments, as if it were a function. For example, y = step(obj,x) and y = obj(x) perform equivalent operations.

Define Waypoints

Define a set of waypoints for the desired path for the robot

path = [2.00    1.00;
        1.25    1.75;
        5.25    8.25;
        7.25    8.75;
        11.75   10.75;
        12.00   10.00];

Set the current location and the goal location of the robot as defined by the path.

robotInitialLocation = path(1,:);
robotGoal = path(end,:);

Assume an initial robot orientation (the robot orientation is the angle between the robot heading and the positive X-axis, measured counterclockwise).

initialOrientation = 0;

Define the current pose for the robot [x y theta]

robotCurrentPose = [robotInitialLocation initialOrientation]';

Create a Kinematic Robot Model

Initialize the robot model and assign an initial pose. The simulated robot has kinematic equations for the motion of a two-wheeled differential drive robot. The inputs to this simulated robot are linear and angular velocities.

robot = differentialDriveKinematics("TrackWidth", 1, "VehicleInputs", "VehicleSpeedHeadingRate");

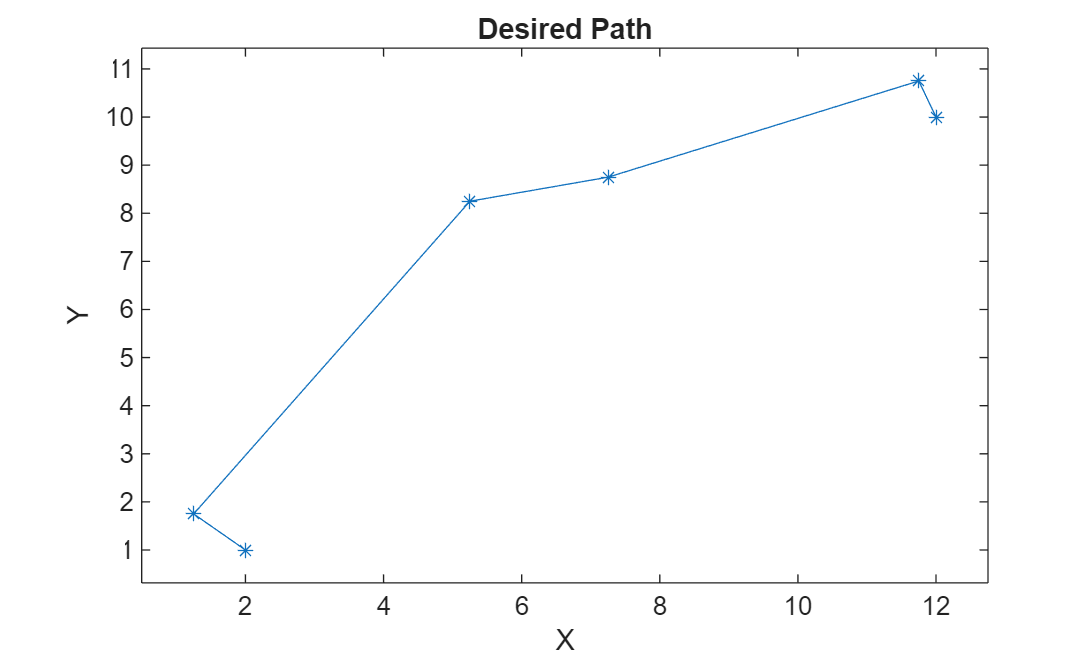

Visualize the desired path

figure
plot(path(:,1), path(:,2),'k--d')
xlim([0 13])
ylim([0 13])

Define the Path Following Controller

Based on the path defined above and a robot motion model, you need a path following controller to drive the robot along the path. Create the path following controller using the controllerPurePursuit object.

controller = controllerPurePursuit;

Use the path defined above to set the desired waypoints for the controller

controller.Waypoints = path;

Set the path following controller parameters. The desired linear velocity is set to 0.6 meters/second for this example.

controller.DesiredLinearVelocity = 0.6;

The maximum angular velocity acts as a saturation limit for rotational velocity, which is set at 2 radians/second for this example.

controller.MaxAngularVelocity = 2;

As a general rule, the lookahead distance should be larger than the desired linear velocity for a smooth path. The robot might cut corners when the lookahead distance is large. In contrast, a small lookahead distance can result in an unstable path following behavior. A value of 0.3 m was chosen for this example.

controller.LookaheadDistance = 0.3;

Using the Path Following Controller, Drive the Robot over the Desired Waypoints

The path following controller provides input control signals for the robot, which the robot uses to drive itself along the desired path.

Define a goal radius, which is the desired distance threshold between the robot's final location and the goal location. Once the robot is within this distance from the goal, it will stop. Also, you compute the current distance between the robot location and the goal location. This distance is continuously checked against the goal radius and the robot stops when this distance is less than the goal radius.

Note that too small value of the goal radius may cause the robot to miss the goal, which may result in an unexpected behavior near the goal.

goalRadius = 0.1;
distanceToGoal = norm(robotInitialLocation - robotGoal);

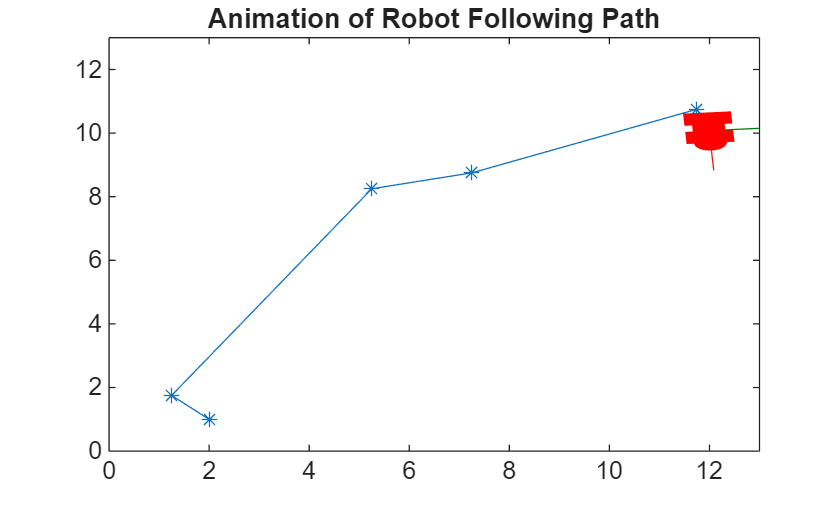

The controllerPurePursuit object computes control commands for the robot. Drive the robot using these control commands until it reaches within the goal radius. If you are using an external simulator or a physical robot, then the controller outputs should be applied to the robot and a localization system may be required to update the pose of the robot. The controller runs at 10 Hz.

% Initialize the simulation loop
sampleTime = 0.1;
vizRate = rateControl(1/sampleTime);

% Initialize the figure
figure

% Determine vehicle frame size to most closely represent vehicle with plotTransforms
frameSize = robot.TrackWidth/0.8;

while( distanceToGoal > goalRadius )

    % Compute the controller outputs, i.e., the inputs to the robot
    [v, omega] = controller(robotCurrentPose);

    % Get the robot's velocity using controller inputs
    vel = derivative(robot, robotCurrentPose, [v omega]);

    % Update the current pose
    robotCurrentPose = robotCurrentPose + vel*sampleTime;

    % Re-compute the distance to the goal
    distanceToGoal = norm(robotCurrentPose(1:2) - robotGoal(:));

    % Update the plot
    hold off

    % Plot path each instance so that it stays persistent while robot mesh
    % moves
    plot(path(:,1), path(:,2),"k--d")
    hold all

    % Plot the path of the robot as a set of transforms
    plotTrVec = [robotCurrentPose(1:2); 0];
    plotRot = axang2quat([0 0 1 robotCurrentPose(3)]);
    plotTransforms(plotTrVec', plotRot, "MeshFilePath", "groundvehicle.stl", "Parent", gca, "View","2D", "FrameSize", frameSize);
    light;
    xlim([0 13])
    ylim([0 13])

    waitfor(vizRate);
end

Using the Path Following Controller Along with PRM

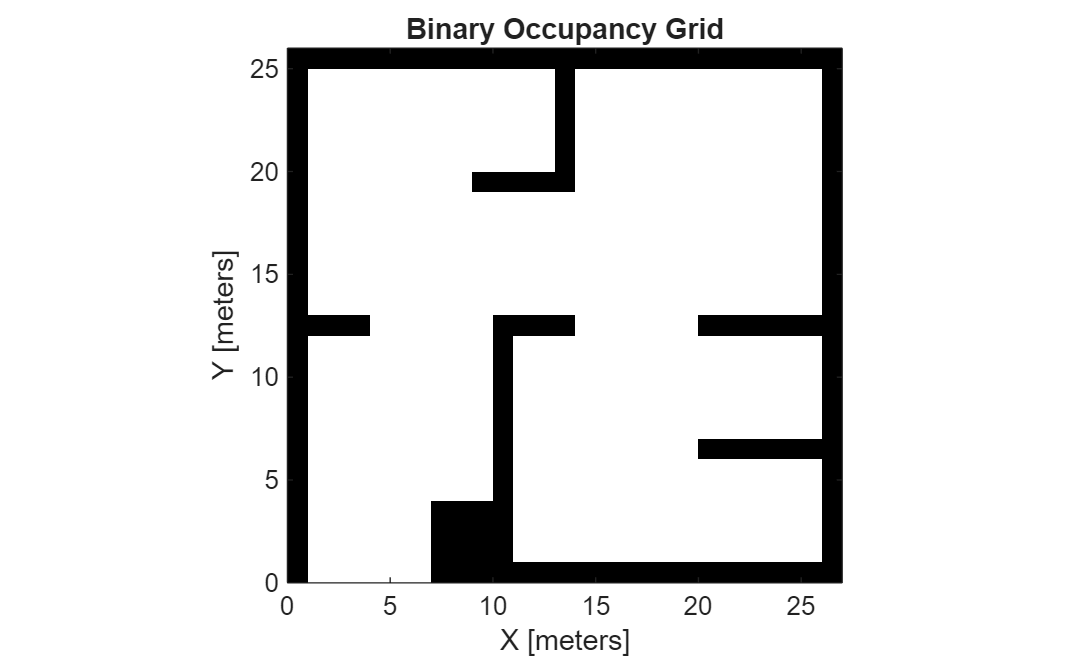

If the desired set of waypoints are computed by a path planner, the path following controller can be used in the same fashion. First, visualize the map

load exampleMaps
map = binaryOccupancyMap(simpleMap);
figure
show(map)

You can compute the path using the PRM path planning algorithm. See Path Planning in Environments of Different Complexity for details.

mapInflated = copy(map);
inflate(mapInflated, robot.TrackWidth/2);
prm = robotics.PRM(mapInflated);
prm.NumNodes = 100;
prm.ConnectionDistance = 10;

Find a path between the start and end location. Note that the path will be different due to the probabilistic nature of the PRM algorithm.

startLocation = [4.0 2.0];
endLocation = [24.0 20.0];
path = findpath(prm, startLocation, endLocation)
path = 8×2

    4.0000    2.0000
    3.1703    2.7616
    7.0797   11.2229
    8.1337   13.4835
   14.0707   17.3248
   16.8068   18.7834
   24.4564   20.6514
   24.0000   20.0000

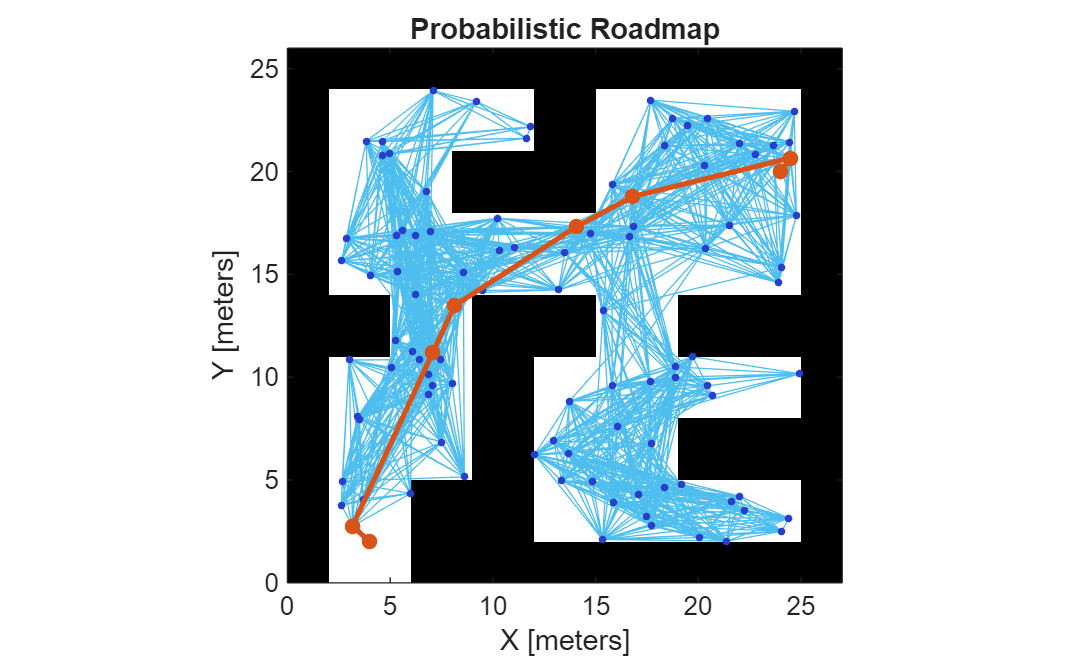

Display the inflated map, the road maps, and the final path.

show(prm);

You defined a path following controller above which you can re-use for computing the control commands of a robot on this map. To re-use the controller and redefine the waypoints while keeping the other information the same, use the release function.

release(controller);
controller.Waypoints = path;

Set initial location and the goal of the robot as defined by the path

robotInitialLocation = path(1,:);
robotGoal = path(end,:);

Assume an initial robot orientation

initialOrientation = 0;

Define the current pose for robot motion [x y theta]

robotCurrentPose = [robotInitialLocation initialOrientation]';

Compute distance to the goal location

distanceToGoal = norm(robotInitialLocation - robotGoal);

Define a goal radius

goalRadius = 0.1;

Drive the robot using the controller output on the given map until it reaches the goal. The controller runs at 10 Hz.

reset(vizRate);

% Initialize the figure
figure

while( distanceToGoal > goalRadius )

    % Compute the controller outputs, i.e., the inputs to the robot
    [v, omega] = controller(robotCurrentPose);

    % Get the robot's velocity using controller inputs
    vel = derivative(robot, robotCurrentPose, [v omega]);

    % Update the current pose
    robotCurrentPose = robotCurrentPose + vel*sampleTime;

    % Re-compute the distance to the goal
    distanceToGoal = norm(robotCurrentPose(1:2) - robotGoal(:));

    % Update the plot
    hold off
    show(map);
    hold all

    % Plot path each instance so that it stays persistent while robot mesh
    % moves
    plot(path(:,1), path(:,2),"k--d")

    % Plot the path of the robot as a set of transforms
    plotTrVec = [robotCurrentPose(1:2); 0];
    plotRot = axang2quat([0 0 1 robotCurrentPose(3)]);
    plotTransforms(plotTrVec', plotRot, 'MeshFilePath', 'groundvehicle.stl', 'Parent', gca, "View","2D", "FrameSize", frameSize);
    light;
    xlim([0 27])
    ylim([0 26])

    waitfor(vizRate);
end
