Op-Amp Circuit - Inverting Amplifier

Open Model

This example shows a model of a standard inverting op-amp circuit. The gain is given by -R2/R1. With R1 = 1K Ohm and R2 = 10K Ohm, the 0.1 V peak-to-peak input voltage is amplified to 1 V peak-to-peak. The Op-Amp block implements an ideal (infinite gain) device, thereby achieving this gain regardless of output load.

Model

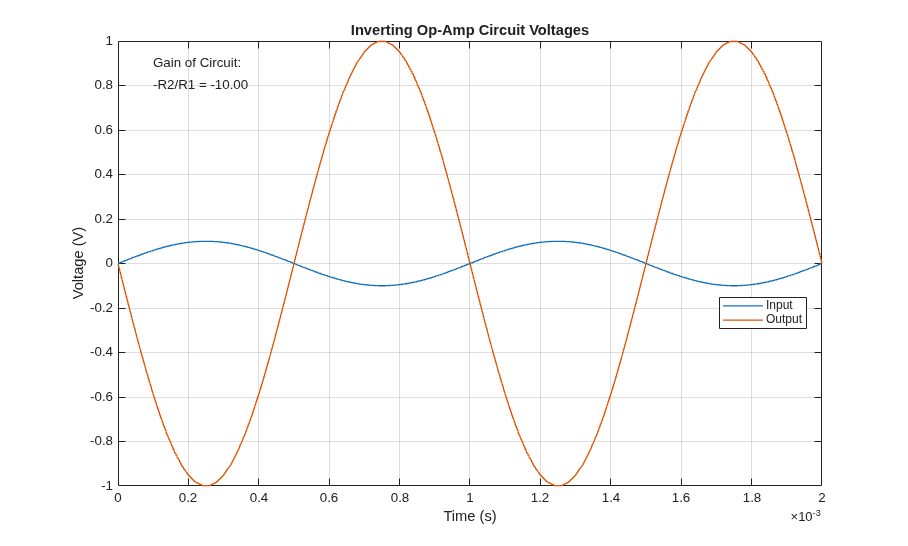

Simulation Results from Simscape Logging
