Model Reference Function-Call

This example shows how to use a Model block that is explicitly triggered by means of its function-call trigger port.

Examine Example Model

Open the example model.

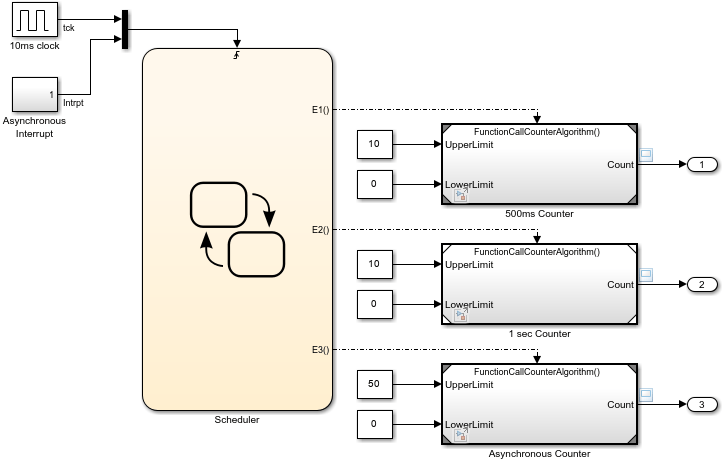

This model contains three Model blocks: 500ms Counter, 1 sec Counter and Asynchronous Counter. These blocks reference the same model (sldemo_mdlref_fcncall_cntr). The Model blocks represent saturating counters that increment their output values by one each time they are explicitly triggered through their function-call trigger ports. The Stateflow® chart calls each Model block at its specified rate.

Simulate Model and Examine Results

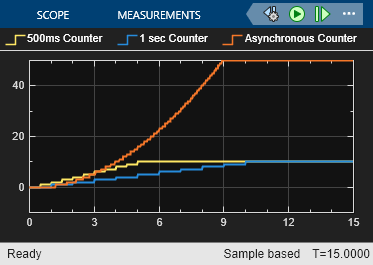

Simulate the model, and verify the behavior of the counters by examining the results displayed by the scope.
