Extended State Observer
Libraries:
Simulink Control Design /
Disturbance Observer
Description
The Extended State Observer block lets you design an extended state observer (ESO) algorithm to estimate and compensate for disturbances of linear time-invariant or linear time-varying systems. These disturbances represent total disturbances, including unknown dynamics and internal and external disturbances. Use this block to estimate the states and disturbances of a given discrete-time or continuous-time system based on the system input and output.
The block requires you to specify system dynamics in the following form.
Here:
x is the plant states
is the state derivative in continuous time and x+ is the state update x[k+1] in discrete time.
A, Bu, and Cm are the plant dynamics.
ym is the measurable plant output.
Bd is the disturbance input matrix.
d is the total disturbances in the model, including unknown dynamics and internal and external disturbances.
The block does not require you to provide an actual model of the plant. You can specify the dynamics obtained from a physical representation or an approximation of the plant. Therefore, the accuracy of estimation will depend on the accuracy of the plant approximation you provide.
For more information, see Control Design and Disturbance Compensation Using Extended State Observers.
Examples

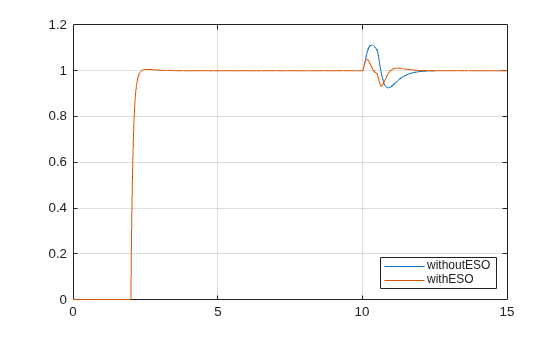

Apply Extended State Observer for Reference Tracking of DC Motor
Improve the disturbance rejection performance of a PID controller using the Extended State Observer block.
- Since R2024a
- Open Live Script
Ports
Input
u — Known inputs
scalar | vector
Specify the known inputs of the model as an Nu-by-1 signal, where Nu is the number of inputs in the model.
y — Measured outputs
scalar | vector
Specify the measured outputs of the model Ny-by-1 signal, where Ny is the number of outputs in the model.
A — State matrix
scalar | vector | matrix
Specify the state matrix as an Nx-by-Nx signal, where Nx is the number of states in the model.
Dependencies
To enable this port, select the Use external source for model matrices (A,Bu,Cm) and Use external source for L parameters.
Bu — Input matrix
scalar | vector | matrix
Specify the input matrix as an Nx-by-Nu signal, where Nx is the number of states and Nu is the number of inputs in the model.
Dependencies
To enable this port, select the Use external source for model matrices (A,Bu,Cm) and Use external source for L parameters.
Cm — Output matrix
scalar | vector | matrix
Specify the output matrix as an Ny-by-Nx signal, where Nx is the number of states and Ny is the number of outputs in the model.
Dependencies
To enable this port, select the Use external source for model matrices (A,Bu,Cm) and Use external source for L parameters.
Bd — Disturbance matrix
scalar | vector | matrix
Specify the disturbance matrix as an Nx-by-Nd signal, where Nx is the number of states and Nd is the number of disturbances in the model.
Dependencies
To enable this port, select the Use external source for matrix Bd and Use external source for L parameters.
S0 — Initial conditions
scalar | vector
Specify the initial conditions for the extended states as a scalar or vector with length Nx + Nd, where Nx is the number of states and Nd is the number of disturbances int the model.
Dependencies
To enable this port, select Use external source for initial conditions S0 (x0,d0).
L — Observer matrix
scalar | vector | matrix
Specify the observer matrix as an (Nx+Nd)-by-Ny signal.
Dependencies
To enable this port, select Use external source for matrix L.
Output
dhat — Estimated disturbances
vector
Estimated disturbances in the model, returned as an Nd-by-1 signal, where Nd is the number of disturbances in the model.
xhat — Estimated states
vector
Estimated states of the model, returned as an Nx-by-1 signal, where Nx is the number of states in the model.
Dependencies
To enable this port, select Output estimated model states xhat.
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Parameters Tab
Time domain — Controller time domain
discrete-time (default) | continuous-time
Specify the controller time domain.
When you select discrete-time, specify the sample time using the Sample time parameter.
LTI state-space variable — Known plant dynamics
ss
object | idss
object
Specify the known plant dynamics as a state-space model object. You can obtain this model from a physical representation or an approximation of the plant.
Use external source for model matrices (A,Bu,Cm) — Specify model matrices at block input ports
off
(default) | on
Select this option to specify the model matrices A, Bu, and Cm using the block input ports A, Bu, and Cm, respectively.
Dependencies
To enable this parameter, you must also select the Use external source for L parameter.
Number of states — Number of states in the model
1
(default) | positive integer
When you specify model matrices as block inputs, use this parameter to specify the number of states in the model.
Dependencies
To enable this parameter, select the Use external source for model matrices (A,Bu,Cm) and Use external source for L parameters.
Number of inputs — Number of inputs in the model
1
(default) | positive integer
When you specify model matrices as block inputs, use this parameter to specify the number of inputs in the model.
Dependencies
To enable this parameter, select the Use external source for model matrices (A,Bu,Cm) and Use external source for L parameters.
Number of outputs — Number of outputs in the model
1
(default) | positive integer
When you specify model matrices as block inputs, use this parameter to specify the number of outputs in the model.
Dependencies
To enable this parameter, select the Use external source for model matrices (A,Bu,Cm) and Use external source for L parameters.
Specify gain k (such that Bd = k*Bu) — Gain value for computing disturbance input matrix
1
(default) | nonzero scalar
Specify the gain value k for computing disturbance matrix Bd such that Bd = k×Bu.
Use external source for matrix Bd — Specify disturbance matrix at block input port
off
(default) | on
Select this option to specify the disturbance matrix Bd using the block input port Bd.
Dependencies
To enable this parameter, you must also select the Use external source for L parameter.
Number of disturbances — Number of disturbances in the model
1
(default) | positive integer
When you specify disturbance matrices as a block input, use this parameter to specify the number of inputs in the model.
Dependencies
To enable this parameter, select the Use external source for matrix Bd and Use external source for L parameters.
Initial conditions — Initial conditions for the extended states
0
(default) | scalar | vector
Specify the initial conditions for the extended states as a scalar or vector with length Nx + Nd, where Nx is the number of states and Nd is the number of disturbances int the model.
Use external source for initial conditions S0 (x0,d0) — Specify initial conditions at block input port
off
(default) | on
Select this option to specify the initial conditions using the block input port S0.
Tuning Tab
Bandwidth (rad/s) — Observer bandwidth
1
(default) | positive scalar
Specify the observer bandwidth ωo as a positive scalar.
Spacing (rad/s) — Observer bandwidth spacing
0.01
(default) | positive scalar
Specify the spacing for the closed-loop poles. For given observer bandwidth ωo and pole spacing δ, the block places the closed-loop poles at , where n is the number of closed-loop poles.
Use external source for matrix L — Specify observer matrix at block input port
off
(default) | on
Select this option to specify the observer matrix using the block input port L.
Block Tab
Data type — Floating point precision
double
(default) | single
Specify the floating-point precision based on simulation environment or hardware requirements.
For continuous-time models, the block only supports double
data
type.
Time delay — Specify time delays
1
(default) | positive scalar | vector
Specify time delays in the model as a scalar or vector of length Nu, where Nu is the number of inputs in the model.
For discrete-time models, specify the delay as an integer multiple k of the sample time. The delay in discrete time is given by Td = k×Ts.
Dependencies
To enable this parameter, select the Specify input delays parameter.
Output estimated model states xhat — Output estimated states at block output port
on
(default) | off
Select this option to output estimated model states at the block output xhat.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2024a
