Timestamp

Output signal timestamp in Run in Kernel mode

•

Libraries:
Simulink Desktop Real-Time / Target Profiling

Description

The Timestamp block outputs the timestamp for its input signal. The timestamp is relative to model start time in Run in Kernel mode. The input signal can be any signal of any data type.

In Connected IO mode, this block does not perform any action. It outputs zeros.

Examples

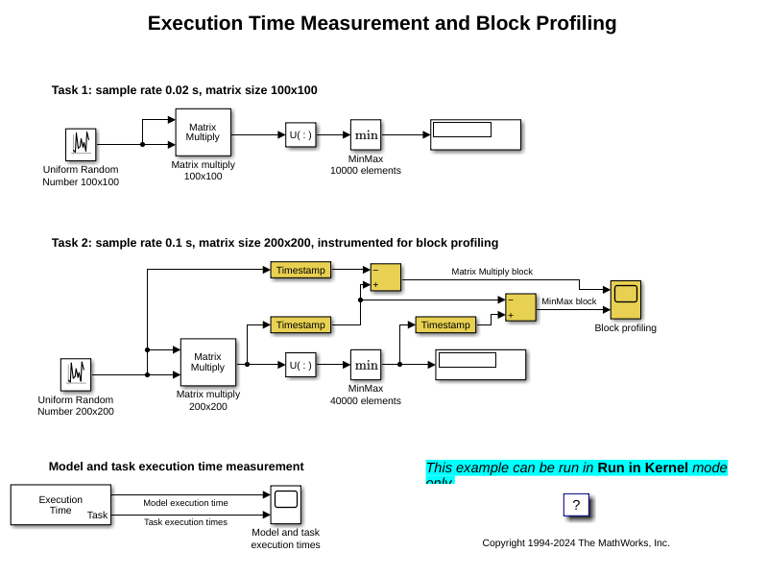

Execution Time Measurement and Block Profiling

Analyze model execution performance in Simulink Desktop Real-Time™.

• Open Script

Ports

Input

Signals — Signals for which to capture timestamps

vector

The actual data values are ignored.

Output

Timestamps — Timestamps of signals

vector of double

For each signal connected to Signals, the block returns the signal timestamp measured from the beginning of model execution.

Version History

Introduced in R2017a

R2024b: Update to blocks with port names

In R2024b, when you enable optional ports, such as Show "Missed Ticks" port, these Simulink^® Desktop Real-Time™ block ports appear with labels.
