average
Compute performance metrics for average receiver operating characteristic (ROC) curve in multiclass problem
Since R2022a
Syntax
Description
[
computes the averages of performance metrics stored in the FPR
,TPR
,Thresholds
,AUC
] = average(rocObj
,type
)rocmetrics
object
rocObj
for a multiclass classification problem using the averaging
method specified in type
. The function returns the average false
positive rate (FPR
) and the average true positive rate
(TPR
) for each threshold value in Thresholds
.
The function also returns AUC
, the area under the ROC curve composed of
FPR
and TPR
.
In R2024b: [
computes the performance metrics and returns avg1
,avg2
,Thresholds
,AUC
] = average(rocObj
,type
,metric1
,metric2
)avg1
(the average of
metric1
) and avg2
(the average of
metric2
) in addition to Thresholds
, the
corresponding threshold for each of the average values, and AUC
, the AUC
of the curve generated by metric1
and metric2
.
average
supports the AUC
output only when
metric1
and metric2
are TPR and FPR, or instead
are precision and recall:
TPR and FPR — Specify TPR using
"TruePositiveRate"
,"tpr"
, or"recall"
, and specify FPR using"FalsePositiveRate"
or"fpr"
. These choices specify that AUC is a ROC curve.Precision and recall — Specify precision using
"PositivePredictiveValue"
,"ppv"
,"prec"
, or"precision"
, and specify recall using"TruePositiveRate"
,"tpr"
, or"recall"
. These choices specify that AUC is the area under a precision-recall curve.
Examples
Find Average ROC Curve
Compute the performance metrics for a multiclass classification problem by creating a rocmetrics
object, and then compute the average values for the metrics by using the average
function. Plot the average ROC curve using the outputs of average
.
Load the fisheriris
data set. The matrix meas
contains flower measurements for 150 different flowers. The vector species
lists the species for each flower. species
contains three distinct flower names.
load fisheriris
Train a classification tree that classifies observations into one of the three labels. Cross-validate the model using 10-fold cross-validation.
rng("default") % For reproducibility Mdl = fitctree(meas,species,Crossval="on");
Compute the classification scores for validation-fold observations.
[~,Scores] = kfoldPredict(Mdl); size(Scores)
ans = 1×2
150 3
The output Scores
is a matrix of size 150
-by-3
. The column order of Scores
follows the class order in Mdl
, stored in Mdl.ClassNames
.
Create a rocmetrics
object by using the true labels in species
and the classification scores in Scores
. Specify the column order of Scores
using Mdl.ClassNames
.
rocObj = rocmetrics(species,Scores,Mdl.ClassNames);
rocmetrics
computes the FPR and TPR at different thresholds and finds the AUC value for each class.
Compute the average performance metric values, including the FPR and TPR at different thresholds using the macro-averaging method.
[FPR,TPR,Thresholds,AUC] = average(rocObj,"macro");
Plot the average ROC curve and display the average AUC value..
plot(rocObj,AverageCurveType="macro",ClassNames=[])
To display all the ROC curves and AUC values, do not set the ClassNames
argument to []
.
plot(rocObj,AverageCurveType="macro")
Obtain Macro Averages for Two Metrics
Load the fisheriris
data set. The matrix meas
contains flower measurements for 150 different flowers. The vector species
lists the species for each flower. species
contains three distinct flower names.
Train a classification tree that classifies observations into one of the three labels.
load fisheriris
mdl = fitctree(meas,species);
Create a rocmetrics
object from the classification tree model.
roc = rocmetrics(mdl,meas,species); % Input data meas and response species required
Obtain the average macro recall and precision statistics in addition to the threshold and AUC statistics.
[avgRecall,avgPrec,thresh,AUC] = average(roc,"macro","recall","precision")
avgRecall = 9×1
0
0.6533
0.9533
0.9800
0.9933
0.9933
1.0000
1.0000
1.0000
avgPrec = 9×1
NaN
1.0000
0.9929
0.9811
0.9560
0.9203
0.7804
0.6462
0.3333
thresh = 9×1
1.0000
1.0000
0.9565
0.3333
-0.3333
-0.6667
-0.9565
-0.9783
-1.0000
AUC = 0.9972

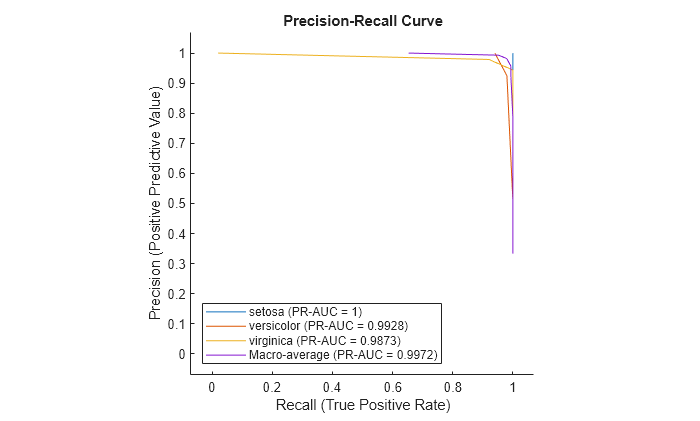

Plot the ROC curve for the recall and precision metrics.
plot(roc,AverageCurveType="macro",XAxisMetric="recall",YAxisMetric="precision")
Input Arguments
rocObj
— Object evaluating classification performance
rocmetrics
object
Object evaluating classification performance, specified as a rocmetrics
object.
type
— Averaging method
"micro"
| "macro"
| "weighted"
Averaging method, specified as "micro"
, "macro"
, or "weighted"
.
"micro"
(micro-averaging) —average
finds the average performance metrics by treating all one-versus-all binary classification problems as one binary classification problem. The function computes the confusion matrix components for the combined binary classification problem, and then computes the average metrics (as specified by theXAxisMetric
andYAxisMetric
name-value arguments) using the values of the confusion matrix."macro"
(macro-averaging) —average
computes the average values for the metrics by averaging the values of all one-versus-all binary classification problems."weighted"
(weighted macro-averaging) —average
computes the weighted average values for the metrics using the macro-averaging method and using the prior class probabilities (thePrior
property ofrocObj
) as weights.
The algorithm type determines the length of the vectors for the output arguments (FPR
, TPR
, and Thresholds
). For more details, see Average of Performance Metrics.
Data Types: char
| string
metric1
— Name of metric to average
"FalsePositiveRate"
(default) | name in rocObj.Metrics
| name of built-in metric
Since R2024b
Name of a metric to average, specified as a name in
rocObj
.Metrics
or as the name of a built-in
metric listed in this table.
Name | Description |
---|---|
"TruePositives" or "tp" | Number of true positives (TP) |
"FalseNegatives" or "fn" | Number of false negatives (FN) |
"FalsePositives" or "fp" | Number of false positives (FP) |
"TrueNegatives" or "tn" | Number of true negatives (TN) |
"SumOfTrueAndFalsePositives" or "tp+fp" | Sum of TP and FP |
"RateOfPositivePredictions" or "rpp" | Rate of positive predictions (RPP), (TP+FP)/(TP+FN+FP+TN) |
"RateOfNegativePredictions" or "rnp" | Rate of negative predictions (RNP), (TN+FN)/(TP+FN+FP+TN) |
"Accuracy" or "accu" | Accuracy, (TP+TN)/(TP+FN+FP+TN) |
"TruePositiveRate" , "tpr" , or
"recall" | True positive rate (TPR), also known as recall or sensitivity, TP/(TP+FN) |
"FalseNegativeRate" , "fnr" , or "miss" | False negative rate (FNR), or miss rate, FN/(TP+FN) |
"FalsePositiveRate" or "fpr" | False positive rate (FPR), also known as fallout or 1-specificity, FP/(TN+FP) |
"TrueNegativeRate" , "tnr" , or "spec" | True negative rate (TNR), or specificity, TN/(TN+FP) |
"PositivePredictiveValue" , "ppv" ,
"prec" , or "precision" | Positive predictive value (PPV), or precision, TP/(TP+FP) |
"NegativePredictiveValue" or "npv" | Negative predictive value (NPV), TN/(TN+FN) |
"f1score" | F1 score, 2*TP/(2*TP+FP+FN) |
"ExpectedCost" or "ecost" | Expected cost,
The software converts the |
Data Types: char
| string
metric2
— Name of metric to average
"TruePositiveRate"
(default) | name in rocObj.Metrics
| name of a built-in metric
Since R2024b
Name of a metric to average, specified as a name in
rocObj
.Metrics
or as the name of a built-in
metric listed in this table.
Name | Description |
---|---|
"TruePositives" or "tp" | Number of true positives (TP) |
"FalseNegatives" or "fn" | Number of false negatives (FN) |
"FalsePositives" or "fp" | Number of false positives (FP) |
"TrueNegatives" or "tn" | Number of true negatives (TN) |
"SumOfTrueAndFalsePositives" or "tp+fp" | Sum of TP and FP |
"RateOfPositivePredictions" or "rpp" | Rate of positive predictions (RPP), (TP+FP)/(TP+FN+FP+TN) |
"RateOfNegativePredictions" or "rnp" | Rate of negative predictions (RNP), (TN+FN)/(TP+FN+FP+TN) |
"Accuracy" or "accu" | Accuracy, (TP+TN)/(TP+FN+FP+TN) |
"TruePositiveRate" , "tpr" , or
"recall" | True positive rate (TPR), also known as recall or sensitivity, TP/(TP+FN) |
"FalseNegativeRate" , "fnr" , or "miss" | False negative rate (FNR), or miss rate, FN/(TP+FN) |
"FalsePositiveRate" or "fpr" | False positive rate (FPR), also known as fallout or 1-specificity, FP/(TN+FP) |
"TrueNegativeRate" , "tnr" , or "spec" | True negative rate (TNR), or specificity, TN/(TN+FP) |
"PositivePredictiveValue" , "ppv" ,
"prec" , or "precision" | Positive predictive value (PPV), or precision, TP/(TP+FP) |
"NegativePredictiveValue" or "npv" | Negative predictive value (NPV), TN/(TN+FN) |
"f1score" | F1 score, 2*TP/(2*TP+FP+FN) |
"ExpectedCost" or "ecost" | Expected cost,
The software converts the |
Data Types: char
| string
Output Arguments
FPR
— Average false positive rates
numeric vector
Average false positive rates, returned as a numeric vector.
TPR
— Average true positive rates
numeric vector
Average true positive rates, returned as a numeric vector.
AUC
— Area under average ROC curve
numeric scalar
Area under the average ROC curve composed of FPR
and
TPR
, returned as a numeric scalar.
avg1
— Average of metric1
double or single vector
Since R2024b
Average of metric1
, returned as a double or single vector,
depending on the data.
avg2
— Average of metric2
double or single vector
Since R2024b
Average of metric2
, returned as a double or single vector,
depending on the data.
More About
Receiver Operating Characteristic (ROC) Curve
A ROC curve shows the true positive rate versus the false positive rate for different thresholds of classification scores.
The true positive rate and the false positive rate are defined as follows:
True positive rate (TPR), also known as recall or sensitivity —
TP/(TP+FN)
, where TP is the number of true positives and FN is the number of false negativesFalse positive rate (FPR), also known as fallout or 1-specificity —
FP/(TN+FP)
, where FP is the number of false positives and TN is the number of true negatives
Each point on a ROC curve corresponds to a pair of TPR and FPR values for a specific
threshold value. You can find different pairs of TPR and FPR values by varying the
threshold value, and then create a ROC curve using the pairs. For each class,
rocmetrics
uses all distinct adjusted score values
as threshold values to create a ROC curve.
For a multiclass classification problem, rocmetrics
formulates a set
of one-versus-all binary
classification problems to have one binary problem for each class, and finds a ROC
curve for each class using the corresponding binary problem. Each binary problem
assumes one class as positive and the rest as negative.
For a binary classification problem, if you specify the classification scores as a
matrix, rocmetrics
formulates two one-versus-all binary
classification problems. Each of these problems treats one class as a positive class
and the other class as a negative class, and rocmetrics
finds two
ROC curves. Use one of the curves to evaluate the binary classification
problem.
For more details, see ROC Curve and Performance Metrics.
Area Under ROC Curve (AUC)
The area under a ROC curve (AUC) corresponds to the integral of a ROC curve
(TPR values) with respect to FPR from FPR
= 0
to FPR
= 1
.
The AUC provides an aggregate performance measure across all possible thresholds. The AUC
values are in the range 0
to 1
, and larger AUC values
indicate better classifier performance.
One-Versus-All (OVA) Coding Design
The one-versus-all (OVA) coding design reduces a multiclass classification
problem to a set of binary classification problems. In this coding design, each binary
classification treats one class as positive and the rest of the classes as negative.
rocmetrics
uses the OVA coding design for multiclass classification and
evaluates the performance on each class by using the binary classification that the class is
positive.
For example, the OVA coding design for three classes formulates three binary classifications:
Each row corresponds to a class, and each column corresponds to a binary
classification problem. The first binary classification assumes that class 1 is a positive
class and the rest of the classes are negative. rocmetrics
evaluates the
performance on the first class by using the first binary classification problem.
Algorithms
Adjusted Scores for Multiclass Classification Problem
For each class, rocmetrics
adjusts the classification scores (input argument
Scores
of rocmetrics
) relative to the scores for the rest
of the classes if you specify Scores
as a matrix. Specifically, the
adjusted score for a class given an observation is the difference between the score for the
class and the maximum value of the scores for the rest of the classes.
For example, if you have [s1,s2,s3] in a row of Scores
for a classification problem with
three classes, the adjusted score values are [s1-max
(s2,s3),s2-max
(s1,s3),s3-max
(s1,s2)].
rocmetrics
computes the performance metrics using the adjusted score values
for each class.
For a binary classification problem, you can specify Scores
as a
two-column matrix or a column vector. Using a two-column matrix is a simpler option because
the predict
function of a classification object returns classification
scores as a matrix, which you can pass to rocmetrics
. If you pass scores in
a two-column matrix, rocmetrics
adjusts scores in the same way that it
adjusts scores for multiclass classification, and it computes performance metrics for both
classes. You can use the metric values for one of the two classes to evaluate the binary
classification problem. The metric values for a class returned by
rocmetrics
when you pass a two-column matrix are equivalent to the
metric values returned by rocmetrics
when you specify classification scores
for the class as a column vector.
Alternative Functionality
You can use the
plot
function to create the average ROC curve. The function returns aROCCurve
object containing theXData
,YData
,Thresholds
, andAUC
properties, which correspond to the output argumentsFPR
,TPR
,Thresholds
, andAUC
of theaverage
function, respectively. For an example, see Plot Average ROC Curve for Multiclass Classifier.
References
[1] Sebastiani, Fabrizio. "Machine Learning in Automated Text Categorization." ACM Computing Surveys 34, no. 1 (March 2002): 1–47.
Version History
Introduced in R2022aR2024b: Compute and plot the average of any two metrics
You can compute and plot the rocmetrics
average results of any two metrics simultaneously. For an example, see Obtain Macro Averages for Two Metrics.
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
Asia Pacific
- Australia (English)
- India (English)
- New Zealand (English)
- 中国
- 日本Japanese (日本語)
- 한국Korean (한국어)
