This example describes how to analyze a simple function to find its asymptotes, maximum, minimum, and inflection point.

The function in this example is

$$\mathit{f}\left(\mathit{x}\right)=\frac{3{\mathit{x}}^{2}+6\mathit{x}-1}{{\mathit{x}}^{2}+\mathit{x}-3}.$$

First, create the function.

```
syms x
num = 3*x^2 + 6*x -1;
denom = x^2 + x - 3;
f = num/denom
```

f =$$\frac{3\hspace{0.17em}{x}^{2}+6\hspace{0.17em}x-1}{{x}^{2}+x-3}$$

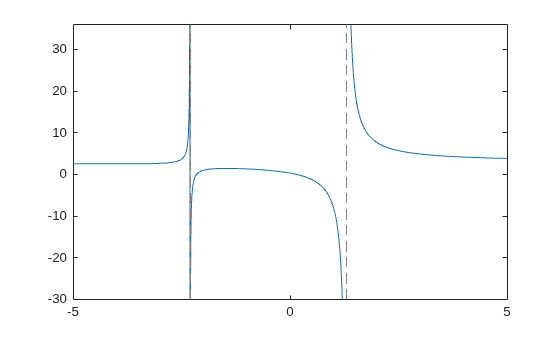

Plot the function by using `fplot`

. The `fplot`

function automatically shows vertical asymptotes.

fplot(f)

To find the horizontal asymptote of $$f$$ mathematically, take the limit of $$f$$ as $$x$$ approaches positive infinity.

limit(f,Inf)

`ans = $$3$$`

The limit as $$x$$ approaches negative infinity is also 3. This result means the line $$y=3$$ is a horizontal asymptote to $$f$$.

To find the vertical asymptotes of $$f$$, set the denominator equal to 0 and solve it.

roots = solve(denom)

roots =$$\left(\begin{array}{c}-\frac{\sqrt{13}}{2}-\frac{1}{2}\\ \frac{\sqrt{13}}{2}-\frac{1}{2}\end{array}\right)$$

`roots`

indicates that the vertical asymptotes are the lines

$\mathit{x}=\frac{-1-\sqrt{13}}{2}$

and

$\mathit{x}=\frac{-1+\sqrt{13}}{2}$.

You can see from the graph that $$f$$ has a local maximum between the points $$x=\u20132$$ and $$x=0$$. It also has a local minimum between $$x=\u20136$$ and $$x=\u20132$$. To find the $$x$$-coordinates of the maximum and minimum, first take the derivative of $$f$$.

f1 = diff(f)

f1 =$$\frac{6\hspace{0.17em}x+6}{{x}^{2}+x-3}-\frac{\left(2\hspace{0.17em}x+1\right)\hspace{0.17em}\left(3\hspace{0.17em}{x}^{2}+6\hspace{0.17em}x-1\right)}{{\left({x}^{2}+x-3\right)}^{2}}$$

To simplify this expression, enter the following.

f1 = simplify(f1)

f1 =$$-\frac{3\hspace{0.17em}{x}^{2}+16\hspace{0.17em}x+17}{{\left({x}^{2}+x-3\right)}^{2}}$$

Next, set the derivative equal to 0 and solve for the critical points.

crit_pts = solve(f1)

crit_pts =$$\left(\begin{array}{c}-\frac{\sqrt{13}}{3}-\frac{8}{3}\\ \frac{\sqrt{13}}{3}-\frac{8}{3}\end{array}\right)$$

As the graph of $$f$$ shows, the function has a local minimum at

${\mathit{x}}_{1}=\frac{-8-\sqrt{13}}{3}$

and a local maximum at

${\mathit{x}}_{1}=\frac{-8+\sqrt{13}}{3}$.

Plot the maximum and minimum of `f`

.

fplot(f) hold on plot(double(crit_pts), double(subs(f,crit_pts)),'ro') title('Maximum and Minimum of f') text(-4.8,5.5,'Local minimum') text(-2,4,'Local maximum') hold off

To find the inflection point of $$f$$, set the second derivative equal to 0 and solve for this condition.

```
f2 = diff(f1);
inflec_pt = solve(f2,'MaxDegree',3);
double(inflec_pt)
```

`ans = `*3×1 complex*
-5.2635 + 0.0000i
-1.3682 - 0.8511i
-1.3682 + 0.8511i

In this example, only the first element is a real number, so this is the only inflection point. MATLAB® does not always return the roots to an equation in the same order.

Instead of selecting the real root by indexing into `inter_pt`

, identify the real root by determining which roots have a zero-valued imaginary part.

idx = imag(double(inflec_pt)) == 0; inflec_pt = inflec_pt(idx)

inflec_pt =$$-\frac{13}{9\hspace{0.17em}{\left(\frac{169}{54}-\frac{\sqrt{2197}}{18}\right)}^{1/3}}-{\left(\frac{169}{54}-\frac{\sqrt{2197}}{18}\right)}^{1/3}-\frac{8}{3}$$

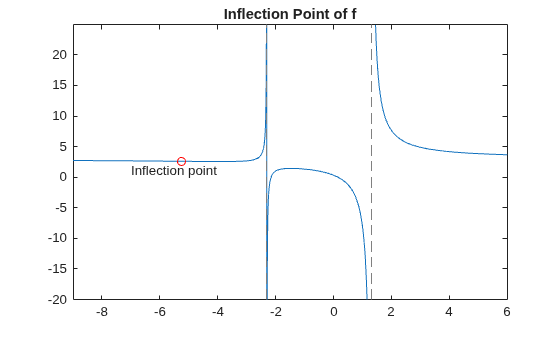

Plot the inflection point. The extra argument `[-9 6]`

in `fplot`

extends the range of $$x$$ values in the plot so that you can see the inflection point more clearly, as the figure shows.

fplot(f,[-9 6]) hold on plot(double(inflec_pt), double(subs(f,inflec_pt)),'ro') title('Inflection Point of f') text(-7,1,'Inflection point') hold off
