Scale Factors

R2026b

Create Magic Formula tire model scale factors

Since R2026b

•

Scale Factors block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Vehicle Dynamics Blockset / Wheels and Tires

Description

The Scale Factors block creates the Magic Formula tire model scale factors, allowing you to set each factor as either a constant parameter or a dynamic input signal. Inputs must be scalars or vectors with length equal to the number of wheels. The output signal can be wired directly to the ScaleFctrs port of applicable tire blocks, enabling flexible integration of both fixed and time-varying scale factors.

Examples

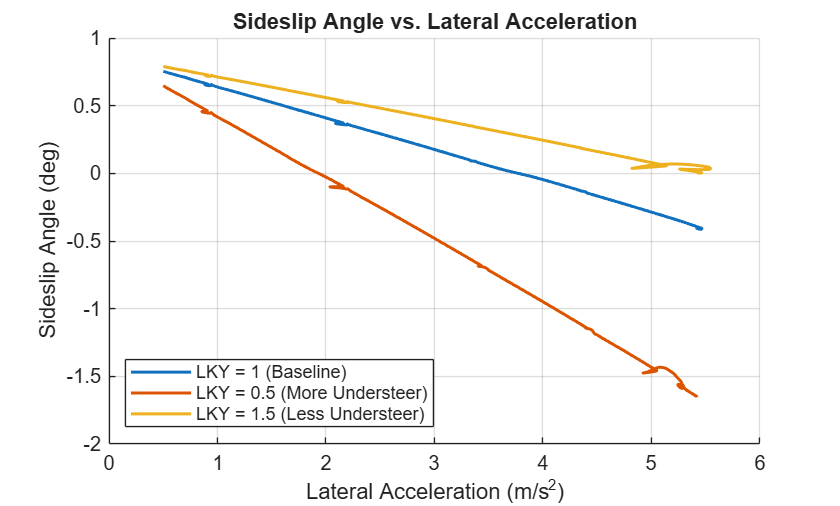

Analyze Tire Stiffness Effects on Handling

Analyze the effect of tire lateral stiffness scale factors on vehicle handling using Vehicle Dynamics Blockset(TM) and the scale factors block.

• Open Live Script

Ports

Input

LFZO — Scale factor of nominal (rated) load

scalar | 1-by-N vector

Scale factor of nominal (rated) load.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LMUX — Scale factor of Fx peak friction coefficient

scalar | 1-by-N vector

This port is configured by default.

Scale factor of Fx peak friction coefficient.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LMUY — Scale factor of Fy peak friction coefficient

scalar | 1-by-N vector

This port is configured by default.

Scale factor of Fy peak friction coefficient,

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LMUV — Scale factor with slip speed decaying friction

scalar | 1-by-N vector

Scale factor with slip speed decaying friction.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LKX — Scale factor of Fx slip stiffness

scalar | 1-by-N vector

Scale factor of Fx slip stiffness.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LKY — Scale factor of Fy cornering stiffness

scalar | 1-by-N vector

Scale factor of Fy cornering stiffness.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LCX — Scale factor of Fx shape factor

scalar | 1-by-N vector

Scale factor of Fx shape factor.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LCY — Scale factor of Fy shape factor

scalar | 1-by-N vector

Scale factor of Fy shape factor.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LEX — Scale factor of Fx curvature factor

scalar | 1-by-N vector

Scale factor of Fx curvature factor.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LEY — Scale factor of Fy curvature factor

scalar | 1-by-N vector

Scale factor of Fy curvature factor.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LHX — Scale factor of Fx horizontal shift

scalar | 1-by-N vector

Scale factor of Fx horizontal shift.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LHY — Scale factor of Fy horizontal shift

scalar | 1-by-N vector

Scale factor of Fy horizontal shift.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LVX — Scale factor of Fx vertical shift

scalar | 1-by-N vector

Scale factor of Fx vertical shift.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LVY — Scale factor of Fy vertical shift

scalar | 1-by-N vector

Scale factor of Fy vertical shift.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LKYC — Scale factor of Fy camber stiffness

scalar | 1-by-N vector

Scale factor of Fy camber stiffness.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LKZC — Scale factor of Mz camber stiffness

scalar | 1-by-N vector

Scale factor of Mz camber stiffness.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LTR — Scale factor of peak of pneumatic tail

scalar | 1-by-N vector

Scale factor of peak of pneumatic tail.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LRES — Scale factor for offset of Mz residual torque

scalar | 1-by-N vector

Scale factor for offset of Mz residual torque.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LXAL — Scale factor of alpha influence on Fx

scalar | 1-by-N vector

Scale factor of alpha influence on Fx.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LYKA — Scale factor of kappa influence on Fy

scalar | 1-by-N vector

Scale factor of kappa influence on Fy.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LVYKA — Scale factor of kappa induced Fy

scalar | 1-by-N vector

Scale factor of kappa induced Fy.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LS — Scale factor of moment arm of Fx

scalar | 1-by-N vector

Scale factor of moment arm of Fx.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LCZ — Scale factor of radial tire stiffness

scalar | 1-by-N vector

Scale factor of radial tire stiffness.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LMX — Scale factor of Mx overturning moment

scalar | 1-by-N vector

Scale factor of Mx overturning moment.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LVMX — Scale factor of Mx vertical shift

scalar | 1-by-N vector

Scale factor of Mx vertical shift.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LMY — Scale factor of rolling resistance torque

scalar | 1-by-N vector

Scale factor of rolling resistance torque.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

LMP — Scale factor of Mz parking torque

scalar | 1-by-N vector

Scale factor of Mz parking torque.

Vector is 1-by-N, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this port, select the External scale factor check box.

Data Types: double

Output

Scalefctrs — Scale factors

27-by-M vector

Scale factors, returned as a 27-by-M vector, where M is equal to the number of wheels defined by Number of Wheels, NumWhls [].

Data Types: double

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink^® Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Number of wheels, NumWhls [] — Number of wheels

1 (default) | scalar | 1-by-N vector

Number of wheels, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	NumWhls
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of nominal (rated) load, LFZO [] — Scale factor of nominal (rated) load

1 (default) | scalar | 1-by-N vector

Scale factor of nominal (rated) load, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LFZO
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fx peak friction coefficient, LMUX [] — Scale factor of Fx peak friction coefficient

1 (default) | scalar | 1-by-N vector

Scale factor of Fx peak friction coefficient, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LMUX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy peak friction coefficient, LMUY [] — Scale factor of Fy peak friction coefficient

1 (default) | scalar | 1-by-N vector

Scale factor of Fy peak friction coefficient, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LMUY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor with slip speed decaying friction, LMUV [] — Scale factor with slip speed decaying friction

0 (default) | scalar | 1-by-N vector

Scale factor with slip speed decaying friction, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LMUV
Values:	0 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fx slip stiffness, LKX [] — Scale factor of Fx slip stiffness

1 (default) | scalar | 1-by-N vector

Scale factor of Fx slip stiffness, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LKX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy cornering stiffness, LKY [] — Scale factor of Fy cornering stiffness

1 (default) | scalar | 1-by-N vector

Scale factor of Fy cornering stiffness, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LKY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fx shape factor, LCX [] — Scale factor of Fx shape factor

1 (default) | scalar | 1-by-N vector

Scale factor of Fx shape factor, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LCX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy shape factor, LCY [] — Scale factor of Fy shape factor

1 (default) | scalar | 1-by-N vector

Scale factor of Fy shape factor, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LCY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fx curvature factor, LEX [] — Scale factor of Fx curvature factor

1 (default) | scalar | 1-by-N vector

Scale factor of Fx curvature factor, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LEX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy curvature factor, LEY [] — Scale factor of Fy curvature factor

1 (default) | scalar | 1-by-N vector

Scale factor of Fy curvature factor, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LEY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fx horizontal shift, LHX [] — Scale factor of Fx horizontal shift

1 (default) | scalar | 1-by-N vector

Scale factor of Fx horizontal shift, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LHX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy horizontal shift, LHY [] — Scale factor of Fy horizontal shift

1 (default) | scalar | 1-by-N vector

Scale factor of Fy horizontal shift, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LHY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fx vertical shift, LVX [] — Scale factor of Fx vertical shift

1 (default) | scalar | 1-by-N vector

Scale factor of Fx vertical shift, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LHX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy vertical shift, LVY [] — Scale factor of Fy vertical shift

1 (default) | scalar | 1-by-N vector

Scale factor of Fy vertical shift, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LVY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Fy camber stiffness, LKYC [] — Scale factor of Fy camber stiffness

1 (default) | scalar | 1-by-N vector

Scale factor of Fy camber stiffness, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LKYC
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Mz camber stiffness, LKZC [] — Scale factor of Mz camber stiffness

1 (default) | scalar | 1-by-N vector

Scale factor of Mz camber stiffness, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LKZC
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of peak of pneumatic trail, LTR [] — Scale factor of peak of pneumatic trail

1 (default) | scalar | 1-by-N vector

Scale factor of peak of pneumatic trail, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LTR
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor for offset of Mz residual torque, LRES [] — Scale factor for offset of Mz residual torque

1 (default) | scalar | 1-by-N vector

Scale factor for offset of Mz residual torque, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LRES
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of alpha influence on Fx, LXAL [] — Scale factor of alpha influence on Fx

1 (default) | scalar | 1-by-N vector

Scale factor of alpha influence on Fx, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LXAL
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of kappa influence on Fy, LYKA [] — Scale factor of kappa influence on Fy

1 (default) | scalar | 1-by-N vector

Scale factor of kappa influence on Fy, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LYKA
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of kappa induced Fy, LVYKA [] — Scale factor of kappa induced Fy

1 (default) | scalar | 1-by-N vector

Scale factor of kappa induced Fy, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LVYKA
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of moment arm of Fx, LS [] — Scale factor of moment arm of Fx

1 (default) | scalar | 1-by-N vector

Scale factor of moment arm of Fx, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LS
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of radial tire stiffness, LCZ [] — Scale factor of radial tire stiffness

1 (default) | scalar | 1-by-N vector

Scale factor of radial tire stiffness, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LCZ
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Mx overturning moment, LMX [] — Scale factor of Mx overturning moment

1 (default) | scalar | 1-by-N vector

Scale factor of Mx overturning moment, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LMX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Mx vertical shift, LVMX [] — Scale factor of Mx vertical shift

1 (default) | scalar | 1-by-N vector

Scale factor of Mx vertical shift, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LVMX
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of rolling resistance torque, LMY [] — Scale factor of rolling resistance torque

1 (default) | scalar | 1-by-N vector

Scale factor of rolling resistance torque, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LMY
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Scale factor of Mz parking torque, LMP [] — Scale factor of Mz parking torque

1 (default) | scalar | 1-by-N vector

Scale factor of Mz parking torque, specified as a scalar or 1-by-N vector, where N must equal the number of wheels defined by Number of Wheels, NumWhls []. Scalar values are repeated to match the number of wheels.

Dependencies

To enable this parameter, clear the External scale factor check box.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

To get the block parameter value programmatically, use the get_param function.

Parameter:	LMP
Values:	1 (default) | scalar | 1-by-N vector
Data Types:	char | string

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2026b
