## 1-D Multisignal Analysis

This section takes you through the features of 1-D multisignal wavelet analysis, compression and denoising using the Wavelet Toolbox™ software. The rationale for each topic is the same as in the 1-D single signal case.

The toolbox provides the following functions for multisignal analysis.

**Analysis-Decomposition and Synthesis-Reconstruction Functions**

**Decomposition Structure Utilities**

Function Name | Purpose |
---|---|

Change multisignal 1-D decomposition coefficients | |

Multisignal 1-D decomposition energy repartition |

**Compression and Denoising Functions**

### 1-D Multisignal Analysis

Load an image file, and display its dimensions. For purposes of this example, unless stated otherwise, you will treat the data as a multisignal. Each row of the image is one signal.

```
load thinker
size(X)
```

`ans = `*1×2*
192 96

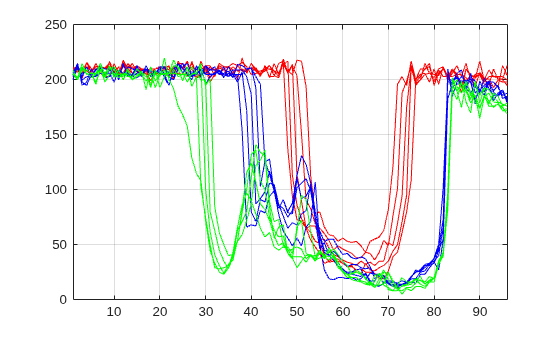

Plot some signals from the data.

plot(X(1:5,:)',"r") hold on plot(X(21:25,:)',"b") plot(X(31:35,:)',"g") hold off xlim([1 96]) grid on

**Decomposition and Reconstruction**

Use `mdwtdec`

to perform a wavelet decomposition of the multisignal at level 2 using the `db2`

wavelet.

dec = mdwtdec("r",X,2,"db2")

`dec = `*struct with fields:*
dirDec: 'r'
level: 2
wname: 'db2'
dwtFilters: [1x1 struct]
dwtEXTM: 'sym'
dwtShift: 0
dataSize: [192 96]
ca: [192x26 double]
cd: {[192x49 double] [192x26 double]}

Use `chgwdeccfs`

to generate a new wavelet decomposition structure from `dec`

. For each signal, change the wavelet coefficients by setting all the coefficients of the detail of level 1 to zero.

`decBIS = chgwdeccfs(dec,"cd",0,1);`

Use `mdwtrec`

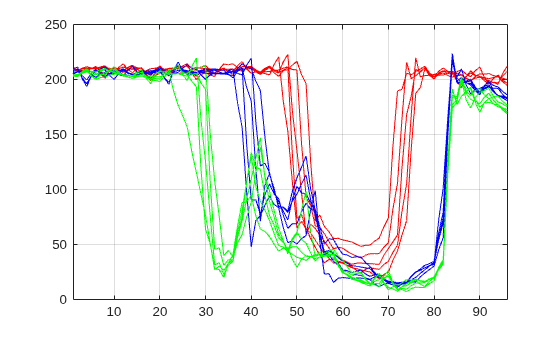

to perform a wavelet reconstruction of the multisignal. Plot some of the new signals.

Xbis = mdwtrec(decBIS); plot(Xbis(1:5,:)',"r") hold on plot(Xbis(21:25,:)',"b") plot(Xbis(31:35,:)',"g") hold off grid on xlim([1 96])

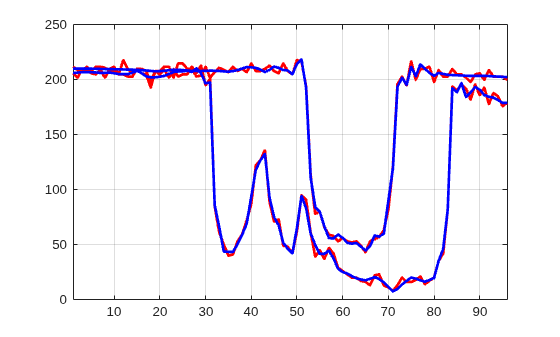

Compare old and new signals by plotting them together.

idxSIG = [1 31]; plot(X(idxSIG,:)',"r",LineWidth=2) hold on plot(Xbis(idxSIG,:)',"b",Linewidth=2) hold off grid on xlim([1 96])

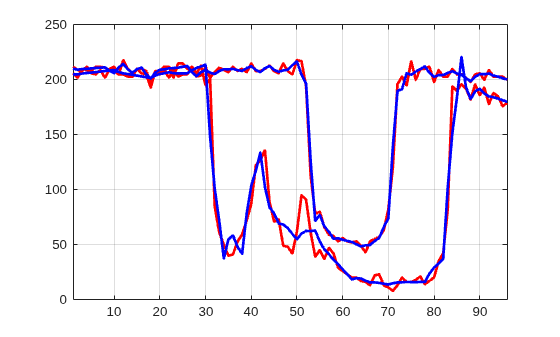

Set the wavelet coefficients at level 1 and 2 for signals 31 to 35 to the value zero, perform a wavelet reconstruction of signal 31, and compare some of the old and new signals.

decTER = chgwdeccfs(dec,'cd',0,1:2,31:35); Y = mdwtrec(decTER,'a',0,31); figure plot(X([1 31],:)',"r",LineWidth=2) hold on plot([Xbis(1,:); Y]',"b",LineWidth=2) hold off grid on xlim([1 96])

Use `wdecenergy`

to compute the energy of signals and the percentage of energy for wavelet components. Display the energy of two of the signals.

[E,PEC,PECFS] = wdecenergy(dec); Ener_1_31 = E([1 31])

Ener_1_31 =2×110^{6}× 3.7534 2.2411

Compute the percentage of energy for wavelet components of signals 1 and 31. The first column shows the percentage of energy for approximations at level 2. Columns 2 and 3 show the percentage of energy for details at level 2 and 1, respectively.

PEC_1_31 = PEC([1 31],:)

`PEC_1_31 = `*2×3*
99.7760 0.1718 0.0522
99.3850 0.2926 0.3225

Display the percentage of energy for wavelet coefficients of signals 1 and 31. As we can see in the `dec`

structure, there are 26 coefficients for the approximation and the detail at level 2, and 49 coefficients for the detail at level 1.

PECFS_1 = PECFS(1,:); PECFS_31 = PECFS(31,:); plot(PECFS_1,"r",LineWidth=2) hold on plot(PECFS_31,"b",LineWidth=2) hold off grid on xlim([1 size(PECFS,2)])

**Compression**

Use `mswcmp`

to compress the signals to obtain a percentage of zeros near 95% for the wavelet coefficients.

[XC,decCMP,~] = mswcmp("cmp",dec,"N0_perf",95); [Ecmp,PECcmp,PECFScmp] = wdecenergy(decCMP);

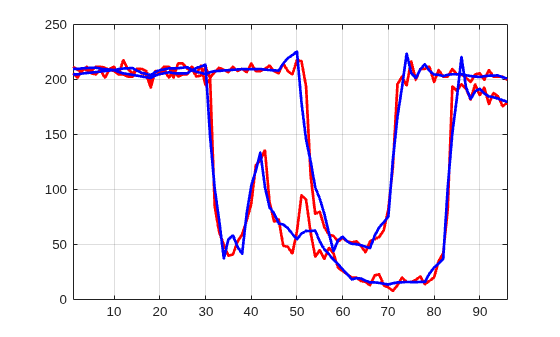

Plot the original signals 1 and 31, and the corresponding compressed signals.

plot(X([1 31],:)',"r",LineWidth=2) hold on plot(XC([1 31],:)',"b",LineWidth=2) hold off grid on xlim([1 96])

Use `mswcmptp`

to compute thresholds, percentage of energy preserved and percentage of zeros associated with the `L2_perf`

method preserving at least 95% of energy.

```
[THR_VAL,L2_Perf,N0_Perf] = mswcmptp(dec,"L2_perf",95);
idxSIG = [1,31];
Thr = THR_VAL(idxSIG)
```

`Thr = `*2×1*
256.1914
158.6085

L2per = L2_Perf(idxSIG)

`L2per = `*2×1*
96.5488
94.7197

N0per = N0_Perf(idxSIG)

`N0per = `*2×1*
79.2079
86.1386

Compress the signals to obtain a percentage of zeros near 60% for the wavelet coefficients.

[XC,decCMP,~] = mswcmp("cmp",dec,"N0_perf",60);

`XC`

signals are the compressed versions of the original signals in the row direction. Compress the `XC`

signals in the column direction

XX = mswcmp("cmpsig","c",XC,"db2",2,"N0_perf",60);

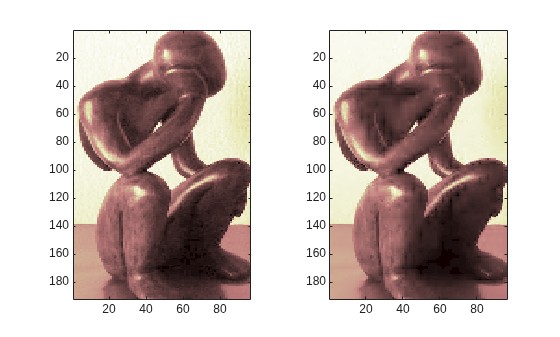

Plot original signals `X`

and the compressed signals `XX`

as images.

tiledlayout(1,2) nexttile image(X) nexttile image(XX) colormap(pink(222))

**Denoising**

You can use the `wdenoise`

function to denoise a multisignal. By default, `wdenoise`

denoises the columns of matrix. Denoise the multisignal using `wdenoise`

with default settings. Compare with the original signals.

XD = wdenoise(X'); XD = XD'; figure plot(X([1 31],:)',"r",LineWidth=2) hold on plot(XD([1 31],:)',"b",Linewidth=2) hold off grid on xlim([1 96])

## References

[1] Denoeud, L., Garreta, H.,
and A. Guénoche. "Comparison of Distance Indices Between Partitions." In
*International Symposium on Applied Stochastic Models and Data
Analysis*, 432–440. Brest, France: École Nationale des
Télécommunications de Bretagne, 2005.
