Transmit and Capture
Transmit and capture IQ data over the air for use in simulation, testing, and
validation
Configure your software-defined radio (SDR) as a high-speed baseband transmitter, baseband receiver, or baseband transceiver for transmitting or capturing IQ data over the air. Use the captured data to analyze, simulate, test, and validate wireless systems.
Objects
basebandReceiver | Configure SDR as baseband receiver (Since R2022a) |
basebandTransceiver | Configure SDR as baseband transceiver (Since R2022a) |
basebandTransmitter | Configure SDR as baseband transmitter (Since R2022a) |
Functions
capture | Capture IQ data using baseband receiver or transceiver (Since R2022a) |
isCapturing | Status of capture running in background using baseband receiver (Since R2024a) |
captureOutputs | Retrieve outputs from capture run in background using baseband receiver (Since R2024a) |
stopCapture | Stop capture running in background using baseband receiver (Since R2024a) |
transmit | Transmit waveform using baseband transmitter or transceiver (Since R2022a) |
stopTransmission | Stop transmission from baseband transmitter or transceiver (Since R2022a) |
Apps

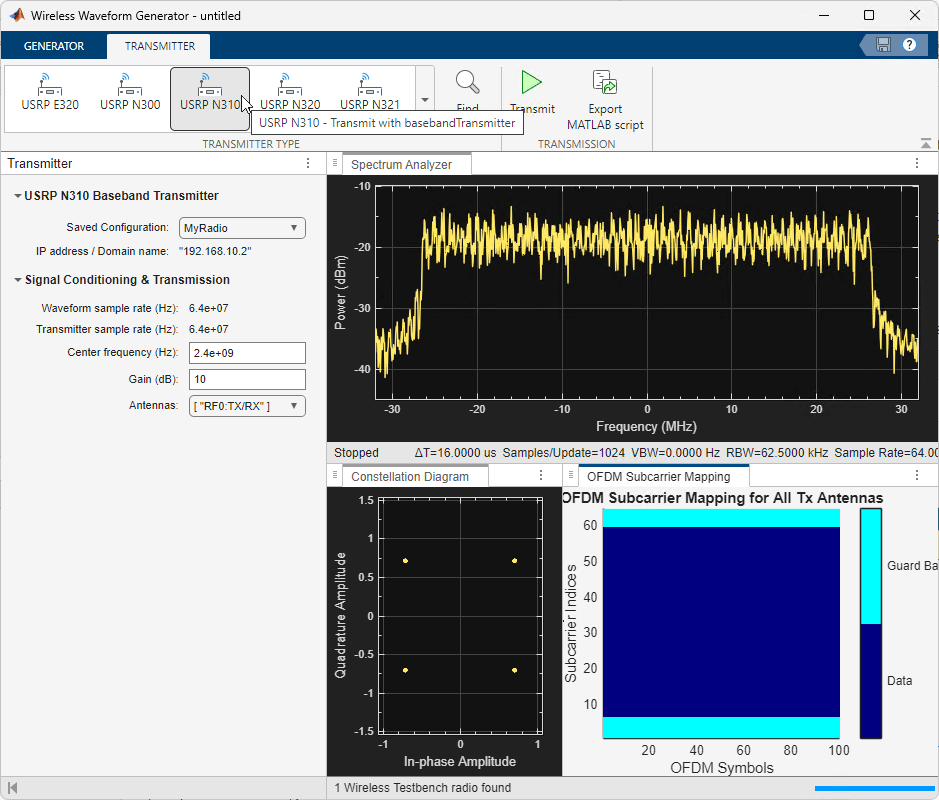

Wireless Waveform Generator | Create, impair, visualize, and export modulated waveforms |
