wlanWURConfig

Configure WUR transmission

Since R2021b

Description

The wlanWURConfig object is a configuration object for the WLAN wake-up radio (WUR) packet format.

Creation

Syntax

cfgWUR = wlanWURConfig

cfgWUR = wlanWURConfig(numSubchannels)

cfgWUR = wlanWURConfig(___,Name=Value)

Description

cfgWUR = wlanWURConfig creates a configuration object that initializes transmit parameters for an IEEE^® 802.11ba™ WUR PPDU with one 20 MHz subchannel. For a detailed description of the WUR WLAN format, see [1].

cfgWUR = wlanWURConfig(numSubchannels) parameterizes a WUR transmission with the specified number of 20 MHz subchannels. Specify numSubchannels as 1, 2, or 4.

cfgWUR = wlanWURConfig(___,Name=Value) sets Properties using one or more name-value arguments. For example, NumTransmitAntennas=3 specifies three transmit antennas.

Properties

Subchannel — Subchannel parameters

cell array of wlanWURSubchannel objects

Subchannel parameters, specified as a cell array of wlanWURSubchannel objects. Each element of the cell array contains properties to configure a 20 MHz subchannel. The default value is a 1-by-1 cell array containing a wlanWURSubchannel object with default property values.

NumTransmitAntennas — Number of transmit antennas

1 (default) | integer in the interval [1, 8]

Number of transmit antennas, specified as an integer in the interval [1, 8].

Data Types: double

ChannelBandwidth — Channel bandwidth of PPDU transmission

'CBW20' (default) | 'CBW40' | 'CBW80'

This property is read-only.

Channel bandwidth of the PPDU transmission, returned as one of these values.

• 'CBW20' — Channel bandwidth of 20 MHz

• 'CBW40' — Channel bandwidth of 40 MHz

• 'CBW80' — Channel bandwidth of 80 MHz

Data Types: char | string

NumUsers — Number of users in transmission

1 (default) | 2 | 3 | 4

This property is read-only.

Number of users in the transmission, returned as 1, 2, 3, or 4.

Data Types: double

Object Functions

getActiveSubchannelIndex	Active subchannel indices
getPSDULength	Calculate HE or WUR PSDU length
packetFormat	WLAN packet format
transmitTime	Packet transmission time

Examples

Generate Default WUR Waveform

Configure and generate a WLAN waveform containing a WUR packet with default settings.

Parameterize the transmission by creating a WUR configuration object with default property values.

cfgWUR = wlanWURConfig;

Generate a PSDU of relevant length.

psduLength = getPSDULength(cfgWUR);
psdu = randi([0 1],8*psduLength,1);

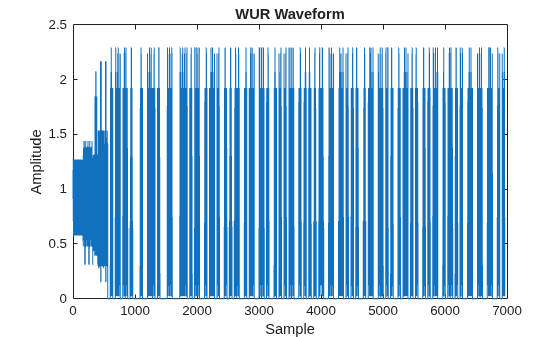

Generate and plot the waveform.

waveform = wlanWaveformGenerator(psdu,cfgWUR);
figure
plot(abs(waveform))
title('WUR Waveform')
xlabel('Sample')
ylabel('Amplitude')

Generate Oversampled WUR Waveform

Create a WUR configuration object, specifying four 20 MHz subchannels.

numSubchannels = 4;
cfgWUR = wlanWURConfig(numSubchannels);

Configure each 20 MHz subchannel.

psduLength = [4 8 12 16];
dataRate = {'LDR','HDR','LDR','HDR'};
design = {'Example1','Example2','Example1','Example1'};
cfgSubchannel = cell(1,numSubchannels);
psdu = cell(1,cfgWUR.NumUsers);
for i = 1:cfgWUR.NumUsers
    cfgSubchannel{i} = wlanWURSubchannel(PSDULength=psduLength(i), ...
        DataRate=dataRate{i},SymbolDesign=design{i});
    psdu{i} = randi([0 1],8*psduLength(i),1,'int8');
end
cfgWUR.Subchannel = cfgSubchannel;

Specify an oversampling factor of two, and then generate the waveform.

osf = 2;
waveform = wlanWaveformGenerator(psdu,cfgWUR,NumPackets=4, ...
    IdleTime=1e-5,OversamplingFactor=osf);

Get Active Subchannel Indices of WUR Transmission

Create a WUR configuration object for a transmission with two subchannels and four transmit antennas.

numSubchannels = 2;
cfgWUR = wlanWURConfig(numSubchannels,NumTransmitAntennas=4);

Get the active subchannel indices for the transmission.

idx = getActiveSubchannelIndex(cfgWUR)

idx = 1×2

     1     2

More About

PPDU

The physical layer (PHY) protocol data unit (PPDU) is the complete physical layer convergence procedure (PLCP) frame, including PLCP headers, MAC headers, the MAC data field, and the MAC and PLCP trailers.

References

[1] IEEE Std 802.11ba-2021. “Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications. Amendment 3: Wake-Up Radio Operation.” IEEE Standard for Information Technology — Telecommunications and Information Exchange between Systems. Local and Metropolitan Area Networks — Specific Requirements.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2021b
