Kvaser CAN Interface Support from Vehicle Network Toolbox

Use Kvaser CAN devices to stream CAN bus data into MATLAB and Simulink.

Vehicle Network Toolbox™ supports Kvaser CAN interface hardware using the latest version of the Kvaser CANLib driver library. The table below lists the hardware supported by the latest release of Vehicle Network Toolbox.

With the Kvaser CAN interface support, you can perform the following tasks in MATLAB or Simulink:

  • Transmit and receive CAN and XCP messages
  • Pack and unpack CAN messages for simplified decoding and encoding
  • Filter, log, and replay CAN messages
  • Use .dbc database and A2L description files
  • Find and display CAN interface device settings

In MATLAB and Simulink, you can transmit and receive CAN messages using the CAN FD standard if the CAN interface hardware supports CAN FD.

Kvaser hardware can be used on both Windows and Linux platforms. To use Kvaser hardware on Windows, you must install the Windows driver from the Kvaser website. To use Kvaser hardware on Linux platform, you must install the Linux drivers from the Kvaser web site. Kvaser also supports the use of SocketCAN interface on Linux platform.

If you do not see your specific hardware device listed below, please click the Request Hardware Support button at the bottom of the page. For detailed information about a board listed here, visit the Kvaser web site.

Explore gallery (3 images)

 Bus/Form Factor Product Name
 Ethernet Ethercan Light HS
 ISA PCcan 4xHS
  PCcan HS/HS
  PCcan HS
 PC/104-Plus PC104+ HS/HS
 PCI PCIcan 4xHS
  PCIcan HS/HS
  PCIcan HS
  PCIcanx 4xHS
  PCIcanx HS/HS
  PCIcanx HS
  PCIcanx II HS
  PCIcanx II HS/HS

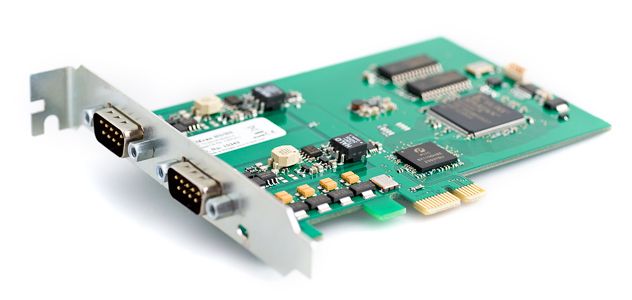

 PCI-Express Mini PCI Express HS
  PCIEcan 2xHS v2
  PCIEcan 4xHS
  PCIEcan HS
  PCIEcan HS v2
 PCI-104 PCI104 HS/HS
  LAPcan II

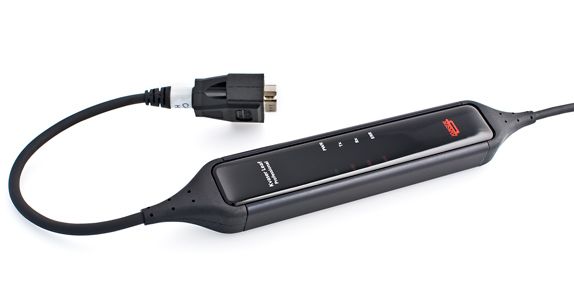

 USB Eagle
  Kvaser USBcan Professional RJ45
  Leaf Light HS
  Hybrid 2xCAN/LIN
  Leaf Light Rugged HS
  Leaf Light HS v2
  Leaf Light v2
  Leaf Light HS v2 J1939
  Leaf Light HS v2 M12
  Leaf Light HS v2 OBDII
  Leaf Light Pro HS v2 OBDII
  Leaf Pro HS v2
  Leaf Pro HS v2 OBDII
  Leaf Professional HS
  Leaf Professional LS
  Leaf Professional Rugged HS
  Leaf Professional SWC
  Leaf SemiPro HS
  Leaf SemiPro LS
  Leaf SemiPro SWC
  Memorator HS/HS
  Memorator HS/LS
  Memorator HS/SWC
  Memorator 2xHS v2
  Memorator Light HS*
  Memorator Light 2xHS*
  Memorator Pro 2xHS v2
  Memorator Pro 2xHS v2 CB
  Memorator Pro 5xHS
  Memorator Pro 5xHS CB
  Memorator Professional HS/HS
  Memorator Professional HS/LS
  Memorator R SemiPro
  USBcan Light 2xHS
  USBcan Light 4xHS
  USBcan Pro 2xHS v2
  USBcan Pro 5xHS
  USBcan Professional HS/HS
  USBcan R
  USBcan Rugged HS
  USBcan Rugged HS/HS
 Wireless BlackBird SemiPro 2xHS
  BlackBird v2
  BlackBirdSemiPro 3xHS
  BlackBirdSemiPro HS
  BlackBirdSemiPro HS/HS

*Logged data from these devices can be retrieved through the mdf or blf interfaces.
