Test and Measurement

5G NR waveform generation, visualization, and transmitter performance analysis

5G Toolbox™ provides waveform generation and analysis capabilities.

Generate, impair, and visualize uplink and downlink waveforms, test models, and FRCs programmatically or by using the 5G Waveform Generator app.
Analyze waveform quality and obtain metrics. For example, you can measure error vector magnitude (EVM), adjacent channel leakage ratio (ACLR), and obtain quality metrics based on channel state information reference signals (CSI-RS).
Perform carrier aggregation (CA): generate, aggregate, and demodulate multiple 5G NR carriers.

Apps

5G Waveform Generator

Create, impair, visualize, and export 5G NR waveforms

Functions

expand all

Downlink Waveform Generation

`nrWaveformGenerator`	Generate 5G NR waveform
`nrDLCarrierConfig`	5G downlink waveform configuration parameters
`nrSCSCarrierConfig`	SCS carrier configuration parameters for 5G waveform generation
`nrWavegenBWPConfig`	BWP configuration parameters for 5G waveform generation
`nrWavegenSSBurstConfig`	SS burst configuration parameters for 5G waveform generation
`nrWavegenPDSCHConfig`	PDSCH configuration parameters for 5G waveform generation
`nrPDSCHDMRSConfig`	PDSCH DM-RS configuration parameters
`nrPDSCHPTRSConfig`	PDSCH PT-RS configuration parameters
`nrCORESETConfig`	Control resource set (CORESET) configuration parameters
`nrSearchSpaceConfig`	Search space set configuration parameters
`nrWavegenPDCCHConfig`	PDCCH configuration parameters for 5G waveform generation
`nrWavegenCSIRSConfig`	CSI-RS configuration parameters for 5G waveform generation

Uplink Waveform Generation

`nrWaveformGenerator`	Generate 5G NR waveform
`nrULCarrierConfig`	5G uplink waveform configuration parameters
`nrSCSCarrierConfig`	SCS carrier configuration parameters for 5G waveform generation
`nrWavegenBWPConfig`	BWP configuration parameters for 5G waveform generation
`nrWavegenPUSCHConfig`	PUSCH configuration parameters for 5G waveform generation
`nrPUSCHDMRSConfig`	PUSCH DM-RS configuration parameters
`nrPUSCHPTRSConfig`	PUSCH PT-RS configuration parameters
`nrWavegenPUCCH0Config`	PUCCH format 0 configuration parameters for 5G waveform generation
`nrWavegenPUCCH1Config`	PUCCH format 1 configuration parameters for 5G waveform generation
`nrWavegenPUCCH2Config`	PUCCH format 2 configuration parameters for 5G waveform generation
`nrWavegenPUCCH3Config`	PUCCH format 3 configuration parameters for 5G waveform generation
`nrWavegenPUCCH4Config`	PUCCH format 4 configuration parameters for 5G waveform generation
`nrWavegenSRSConfig`	SRS configuration parameters for 5G waveform generation

Open radio access network (O-RAN)

`nrORANBlockCompress`	O-RAN fronthaul block compression
`nrORANBlockDecompress`	O-RAN fronthaul block decompression

Measurements

`nrCSIRSMeasurements`	CSI-RS-based physical layer measurements
`nrSSBMeasurements`	SSB-based physical layer measurements

Topics

5G NR Waveform Generation
Get an overview of 5G NR waveform generation workflows and the waveform types that you can generate.

Featured Examples

5G NR Downlink Vector Waveform Generation

Create mixed numerology DL waveforms containing SS burst, PDSCH, PDCCH, and CSI-RS.

Open Script

5G NR Uplink Vector Waveform Generation

Create mixed numerology UL waveforms containing PUSCH, PUCCH, and SRS.

Open Script

5G NR Uplink with PUCCH Vector Waveform Generation

Create mixed numerology UL waveforms containing PUSCH, PUCCH, and SRS.

Open Script

5G NR-TM and FRC Waveform Generation

Use MATLAB^® code to generate standard-compliant 5G NR test models, downlink FRCs, and uplink FRCs for FR1 and FR2.

Open Live Script

App-Based 5G Waveform Generation

Use the 5G Waveform Generator app to generate, export, and transmit 5G NR waveforms.

5G NR Downlink ACLR Measurement

Measure ACLR for 5G NR test models in FR1 and FR2.

Open Live Script

EVM Measurement of 5G NR Downlink Waveforms with RF Impairments

Measure EVM of NR-TM or NR-FRC waveforms with phase noise and memoryless nonlinearity impairments.

Open Script

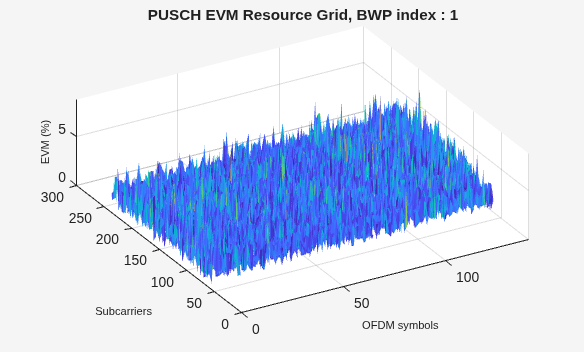

EVM Measurement of 5G NR PUSCH Waveforms

Measure EVM of PUSCH FRC waveforms with phase noise and memoryless nonlinearity impairments.

Open Script

5G NR Downlink Carrier Aggregation, Demodulation, and Analysis

Generate, aggregate, and demodulate multiple 5G NR downlink carriers.

Open Live Script

Dynamic Spectrum Sharing for 5G NR and LTE Coexistence

Generate coexisting LTE and 5G NR waveforms for dynamic spectrum sharing.

Open Live Script

5G NR CSI-RS Measurements

Learn how to measure the CSI-RSRP, CSI-RSSI, and CSI-RSRQ using the CSI-RS.

Open Live Script

5G NR Waveform Acquisition and Analysis

Transmit and capture generated 5G NR waveform over the air using instruments.

Open Live Script

5G NR Waveform Capture and Analysis Using Software-Defined Radio

Generate and transmit a 5G NR waveform continuously over the air using a supported software-defined radio.

Open Live Script

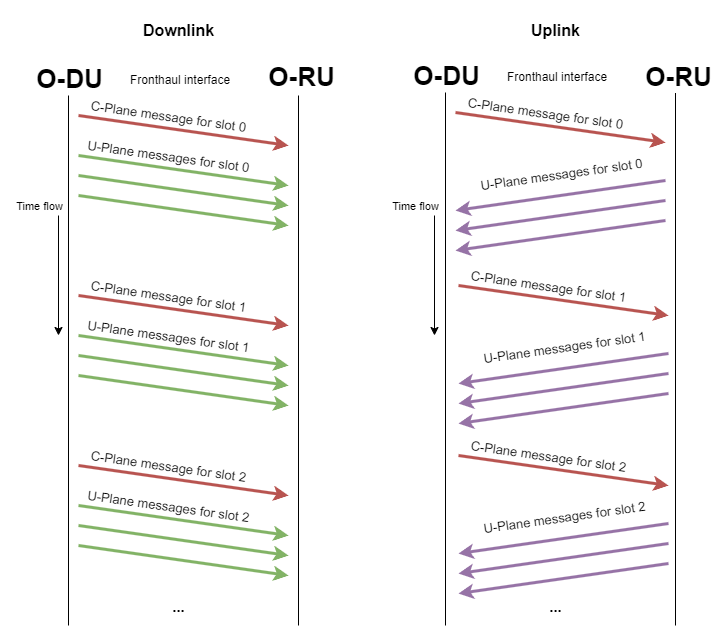

Generate CU-Plane Messages for O-RAN Fronthaul Test

Generate fronthaul control and user plane (CU-Plane) messages for O-RAN conformance tests, as defined in TS O-RAN.WG4.CONF.

Open Live Script
