boundaryline

Draw boundary line plot

collapse all in page

Syntax

boundaryline(x,y)

boundaryline(x,y,LineSpec)

boundaryline(___,Name,Value)

boundaryline(ax, ___)

bline = boundaryline(___)

Description

Use Default Boundary and Line Specification

example

boundaryline(x,y) plots a boundary line specified by the x data x and the y data y. The boundary line contains hatch marks that extend from a fixed spacing and length along the boundary line.

boundaryline(x,y,LineSpec) plots a boundary line specified by the line specification linespec.

Specify Name,Value Arguments and Axis

example

boundaryline(___,Name,Value) plots a boundary line specified by one or more Name,Value pairs. Adjust the look of the boundary line with the 'Hatches', 'HatchLength', 'HatchTangency', 'HatchAngle', 'HatchSpacing', and 'FlipBoundary' properties. Specify name-value pair arguments after all other input arguments.

boundaryline(ax, ___) plots a boundary line on the specified axes ax instead of the current axes, such as that from the gca function.

Return Boundary Line Object

example

bline = boundaryline(___) returns a boundary line object using any of the input argument combinations in the previous syntaxes. Specify arguments as previously listed.

Examples

collapse all

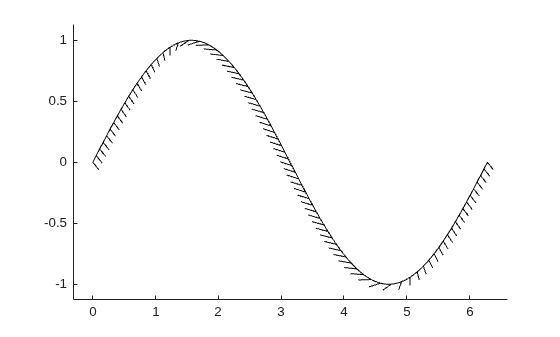

Plot Boundary Line Sine Wave

Plot the boundary line of a sine wave.

x = linspace(0,2*pi);
y = sin(x);
boundaryline(x,y)

b =

  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.1000
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '/'
      HatchTangency: on
       FlipBoundary: off
              XData: [1×100 double]
              YData: [1×100 double]

  Show all properties

Boundary line of sine wave.

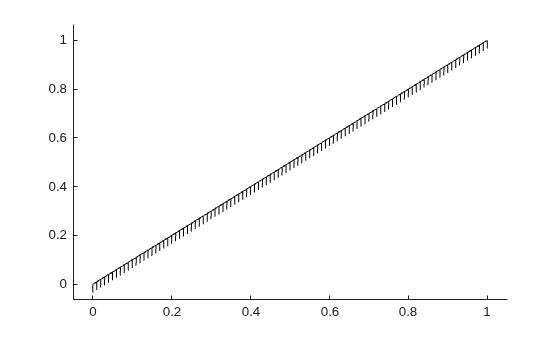

Plot Boundary Line with Third-Spaced Hatches

Plot a boundary line with third-spaced hatches. Return the boundary line object in b.

b = boundaryline([0,1],[0,1],'Hatches','//')

b =

  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.1000
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '//'
      HatchTangency: on
       FlipBoundary: off
              XData: [0 1]
              YData: [0 1]

  Show all properties

Boundary line third spaced.

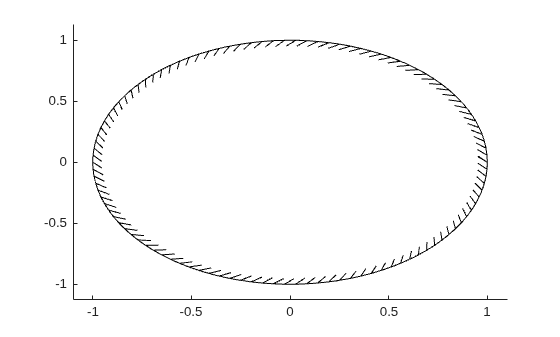

Plot Circle Boundary Line with Flipped Boundary

Plot a circle boundary line and flip the boundary after creation. Return the boundary line object in b.

t = linspace(0, 2*pi);
      x = cos(t);
      y = sin(t);
      b = boundaryline(x,y)
      b.FlipBoundary = true

b =

  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.1000
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '/'
      HatchTangency: on
       FlipBoundary: off
              XData: [1×100 double]
              YData: [1×100 double]

  Show all properties =

  BoundaryLine with properties:

              Color: [0 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
    MarkerFaceColor: 'none'
         MarkerSize: 6
       HatchSpacing: 0.1000
        HatchLength: 0.0300
         HatchAngle: 225
            Hatches: '/'
      HatchTangency: on
       FlipBoundary: on
              XData: [1×100 double]
              YData: [1×100 double]

  Show all properties

Boundary line of circle with flipped boundary

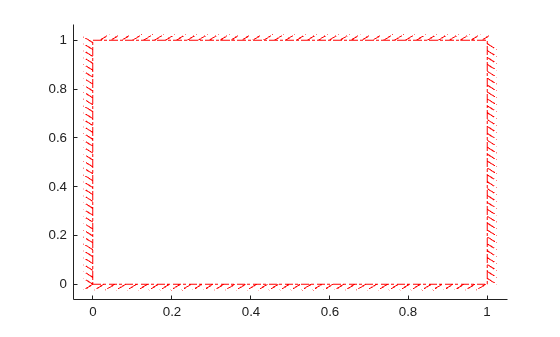

Plot Dashed and Dotted Square Boundary Line in Red

Plot a red, dotted and dashed, square boundary line on a specified axis. a is the current axis.

a = gca;
boundaryline(a,[0,1,1,0,0],[0,0,1,1,0],'r-.')

Square red boundary line with dashes and dots.

Input Arguments

collapse all

`x` — x coordinate data
numeric vector

x coordinate data, specified as a numeric vector. The function uses this data to plot the x coordinates of the boundary line.

Data Types: double

`y` — y coordinate data
numeric vector

y coordinate data, specified as a numeric vector. The function uses this data to plot the y coordinates of the boundary line.

Data Types: double

`ax` — Valid axes
scalar handle

Valid axes, specified as a scalar handle. By default, this function plots to the current axes, obtainable with the gca function.

Data Types: double

`LineSpec` — Line style, marker, and color
string | character vector

Line style, marker, and color, specified as a string or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers

Line Style	Description	Resulting Line
`"-"`	Solid line
`"--"`	Dashed line
`":"`	Dotted line
`"-."`	Dash-dotted line

Marker	Description	Resulting Marker
`"o"`	Circle
`"+"`	Plus sign
`"*"`	Asterisk
`"."`	Point
`"x"`	Cross
`"_"`	Horizontal line
`"\|"`	Vertical line
`"square"`	Square
`"diamond"`	Diamond
`"^"`	Upward-pointing triangle
`"v"`	Downward-pointing triangle
`">"`	Right-pointing triangle
`"<"`	Left-pointing triangle
`"pentagram"`	Pentagram
`"hexagram"`	Hexagram

Color Name	Short Name	RGB Triplet
`"red"`	`"r"`	`[1 0 0]`
`"green"`	`"g"`	`[0 1 0]`
`"blue"`	`"b"`	`[0 0 1]`
`"cyan"`	`"c"`	`[0 1 1]`
`"magenta"`	`"m"`	`[1 0 1]`
`"yellow"`	`"y"`	`[1 1 0]`
`"black"`	`"k"`	`[0 0 0]`
`"white"`	`"w"`	`[1 1 1]`

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Hatches','//'

Note

These properties are only a subset. For a full list, see Line Properties.

`Hatches` — Hatch style
`'/'` (default) | `'\'` | `'|'`

Hatch style, specified as '/', '\', or '|'. The length of the string determines the hatch spacing. The more hatches specified, the closer the spacing. For example:

For half-spaced forward slants, use 'Hatches','//'.
For a single-spaced perpendicular slant, use 'Hatches','|'.
For third-spaced backward slants, use 'Hatches','\\\'.
