findMeasurements

Find measurements in specified plane

Since R2024a

Syntax

``idx = findMeasurements(s)``
``idx = findMeasurements(s,Name=Value)``
``[idx,ang] = findMeasurements(___)``

Description

example

````idx = findMeasurements(s)` returns an array of indices corresponding to measurements in the SOFA object that belong to the horizontal plane at zero elevation.```

example

````idx = findMeasurements(s,Name=Value)` specifies options using one or more name-value arguments.```
````[idx,ang] = findMeasurements(___)` also returns the angles corresponding to the measurements.```

Examples

collapse all

Read in a SOFA file containing HRTF measurements.

`s = sofaread("ReferenceHRTF.sofa");`

Use `findMeasurements` to get the indices of measurements in the horizontal plane at zero elevation.

`idx = findMeasurements(s);`

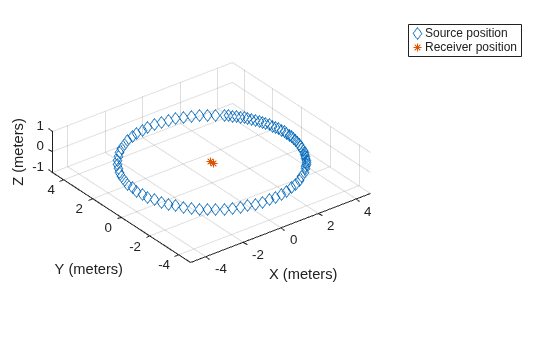

Plot the 3-D geometry of the specified measurements.

`plotGeometry(s,MeasurementIndex=idx);`

Read in a SOFA file containing HRTF measurements.

`s = sofaread("ReferenceHRTF.sofa");`

Use `findMeasurements` to get the indices of measurements in the sagittal plane at a lateral angle of 10 degrees.

`idx = findMeasurements(s,Plane="sagittal",PlaneOffsetAngle=10);`

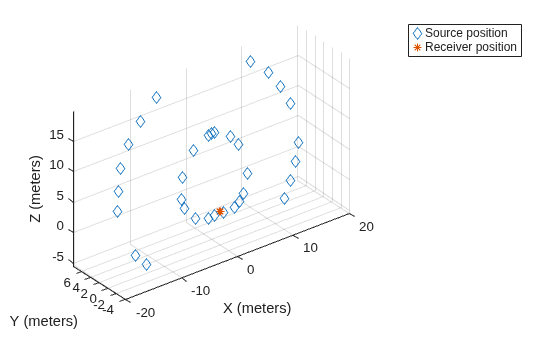

Plot the 3-D geometry of the specified measurements.

`plotGeometry(s,MeasurementIndex=idx);`

Input Arguments

collapse all

SOFA object, specified as one of the following objects.

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `findMeasurements(s,Plane="median")`

Plane to get the measurements from, specified as `"horizontal"`, `"median"`, or `"sagittal"`.

Data Types: `char` | `string`

Plane offset angle in degrees, specified as a value in the range [-90,90]. This angle specifies the offset by which the `Plane` is shifted.

This argument only applies to the horizontal and sagittal planes. For the horizontal plane, the offset corresponds to the elevation angle. For the sagittal plane, the offset corresponds to the lateral angle.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Angle tolerance in degrees, specified as a positive scalar. The function returns the measurements within the tolerance of the plane specified by `Plane` and `PlaneOffsetAngle`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Output Arguments

collapse all

Indices of measurements, returned as a vector of positive integers.

Angles in degrees corresponding to the measurements, returned as a vector. The interpretation of the angles depends on the specified `Plane`.

• For the horizontal plane, the angles correspond to the azimuth.

• For the median plane, the angles correspond to the elevation.

• For the sagittal plane, the angles correspond to the polar angles.

Version History

Introduced in R2024a
