Software Architecture Modeling

R2026b
Model and simulate AUTOSAR software architecture (requires System Composer™)

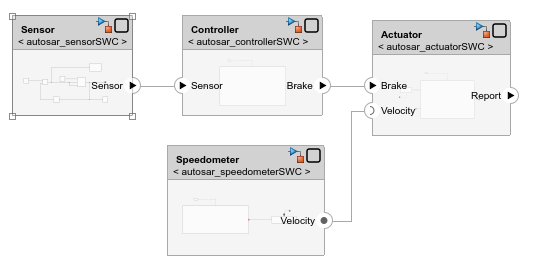

An AUTOSAR architecture model provides resources and a canvas for developing AUTOSAR composition and component models. From the architecture model, you can:

  • Add and connect AUTOSAR compositions and components, or import a composition from ARXML files.

  • Create profiles, stereotypes, and views for architecture analysis.

  • Link components to requirements (requires Requirements Toolbox™).

  • Define component behavior by creating, linking, or importing Simulink® models.

  • Configure scheduling and simulation.

  • Export composition and component ARXML descriptions and generate component code (requires Embedded Coder®).

Architecture models provide an end-to-end AUTOSAR software design workflow. In Simulink, you can author a high-level application design for both AUTOSAR Platforms, implement behavior for application components, and simulate the application.

Categories

  • Architecture Creation
    Model and simulate AUTOSAR software architectures (requires System Composer) configured for the AUTOSAR Classic Platform or AUTOSAR Adaptive Platform
  • Architecture Development
    Develop and define AUTOSAR software compositions and components in software architectures (requires System Composer)
  • ARXML and Code Generation
    Export ARXML descriptions and generate component code (requires Embedded Coder)
