pmdemod

Phase demodulation

Syntax

z = pmdemod(y,Fc,Fs,phasedev)
z = pmdemod(y,Fc,Fs,phasedev,ini_phase)


Description

z = pmdemod(y,Fc,Fs,phasedev) demodulates the phase-modulated signal y at the carrier frequency Fc (hertz). z and the carrier signal have sampling rate Fs (hertz), where Fs must be at least 2*Fc. The phasedev argument is the phase deviation of the modulated signal, in radians.

z = pmdemod(y,Fc,Fs,phasedev,ini_phase) specifies the initial phase of the modulated signal, in radians.

Examples

Recover Phase Modulated Signal from AWGN Channel

Set the sample rate. To plot the signals, create a time vector.

fs = 50;
t = (0:2*fs+1)'/fs;

Create a sinusoidal input signal.

x = sin(2*pi*t) + sin(4*pi*t);

Set the carrier frequency and phase deviation.

fc = 10;
phasedev = pi/2;

Modulate the input signal.

tx = pmmod(x,fc,fs,phasedev);

Pass the signal through an AWGN channel.

rx = awgn(tx,10,'measured');

Demodulate the noisy signal.

y = pmdemod(rx,fc,fs,phasedev);

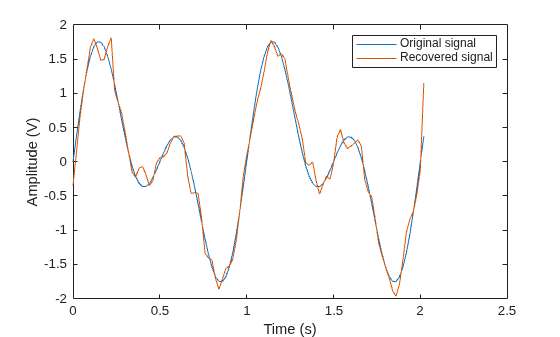

Plot the original and recovered signals.

figure; plot(t,[x y]);
legend('Original signal','Recovered signal');
xlabel('Time (s)')
ylabel('Amplitude (V)')

Version History

Introduced before R2006a
