TPC Decoder
Turbo product code (TPC) decoder
Libraries:
Communications Toolbox /
Error Detection and Correction /
Block
Description
The TPC Decoder block performs 2D turbo product code (TPC) decoding of the soft input LLRs corresponding to the product code iteratively, using ChasePyndiah algorithm. The product code is a 2D concatenation of linear block codes. The linear block code can be a parity check code, a Hamming code, or a BCH code capable of correcting two errors. Extended and shortened codes can be applied independently on each dimension. For a description of 2D TPC decoding, see Turbo Product Code Decoding.
For information about valid code pairs and the errorcorrecting capability for each valid code pair, see Component Code Pairs.
Examples
Turbo Product Code Error Rate Calculation
Perform error rate calculations for a transmission signal that has been TPC encoded and decoded.

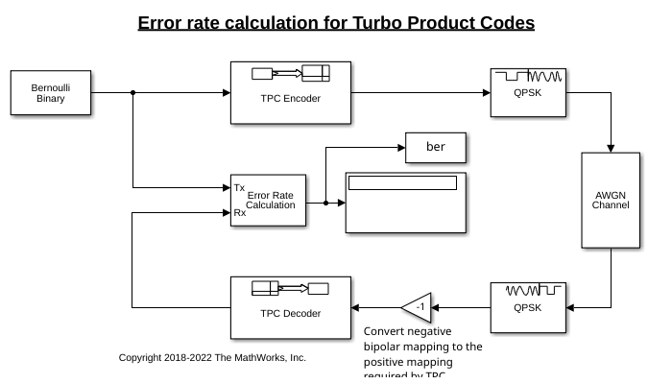

A random signal is TPC encoded, QPSK modulated, filtered through an AWGN channel, and QPSK demodulated. The bipolar mapping is converted from negative to positive mapping and then the signal is TPC decoded. An error rate calculation compares the original message to the recovered message.
Open Example Model and Explore Its Contents
Several settings must be aligned with each other to synchronize encoding and decoding of the message. Start by deciding on a code rate, and aligning the TPC Encoder
and TPC Decoder
2D [N,K] pairs. For this example the default settings are used, [Nr,Kr] = [15,11] and [Nc,Kc] = [32,26].
The number of samples per frame and the sample time used by the Bernoulli Binary Generator
block are determined based on the message length parameters, Number of rows in message, Kr
and Number of columns in message, Kc
.
Number of samples per frame = (Kr*Kc) = 286
Sample time = 1/(Kr*Kc) = 0.0035.
The white Gaussian noise the SNR setting is calculated based on the coding rate, modulation order, and Eb/N0.
Modulation order, M = 2
Eb/N0 = 11
rate = (Kr*Kc)/((NrKr)*(NcKc)) = 14.3
snr = 10*log10(M*rate*10^(ebn0/10)) = 3.5637
The noise variance used in the QPSK Demodulator Baseband
block is calculated based on the SNR.
Noise variance = 1/10^(snr/10) = 1/10^(3.5637/10) = 0.4402
Run the model and observe the error rate calculation. Results will vary from run to run due to the use of random input data.
Bit error rate: 0.00042
Further Exploration
To run the model yourself, open the example using the button provided or by entering open slex_tpc_err_rate_calc
at the MATLAB® command prompt. Consider modifying the model to change the signal to noise ratio. When adjusting TPC Encoder
settings be sure to align settings in the TPC Decoder
, Bernoulli Binary Generator
, AWGN Channel
, and QPSK Demodulator Baseband
.
Ports
Input
In — Log likelihood ratios
column vector
Log likelihood ratios, specified as a column vector.
For fulllength input messages, the length of the column vector is the product of Number of rows in code, Nr and Number of columns in code, Nc.
For shortened input messages, the length of the column vector is the product of (N_{R}–K_{R}+S_{R}) and (N_{C}–K_{C}+S_{C}), where:
N_{R} is the value of Number of rows in code, Nr.
K_{R} is the value of Number of rows in message, Kr.
S_{R} is the value of Number of rows in shortened message, Sr.
N_{C} is the value of Number of columns in code, Nc.
K_{C} is the value of Number of columns in message, Kc.
S_{C} is the value of Number of columns in shortened message, Sc.
Data Types: double
 single
Output
Out — TPC decoded message
column vector
TPC decoded message, returned as a column vector of binary values.
For fulllength input messages, the length of the column vector is the product of Number of rows in message, Kr and Number of columns in message, Kc.
For shortened input messages, the length of the column vector is the product of Number of rows in shortened message, Sr and Number of columns in shortened message, Sc.
Data Types: Boolean
Iter — Actual number of decoding iterations
positive integer
Actual number of decoding iterations, returned as a positive integer.
Dependencies
To enable this port, select Output number of iterations executed.
Data Types: double
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink^{®} Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Row TPC parametersExtended codes — Extended codes indicator for TPC row parameters
on
(default)  off
When Extended codes is selected, the lists for Number of rows in code, Nr and Number of rows in message, Kr contain the valid values for extended individual code pairs (N_{R},K_{R}).
When Extended codes is cleared, the lists for Number of rows in code, Nr and Number of rows in message, Kr contain the valid values for nonextended individual code pairs (N_{R},K_{R}).
Number of rows in code, Nr — Number of rows in product code matrix
16
(default)  integer
Number of rows in the product code matrix, N_{R}. The list of integer values varies depending on the setting for Extended codes.
Number of rows in message, Kr — Number of rows in message matrix
11
(default)  integer
Number of rows in the message matrix, K_{R}. The list of integer values varies depending on the setting for Extended codes and Number of rows in code, Nr.
Specify shortened message length — Specify shortened message length for rows
off
(default)  on
Select Specify shortened message length to specify a value for Number of rows in shortened message, Sr.
Number of rows in shortened message, Sr — Number of rows in shortened message matrix
9
(default)  integer
Number of rows in the shortened message matrix, S_{R}, specified as an integer less than or equal to K_{R}. When you specify this parameter, provide fulllength N_{R} and K_{R} values to specify the (N_{R},K_{R}) code pair. This code pair is then shortened to the (N_{R}–K_{R}+S_{R},S_{R}) code pair, where:
N_{R} is the value of Number of rows in code, Nr.
K_{R} is the value of Number of rows in message, Kr.
S_{R} is the value of Number of rows in shortened message, Sr.
Dependencies
To enable this parameter, select Specify shortened message length.
Extended codes — Extended codes indicator for TPC column parameters
on
(default)  off
When Extended codes is selected, the lists for Number of columns in code, Nc and Number of columns in message, Kc contain the valid values for extended individual code pairs (N_{C},K_{C}).
When Extended codes is cleared, the lists for Number of columns in code, Nc and Number of columns in message, Kc contain the valid values for nonextended individual code pairs (N_{C},K_{C}).
Number of columns in code, Nc — Number of columns in product code matrix
32
(default)  integer
Number of columns in the product code matrix, N_{C}. The list of integer values varies depending on the setting for Extended codes.
Number of columns in message, Kc — Number of columns in message matrix
26
(default)  integer
Number of columns in the message matrix, K_{C}. The list of integer values varies depending on the setting for Extended codes and Number of columns in code, Nc.
Specify shortened message length — Specify shortened message length for columns
off
(default)  on
Select Specify shortened message length to specify a value for Number of columns in shortened message, Sc.
Number of columns in shortened message, Sc — Number of columns in shortened message matrix
22
(default)  integer
Number of columns in the shortened message matrix, S_{C}, specified as an integer. When you specify this parameter, provide fulllength N_{C} and K_{C} values to specify the (N_{C},K_{C}) code pair. This code pair is then shortened to the (N_{C}–K_{C}+S_{C}, S_{C}) code pair, where:
N_{C} is the value of Number of columns in code, Nc.
K_{C} is the value of Number of columns in message, Kc.
S_{C} is the value of Number of columns in shortened message, Sc.
Dependencies
To enable this parameter, select Specify shortened message length.
Maximum number of iterations — Maximum number of decoding iterations
4
(default)  positive integer
Maximum number of decoding iterations, specified as a positive integer.
Stop iterating when code converges — Stop decoding based on the calculated syndrome or paritycheck of the component code
on
(default)  off
Select Stop iterating when code converges to terminate decoding early if the calculated syndrome or paritycheck of the component code evaluates to zero before Maximum number of iterations.
Output number of iterations executed — Output number of iterations executed
off
(default)  on
Select this parameter to add the Iter
output
port and output the actual number of TPC decoding iterations performed.
Simulate using — Type of simulation to run
Code generation
(default)  Interpreted execution
Type of simulation to run, specified as Code generation
or
Interpreted execution
.
Code generation
— Simulate the model by using generated C code. The first time you run a simulation, Simulink generates C code for the block. The model reuses the C code for subsequent simulations unless the model changes. This option requires additional startup time, but the speed of the subsequent simulations is faster than with theInterpreted execution
option.Interpreted execution
— Simulate the model by using the MATLAB^{®} interpreter. This option shortens startup time, but the speed of subsequent simulations is slower than with theCode generation
option. In this mode, you can debug the source code of the block.
For more information, see Interpreted Execution vs. Code Generation (Simulink).
Block Characteristics
Data Types

Multidimensional Signals

VariableSize Signals

More About
Component Code Pairs
This table lists the supported component code pairs for the row (N_{R},K_{R}) and column (N_{C},K_{C}) parameters.
N_{R} and K_{R} represent the number of rows in the product code matrix and message matrix, respectively.
N_{C} and K_{C} represent the number of columns in the product code matrix and message matrix, respectively.
Within each code type, any two component code pairs can form a 2D TPC code. The table also includes the errorcorrection capability for each code pair.
Code type  Component Code Pairs(N_{R},K_{R}) and (N_{C},K_{C})  ErrorCorrection Capability (T)
Hamming code  (255,247)  1
(127,120)  1
(63,57)  1
(31,26)  1
(15,11)  1
(7,4)  1
Extended Hamming code  (256,247)  1
(128,120)  1
(64,57)  1
(32,26)  1
(16,11)  1
(8,4)  1
BCH code  (255,239)  2
(127,113)  2
(63,51)  2
(31,21)  2
(15,7)  2
Extended BCH code  (256,239)  2
(128,113)  2
(64,51)  2
(32,21)  2
(16,7)  2
Parity check code  (256,255)
(128,127)
(64,63)
(32,31)
(16,15)
(8,7)
(4,3)
Turbo Product Code Decoding
Turbo product codes (TPC) are a form of concatenated codes used as forward error correcting (FEC) codes. Two or more component block codes, such as systematic linear block codes, are used to construct TPCs. The TPC decoder achieves nearoptimum decoding of product codes using Chase decoding and the Pyndiah algorithm to perform iterative soft input, soft output decoding. For a detailed description, see [1] and [2]. This decoder implements an iterative soft input, soft output 2D product code decoding, as described in [2], using two Linear Block Codes. The decoder expects the soft bit log likelihood ratios (LLRs) obtained from digital demodulation as the input signal.
The TPC decoder accepts either fulllength or shortened codes.
TPC Decoding FullLength Messages
TPC encoded fulllength input messages are decoded using specified 2D TPC code pairs. Rowwise decoding uses the (N_{C},K_{C}) code pair and columnwise decoding uses the (N_{R},K_{R}) code pair. The input vector length must be N_{R} × N_{C}. To perform the 2D TPC decoding, the column vector of the input LLRs, composed of the message and parity bits, is arranged into an N_{R}byN_{C} matrix.
The TPC decoder achieves nearoptimum decoding of product codes using Chase decoding and the Pyndiah algorithm to perform iterative soft input, soft output decoding. Chase decoding forms a set of possible codewords for each row or column. The Pyndiah algorithm calculates soft information required for the next decoding step.
Iterative Soft Input, Soft Output Decoder
The iterative soft input, soft output decoding, as shown in the block diagram, carries out two decoding steps for each iteration.
The soft inputs for decoding are R(m) = R + α(m)W(m).
Iteration loop counter i increments from i = 1 to the specified number of iterations.
m =
2
i –1
is the decoding step index.R is the received LLR matrix.
R(m) is the soft input for the mth decoding step.
W(m) is the input extrinsic information for the mth decoding step.
α(m) = [0,0.2,0.3,0.5,0.7,0.9,1,1, ...], where α is a weighting factor applied based on the decoding step index. For higher decoding steps, α = 1.
β(m) = [0.2,0.4,0.6,0.8,1,1, ...], where β is a reliability factor applied based on the decoding step index. For higher decoding steps, β = 1.
D contains the decoded message bits. The output message bits are formed from D by mapping –1 to 0 and +1 to 1, then reshaping the message block into a column vector.
The output message bits are formed after iterating through the specified number of iterations, or, if early termination is enabled, after code convergence.
Early Termination of TPC Decoding
If early termination is enabled, a code convergence check is performed on the hard decision of the soft input in each rowwise and columnwise decoding step. Early termination can be triggered after either the rowwise decoding or columnwise decoding converges.
The code is converged if, for all rows or all columns,
The syndrome evaluates to zero in the codes (Hamming codes, Extended Hamming codes, BCH codes, or Extended BCH codes).
The parity check is evaluated to zero in parity check codes.
The reported number of iterations evaluates to the iteration value that is currently in progress. For example, if the code convergence check is satisfied after rowwise decoding in the third iteration (after 2.5 decoding steps), then the number of iteration returned is 3.
TPC Decoding Shortened Messages
TPC encoded shortened input messages are decoded using specified 2D TPC code pairs. Rowwise decoding uses the (N_{C} – K_{C} + S_{C}, S_{C}) code pair and columnwise decoding uses the (N_{R} – K_{R} + S_{R}, S_{R}) code pair. The input vector length must be (N_{R} – K_{R} + S_{R}) × (N_{C}– K_{C} + S_{C}). To perform the 2D TPC decoding of shortened messages, the column vector of the input LLRs, composed of the shortened message and parity bits, is arranged into an (N_{R} – K_{R} + S_{R})by(N_{C} – K_{C} + S_{C}) matrix.
The TPC decoder processes the received shortened message LLRs similar to full length codes, with these exceptions:
The shortened bit positions in the received codeword are set to –1.
The Chase algorithm does not consider the shortened bit positions while choosing the least reliable bits.
References
[1] Chase, D. "Class of Algorithms for Decoding Block Codes with Channel Measurement Information." IEEE Transactions on Information Theory, Volume 18, Number 1, January 1972, pp. 170–182.
[2] Pyndiah, R. M. "NearOptimum Decoding of Product Codes: Block Turbo Codes." IEEE Transactions on Communications. Vol. 46, Number 8, August 1998, pp. 1003–1010.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2018b
