Autoencoders for Wireless Communications
This example shows how to model an end-to-end communications system with an autoencoder to reliably transmit information bits over a wireless channel.
Introduction
A traditional autoencoder is an unsupervised neural network that learns how to efficiently compress data, which is also called encoding. The autoencoder also learns how to reconstruct the data from the compressed representation such that the difference between the original data and the reconstructed data is minimal.
Traditional wireless communication systems are designed to provide reliable data transfer over a channel that impairs the transmitted signals. These systems have multiple components such as channel coding, modulation, equalization, synchronization, etc. Each component is optimized independently based on mathematical models that are simplified to arrive at closed form expressions. On the contrary, an autoencoder jointly optimizes the transmitter and the receiver as a whole. This joint optimization has the potential of providing a better performance than the traditional systems [1],[2].
Traditional autoencoders are usually used to compress images, in other words remove redundancies in an image and reduce its dimension. A wireless communication system on the other hand uses channel coding and modulation techniques to add redundancy to the information bits. With this added redundancy, the system can recover the information bits that are impaired by the wireless channel. So, a wireless autoencoder actually adds redundancy and tries to minimize the number of errors in the received information for a given channel while learning to apply both channel coding and modulation in an unsupervised way.
Basic Autoencoder System

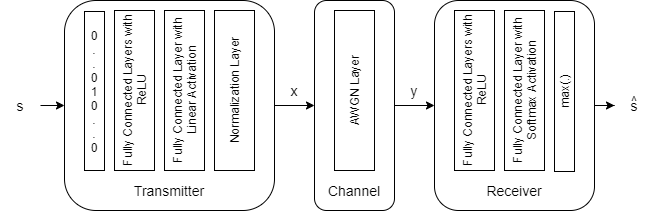

The following is the block diagram of a wireless autoencoder system. The encoder (transmitter) first maps information bits into a message s such that , where . Then message s is mapped to n real number to create . The last layer of the encoder imposes constraints on to further restrict the encoded symbols. The following are possible such constraints and are implemented using the normalization layer:
Energy constraint:
Average power constraint:
Define the communication rate of this system as [bits/channel use], where (n,k) means that the system sends one of messages using n channel uses. The channel impairs encoded (i.e. transmitted) symbols to generate . The decoder (i.e. receiver) produces an estimate, , of the transmitted message, .
The input message is defined as a one-hot vector , which is defined as a vector whose elements are all zeros except the one. The channel is additive white Gaussian noise (AWGN) that adds noise to achieve a given energy per data bit to noise power density ratio, .
The autoencoder maps data bits into channel uses, which results in an effective coding rate of data bits per channel use. Then, 2 channel uses are mapped into a symbol, which results in 2 channel uses per symbol. Map the channel uses per channel symbol value to the BitsPerSymbol
parameter of the AWGN channel.
Configure Autoencoder
Choose Autoencoder
Select the autoencoder network. This example supports following autoencoder networks:
(2,2) Autoencoder.
(2,4) Autoencoder.
(4,4) Autoencoder.
(7,4) Autoencoder.
(8,8) Autoencoder.
selectAutoencoder = "2,2 Autoencoder";
Initialize the required parameters for autoencoder network and dataset creation
[n,k] = getAEWParameters(selectAutoencoder);
M = 2^k; % number of possible input symbols
Train the autoencoder with an Eb/No value that is low enough to result in some errors but not too low such that the training algorithm cannot extract any useful information from the received symbols, y. Set Eb/No to 3 dB.
EbNo = 3; % Eb/No in dB normalization = "Energy"; % Normalization "Energy" | "Average power"
Convert Eb/No to channel Eb/No values using the code rate
R = k/n; EbNoChannel = EbNo + 10*log10(R);
As the number of possible input symbols increase, you increase the number of training symbols to give the network a chance to experience a large number of possible input combinations. The same is true for number of validation symbols.
numTrainSymbols = 2500*M; numValidationSymbols = 100*M;
Generate Training and Validation Data
Generate random training data. Create one-hot input vectors and labels.
d = randi([0 M-1],numTrainSymbols,1);
trainSymbols = zeros(numTrainSymbols,M);
trainSymbols(sub2ind([numTrainSymbols, M], ...
(1:numTrainSymbols)',d+1)) = 1;
trainLabels = categorical(d);
Generate random validation data. Create one-hot input vectors and labels.
d = randi([0 M-1],numValidationSymbols,1);
validationSymbols = zeros(numValidationSymbols,M);
validationSymbols(sub2ind([numValidationSymbols, M], ...
(1:numValidationSymbols)',d+1)) = 1;
validationLabels = categorical(d);
Define Autoencoder network
In [1], authors showed that two fully connected layers for both the encoder (transmitter) and the decoder (receiver) provides the best results with minimal complexity. Input layer (featureInputLayer
(Deep Learning Toolbox)) accepts a one-hot vector of length M. The encoder has two fully connected layers (fullyConnectedLayer
(Deep Learning Toolbox)). The first one has M inputs and M outputs and is followed by an ReLU layer (reluLayer
(Deep Learning Toolbox)). The second fully connected layer has M inputs and n outputs and is followed by the normalization layer (helperAEWNormalizationLayer.m). The encoder layers are followed by the AWGN channel layer (helperAEWAWGNLayer.m). The output of the channel is passed to the decoder layers. The first decoder layer is a fully connected layer that has n inputs and M outputs and is followed by an ReLU layer. The second fully connected layer has M inputs and M outputs and is followed by a softmax layer (softmaxLayer
(Deep Learning Toolbox)), which outputs the probability of each M symbols. The trained (n,k) wireless autoencoder network outputs the most probable transmitted symbol from 0 to M-1.
enableAnalyzeNetwork = false; wirelessAutoEncoder = [ featureInputLayer(M,"Name","One-hot input","Normalization","none") fullyConnectedLayer(M,"Name","fc_1") reluLayer("Name","relu_1") fullyConnectedLayer(n,"Name","fc_2") helperAEWNormalizationLayer("Method", normalization, "Name", "wnorm") helperAEWAWGNLayer("Name","channel", ... "NoiseMethod","EbNo", ... "EbNo",EbNoChannel, ... "BitsPerSymbol",2, ... % channel use per channel symbol "SignalPower",1) fullyConnectedLayer(M,"Name","fc_3") reluLayer("Name","relu_2") fullyConnectedLayer(M,"Name","fc_4") softmaxLayer("Name","softmax")]; wirelessAutoEncoder = dlnetwork(wirelessAutoEncoder);
Analyze the selected (n,k) autoencoder architecture.
if enableAnalyzeNetwork wirelessAutoEncoderAnalyzerInfo = analyzeNetwork(trainedNet); end
Configure and Train Wireless Autoencoder
Configure Training
Configure the required hyperparameters for training the autoencoder network.
trainParams.SolverName = "adam"; % Select the solver for training trainParams.NumEpochs = 10; trainParams.MiniBatchSize = 100*M; trainParams.IniLearnRate = 0.08; trainParams.LearnRateDropPeriod = 5; trainParams.LearnRateDropFactor = 0.1; trainParams.LearnRateSchedule = "piecewise"; trainParams.LossFcn = "crossentropy"; trainParams.Metrics = "accuracy"; trainParams.ExeEnvironment = "cpu"; trainParams.TrainingPlot = "none"; % Select "training-progress" to see dynamic plot of training trainParams.EnableVerbose = false; options = trainingOptions(trainParams.SolverName, ... MaxEpochs=trainParams.NumEpochs, ... MiniBatchSize=trainParams.MiniBatchSize, ... InitialLearnRate=trainParams.IniLearnRate, ... LearnRateDropFactor=trainParams.LearnRateDropFactor, ... LearnRateDropPeriod=trainParams.LearnRateDropPeriod, ... LearnRateSchedule=trainParams.LearnRateSchedule, ... ValidationData={validationSymbols, validationLabels}, ... Shuffle="every-epoch", ... Metrics=trainParams.Metrics, ... ExecutionEnvironment=trainParams.ExeEnvironment, ... Plots=trainParams.TrainingPlot, ... Verbose=trainParams.EnableVerbose);
Train Autoencoder
Train the selected (n,k) autoencoder network using trainnet
function.
[trainedNet, trainedNetInfo] = trainnet(trainSymbols, trainLabels, wirelessAutoEncoder, trainParams.LossFcn, options);
Split the Autoencoder
Separate the network into encoder and decoder parts.
Encoder starts with the input layer and ends after the normalization layer.
for idxNorm = 1:length(trainedNet.Layers) if isa(trainedNet.Layers(idxNorm), "helperAEWNormalizationLayer") break end end txNet = dlnetwork(trainedNet.Layers(1:idxNorm));
The decoder starts after the channel layer and ends with the softmax layer. Add a feature input layer at the beginning.
for idxChan = idxNorm:length(trainedNet.Layers) if isa(trainedNet.Layers(idxChan), "helperAEWAWGNLayer") break end end n = trainedNet.Layers(idxChan+1).InputSize; rxNetLayers = [ featureInputLayer(n, Name="rxin") trainedNet.Layers(idxChan+1:end) ]; rxNet = dlnetwork(rxNetLayers);

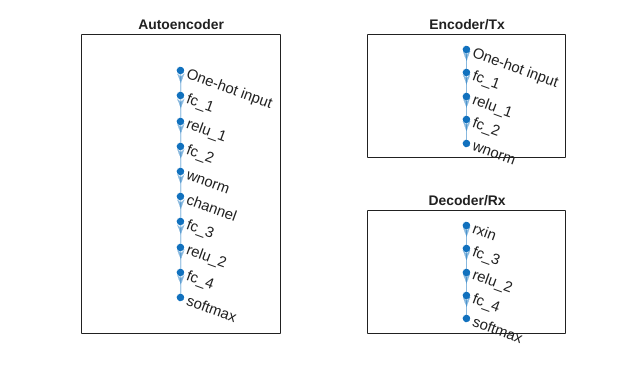

Use the plot
object function of the trained network object to show the layer graphs of the full autoencoder, the encoder network, i.e. the transmitter, and the decoder network, i.e. the receiver.
figure tiledlayout(2,2) % Plot autoecoder network nexttile([2 1]) plot(trainedNet) title('Autoencoder') % Plot encoder network nexttile plot(txNet) title('Encoder/Tx') % Plot decoder network nexttile plot(rxNet) title('Decoder/Rx')

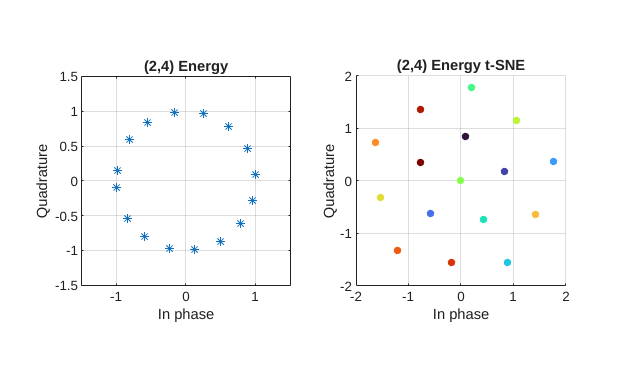

Plot Constellation
Plot the constellation using the helperAEWPlotConstellation
function. To plot the constellation of a higher order autoencoder, use t-distributed stochastic neighbor embedding (t-SNE) method. For more information, see tsne
(Statistics and Machine Learning Toolbox) function.
plotTitle = string(sprintf('(%d,%d) %s', n, k, normalization)); figure subplot(1,2,1) helperAEWPlotConstellation(txNet) title(plotTitle) subplot(1,2,2) helperAEWPlotConstellation(txNet, "t-sne") title(plotTitle + " t-SNE")
Verify the learned constellation and retrain the network if needed.
Compare Constellations
The following figure show constellations of different autoencoders.
The (2,2) autoencoder converges on a QPSK constellation with a phase shift as the optimal constellation for the channel conditions experienced.
The (2,4) autoencoder with energy normalization converges to a 16PSK constellation with a phase shift. Energy normalization forces every symbol to have unit energy and places the symbols on the unit circle. Given this constraint, the optimal constellation is a PSK constellation with equal angular spacing between symbols.
The (2,4) autoencoder with average power normalization converges to a three-tier constellation of 1-6-9 symbols. Average power normalization forces the symbols to have unity average power over time. This constraint results in an APSK constellation, which is different than the conventional QAM or APSK schemes. Note that, this network configuration may also converge to a two-tier constellation with 7-9 symbols based on the random initial condition used during training.
The 2-D mapping of the 7-D constellation generated by the (7,4) autoencoder with energy constraint. 2-D mapping is obtained using the t-distributed stochastic neighbor embedding (t-SNE) method. For more information, see
tsne
function. (Statistics and Machine Learning Toolbox).
Simulate BLER Performance
Simulate the block error rate (BLER) performance of the selected (n,k) autoencoder. Set up simulation parameters.
simParams.EbNoVec = 0:0.5:8; simParams.MinNumErrors = 10; simParams.MaxNumFrames = 300; simParams.NumSymbolsPerFrame = 10000; simParams.SignalPower = 1;
Generate random integers in the [0 -1] range that represents random information bits. Encode these information bits into complex symbols with helperAEWEncode
function. The helperAEWEncode
function runs the encoder part of the autoencoder then maps the real valued vector into a complex valued vector such that the odd and even elements are mapped into the in-phase and the quadrature component of a complex symbol, respectively, where . In other words, treat the array as an interleaved complex array.
Pass the complex symbols through an AWGN channel. Decode the channel impaired complex symbols with the helperAEWDecode
function. The following code runs the simulation for each point for at least 10 block errors. To obtain more accurate results, increase minimum number of errors to at least 100. If Parallel Computing Toolbox™ is installed and a license is available, uncomment the parfor
line to run the simulations on a parallel pool.
For example, in a (2,2) configuration, the autoencoder learns a QPSK () constellation with a phase rotation as shown in the Plot constellation section.
Enable to plot the constellation learned by the autoencoder to send symbols through the AWGN channel along with the received constellation.
plotConstellation = false; if plotConstellation txConst = comm.ConstellationDiagram(ShowReferenceConstellation=false, ... ShowLegend=true, ChannelNames={'Tx Constellation'}); rxConst = comm.ConstellationDiagram(ShowReferenceConstellation=false, ... ShowLegend=true, ChannelNames={'Rx Constellation'}); end EbNoChannelVec = simParams.EbNoVec + 10*log10(R); BLER = zeros(size(EbNoChannelVec)); %parfor trainingEbNoIdx = 1:length(EbNoChannelVec) for trainingEbNoIdx = 1:length(EbNoChannelVec) EbNo = EbNoChannelVec(trainingEbNoIdx); chan = comm.AWGNChannel("BitsPerSymbol", 2, ... "EbNo", EbNo, "SamplesPerSymbol", 1, "SignalPower", 1); numBlockErrors = 0; frameCnt = 0; while (numBlockErrors < simParams.MinNumErrors) ... && (frameCnt < simParams.MaxNumFrames) d = randi([0 M-1],simParams.NumSymbolsPerFrame,1); % Random information bits classNames = categorical(0:M-1); x = helperAEWEncode(d,txNet(1)); % Encoder if plotConstellation txConst(x) end y = chan(x); % Channel if plotConstellation rxConst(y) end dHat = helperAEWDecode(y, rxNet(1), classNames); % Decoder numBlockErrors = numBlockErrors + sum(d ~= dHat); frameCnt = frameCnt + 1; end BLER(trainingEbNoIdx) = numBlockErrors / (frameCnt*simParams.NumSymbolsPerFrame); end

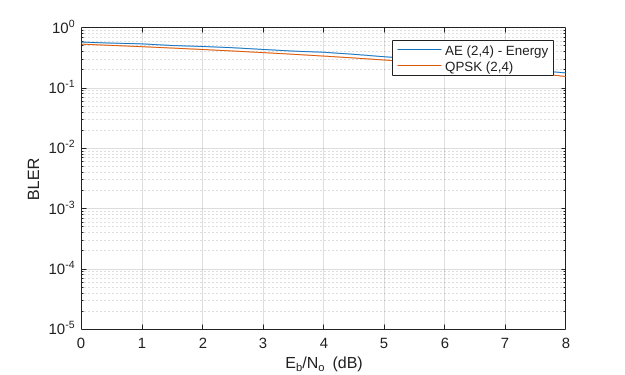

Plot the BLER results of the selected autoencoder network along with the baseline.
helperAEWPlotComparisonBLER(selectAutoencoder, n, k, normalization, BLER, simParams.EbNoVec)
Save Autoencoder
Save the trained autoencoder network and its parameters
saveToMAT = false; if saveToMAT fileName = sprintf('trainedNet_n%d_k%d_%s.mat', n, k, normalization); saveParams.trainedNet = trainedNet; saveParams.txNet = txNet; saveParams.rxNet = rxNet; saveParams.info = trainedNetInfo; saveParams.trainParams = trainParams; saveParams.simParams = simParams; save(fileName, "-struct", "saveParams"); end
Compare BLER Performance of Autoencoders with Coded and Uncoded QPSK
The data for the following figures can be obtained using
helperAEWSimulateBLER.mlx
and
helperAEWPrepareAutoencoders.mlx
files. These show the comprison BLER performance of,

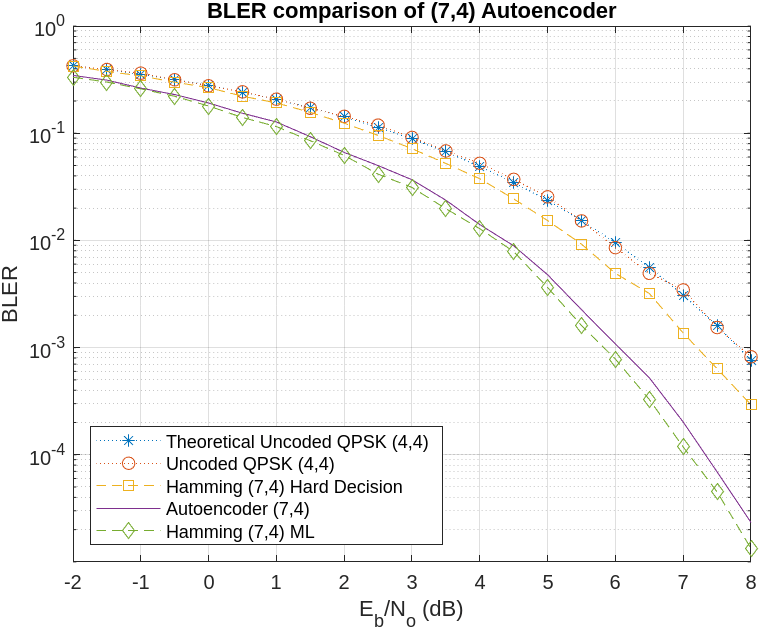

A (7,4) autoencoder and a (7,4) Hamming code with QPSK modulation for both hard decision and maximum likelihood (ML) decoding. Use uncoded (4,4) QPSK as a baseline, which is essentially a QPSK-modulated system that sends blocks of 4 bits and measures BLER.
The hard decision (7,4) Hamming code with QPSK modulation provides about a 0.6 dB advantage over uncoded QPSK. While the ML decoding of the (7,4) Hamming code with QPSK modulation offers an additional 1.5 dB advantage for BLER. The BLER performance of the (7,4) autoencoder approaches that of ML decoding of the (7,4) Hamming code when trained with a 3 dB Eb/No. This BLER performance demonstrates that the autoencoder is capable of learning both modulation and channel coding, achieving a coding gain of approximately 2 dB for a coding rate of R=4/7.

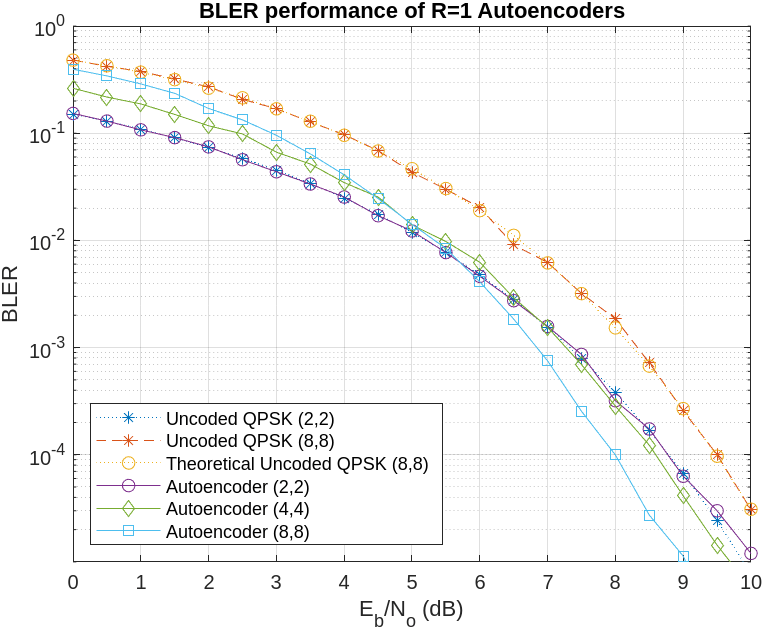

Now, we compare the BLER performance of autoencoders with R=1 against uncoded QPSK systems. Use uncoded (2,2) and (8,8) QPSK as the baselines.
Bit error rate of QPSK is the same for both (8,8) and (2,2) cases. However, the BLER depends on the block length, , and gets worse as increases as given by . As expected, BLER performance of (8,8) QPSK is worse than the (2,2) QPSK system. The BLER performance of (2,2) autoencoder matches the BLER performance of (2,2) QPSK. On the other hand, (4,4) and (8,8) autoencoders optimize the channel coder and the constellation jointly to obtain a coding gain with respect to the corresponding uncoded QPSK systems.
Effect of Training Eb/No on BLER Performance
Train the (7,4) autoencoder with energy normalization under different values and compare the BLER performance. To extend the BLER curve, set simParams.EbNoVec to 0:4.
n = 7; k = 4; normalization = "Energy"; traningEbNoVec = -3:5:7; simParams.EbNoVec = 0:4; for trainingEbNoIdx = 1:length(traningEbNoVec) trainingEbNo = traningEbNoVec(trainingEbNoIdx); [txNetVec{trainingEbNoIdx},rxNetVec{trainingEbNoIdx},infoVec{trainingEbNoIdx},trainedNetVec{trainingEbNoIdx}] = ... helperAEWTrainWirelessAutoencoder(n,k,normalization,trainingEbNo); %#ok<SAGROW> BLERVec{trainingEbNoIdx} = helperAEWAutoencoderBLER(txNetVec{trainingEbNoIdx},rxNetVec{trainingEbNoIdx},simParams); %#ok<SAGROW> end

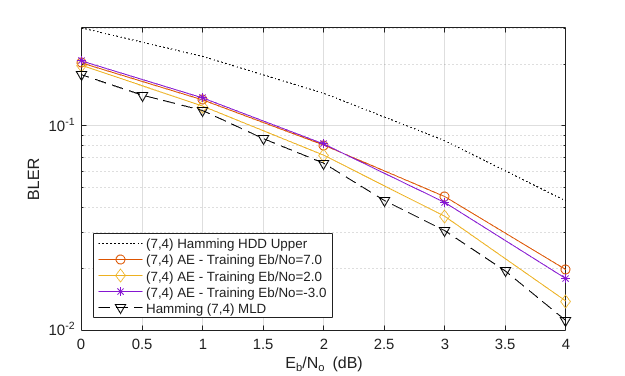

Plot the BLER performance together with theoretical upper bound for hard decision decoded Hamming (7,4) code and simulated BLER of maximum likelihood decoded (MLD) Hamming (7,4) code. The BLER performance of the (7,4) autoencoder gets closer to the Hamming (7,4) code with MLD as the training decreases from 10 dB to 1 dB, at which point it almost matches the MLD Hamming (7,4) code.
berHamming = bercoding(simParams.EbNoVec,'hamming', 'hard', n); blerHamming = 1-(1-berHamming).^k; hammingBLER = load('codedBLERResults'); figure semilogy(simParams.EbNoVec,blerHamming,':k') legendStr = sprintf('(%d,%d) Hamming HDD Upper', n, k); hold on linespec = {'-*','-d','-o','-s',}; for trainingEbNoIdx=length(traningEbNoVec):-1:1 semilogy(simParams.EbNoVec, BLERVec{trainingEbNoIdx},linespec{trainingEbNoIdx}) legendStr = [legendStr {sprintf('(%d,%d) AE - Training Eb/No=%1.1f', ... n, k, traningEbNoVec(trainingEbNoIdx))}]; %#ok<AGROW> end semilogy(hammingBLER.simParams.EbNoVec, hammingBLER.hammingML74BLER, '--vk') legendStr = [legendStr {'Hamming (7,4) MLD'}]; hold off xlim([min(simParams.EbNoVec) max(simParams.EbNoVec)]) grid on xlabel('E_b/N_o (dB)') ylabel('BLER') legend(legendStr{:}, 'location', 'southwest')
Conclusion and Further Exploration
The BLER results show that it is possible for autoencoders to learn joint coding and modulation schemes in an unsupervised way. It is even possible to train an autoencoder with R=1 to obtain a coding gain as compared to traditional methods. The example also shows the effect of hyperparameters such as on the BLER performance.
The results are obtained using the following default settings for training and BLER simulations:
trainParams.Plots = 'none'; trainParams.Verbose = false; trainParams.MaxEpochs = 10; trainParams.InitialLearnRate = 0.08; trainParams.LearnRateSchedule = 'piecewise'; trainParams.LearnRateDropPeriod = 5; trainParams.LearnRateDropFactor = 0.1; trainParams.MiniBatchSize = 100*2^k; simParams.EbNoVec = -2:0.5:8; simParams.MinNumErrors = 100; simParams.MaxNumFrames = 300; simParams.NumSymbolsPerFrame = 10000; simParams.SignalPower = 1;
Vary these parameters to train different autoencoders and test their BLER performance. Experiment with different n, k, normalization and values. See the help for helperAEWTrainWirelessAutoencoder.m, helperAEWPrepareAutoencoders.mlx and helperAEWAutoencoderBLER.m for more information.
Helper Functions
function [n,k] = getAEWParameters(autoencoderType) %getAEWParameters Get the autoencoder parameters % [N,K] = getAEWParameters(autoencoderType) returns % the (N,K) parameter values for selected % autoencoder network % Copyright 2024 The MathWorks, Inc. switch autoencoderType case "2,2 Autoencoder" n = 2; k = 2; case "2,4 Autoencoder" n = 2; k = 4; case "4,4 Autoencoder" n = 4; k = 4; case "7,4 Autoencoder" n = 7; k = 4; case "8,8 Autoencoder" n = 8; k = 8; end end
List of Helper Functions
helperAEWAWGNLayer.m
helperAEWNormalizationLayer.m
helperAEWEncode.m
helperAEWDecode.m
helperAEWTrainWirelessAutoencoder.m
helperAEWPlotConstellation.m
helperAEWPlotTrainingPerformance.m
helperAEWAutoencoderBLER.m
helperAEWPlotComparisonBLER.m
helperAEWPrepareAutoencoders.mlx
helperAEWSimulateBLER.mlx
References
[1] T. O’Shea and J. Hoydis, "An Introduction to Deep Learning for the Physical Layer," in IEEE Transactions on Cognitive Communications and Networking, vol. 3, no. 4, pp. 563-575, Dec. 2017, doi: 10.1109/TCCN.2017.2758370.
[2] S. Dörner, S. Cammerer, J. Hoydis and S. t. Brink, "Deep Learning Based Communication Over the Air," in IEEE Journal of Selected Topics in Signal Processing, vol. 12, no. 1, pp. 132-143, Feb. 2018, doi: 10.1109/JSTSP.2017.2784180.
