Truncate Data Vector Using Offset Block
Use the Offset block to remove or keep the samples in a data vector.
The Mode parameter in the block determines the operation to perform.
Remove beginning samples: Discard the initial values of a vector.
Remove ending samples: Discard the final values of a vector.
Keep beginning samples: Retain the initial values of a vector.
Keep ending samples: Retain the final values of a vector.
The number of samples to remove or keep is determined by the offset value that is input through the O port. The length of the output truncated vector is determined by the Output length parameter.

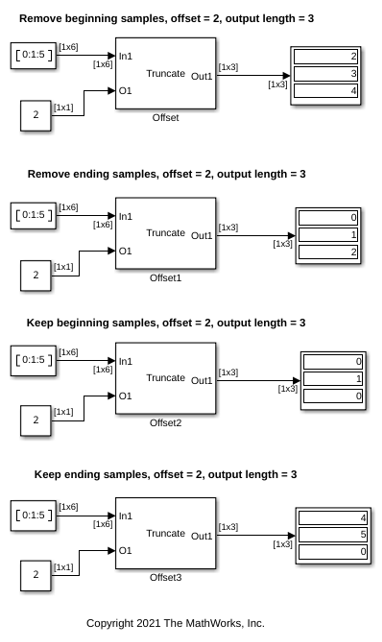

Open and run the model. The model shows how the block modifies the data in all the four modes of operation. The truncated vectors are displayed by the Display block.
