# Work with State Transitions

This example shows how to work with transition data from an empirical array of state counts, and create a discrete-time Markov chain (`dtmc`

) model characterizing state transitions. For each quarter in 1857–2022, the example categorizes the state of the US economy as experiencing a recession or expansion by using historical recession periods defined by the National Bureau of Economic Research (NBER). Then, the example forms the empirical transition matrix by counting the quarter-to-quarter transitions of the economic state.

### Load and Process Data

Load the historical, NBER-defined recession start and end dates.

`load Data_Recessions`

The `Recessions`

variable in the workspace is a 34-by-2 matrix of serial date numbers. Rows of `Recessions`

correspond to successive periods of recession, and columns 1 and 2 contain the start and end dates, respectively. For more details, enter `Description`

at the command line.

Because MATLAB® `datetime`

arrays enable you to work with date data efficiently, convert `Recessions`

to a `datetime`

array. Specify the date format `yyyy-MM-dd`

. Visually compare the data types of the first few periods and the last few periods.

NBERRec = datetime(Recessions,'ConvertFrom',"datenum",... "Format","yyyy-MM-dd"); disptbl = table(Recessions,NBERRec); head(disptbl,3)

`ans=`*3×2 table*
Recessions NBERRec
________________________ ______________________
6.7842e+05 6.7897e+05 1857-06-15 1858-12-15
6.7964e+05 6.7988e+05 1860-10-15 1861-06-15
6.8128e+05 6.8226e+05 1865-04-15 1867-12-15

tail(disptbl,3)

`ans=`*3×2 table*
Recessions NBERRec
________________________ ______________________
7.3092e+05 7.3117e+05 2001-03-15 2001-11-15
7.3339e+05 7.3394e+05 2007-12-15 2009-06-15
7.3784e+05 7.379e+05 2020-02-15 2020-04-15

### Create Array of Visited States

Assume that the sampling period begins on `NBERRec(1,1)`

= `1857-06-15`

and ends on `2021-12-10`

. Create a datetime array of all consecutive quarters in the interval `1857-06-15`

through `2021-12-10`

.

timeline = NBERRec(1,1):calquarters(1):datetime("2021-12-10"); T = numel(timeline); % Sample size

Identify which quarters occur during a recession.

isrecession = @(x)any(isbetween(x,NBERRec(:,1),NBERRec(:,2))); idxrecession = arrayfun(isrecession,timeline);

Create a MATLAB® timetable containing a variable that identifies the economic state of each quarter in the sampling period. Display the first few observations and the last few observations in the timetable.

EconState = repmat("Expansion",T,1); % Preallocation EconState(idxrecession) = "Recession"; Tbl = timetable(EconState,'RowTimes',timeline); head(Tbl,3)

`ans=`*3×1 timetable*
Time EconState
__________ ___________
1857-06-15 "Recession"
1857-09-15 "Recession"
1857-12-15 "Recession"

tail(Tbl,3)

`ans=`*3×1 timetable*
Time EconState
__________ ___________
2021-03-15 "Expansion"
2021-06-15 "Expansion"
2021-09-15 "Expansion"

`Tbl`

is a data set of the observed, quarterly economic states, from which transitions can be counted.

### Count State Transitions

Consider creating a 2-by-2 matrix containing the number of:

Transitions from a recession to an expansion

Transitions from an expansion to a recession

Self-transitions of recessions

Self-transitions of expansions

Row $\mathit{j}$ and column $\mathit{j}$ of the matrix correspond to the same economic state, and element $\left(\mathit{j},\mathit{k}\right)$ contains the number of transitions from state $\mathit{j}$ to state $\mathit{k}$.

First, assign indices to members of the state space.

[idxstate,states] = grp2idx(Tbl.EconState); states

`states = `*2x1 cell*
{'Recession'}
{'Expansion'}

```
numstates = numel(states);
P = zeros(numstates); % Preallocate transition matrix
```

The state indices `idxstate`

correspond to states (rows and columns) of the transition matrix, and `states`

defines the indices. `P(1,1)`

is the number of self-transitions of recessions, `P(1,2)`

is the number of transitions from a recession to an expansion, and so on. Therefore, to count the transition types in the data efficiently, for every transition $\mathit{t}$ to $\mathit{t}+1$, tally the observed transition by indexing into the transition matrix using state indices at times $\mathit{t}$ (row) and $\mathit{t}+1$ (column).

for t = 1:(T - 1) P(idxstate(t),idxstate(t+1)) = P(idxstate(t),idxstate(t+1)) + 1; end array2table(P,'VariableNames',states,'RowNames',states)

`ans=`*2×2 table*
Recession Expansion
_________ _________
Recession 171 34
Expansion 33 419

`P`

is the matrix of observed transitions. `P(1,2)`

= `34`

means that the US economy transitioned from a recession to an expansion `34`

times between `1857-06-15`

and `2021-12-10`

.

### Create Discrete-Time Markov Chain

Create a discrete-time Markov chain model characterized by the transition matrix `P`

.

mc = dtmc(P,'StateNames',states); array2table(mc.P,'VariableNames',states,'RowNames',states)

`ans=`*2×2 table*
Recession Expansion
_________ _________
Recession 0.83415 0.16585
Expansion 0.073009 0.92699

`mc`

is a `dtmc`

object. `dtmc`

normalizes `P`

to create the right-stochastic transition matrix `mc.P`

(each row sums to 1). The element `mc.P(1,2)`

= `0.1659`

means that the empirical probability of transitioning to an expansion at time $\mathit{t}$ + 1, given that the US economy is in a recession at time $\mathit{t}$, is 0.1659.

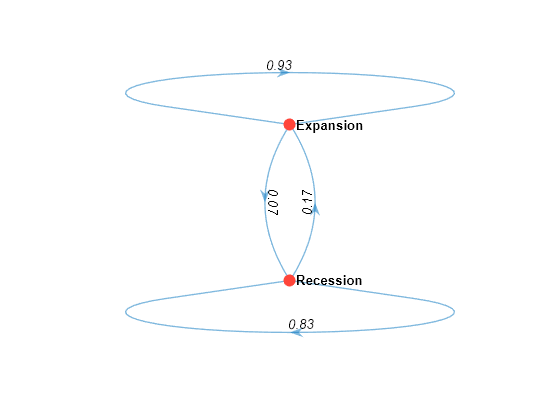

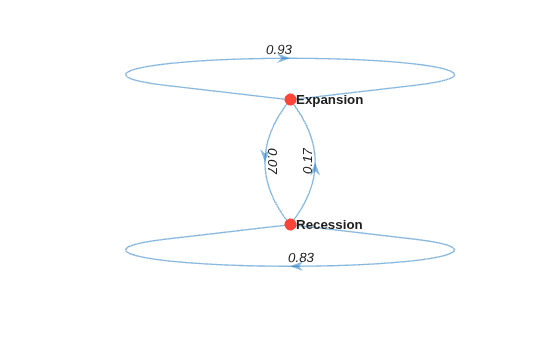

Plot a directed graph of the Markov chain.

`graphplot(mc,'LabelEdges',true)`

The Markov chain suggests that the current economic state tends to persist, from quarter to quarter.
