# Non-Square Jacobi SVD HDL Optimized

**Libraries:**

Fixed-Point Designer HDL Support /
Matrices and Linear Algebra /
Matrix Factorizations

## Description

Use the Non-Square Jacobi SVD HDL Optimized block to perform singular value
decomposition (SVD) on non-square matrices using QR decomposition and the two-sided Jacobi
algorithm. This block consists of a Real Partial-Systolic QR
Decomposition or Complex Partial-Systolic
QR Decomposition block, depending on your configuration, and a Square Jacobi SVD HDL
Optimized. Given a matrix *A* with more rows than columns, the
Non-Square Jacobi SVD HDL Optimized block uses QR decomposition to preprocess
the input, then uses the two-sided Jacobi method to produce a vector *s* of
nonnegative elements and unitary matrices *U* and *V* such
that

.*A* =
*U**diag(*s*)**V*'

**Note**

For square matrices, use the Square Jacobi SVD HDL Optimized block.

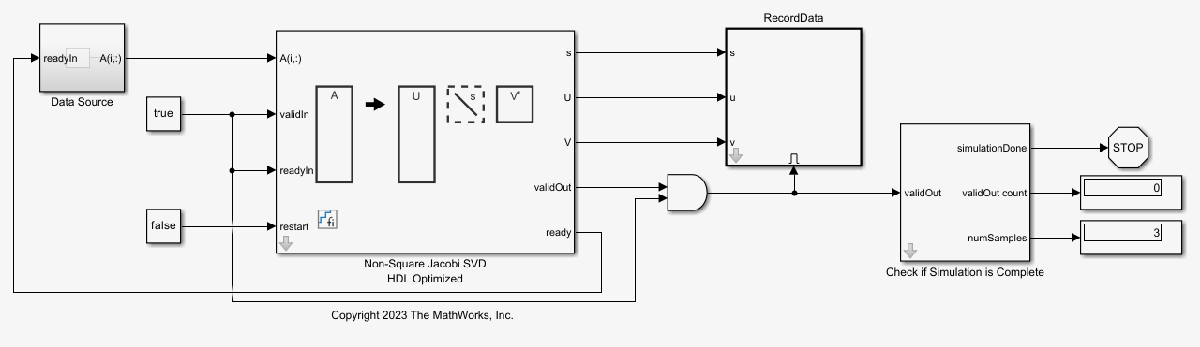

## Examples

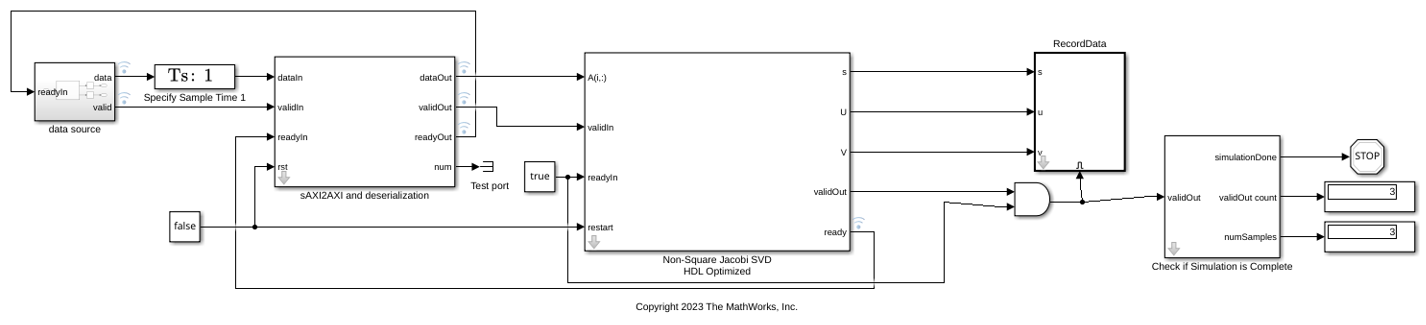

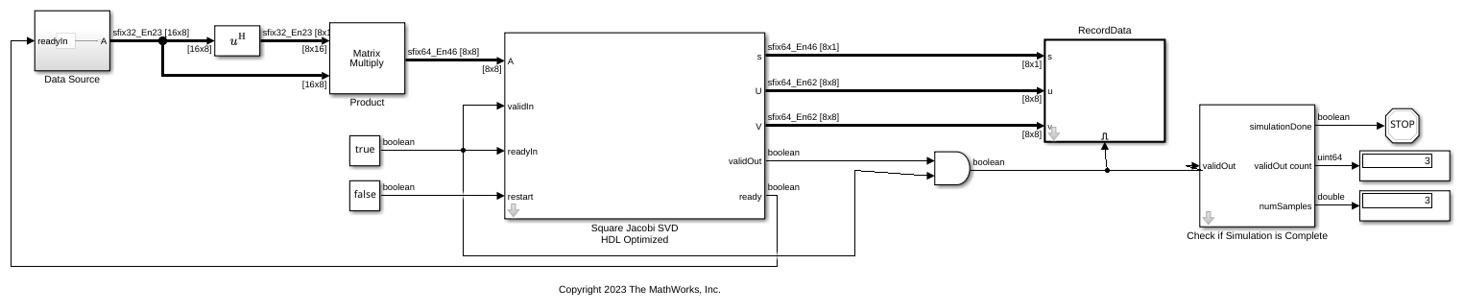

## Extended Examples

## Limitations

To optimize HDL efficiency, if the input matrix *A* is
not full rank, then the output *U* matrix is
orthonormal up to the rank of *A*. $$A=U*diag(s)*V\text{'}$$ is still valid. *V* is always orthonormal regardless of the
rank of *A*.

For example, if $$A=\left[\begin{array}{ccc}1& 1& 1\\ 2& 2& 2\\ 3& 3& 3\\ 0.5& 2& 4\end{array}\right]$$, then *A* has rank 2 and $$U\text{'}\ast U=\left[\begin{array}{ccc}1& 0& 0\\ 0& 1& 0\\ 0& 0& 0.8940\end{array}\right]$$.

If the input matrix is full rank, then $$U\text{'}*U=I$$, where *I* = eye(*n*).

## Ports

### Input

### Output

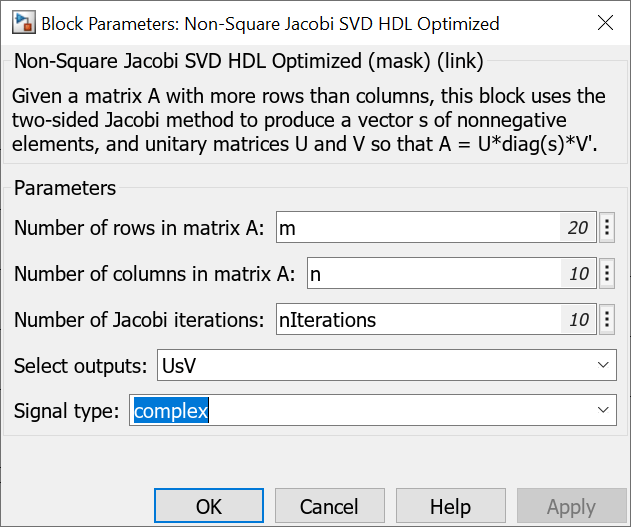

## Parameters

## Tips

The behavior of the Non-Square Jacobi SVD HDL Optimized block is equivalent to

`[U,s,V] = fixed.jacobiSVD(A)`

when`A`

is a non-square matrix. If the input data type is fixed point with binary-point scaling, the function and the block provide bit-exact results. However, if the input data type is floating point, small numerical differences may exist between the function and the block.The

**Number of Jacobi iterations**block parameter is equivalent to the`numberOfSweeps`

input argument for the`fixed.jacobiSVD`

function.

## Algorithms

## References

[1] Arm Developer. "AMBA AXI and ACE Protocol Specification Version E." https://developer.arm.com/documentation/ihi0022/e/AMBA-AXI3-and-AXI4-Protocol-Specification/Single-Interface-Requirements/Basic-read-and-write-transactions/Handshake-process.

[2] Jacobi, Carl G. J., "Über ein
leichtes Verfahren die in der Theorie der Säcularstörungen vorkommenden Gleichungen numerisch
aufzulösen." *Journal fur die reine und angewandte Mathematik* 30 (1846):
51–94.

[3] Forsythe, George E. and Peter
Henrici. "The Cyclic Jacobi Method for Computing the Principal Values of a Complex Matrix."
*Transactions of the American Mathematical Society* 94, no. 1 (January
1960): 1-23.

[4] Shiri, Aidin and Ghader
Khosroshahi. "An FPGA Implementation of Singular Value Decomposition", *ICEE 2019:
27th Iranian Conference on Electrical Engineering, Yazd, Iran, April 30–May 2,
2019*, 416-22, IEEE.

[5] Golub, Gene H. and Charles F. Van
Loan. *Matrix Computations*, 4th ed. Baltimore, MD: Johns Hopkins
University Press, 2013.

[6] Athi, Mrudula V., Seyed R.
Zekavat, and Alan A. Struthers. "Real-Time Signal Processing of Massive Sensor Arrays via a
Parallel Fast Converging SVD Algorithm: Latency, Throughput, and Resource Analysis."
*IEEE Sensors Journal* 16, no. 18 (January 2016): 2519-26. https://doi.org/10.1109/JSEN.2016.2517040.

[7] Brent, Richard P., Franklin T.
Luk, and Charles Van Loan. "Computation of the Singular Value Decomposition Using
Mesh-Connected Processors." *Journal of VLSI and Computer Systems* 1, 3
(1985): 242–70.

[8] Hemkumar, Nariankadu D.
*A Systolic VLSI Architecture for Complex SVD*.
Master’s thesis, Rice University, 1991.

[9] Duryea, R. A. *Finite
Precision Arithmetic in Singular Value Decomposition Architectures*. Ph.D. thesis,
Cornell University, 1987.

[10] Cavallaro, Joseph R. and Franklin
T. Luk. 1987. "CORDIC Arithmetic for an SVD Processor." *1987 IEEE 8th Symposium on
Computer Arithmetic (ARITH), Como, Italy, May 18-21, 1987*, 113-20. IEEE. https://doi.org/10.1109/ARITH.1987.6158686.

## Extended Capabilities

## Version History

**Introduced in R2023b**
