Generate Off-Centered IMU Readings

This example shows how to generate inertial measurement unit (IMU) readings from a sensor that is mounted on a ground vehicle. Depending on the location of the sensor, the IMU accelerations are different.

Create Trajectory

Specify the waypoint trajectory of a vehicle and compute the vehicle poses using lookupPose.

% Sampling rate.
Fs = 100;

% Waypoints and times of arrival.
waypoints = [1 1 1; 3 1 1; 3 0 0; 0 0 0];
t = [1; 10; 20; 30];

% Create trajectory and compute pose.
traj = waypointTrajectory(waypoints, t, "SampleRate", Fs);
[posVeh, orientVeh, velVeh, accVeh, angvelVeh] = lookupPose(traj, ...
    t(1):1/Fs:t(end));

Create Sensor and Define Offset

Create two 9-axis imuSensor objects composed of accelerometer, gyroscope, and magnetometer sensors. One imuSensor object generates readings of an IMU mounted at the vehicle's origin and the other one generates readings of an IMU mounted at the driver's seat. Next, specify the offset between the vehicle origin and the IMU mounted at the driver's seat. Call helperPlotIMU to visualize the locations of the sensors.

% IMU at vehicle origin.
imu = imuSensor("accel-gyro-mag", "SampleRate", Fs);

% IMU at driver's seat.
mountedIMU = imuSensor("accel-gyro-mag", "SampleRate", Fs);

% Position and orientation offset of the vehicle and the mounted IMU.
posVeh2IMU = [2.4 0.5 0.4];
orientVeh2IMU = quaternion([0 0 90], "eulerd", "ZYX", "frame");

% Visualization.
helperPlotIMU(posVeh(1,:), orientVeh(1,:), posVeh2IMU, orientVeh2IMU);

Figure contains an axes object. The axes object contains 2 objects of type line, patch.

Calculate IMU Trajectory Using Vehicle Trajectory

Compute the ground truth trajectory of the IMU mounted at the driver's seat using the transformMotion function. This function uses the position and orientation offsets and the vehicle trajectory to compute the IMU trajectory.

[posIMU, orientIMU, velIMU, accIMU, angvelIMU] = transformMotion( ...
    posVeh2IMU, orientVeh2IMU, ...
    posVeh, orientVeh, velVeh, accVeh, angvelVeh);

Generate Sensor Readings

Generate the IMU readings for both the IMU mounted at the vehicle origin and the IMU mounted at the driver's seat.

% IMU at vehicle origin.
[accel, gyro, mag] = imu(accVeh, angvelVeh, orientVeh);

% IMU at driver's seat.
[accelMounted, gyroMounted, magMounted] = mountedIMU( ...
    accIMU, angvelIMU, orientIMU);

Compare Accelerometer Readings

Compare the accelerometer readings of the two IMUs. Notice that the x-axis acceleration is different because of the off-center location.

figure('Name', 'Accelerometer Comparison')
subplot(3, 1, 1)
plot([accel(:,1), accelMounted(:,1)])
legend('Aligned with Vehicle', 'Off-centered')
title('Accelerometer')
ylabel('x-axis (m/s^2)')
subplot(3, 1, 2)
plot([accel(:,2), accelMounted(:,2)])
ylabel('y-axis (m/s^2)')
subplot(3, 1, 3)
plot([accel(:,3), accelMounted(:,3)])
ylabel('z-axis (m/s^2)')

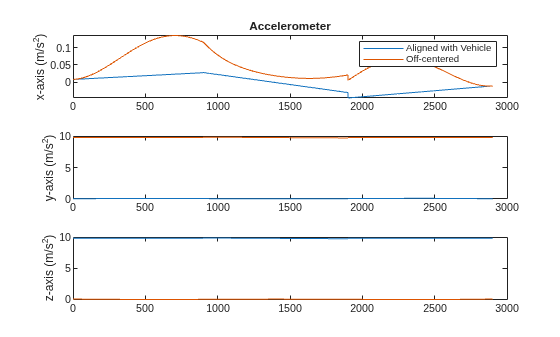

Figure Accelerometer Comparison contains 3 axes objects. Axes object 1 with title Accelerometer, ylabel x-axis (m/s^2) contains 2 objects of type line. These objects represent Aligned with Vehicle, Off-centered. Axes object 2 with ylabel y-axis (m/s^2) contains 2 objects of type line. Axes object 3 with ylabel z-axis (m/s^2) contains 2 objects of type line.

Compare Gyroscope Readings

Compare the gyroscope readings of the two IMUs.

figure('Name', 'Gyroscope Comparison')
subplot(3, 1, 1)
plot([gyro(:,1), gyroMounted(:,1)])
ylim([-0.22 0.1])
legend('Aligned with Vehicle', 'Off-centered')
title('Gyroscope')
ylabel('x-axis (rad/s)')
subplot(3, 1, 2)
plot([gyro(:,2), gyroMounted(:,2)])
ylabel('y-axis (rad/s)')
subplot(3, 1, 3)
plot([gyro(:,3), gyroMounted(:,3)])
ylabel('z-axis (rad/s)')

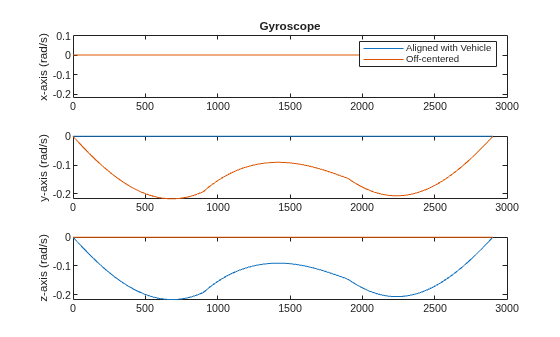

Figure Gyroscope Comparison contains 3 axes objects. Axes object 1 with title Gyroscope, ylabel x-axis (rad/s) contains 2 objects of type line. These objects represent Aligned with Vehicle, Off-centered. Axes object 2 with ylabel y-axis (rad/s) contains 2 objects of type line. Axes object 3 with ylabel z-axis (rad/s) contains 2 objects of type line.

Compare Magnetometer Readings

Compare the magnetometer readings of the two IMUs.

figure('Name', 'Magnetometer Comparison')
subplot(3, 1, 1)
plot([mag(:,1), magMounted(:,1)])
legend('Aligned with Vehicle', 'Off-centered')
title('Magnetometer')
ylabel('x-axis (\muT)')
subplot(3, 1, 2)
plot([mag(:,2), magMounted(:,2)])
ylabel('y-axis (\muT)')
subplot(3, 1, 3)
plot([mag(:,3), magMounted(:,3)])
ylabel('z-axis (\muT)')

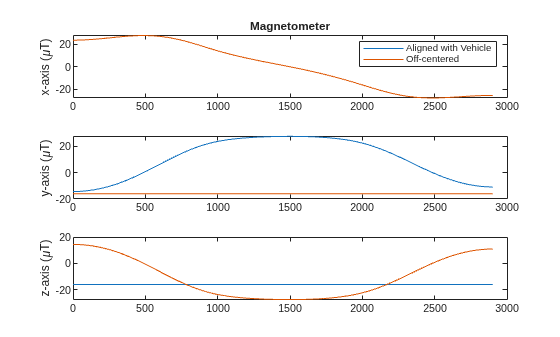

Figure Magnetometer Comparison contains 3 axes objects. Axes object 1 with title Magnetometer, ylabel x-axis (\muT) contains 2 objects of type line. These objects represent Aligned with Vehicle, Off-centered. Axes object 2 with ylabel y-axis (\muT) contains 2 objects of type line. Axes object 3 with ylabel z-axis (\muT) contains 2 objects of type line.
