# Online State Estimation Using Identified Models - Linear Models

This example describes how to generate the state-transition and measurement functions for online state and output estimation using linear identification techniques.

System Identification Toolbox™ provides several recursive algorithms for state estimation such as Kalman Filter, Extended Kalman Filter (EKF), Unscented Kalman Filter (UKF), and Particle Filter (PF). Use of a state estimator requires specification of state and measurement dynamics:

How the system advances the states, represented by the state-transition equation$\mathit{X}\left(\mathit{k}+1\right)=\mathit{f}\left(\mathit{X}\left(\mathit{k}\right),\dots \right)$, where $\mathit{X}\left(\mathit{k}\right)$ is the state value at the time step $\mathit{k}$; the function$\mathit{f}\left(\cdot \right)\text{\hspace{0.17em}}$can accept additional input arguments to accommodate any dependency on exogenous inputs and the time instant.

How the system computes the output or measurement $\mathit{y}\left(\mathit{k}\right)$ as a function of $\mathit{X}\left(\mathit{k}\right)$ and possibly some additional inputs; $\mathit{y}\left(\mathit{k}\right)=\mathit{g}\left(\mathit{X}\left(\mathit{k}\right),\dots \right)$

In addition, you are required to provide the covariance values of the various disturbances affecting the state and measurement dynamics. All filters execute a sequence of state value *prediction* (using $\mathit{f}\left(\cdot \right)$) and a *correction* of that prediction (using $\mathit{g}\left(\cdot \right)$) alternately. You have the option of performing multiple prediction steps before using the latest measurements to apply a correction.

This example shows how you can generate the required state-transition and measurement equations by using linear (black-box or grey-box) identification techniques. When identifying a linear model, the information regarding both the measurement dynamics (that is, how the output is related to the measured inputs) as well as the noise dynamics (that is, how the unmeasured disturbances influence the output) can be often be generated simultaneously. This results in a model of general structure:

$$\mathit{y}\left(\mathit{t}\right)=\mathit{G}\left(\mathit{q}\right)\mathit{u}\left(\mathit{t}\right)+\mathit{H}\left(\mathit{q}\right)\mathit{e}\left(\mathit{t}\right)$$

where $\mathit{G}\left(\mathit{q}\right)$ is called the *measurement* transfer function and $\mathit{H}\left(\mathit{q}\right)$ is called the *noise* transfer function. If the noise dynamics are not explicitly modeled, such as when using Output-Error (OE) model structure which results in a model of the form $\mathit{y}\left(\mathit{t}\right)=\mathit{G}\left(\mathit{q}\right)\mathit{u}\left(\mathit{t}\right)+\mathit{e}\left(\mathit{t}\right)$, it is also often possible to extend the measurement model to account for the noise dynamics as a post-estimation model processing step.

### Example System: An Industrial Robot Arm

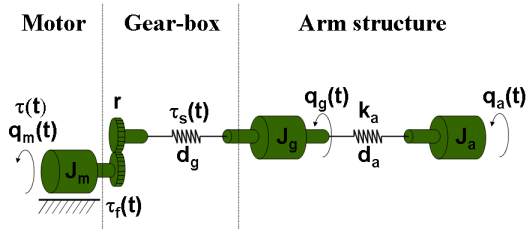

Consider a robot arm is described by a nonlinear three-mass flexible model. The input to the robot is the applied torque $$u(t)=\tau (t)$$ generated by the electrical motor, and the resulting angular velocity of the motor $$y(t)=\frac{d}{dt}{q}_{m}(t)$$ is the measured output.

It is possible to derive the equations of motion for this system. For example, a nonlinear state-space description of this system that uses 5 states is described in the example titled "`Modeling an Industrial Robot Arm`

".

This system is excited with inputs of different profiles and the resulting angular velocity of the motor is recorded. A periodic excitation signal of approximately 10 seconds duration was employed to generate a reference speed for the controller. The chosen sampling frequency was `2 kHz`

(sample time `Ts = 0.0005 seconds`

). For estimation (training) data, a multisine input signal with a flat amplitude spectrum in the frequency interval of `1-40 Hz`

with a peak value of `16 rad/s`

was used. The multisine signal is superimposed on a filtered square wave with amplitude `20 rad/s`

and cut-off frequency `1 Hz`

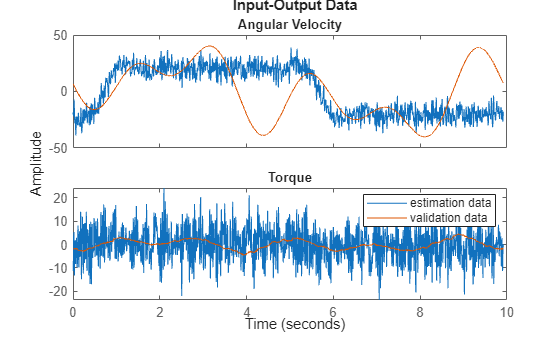

. For validation data, a multisine input signal containing frequencies` 0.1, 0.3`

, and `0.5 Hz `

was used, with peak value of `40 rad/s`

.

Both datasets are downsampled 10 times for the purposes of the current example.

load robotarmdata.mat % Prepare estimation data eData = iddata(ye,ue,5e-4,'InputName','Torque','OutputName','Angular Velocity','Tstart',0); eData = idresamp(eData,[1 10]); eData.Name = 'estimation data'; % Prepare validation data vData = iddata(yv3,uv3,5e-4,'InputName','Torque','OutputName','Angular Velocity','Tstart',0); vData = idresamp(vData,[1 10]); vData.Name = 'validation data'; idplot(eData, vData) legend show

### Black-Box LTI Models of System Dynamics

Suppose the equations of motion are not known. Then a dynamic model of the system can be derived by using a black-box identification approach such as using the `ssest`

command (linear case) or the `nlarx`

command (nonlinear case). In this first modeling attempt, make the assumption that the dynamics can be captured by a linear model. Use a linear model structure with a non-trivial noise component.

#### Black-Box State Space Model Identification

Identify a continuous-time state-space model of the best order in the 1:10 order range. This can be accomplished by running the following command which requires interactive selection of an order value from the model order selection dialog.

`% linsys1 = ssest(eData, 1:10) % uncomment to execute`

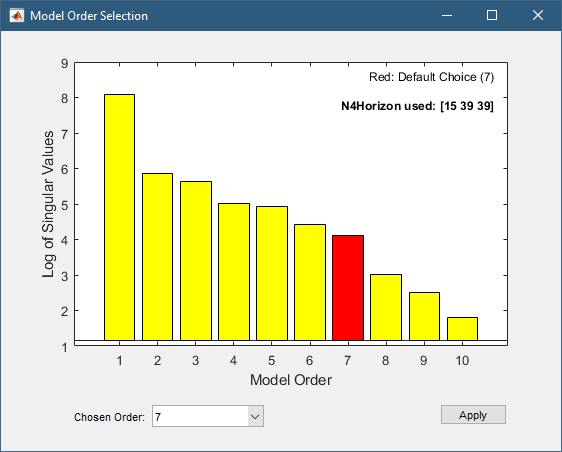

The plot launched by running this command is:

An order of 7 is suggested. The results obtained by selecting this value is equivalent to running the following commands:

% Set estimation options opt = ssestOptions; opt.N4Horizon = [15 39 39]; Order = 7; % Run ssest to identify the model of chosen order and options linsys1 = ssest(eData, Order, opt)

linsys1 = Continuous-time identified state-space model: dx/dt = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x5 x6 x7 x1 -10.23 -34.14 9.669 -3.467 4.134 22.53 -6.348 x2 2.111 -61.48 -133.3 -124.3 18.54 2.223 69.06 x3 20.5 189.9 -16.59 -35.33 13.29 -25.67 16.48 x4 -16.36 86.7 78.9 -11.04 84.22 -31.36 113.8 x5 -1.54 16.24 -17.36 -80.65 -24.82 41.52 -71.55 x6 -26.95 -108.9 79.27 70.97 32.15 -49.01 555.9 x7 1.59 3.371 12.31 -22.04 -22.46 7.566 -132.4 B = Torque x1 -0.1109 x2 -0.1055 x3 0.07218 x4 -0.1894 x5 0.1187 x6 -0.9121 x7 0.2937 C = x1 x2 x3 x4 x5 x6 x7 Angular Velo -852 45.74 -28.32 -22.72 -11.58 8.592 -1.034 D = Torque Angular Velo 0 K = Angular Velo x1 -2.993 x2 -2.95 x3 16.37 x4 -15.28 x5 -3.674 x6 2.207 x7 -12.88 Parameterization: FREE form (all coefficients in A, B, C free). Feedthrough: none Disturbance component: estimate Number of free coefficients: 70 Use "idssdata", "getpvec", "getcov" for parameters and their uncertainties. Status: Estimated using SSEST on time domain data "estimation data". Fit to estimation data: 94.22% (prediction focus) FPE: 1.481, MSE: 1.45 Model Properties

```

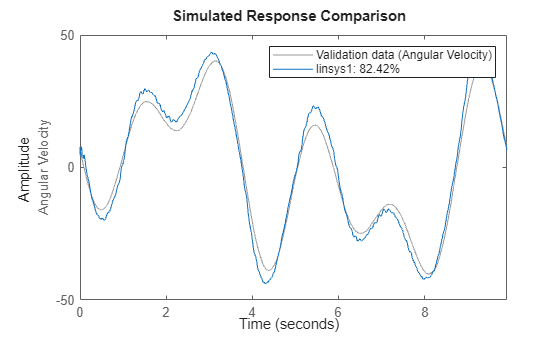

% Validate the model by checking how well it simulates the measured output in the validation dataset
compare(vData,linsys1)
```

linsys1 is a 7th order continuous-time state-space model of the following structure:

$$\begin{array}{l}\frac{\mathrm{dx}\left(\mathit{t}\right)}{\mathrm{dt}}=\mathit{A}\text{\hspace{0.17em}}\mathit{x}\left(\mathit{t}\right)+\mathit{B}\text{\hspace{0.17em}}\mathit{u}\left(\mathit{t}\right)+\mathit{K}\text{\hspace{0.17em}}\mathit{e}\left(\mathit{t}\right)\\ \mathit{y}\left(\mathit{t}\right)=\mathit{C}\text{\hspace{0.17em}}\mathit{x}\left(\mathit{t}\right)+\mathit{e}\left(\mathit{t}\right)\end{array}$$

Here $\mathit{e}\left(\mathit{t}\right)$ are the output prediction errors. Note that the states most likely have no clear physical interpretation and the disturbance term $\mathit{K}\text{\hspace{0.17em}}\mathit{e}\left(\mathit{t}\right)$ cannot be treated as true process noise. However, for online output prediction, this model provides all the information needed. The state prediction by itself may not be of practical value since the states $\mathit{x}\left(\mathit{t}\right)$ are arbitrary. But the predicted states can be used to predict the output values using ${\mathit{y}}_{\mathrm{predicted}}\left(\mathit{t}\right)=\mathit{C}\text{\hspace{0.17em}}{\mathit{x}}_{\mathrm{predicted}}\left(\mathit{t}\right)$

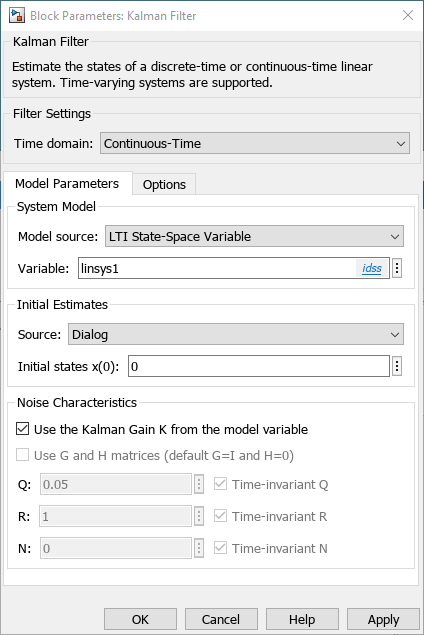

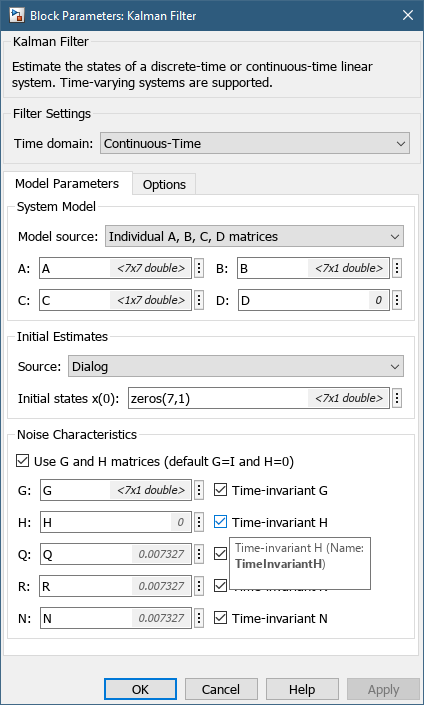

#### Configuring the Kalman Filter Block

Set

`Time domain`

drop-down selection to "`Continuous-Time`

"Set Model source to

`LTI State-Space Variable`

Set Variable to linsys1

Under

`Noise Characteristics`

section, check the checkbox for "`Use the Kalman Gain K from the model variable`

"

Alternatively, extract the system matrices, and the noise variances and specify them directly. For example, let $\mathit{w}\left(\mathit{t}\right)$ be a scalar disturbance source. Then another equivalent filter representation can be as follows:

[A,B,C,D,K] = idssdata(linsys1); NV = linsys1.NoiseVariance; G = K; H = 0; Q = NV; R = NV; N = NV; % Verify using KALMAN command (requires Control System Toolbox) % (Estimated Kalman Gain Kest is same as the identified K matrix) [~,Kest] = kalman(ss(A,[B, G],C,[D H]),Q,R,N)

`Kest = `*7×1*
-2.9928
-2.9504
16.3689
-15.2789
-3.6738
2.2074
-12.8844

Note that the Kalman Filter block supports both continuous and discrete-time models.

#### Configuring the Extended Kalman Filter (EKF) Block

While not required for linear systems, you can also implement the state estimator as an Extended Kalman Filter (EKF). To do so, you need a discrete-time model. You can use `c2d`

to discretize the previously identified `linsys1`

. Alternatively, you can directly identify a discrete-time model using the `ssest`

command.

opt = ssestOptions; opt.N4Horizon = [15 39 39]; Order = 7; % Identify a discrete-time state space model linsys2 = ssest(eData, Order, opt, 'Ts', eData.Ts)

linsys2 = Discrete-time identified state-space model: x(t+Ts) = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x5 x6 x7 x1 0.9611 -0.1484 0.05979 0.01731 0.03113 -0.05424 -0.002952 x2 -0.0283 0.3138 -0.5373 -0.4152 -0.03035 -0.1583 0.1633 x3 0.1075 0.6587 0.5894 -0.3731 -0.01745 0.06084 0.1164 x4 -0.05058 0.4633 0.122 0.6973 0.3778 -0.1713 0.2899 x5 0.01611 -0.1049 -0.07019 -0.3398 0.8932 0.178 -0.2024 x6 -0.1259 -0.177 0.4843 0.1126 0.1429 0.3777 1.714 x7 -0.02454 0.04994 0.0622 -0.1431 -0.09169 -0.01395 0.08604 B = Torque x1 -0.00127 x2 -0.002701 x3 0.003675 x4 -0.002421 x5 0.001166 x6 -0.002035 x7 0.002307 C = x1 x2 x3 x4 x5 x6 x7 Angular Velo -851.7 43.61 -28.55 -24.43 -9.701 0.5012 0.05347 D = Torque Angular Velo 0 K = Angular Velo x1 -0.002365 x2 0.003396 x3 0.01062 x4 -0.001163 x5 0.005198 x6 0.006216 x7 -0.004374 Sample time: 0.005 seconds Parameterization: FREE form (all coefficients in A, B, C free). Feedthrough: none Disturbance component: estimate Number of free coefficients: 70 Use "idssdata", "getpvec", "getcov" for parameters and their uncertainties. Status: Estimated using SSEST on time domain data "estimation data". Fit to estimation data: 97.08% (prediction focus) FPE: 0.38, MSE: 0.3694 Model Properties

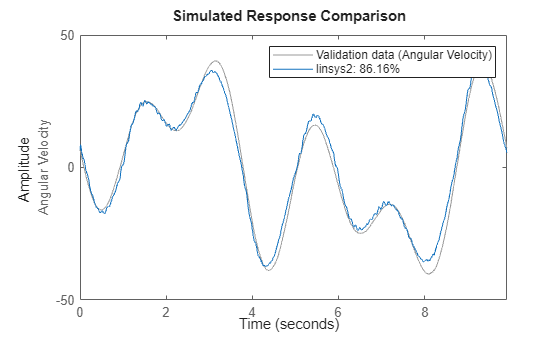

compare(vData,linsys2)

The EKF block requires the state transition and the measurement functions to be specified as MATLAB functions.

% Prepare data % Extract system matrices in order to define the state-transition and measurement functions [Ad,Bd,Cd,Dd,Kd] = idssdata(linsys2); NVd = linsys2.NoiseVariance; % measurement noise variance StateNoiseCovariance_d = Kd*NV*Kd'; Ts = linsys2.Ts;

The state transition function is simply $\mathit{x}\left(\mathit{t}+1\right)={\mathit{A}}_{\mathit{d}}\mathit{x}\left(\mathit{t}\right)+{\mathit{B}}_{\mathit{d}}\mathit{u}\left({\mathit{t}}_{)}\right)$, while the measurement function is $\mathit{y}\left(\mathit{t}\right)={\mathit{C}}_{\mathit{d}}\mathit{x}\left(\mathit{t}\right)+{\mathit{D}}_{\mathit{d}}\mathit{u}\left(\mathit{t}\right)$. These are implemented using the Simulink Function blocks called `stateTransitionFcn`

and `measurementFcn`

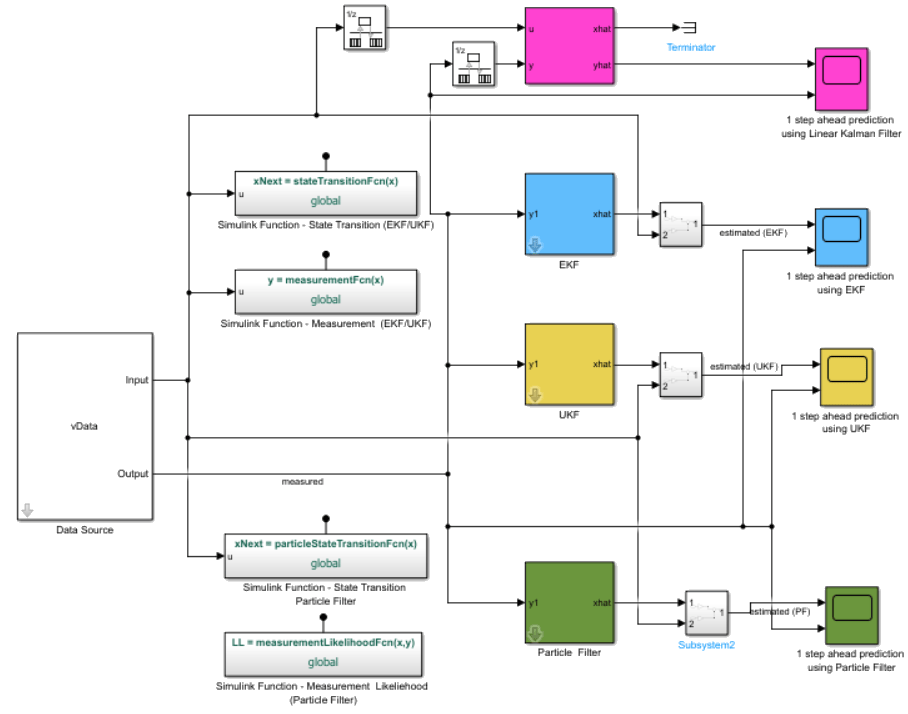

, respectively, in the Simulink model `StateEstimation_Using_LinearModel.slx`

.

`open_system('StateEstimation_Using_LinearModel')`

#### Configuring the Unscented Kalman Filter (UKF) Block

The UKF block is configured in an identical manner as the EKF block. In the `stateEstimation_Using_LinearModel `

model, the Simulink functions called` stateTransitionFcn`

and `measurementFcn `

are shared by both the EKF and UKF blocks.

#### Configuring the Particle Filter Block

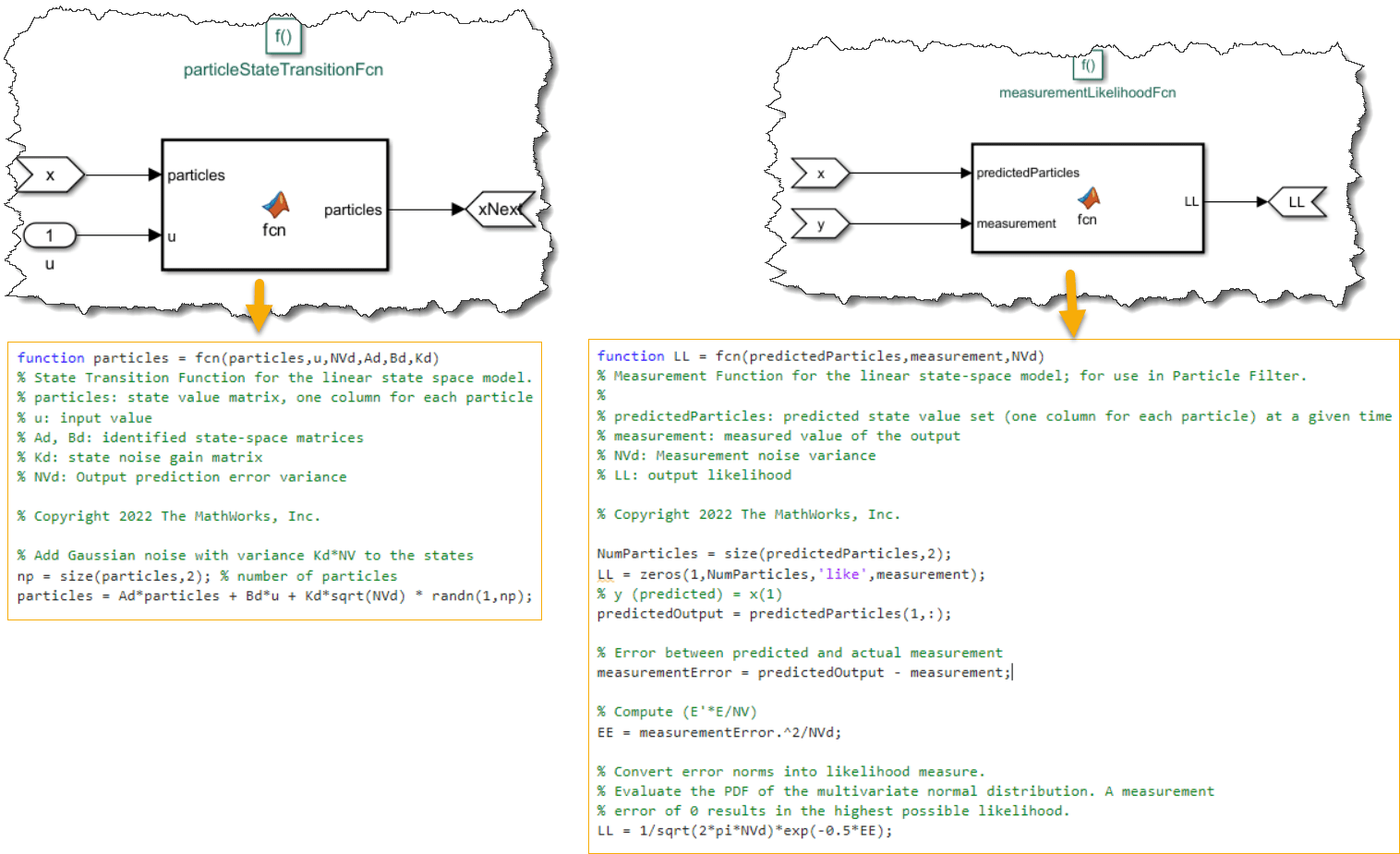

It is similarly possible to use the linear state-space equations to perform state estimation using the Particle Filter. For this example, you use 1000 particles and assume a Gaussian distribution of the state and measurement errors. See the Simulink functions `particleStateTransitionFcn`

and `measurementLikelihoodFcn`

for how the particles are moved and the output likelihood computed.

NumParticles = 1000;

#### Online State Estimation Performance

Compare the performance of the Kalman filter, Extended Kalman Filter (EKF), Unscented Kalman Filter (UKF), and Particle Filter (PF) for 1-step, and 10-step ahead state/output predictions.

#### 1-Step Prediction Results

The quality of the state estimation can be judged by how well the estimated states reconstruct the measured output.

`sim('StateEstimation_Using_LinearModel');`

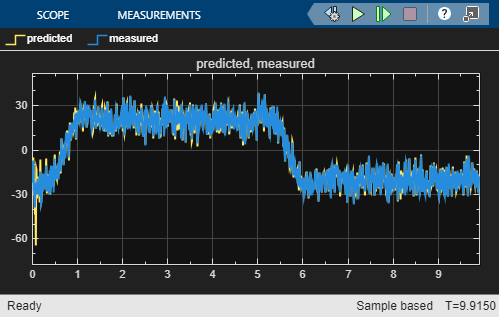

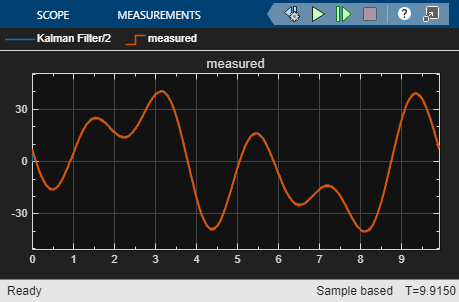

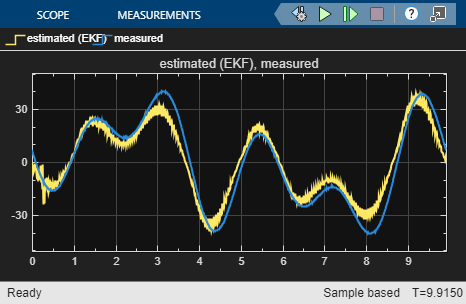

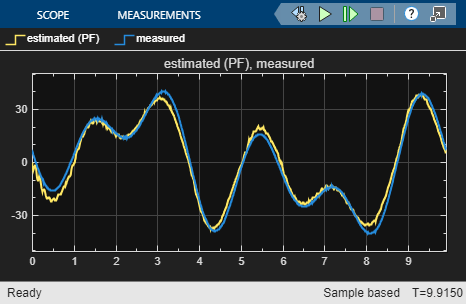

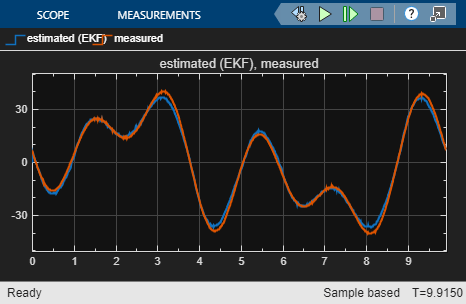

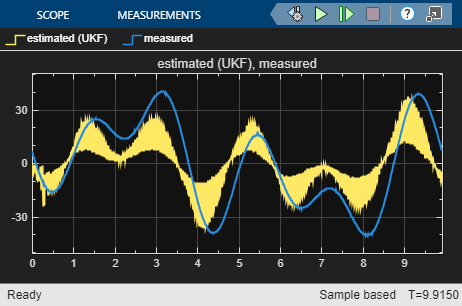

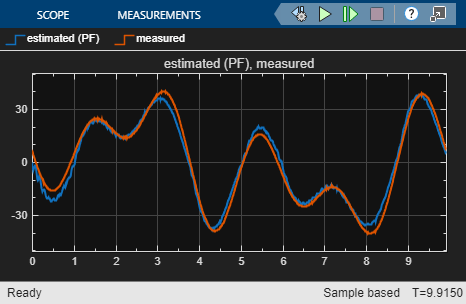

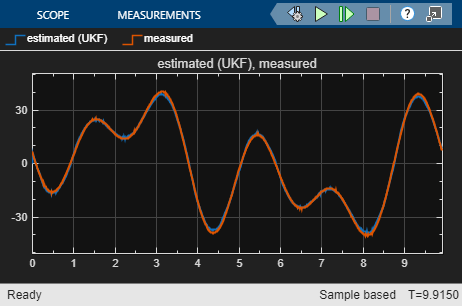

The scopes show the comparison of the measured output against the predicted one. The continuous-time, linear, Kalman filter provides the best fit; the other (nonlinear) estimators also show good fits. However, the estimation is performed only one step ahead, which is typically more accurate than longer horizon predictions, where the measurements are used at a smaller frequency to update the predictions. Doing predictions and corrections at different rates requires enabling the multi-rate technique in the filter blocks.

#### Multi-Rate Technique for Longer Horizon Prediction

Multi-rate operation is supported for the nonlinear state estimators - EKF, UKF and Particle filters. Choose to correct the predictions using measurements once for every 10 predictions. This effectively achieves a 10-step ahead prediction.

`Ts2 = 10*Ts; % correction interval (Ts is prediction interval)`

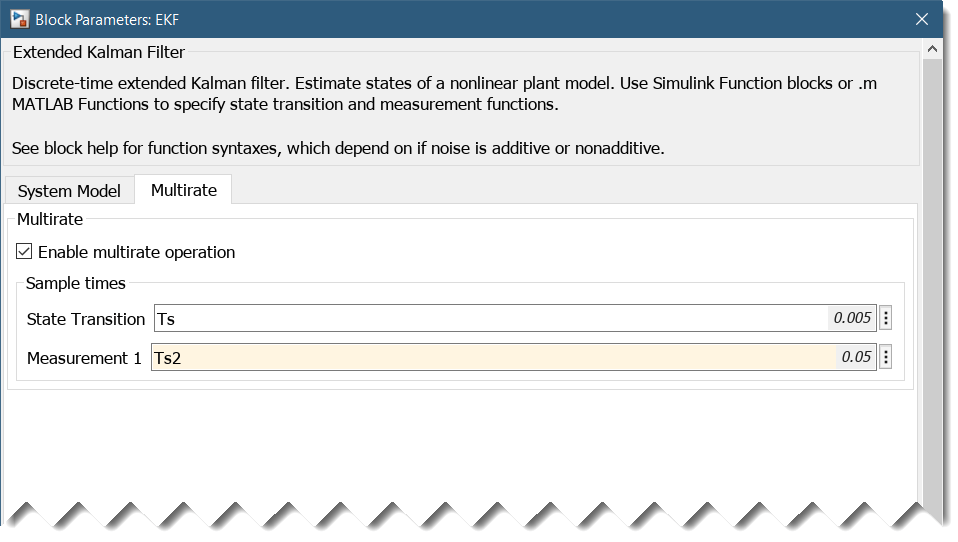

Enable multi-rate operation under the corresponding tab of the filter dialog.

In order to provide the measurements at a slower rate, you also need to insert rate transition blocks at the input ports of the EKF, UKF, and Particle Filter blocks. This is implemented in the model `StateEstimation_Using_LinearModelMultiRate.slx`

.

open_system('StateEstimation_Using_LinearModelMultiRate') sim('StateEstimation_Using_LinearModelMultiRate');

#### 10-Step Prediction Results

The filter performance is not as good as in the 1-step ahead prediction case where you are able to correct the predictions at each time instant. The longer-term predictions can be improved by using nonlinear models.

#### Linear Time Invariant Box-Jenkins (BJ) Polynomial Model

The linear model chosen to provide the measured and noise dynamics need not be based on a state-space form. You can identify a model of any structure, although it is preferable to use a form that contains a nontrivial noise component (that is, $\mathit{H}\left(\mathit{q}\right)\ne 1$). With such models, the state predictors have the ability to perform corrections using available measurements in real-time applications.

As an example, estimate a Box-Jenkins polynomial model and convert it into a state-space form.

```
% Estimate a Box-Jenkins model of orders nb=nf=5, nc=nd=3, nk=1
sysBJ = bj(eData,[5 3 3 5 1])
```

sysBJ = Discrete-time BJ model: y(t) = [B(z)/F(z)]u(t) + [C(z)/D(z)]e(t) B(z) = 0.8549 z^-1 - 1.104 z^-2 + 0.4614 z^-3 + 0.3785 z^-4 - 0.5058 z^-5 C(z) = 1 + 0.9427 z^-1 + 0.818 z^-2 + 0.2944 z^-3 D(z) = 1 - 1.404 z^-1 + 1.054 z^-2 - 0.5757 z^-3 F(z) = 1 - 1.781 z^-1 + 1.009 z^-2 + 0.3544 z^-3 - 0.987 z^-4 + 0.4076 z^-5 Sample time: 0.005 seconds Parameterization: Polynomial orders: nb=5 nc=3 nd=3 nf=5 nk=1 Number of free coefficients: 16 Use "polydata", "getpvec", "getcov" for parameters and their uncertainties. Status: Estimated using BJ on time domain data "estimation data". Fit to estimation data: 95.73% (prediction focus) FPE: 0.8102, MSE: 0.7909 Model Properties

```
% Validate the model
compare(vData, sysBJ)
```

```
% Convert the model into state-space form
sysSS = idss(sysBJ)
```

sysSS = Discrete-time identified state-space model: x(t+Ts) = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x5 x6 x7 x8 x1 1.781 -1.009 -0.3544 0.987 -0.8153 0 0 0 x2 1 0 0 0 0 0 0 0 x3 0 1 0 0 0 0 0 0 x4 0 0 1 0 0 0 0 0 x5 0 0 0 0.5 0 0 0 0 x6 0 0 0 0 0 1.404 -1.054 0.5757 x7 0 0 0 0 0 1 0 0 x8 0 0 0 0 0 0 1 0 B = Torque x1 2 x2 0 x3 0 x4 0 x5 0 x6 0 x7 0 x8 0 C = x1 x2 x3 x4 x5 x6 x7 x8 Angular Velo 0.4275 -0.5519 0.2307 0.1893 -0.5058 1.173 -0.1179 0.4351 D = Torque Angular Velo 0 K = Angular Velo x1 0 x2 0 x3 0 x4 0 x5 0 x6 2 x7 0 x8 0 Sample time: 0.005 seconds Parameterization: FREE form (all coefficients in A, B, C free). Feedthrough: none Disturbance component: estimate Number of free coefficients: 88 Use "idssdata", "getpvec", "getcov" for parameters and their uncertainties. Status: Created by conversion from idpoly model. Model Properties

`sysSS`

is a state-space model that can be used in various types of filters as discussed above.

### Grey-Box LTI Models

A *structured* or a *grey-box *modeling approach is used when the governing equations of motion are known, but the values of one or more coefficients used in these equations need to be estimated. A generic linear representation of a stochastic state-space model is:

$$\begin{array}{l}\dot{\mathit{x}}=\mathrm{Ax}\left(\mathit{t}\right)+\mathrm{Bu}\left(\mathit{t}\right)+\mathrm{Gw}\left(\mathit{t}\right)\\ \mathit{y}\left(\mathit{t}\right)=\mathrm{Cx}\left(\mathit{t}\right)+\mathrm{Du}\left(\mathit{t}\right)+\mathrm{Hw}\left(\mathit{t}\right)+\mathit{v}\left(\mathit{t}\right)\end{array}$$

where $\mathit{w}\left(\mathit{t}\right)$ denotes process noise and $\mathit{v}\left(\mathit{t}\right)$ represents output measurement noise; both are white noise processes. For the purpose of this example, suppose the *ideal* governing equations in a noise-free form are known. For example, this could be a set of differential or difference equations relating $\mathit{y}\left(\mathit{t}\right)$ to $\mathit{u}\left(\mathit{t}\right)$. In a state-space representation, this means that A, B, C, D matrices are known, However, the effect of noise properties can be harder to determine and require separate experimentation.

A linear approximation of the robot arm dynamics is as follows:

$$\begin{array}{l}\mathbf{State}\text{\hspace{0.17em}}\mathbf{definition}:\\ {\mathit{x}}_{1}\left(\mathit{t}\right)={\mathit{q}}_{\mathit{m}}\left(\mathit{t}\right)-{\mathit{q}}_{\mathit{g}}\left(\mathit{t}\right)\\ {\mathit{x}}_{2}\left(\mathit{t}\right)={\mathit{q}}_{\mathit{g}}\left(\mathit{t}\right)-{\mathit{q}}_{\mathit{a}}\left(\mathit{t}\right)\\ {\mathit{x}}_{3}\left(\mathit{t}\right)={\dot{\mathit{q}}}_{\mathit{m}}\left(\mathit{t}\right)\\ {\mathit{x}}_{4}\left(\mathit{t}\right)={\dot{\mathit{q}}}_{\mathit{g}}\left(\mathit{t}\right)\\ {\mathit{x}}_{5}\left(\mathit{t}\right)={\dot{\mathit{q}}}_{\mathit{a}}\left(\mathit{t}\right)\text{\hspace{0.17em}}\end{array}$$

$$\begin{array}{l}\mathbf{Linearized}\text{\hspace{0.17em}}\mathbf{equations}\text{\hspace{0.17em}}\mathbf{of}\text{\hspace{0.17em}}\mathbf{motion}:\\ {\dot{\mathit{x}}}_{1}\left(\mathit{t}\right)={\mathit{x}}_{3}\left(\mathit{t}\right)-{\mathit{x}}_{4}\left(\mathit{t}\right)\\ {\dot{\mathit{x}}}_{2}\left(\mathit{t}\right)={\mathit{x}}_{4}\left(\mathit{t}\right)-{\mathit{x}}_{5}\left(\mathit{t}\right)\\ {\dot{\mathit{x}}}_{3}\left(\mathit{t}\right)=-{\mathit{k}}_{31}{\mathit{x}}_{1}-{\mathit{k}}_{33}{\mathit{x}}_{3}+{\mathit{k}}_{34}{\mathit{x}}_{4}+\mathrm{bu}\left(\mathit{t}\right)\\ {\dot{\mathit{x}}}_{4}\left(\mathit{t}\right)={\mathit{k}}_{41}{\mathit{x}}_{1}-{\mathit{k}}_{42}{\mathit{x}}_{2}+{\mathit{k}}_{43}{\mathit{x}}_{3}-{\mathit{k}}_{44}{\mathit{x}}_{4}+{\mathit{k}}_{45}{\mathit{x}}_{5}\\ {\dot{\mathit{x}}}_{5}\left(\mathit{t}\right)={\mathit{k}}_{52}{\mathit{x}}_{2}+{\mathit{k}}_{5}\left({\mathit{x}}_{4}\left(\mathit{t}\right)-{\mathit{x}}_{5}\left(\mathit{t}\right)\right)\\ \mathit{y}\left(\mathit{t}\right)={\mathit{x}}_{3}\left(\mathit{t}\right)\end{array}$$

The tunable parameters are ${\mathit{k}}_{31},\text{\hspace{0.17em}}{\mathit{k}}_{33},{\text{\hspace{0.17em}}\mathit{k}}_{34},\text{\hspace{0.17em}}\mathit{b},{\text{\hspace{0.17em}}\mathit{k}}_{41},{\text{\hspace{0.17em}}\mathit{k}}_{42},{\text{\hspace{0.17em}}\mathit{k}}_{43},{\text{\hspace{0.17em}}\mathit{k}}_{44},{\text{\hspace{0.17em}}\mathit{k}}_{45},{\text{\hspace{0.17em}}\mathit{k}}_{52},{\text{\hspace{0.17em}}\mathit{k}}_{5}$ with the constraint that all are non-negative. In state-space form, these equations can be written as:

$$A=\left(\begin{array}{ccccc}0& 0& 1& -1& 0\\ 0& 0& 0& 1& -1\\ -{k}_{31}& 0& -{k}_{33}& {k}_{34}& 0\\ {k}_{41}& -{k}_{42}& {k}_{43}& -{k}_{44}& {k}_{45}\\ 0& {k}_{52}& 0& {k}_{5}& -{k}_{5}\end{array}\right)$$, $$B=\left(\begin{array}{c}0\\ 0\\ b\\ 0\\ 0\end{array}\right)$$, $$C=\left(\begin{array}{ccccc}0& 0& 1& 0& 0\end{array}\right),\phantom{\rule{0.5em}{0ex}}\phantom{\rule{0.5em}{0ex}}D=0$$

The physical knowledge leading to these equations do not enlighten us about the nature of the process disturbances. Embed these equations into a stochastic form by adding process noise and measurement noise terms.

$$\begin{array}{l}\dot{\mathit{X}}\left(\mathit{t}\right)=\mathrm{AX}\left(\mathit{t}\right)+\mathrm{Bu}\left(\mathit{t}\right)+\mathit{w}\left(\mathit{t}\right)\\ \mathit{y}\left(\mathit{t}\right)=\mathrm{CX}\left(\mathit{t}\right)+\mathrm{Du}\left(\mathit{t}\right)+\mathit{v}\left(\mathit{t}\right)\end{array}$$

where $\mathit{w}\left(\mathit{t}\right)$ and $\mathit{v}\left(\mathit{t}\right)$ are independent white-noise terms with covariance matrices ${\mathit{R}}_{\mathit{w}}=\mathit{E}\left\{{\mathrm{ww}}^{\prime}\right\},{\mathit{R}}_{\mathit{y}}=\mathit{E}\left\{{\mathrm{vv}}^{\prime}\right\}$. Assume that ${\mathit{R}}_{\mathit{w}}$ to be a diagonal matrix with unknown entries. Also assume that ${\mathit{R}}_{\mathit{y}}$ is known to be equal to 1.

In this form, the unknowns to be estimated are: ${\mathit{k}}_{31},\text{\hspace{0.17em}}{\mathit{k}}_{33},\text{\hspace{0.17em}}{\mathit{k}}_{34},\text{\hspace{0.17em}}\mathit{b},{\text{\hspace{0.17em}}\mathit{k}}_{41},{\text{\hspace{0.17em}}\mathit{k}}_{42},{\text{\hspace{0.17em}}\mathit{k}}_{43},{\text{\hspace{0.17em}}\mathit{k}}_{44},{\text{\hspace{0.17em}}\mathit{k}}_{45},{\text{\hspace{0.17em}}\mathit{k}}_{52},{\text{\hspace{0.17em}}\mathit{k}}_{5},{\text{\hspace{0.17em}}\mathit{r}}_{\mathrm{w1}},\text{\hspace{0.17em}}{\mathit{r}}_{\mathrm{w2}},\text{\hspace{0.17em}}{\mathit{r}}_{\mathrm{w3}},{\text{\hspace{0.17em}}\mathit{r}}_{\mathrm{w4}},{\text{\hspace{0.17em}}\mathit{r}}_{\mathrm{w5}}$, where ${\mathit{r}}_{\mathrm{wi}},\mathit{i}=1,..,5$ are the diagonal entries of ${\mathit{R}}_{\mathit{w}}.$ In order to estimate these values, use the linear grey-box modeling framework. This typically involves 4 steps.

#### Step 1: Prepare the ODE Function

Write a MATLAB function (called an *ODE file*) that computes the state-space matrices (in the innovations form) as a function of these unknowns.

`type robotARMLinearODE`

function [A,B,C,D,K] = robotARMLinearODE(k31,k33,k34,b,k41,k42,k43,k44,k45,k52,k5,r,Ts,varargin) % Linear ODE file for use in linear grey box model identification. % k*: unknown coefficients of the A matrix % b: unknown coefficient in the B matrix % r*: unknown entries of the process noise covariance matrix % Copyright 2022 The MathWorks, Inc. Warn = warning('off','Ident:estimation:PredictorCorrectionFailure'); warning off 'Control:design:MustBePositiveDefinite' Clean = onCleanup(@()warning(Warn)); A = [ 0, 0, 1, -1, 0; 0, 0, 0, 1, -1; -k31, 0, -k33, k34, 0; k41, -k42, k43, -k44, k45; 0, k52, 0, k5, -k5]; B = [0,0,b,0,0]'; C = [0,0,1,0,0]; D = 0; Rw = diag(r); Ry = 1; % Compute Kalman gain (requires Control System Toolbox) if norm(r,inf)<1e-12 K = zeros(5,1); else [~,K] = kalman(ss(A,eye(5),C,0,0),Rw,Ry); end

**Step 2**: Create a Linear Grey Box Template Model (idgrey object)

Create a template `idgrey`

model that puts together the ODE function and the initial guess values of its parameters.

% Specify the name or function handle to the MATLAB function that specifies the ODE equations ODEFun = @robotARMLinearODE; % Assign initial guess values to the model's parameters Fv = 0.00986347; J = 0.032917; a_m = 0.17911; a_g = 0.612062; k_g = 20.5927; d_g = 0.0624181; k_a = 20.2307; d_a = 0.00987528; b = 1/J/a_m; k31 = b*k_g; k33 = b*(d_g+Fv); k34 = b*d_g; k41 = 1/J/a_g*k_g; k42 = 1/J/a_g*k_a; k43 = 1/J/a_g*d_g; k44 = 1/J/a_g*(d_g+d_a); k45 = 1/J/a_g*d_a; k52 = k_a/J/(1-a_m-a_g); k5 = d_a/J/(1-a_m-a_g); r = zeros(1,5); % diagonal entries of R_w ParameterGuess = {'k31',k31;... 'k33',k33; ... 'k34',k34; ... 'b',b; ... 'k41',k41;... 'k42',k42;... 'k43',k43;... 'k44',k44;... 'k45',k45; 'k52',k52;... 'k5',k5;... 'r',r}; % Create an idgrey model by assigning the ODE function and the initial guess values for all the % parameters. Use 'c' to denote that the ODE function uses a continuous-time description. sysGRini = idgrey(ODEFun,ParameterGuess,'c',[],0)

sysGRini = Continuous-time linear grey box model defined by @robotARMLinearODE function: dx/dt = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x5 x1 0 0 1 -1 0 x2 0 0 0 1 -1 x3 -3493 0 -12.26 10.59 0 x4 1022 -1004 3.098 -3.588 0.4902 x5 0 2943 0 1.437 -1.437 B = u1 x1 0 x2 0 x3 169.6 x4 0 x5 0 C = x1 x2 x3 x4 x5 y1 0 0 1 0 0 D = u1 y1 0 K = y1 x1 0 x2 0 x3 0 x4 0 x5 0 Model parameters: k31 = 3493 k33 = 12.26 k34 = 10.59 b = 169.6 k41 = 1022 k42 = 1004 k43 = 3.098 k44 = 3.588 k45 = 0.4902 k52 = 2943 k5 = 1.437 r = 0 0 0 0 0 Parameterization: ODE Function: @robotARMLinearODE Disturbance component: parameterized by the ODE function Initial state: 'auto' Number of free coefficients: 16 Use "getpvec", "getcov" for parameters and their uncertainties. Status: Created by direct construction or transformation. Not estimated. Model Properties

% Lower bound the parameters (all parameters >=0) P = sysGRini.Structure.Parameters; for i = 1:numel(P) P(i).Minimum = 0; end sysGRini.Structure.Parameters = P;

**Step 3**: Estimate Model Parameters

Perform estimation using the `greyest`

command.

opt = greyestOptions; Wid = warning('off','Ident:estimation:PredictorCorrectionFailure'); WarnResetter = onCleanup(@()warning(Wid)); % Fix the initial states to zeros (they will not be updated by estimation) opt.InitialState = zeros(5,1); % Estimate model parameters sysGR = greyest(eData, sysGRini, opt)

sysGR = Continuous-time linear grey box model defined by @robotARMLinearODE function: dx/dt = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x5 x1 0 0 1 -1 0 x2 0 0 0 1 -1 x3 -2102 0 -7.171 9.767 0 x4 721.2 -411.5 0.05869 -2.068 0.0008415 x5 0 3886 0 17.25 -17.25 B = Torque x1 0 x2 0 x3 120.7 x4 0 x5 0 C = x1 x2 x3 x4 x5 Angular Velo 0 0 1 0 0 D = Torque Angular Velo 0 K = Angular Velo x1 -1.263 x2 -0.1483 x3 65.71 x4 -2.804 x5 4.162 Model parameters: k31 = 2102 k33 = 7.171 k34 = 9.767 b = 120.7 k41 = 721.2 k42 = 411.5 k43 = 0.05869 k44 = 2.068 k45 = 0.0008415 k52 = 3886 k5 = 17.25 r = 3.96 0.1688 5.82 290.8 8755 Parameterization: ODE Function: @robotARMLinearODE Disturbance component: parameterized by the ODE function Initial state: fixed to double value Number of free coefficients: 16 Use "getpvec", "getcov" for parameters and their uncertainties. Status: Estimated using GREYEST on time domain data "estimation data". Fit to estimation data: 86.94% (prediction focus) FPE: 7.523, MSE: 7.403 Model Properties

**Step 4**: Model Validation

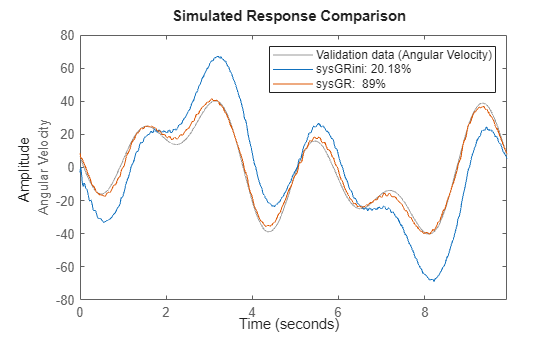

compare(vData,sysGRini,sysGR)

Finally, convert the model into the standard linear-space form (`idss`

), and/or extract state-space matrices from it for use in the various state estimators using the `idssdata`

command.

sysSSgr = idss(sysGR)

sysSSgr = Continuous-time identified state-space model: dx/dt = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x5 x1 0 0 1 -1 0 x2 0 0 0 1 -1 x3 -2102 0 -7.171 9.767 0 x4 721.2 -411.5 0.05869 -2.068 0.0008415 x5 0 3886 0 17.25 -17.25 B = Torque x1 0 x2 0 x3 120.7 x4 0 x5 0 C = x1 x2 x3 x4 x5 Angular Velo 0 0 1 0 0 D = Torque Angular Velo 0 K = Angular Velo x1 -1.263 x2 -0.1483 x3 65.71 x4 -2.804 x5 4.162 Parameterization: STRUCTURED form (some fixed coefficients in A, B, C). Feedthrough: none Disturbance component: estimate Number of free coefficients: 17 Use "idssdata", "getpvec", "getcov" for parameters and their uncertainties. Status: Created by conversion from idgrey model. Model Properties

[A,B,C,D,K] = idssdata(sysGR); NV = sysGR.NoiseVariance;

### Linear Time-Varying Models

One of the important reasons for using Kalman filters is to perform accurate predictions when the system itself is changing over time. In the Kalman Filter block, time-varying estimation is enabled by feeding in the system matrices as signals (set the `Model source`

drop-down option to "`Input port`

" and press `Apply`

in the block's parameters dialog).

However, offline estimation algorithms such as `ssest`

cannot identify time-varying systems. To do so, you must use the recursive estimation blocks provided in the Estimators library of System Identification Toolbox block library (`slident`

). In particular, use the` Recursive Polynomial Model Estimator`

block to recursively estimate the coefficients of polynomial models of various structures such as ARX, Output-Error (OE) or Box-Jenkins (BJ). You can feed the parameter values computed by this block into a `Model Type Converter`

block in order to obtain the state-space matrices required by the Kalman filter.

#### The ARMAX Recursive Estimator

For this example, use a recursive ARMAX estimator. Then compute the `A, B, C, D`

matrices and process noise matrix `G`

from the estimated parameters using the `Model Type Converter`

blocks.

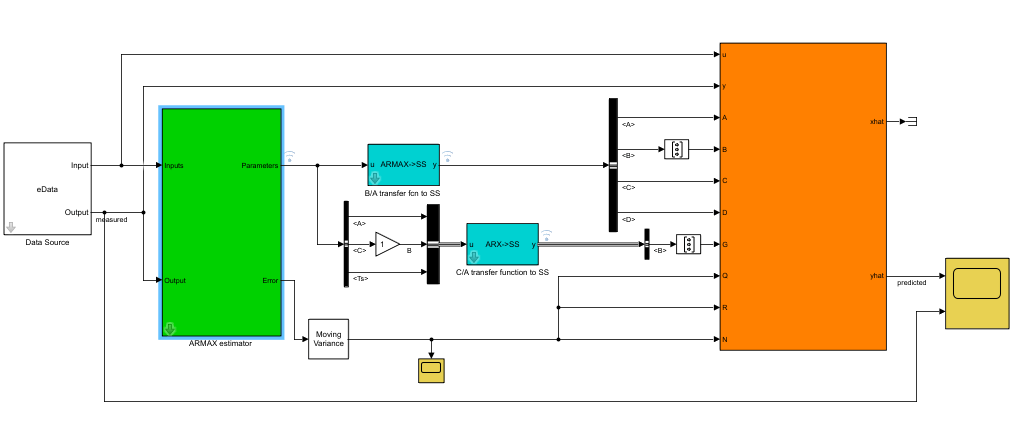

`open_system('TimeVaryingStateEstimator')`

The `G`

matrix is computed by taking the `A, C`

polynomial estimates from the ARMAX estimator, renaming bus signal `C`

to `B`

and then passing it to the `Model Type Converter`

block. The rename is required since the `Model Type Converter`

works only with measured dynamics of the polynomial model ($\mathit{B}\left(\mathit{q}\right)/\mathit{A}\left(\mathit{q}\right)$ transfer function from the ARMAX model $\mathit{A}\left(\mathit{q}\right)\mathit{y}\left(\mathit{t}\right)=\mathit{B}\left(\mathit{q}\right)\mathit{u}\left(\mathit{t}\right)+\mathit{C}\left(\mathit{q}\right)\mathit{e}\left(\mathit{t}\right)$), but the dynamics we are interested in generating concerns the noise ($\mathit{C}\left(\mathit{q}\right)/\mathit{A}\left(\mathit{q}\right)$) transfer function from the ARMAX model.

#### Estimation Results

Simulation of the model shows good tracking of the measured output.

`sim('TimeVaryingStateEstimator');`

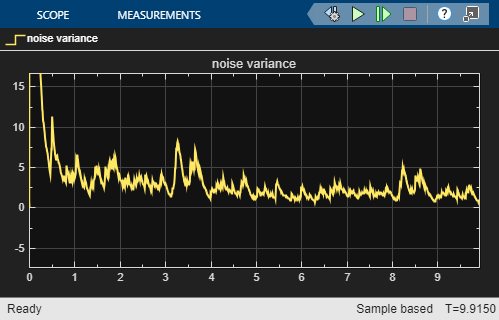

The first plot (left) compares the measured output (blue) against the values predicted by the time varying Kalman filter (yellow). The second plot (right) shows the output error variance as estimated by the ARMAX estimator block. The computation is performed using the `Moving Variance`

block from DSP System Toolbox™.
